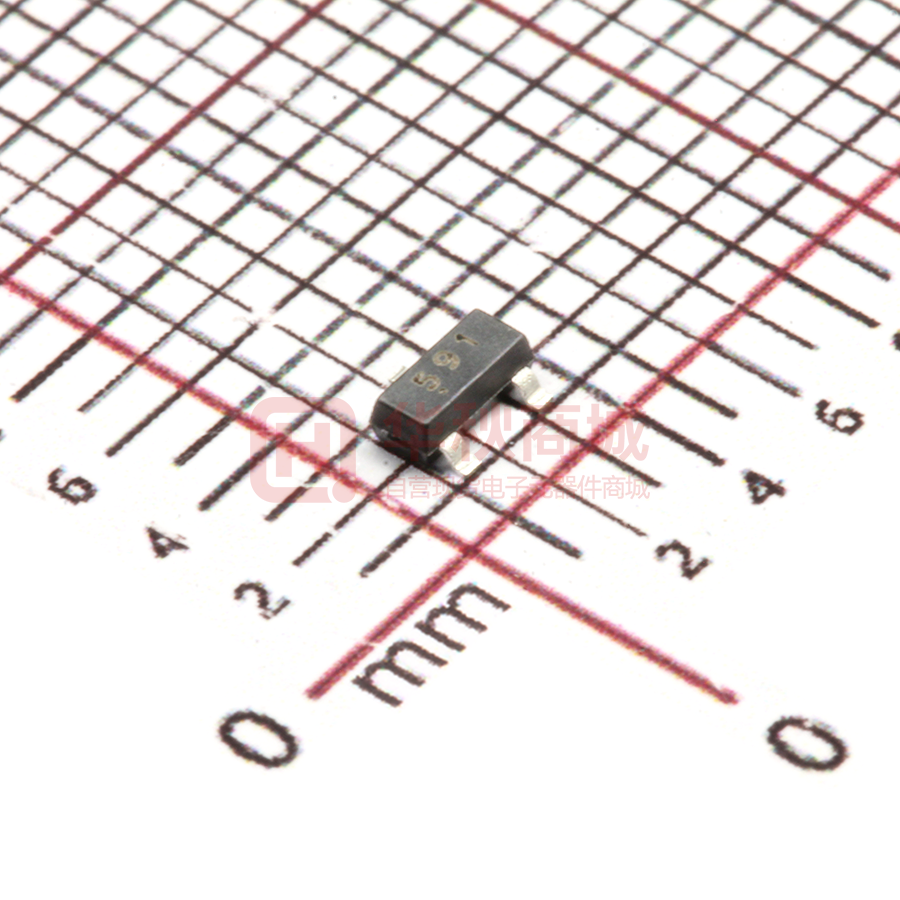

FMMT591
PNP Silicon Epitaxial Planar Transistor
Features
SOT-23
Low equivalent on-resistance
Be complementary with FMMT491
1.Base 2.Emitter 3.Collector
Absolute Maximum Ratings
Ratings at 25℃ ambient temperature unless otherwise specified.
Parameter
Symbol
Value
Unit
Collector Base Voltage
-VCBO
80
V
Collector Emitter Voltage
-VCEO
60
V
Emitter Base Voltage
-VEBO
5
V
Collector Current
-IC
1
A
Peak Pulse Current
-ICM
2
A
Power Dissipation
PD
500
mW
Junction Temperature
TJ
150
℃
TSTG
-55 to 150
℃
Storage Temperature Range
www.slkormicro.com
1
FMMT591
Electrical Characteristics
Ratings at 25℃ ambient temperature unless otherwise specified.
Parameter
Symbol
Min.
Typ.
Max.
100
-
-
HFE
100
300
80
15
-
-ICBO
-
-
100
nA
DC Current Gain note1
at -VCE = 5 V, -IC = 1 mA
at -VCE = 5 V, -IC = 500 mA
at -VCE = 5 V, -IC = 1 A
at -VCE = 5 V, -IC = 2 A
-
Unit
-
Collector Base Cutoff Current
at -VCB = 60 V
Emitter Base Cutoff Current
at -VEB = 5.6 V
Collector Base Breakdown Voltage
at -IC = 100 μA
Collector Emitter Breakdown Voltage
at -IC = 10 mA
Emitter Base Breakdown Voltage
at -IE = 100 μA
-IEBO
-
-
100
nA
-V(BR)CBO
80
-
-
V
-V(BR)CEO
60
-
-
V
-V(BR)EBO
5
-
-
V
Collector Emitter Saturation Voltage note1
at -IC = 500 mA, -IB = 50 mA
at -IC =1 A, -IB = 100 mA
-VCE(sat)
-
-
300
600
mV
-VBE(sat)
-
-
1.2
V
-VBE(on)
-
-
1
V
FT
150
-
-
MHz
-
10
pF
Base Emitter Saturation Voltage note1
at -IC = 1 A, -IB = 100 mA
Base Emitter Voltage note1
at -VCE = 5 V, -IC = 1 A
Transition Frequency
at -VCE = 10 V, -IC = 50 mA, f= 100MHz
Collector Output Capacitance
Cob
at -VCB = 10 V, f= 1MHz
Note1: Measured under pulsed condition, Pulse width ≤ 300uS, Duty cycle2%.
www.slkormicro.com
2
FMMT591
-400
-1000
-2mA
-1.8mA
-1.6mA
DC CURRENT GAIN hFE
o
C
I
-350
-1.4m A
-1.2mA
COLLECTOR CURRENT
(mA)
-300
-250
-1.0mA
-800uA
-200
-600uA
-150
-400uA
-100
IB=-200uA
Ta=100 C
o
Ta=25 C
-100
VCE=-5V
-10
-50
-0
-2
-4
-6
-8
COLLECTOR-EMITTER VOLTAGE
-10
VCE
-12
-1
-10
-100
COLLECTOR CURRENT
(V)
IC
-1000
(mA)
-1000
BASE-EMITTER SATURATION
VOLTAGE VBEsat (mV)
COLLECTOR-EMITTER SATURATION
VOLTAGE VCEsat (mV)
-2000
-100
Ta=100℃
Ta=25℃
-10
-1000
Ta=25 ℃
Ta=100℃
β=10
-1
-0. 1
-1
-100
-10
COLLECTOR CURRENT
β=10
-100
-0.1
-1000
-100
-10
COLLECTOR CURRENT
IC (mA)
IC
-1000
(mA)
1000
-1000
f=1MHz
IE=0/ IC=0
-800
o
(pF)
Ta=25 C
Ta=25℃
BASE-EMMITER VOLTAGE
(mV)
VBE
-1
-400
CAPACITANCE
C
-600
Ta=100 ℃
-200
VCE=-5V
-1
-100
-10
COLLCETOR CURRENT
IC
fT
TRANSITION FREQUENCY
(MHz)
VCE=-10V
Ta = 25℃
10
www.slkormicro.com
10
0
4
6
8
10
12
14
16
VR
(V)
18
20
600
500
400
300
200
100
0
-60
-10
IC
2
REVERSE VOLTAGE
100
COLLECTOR CURRENT
Cob
(mA)
500
-3
Cib
-1000
COLLECTOR POWER DISSIPATION PC (mW)
-0
-0.1
100
0
25
50
75
AMBIENT TEMPERATURE
(mA)
3
100
Ta (℃)
125
150
FMMT591
Package Outline(SOT-23)
Symbol
Dimensions in millimeter
Min.
Typ.
Max.
A
0.900
1.025
1.150
A1
0.000
0.050
0.100
b
0.300
0.400
0.500
c
0.080
0.115
0.150
D
2.800
2.900
3.000
E
1.200
1.300
1.400
HE
2.250
2.400
2.550
e
1.800
1.900
2.000
L1
0.550REF
L
0.300
θ
0°
0.500
8°
Ordering Information
Device
FMMT591
www.slkormicro.com
Package
SOT-23
Reel Dimension (inch)
7
4
Shipping
3,000
