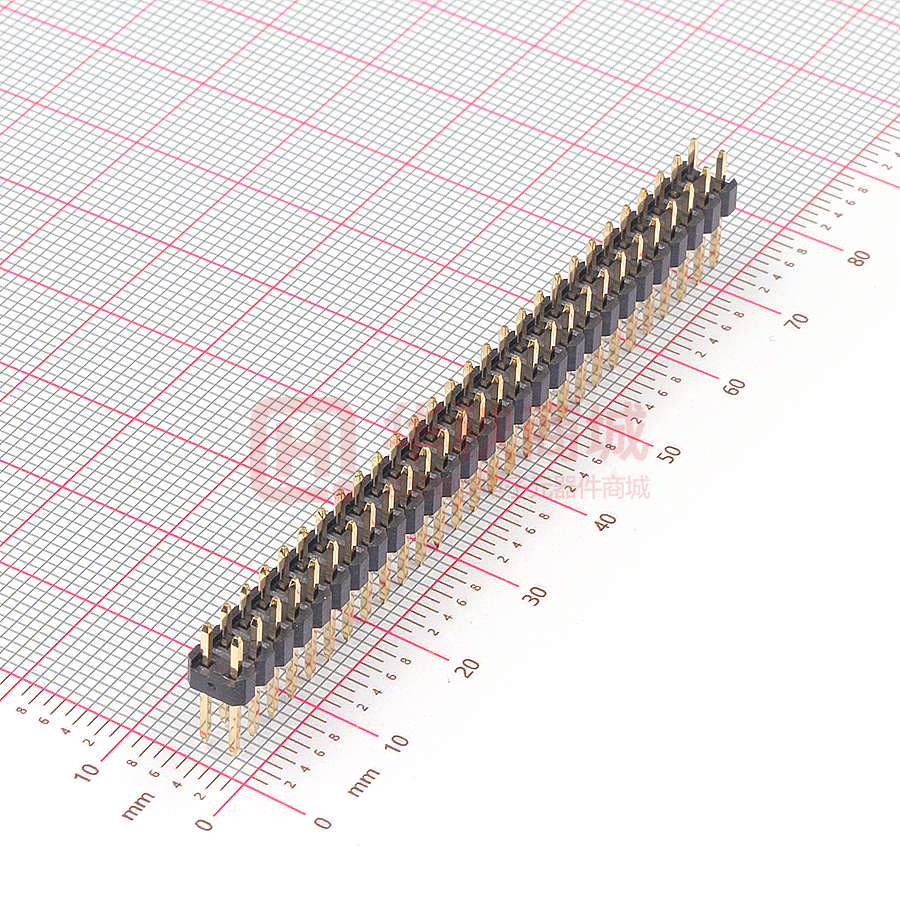

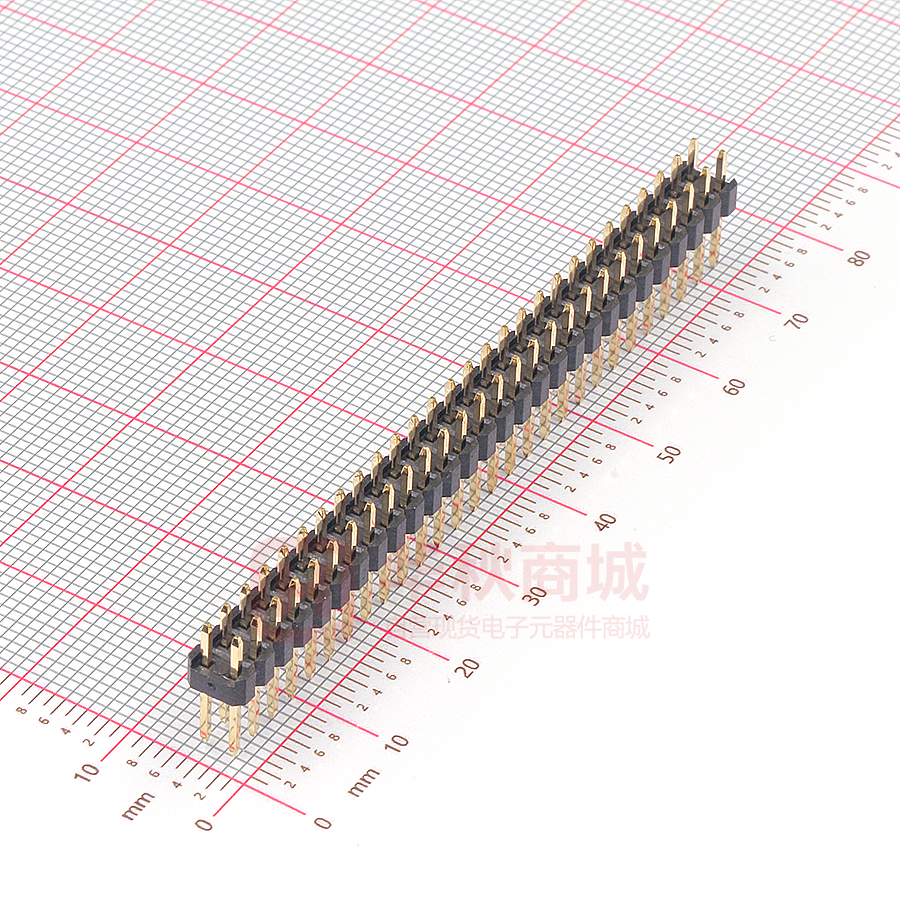

X6521WV-2X28H-C60D30

Specifications: 规格： Voltage rating:250V AC/DC 额定电压：250V AC/DC Current rating:3A AC/DC 额定电流：3A AC/DC Withstanding voltage:1000V AC/minute 耐受电压：1000V AC/分钟 Temperature range:-40℃-+105℃ 温度范围：-40℃-+105℃ Insulation resistance:≥1000MΩ 绝缘电阻：≥1000MΩ Contact resistance:≤20mΩ 接触电阻：≤20mΩ Material:PA6T UL94V-0 材质：PA6T UL94V-0 Plating Category:1U"Gold 镀层：1U"Gold Wave soldring temperature:255±5℃，10S 波峰焊温度：255±5℃，10S 2.54 [0.100] 2.54 x No.of Positions±0.3 6 1 3 5 SQ0.64 [0.025] 2.54 [0.100] H=2.5 [0.098] 2.54 [0.100] X6521 W D=3.0 [0.117] 4 C=6.0 [0.235] 2 5.0 [0.197] 2.54 x No.of Contacts -2.54±0.2 1 X X X DATE REVISIONS www.helloxkb.com 5 4 6 7 1.Series No 2.Category:W-Wafer 3.Welding Board Angle:V-Stright 180° 4.Row No.Pin No:2xXX-2x01~2x40P 5.Plastic Height:H=2.5mm 6.Pin Length:C=6.0mm 7.Pin Length:D=3.0mm X6521WV-2xXXH-C60D30 PA6T Brass X6521F PART N0 Material Material(Pin) Suitable XKB Female DWN SCALE: N/A MODEL TYPE: 2.54mm BTB Connector VIEW: PART NO.: CHKD UNIT: mm/in APPD SIZE: A4 DSND DESCRIPTION 3 Ø1.02 [Ø0.040] 2.54 [0.100] PCB LAYOUT MARK 2 V - 2xXX H - C60 D30 www.helloxkb.cn www.xk-dg.cn REVISED APPROVED ANGLAR L≤ 4 4
