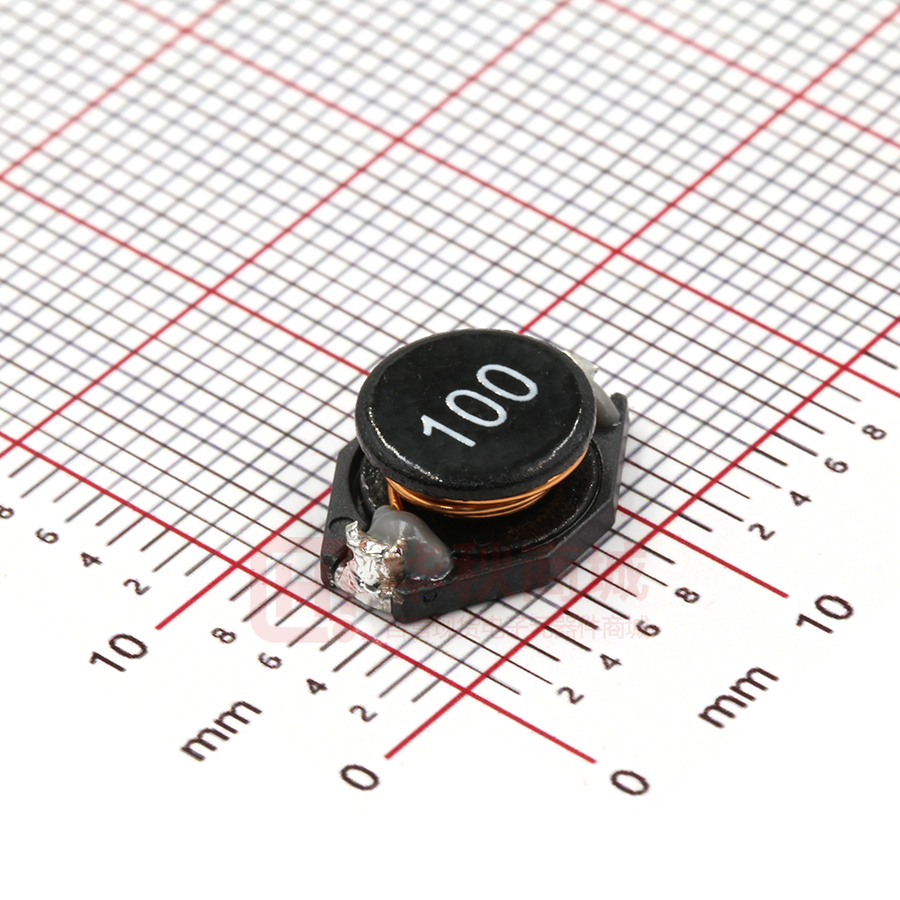

SSL0804T-100M-N

Cautions and Warnings Please be noted that this spec is only for reference if you have projects designed with the product number listed in. If you are looking for new project design-in, please find BPSL Series specification/datasheet on Chilisin website. Or you may find our sales contact for more information on old part number at your convenience. Appreciated your attention and understanding. Note: Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Unshielded Power Inductors - SSL Series SSL Series Features Applications  RoHS, Halogen Free and REACH Compliance  Unshielded power inductor  Various package size and wide inductance range. SSL-HC family is designed for low resistance and high current purpose  DC/DC converters Product Identification  Packaging: T：Tape and Reel , B：Bulk Shape and Dimensions Recommended Pattern SSL0402 Dimensions in mm A B +0 6.60 Dimensions in mm C +0 4.45 +0 2.92 D E F TYPE A B C D 1.02 1.27 4.32 SSL0402 1.40 4.06 6.86 3.56 SSL0804/ 0810 Dimensions in mm TYPE A Dimension in mm B C D E F 2.54 2.54 7.62 SSL0810 12.95+0 9.40+0 11.43+0 2.54 2.54 7.62 SSL0804 12.95+0 9.40+0 5.21+0 TYPE A B C D SSL0804 2.92 7.37 13.21 2.79 SSL0810 2.92 7.37 13.21 2.79 SSL1306 Dimensions in mm Dimension in mm A B C D E F TYPE A B C D 18.54+0 15.24+0 7.11+0 2.54 2.54 12.7 SSL1306 2.92 12.45 18.29 2.79 SMD Unshielded Power Inductors – SSL Series Electrical Characteristics Inductance Tolerance SRF RDC Isat Irms (H) (±%) (MHz) Typ. (Ω) Max (A) (A) SSL0402T-1R0M-N 1.0 20 130 0.05 2.90 2.9 SSL0402T-1R5M-N 1.5 20 115 0.05 2.60 2.8 SSL0402T-2R2M-N 2.2 20 90 0.07 2.30 2.4 SSL0402T-3R3M-N 3.3 20 70 0.08 2.00 2.0 SSL0402T-4R7M-N 4.7 20 50 0.09 1.50 1.5 SSL0402T-5R6M-N 5.6 20 47 0.11 1.30 1.4 SSL0402T-6R8M-N 6.8 20 45 0.13 1.20 1.4 SSL0402T-100M-N 10 20 35 0.16 1.10 1.1 SSL0402T-150M-N 15 20 30 0.23 0.90 1.2 SSL0402T-220M-N 22 20 20 0.37 0.70 0.8 SSL0402T-330M-N 33 20 15 0.51 0.58 0.6 SSL0402T-470M-N 47 20 14 0.64 0.50 0.5 SSL0402T-680M-N 68 20 11 0.86 0.40 0.4 SSL0402T-101M-N 100 20 9 1.27 0.31 0.3 SSL0402T-151M-N 150 20 6 2.00 0.27 0.25 SSL0402T-221M-N 220 20 5.5 3.11 0.22 0.20 SSL0402T-331M-N 330 20 5 3.80 0.18 0.16 SSL0402T-471M-N 470 20 4 5.06 0.16 0.15 SSL0402T-681M-N 680 20 3 9.20 0.14 0.12 SSL0402T-102M-N 1000 20 2 13.8 0.10 0.07 Part Number Note: When ordering, please specify tolerance code. Tolerance: M=±20%  Operating temperature range－40℃～125℃(Including self - temperature rise)  Isat for Inductance drop 20% from its value without current  Irms for a 30℃ temperature rise from 25℃ ambient with current  Measure Equipment： L：E4980 or HP4284A , 100kHz 0.1V SRF：HP4291A or HP4192A RDC：Chroma 16502 Isat：HP4284A+HP42841A or WK3260B+WK3265B Test Instruments： Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Unshielded Power Inductors – SSL Series Electrical Characteristics Inductance Tolerance SRF RDC Isat Irms (H) (±%) (MHz) Typ. (Ω) Max (A) (A) SSL0804T-1R0M-N 1.0 20 100 0.009 9.0 6.8 SSL0804T-1R5M-N 1.5 20 90 0.010 8.0 6.4 SSL0804T-2R2M-N 2.2 20 80 0.012 7.0 6.1 SSL0804T-3R3M-N 3.3 20 65 0.015 6.4 5.4 SSL0804T-4R7M-N 4.7 20 45 0.018 5.4 4.8 SSL0804T-6R8M-N 6.8 20 38 0.027 4.6 4.4 SSL0804T-100M-N 10 20 30 0.038 3.8 3.9 SSL0804T-120M-N 12 20 27 0.0432 3.5 3.6 SSL0804T-150M-N 15 20 27 0.046 3.0 3.1 SSL0804T-220M-N 22 20 19 0.085 2.6 2.7 SSL0804T-330M-N 33 20 15 0.100 2.0 2.1 SSL0804T-470M-N 47 20 12 0.140 1.6 1.8 SSL0804T-680M-N 68 20 10 0.200 1.4 1.5 SSL0804T-101M-N 100 20 9 0.260 1.2 1.3 SSL0804T-151M-N 150 20 6 0.400 1.0 1.0 SSL0804T-221M-N 220 20 5 0.610 0.8 0.8 SSL0804T-331M-N 330 20 4.5 1.020 0.6 0.6 SSL0804T-471M-N 470 20 3.5 1.270 0.5 0.5 SSL0804T-681M-N 680 20 2.5 2.020 0.4 0.4 SSL0804T-102M-N 1000 20 2.0 3.000 0.3 0.3 SSL0804T-152M-N 1500 20 1.4 4.500 0.25 0.2 Part Number Note: When ordering, please specify tolerance code. Tolerance: M=±20%  Operating temperature range－40℃～125℃(Including self - temperature rise)  Isat for Inductance drop 20% from its value without current  Irms for a 15℃ temperature rise from 25℃ ambient with current  Measure Equipment： L：E4980 or HP4284A , 100kHz 0.1V SRF:HP4291A or HP4192A RDC：Chroma 16502 Isat：HP4284A+HP42841A or WK3260B+WK3265B Test Instruments： Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Unshielded Power Inductors – SSL Series Electrical Characteristics Inductance Tolerance SRF RDC Isat Irms (H) (±%) (MHz) Typ. (Ω) Max (A) (A) SSL0810T-3R3M-N 3.3 20 30 0.025 10 4.0 SSL0810T-4R7M-N 4.7 20 25 0.033 8.0 3.5 SSL0810T-100M-N 10 20 22 0.033 8.0 3.5 SSL0810T-150M-N 15 20 18 0.042 7.0 3.0 SSL0810T-220M-N 22 20 11 0.054 5.5 2.5 SSL0810T-330M-N 33 20 9 0.08 4.0 2.0 SSL0810T-470M-N 47 20 8 0.10 3.8 1.6 SSL0810T-680M-N 68 20 7 0.17 3.0 1.2 SSL0810T-101M-N 100 20 5 0.22 2.5 1.2 SSL0810T-151M-N 150 20 4 0.34 2.0 0.9 SSL0810T-221M-N 220 20 3.5 0.44 1.6 0.7 SSL0810T-271M-N 270 20 2.5 0.60 1.4 0.6 SSL0810T-331M-N 330 20 2.5 0.70 1.2 0.6 SSL0810T-471M-N 470 20 2 0.95 1.0 0.3 SSL0810T-681M-N 680 20 2 1.2 1.0 0.2 SSL0810T-102M-N 1000 20 1.5 2.0 0.8 0.1 Part Number Note: When ordering, please specify tolerance code. Tolerance: M=±20%  Operating temperature range－40℃～125℃(Including self - temperature rise)  Isat for Inductance drop 20% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Measure Equipment： L：E4980 or HP4284A , 100kHz 0.1V SRF:HP4291A or HP4192A RDC：Chroma 16502 Isat：HP4284A+HP42841A or WK3260B+WK3265B Test Instruments： Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Unshielded Power Inductors – SSL Series Electrical Characteristics Inductance Tolerance SRF RDC Isat Irms (H) (±%) (MHz) Typ. (Ω+15%) (A) (A) SSL1306T-1R0M-N 1.0 20 80 0.011 20 8.6 SSL1306T-2R2M-N 2.2 20 80 0.014 16 7.1 SSL1306T-3R3M-N 3.3 20 60 0.016 14 6.2 SSL1306T-4R7M-N 4.7 20 45 0.022 13 5.5 SSL1306T-5R6M-N 5.6 20 40 0.022 12 5.3 SSL1306T-6R8M-N 6.8 20 30 0.022 10 5.0 SSL1306T-100M-N 10 20 30 0.032 10 4.3 SSL1306T-150M-N 15 20 22 0.036 8.0 4.0 SSL1306T-180M-N 18 20 20 0.039 7.5 3.7 SSL1306T-220M-N 22 20 20 0.047 7.0 3.5 SSL1306T-330M-N 33 20 15 0.066 5.5 3.0 SSL1306T-470M-N 47 20 9 0.087 4.5 2.6 SSL1306T-680M-N 68 20 8 0.13 3.5 2.3 SSL1306T-101M-N 100 20 7 0.19 3.0 1.8 SSL1306T-151M-N 150 20 6 0.25 2.6 1.5 SSL1306T-221M-N 220 20 5 0.38 2.4 1.2 SSL1306T-331M-N 330 20 4 0.56 1.9 1.0 SSL1306T-471M-N 470 20 3 0.85 1.4 0.82 SSL1306T-681M-N 680 20 2.5 1.2 1.2 0.72 SSL1306T-102M-N 1000 20 2 1.8 1.0 0.56 Part Number Note: When ordering, please specify tolerance code. Tolerance: M=±20%  Operating temperature range－40℃～125℃(Including self - temperature rise)  Isat for Inductance drop 20% from its value without current  Irms for a 40℃ temperature rise from 25℃ ambient with current  Measure Equipment： L：E4980 or HP4284A , 100kHz 0.1V SRF:HP4291A or HP4192A RDC：Chroma 16502 Isat：HP4284A+HP42841A or WK3260B+WK3265B Test Instruments： Please be sure to request approval specifications that provide further details of the products. Kindly note that the content of these specifications are subject to change or may be discontinued without prior notice. This product may not be designed/used in medical or high risk applications without Chilisin approval. Please contact our sales department before ordering. SMD Unshielded Power Inductors - SSL Series Packaging Specifications Tape Dimensions Tape Material Reel Dimensions Dimensions in mm Tape Dimensions Reel Dimensions TYPE K0 SSL0402 3.2 D 1.55 E 1.75 W 12 P 8 P0 4 P2 2 A B 330 100 178 60 C 13 Quantity (PCS / REEL) D 178mm 330mm 13.4 - 2500 13.2 750 - SSL 0804 5.4 1.55 1.75 24 16 4 2 330 100 13 24.4 - 750 SSL 0810 11.5 1.55 1.75 24 20 4 2 330 100 13 24.4 - 225 SSL 1306 7.5 1.55 1.75 32 20 4 2 330 100 13 33.4 - 350
