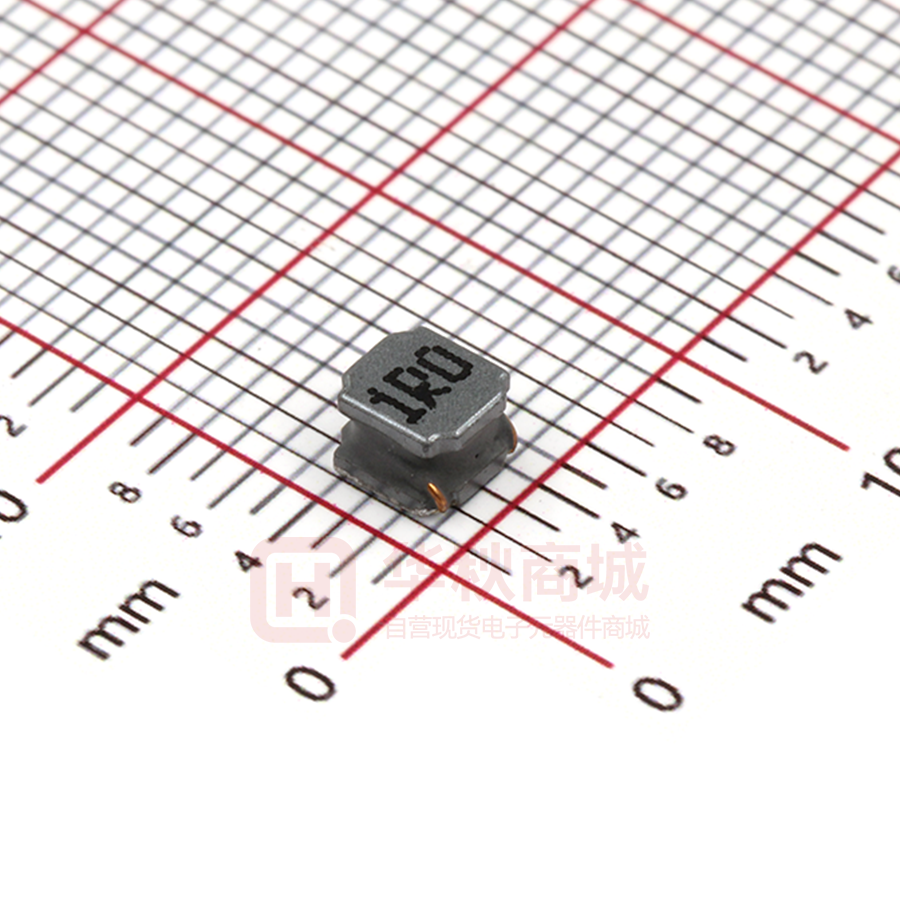

MPIT4030-1R0M-LF

CUSTOMER: DATE: APPROVAL SPECIFICATION PRODUCT NAME: SMD power inductor CUSTOMER PART NO.: OUR PART NO.: MPIT4030 Series RECEPTION THE SPECIFICATION HAS BEEN ACCEPTED. DATE： ： COMPANY： ： CFMD CHKD RCVD MANUFACTURING NAME 深圳市麦捷微电子科技股份有限公司 SHENZHEN MICROGATE TECHNOLOGY CO.，LTD Address: Yuxing road, Golf Street, Guanlan Town Bao’an District Shenzhen P.R.C Postcode :518110 TEL：86-755-28085000 FAX：86-755-28085605 CFMD. CHKD. DSGD. 目录 CATALOG 规格书版本控制 Component SPEC Version Record……………………………….. .. .. 2 1 适用范围 Scope． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． 3 2 品名构成 Product Identification． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． 3 3 形状、 ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． 3 形状、尺寸和材料 Appearance, Dimensions and Material． 4 测试条件 Testing Conditions． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． 4 5 电气特性 Electrical Characteristics． ．． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． 4 6 工作条件 Condition of work． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． 5 7 信赖性试验 Reliable Performance． ．． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． 8 焊接条件 Recommended Soldering Conditions． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． 8 9 包装 Packaging． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． 9 5-7 10 产品外观检查标准 Visual inspection standard of product． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． 10 11 存贮条件 Products Storage． ．． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． 10 深圳市麦捷微电子科技股份有限公司 地址：深圳市宝安区观澜镇高尔夫大道裕新路 电话(Tel)：0755-28085000 传真(Fax)：0755-28085605 邮编(Postcode)：518110 Component SPEC Version Record Rev. Effective Date Changed Contents Change Reasons Approved By 01 Dec. 10.2012 New released / Charles 2 SHENZHEN MICROGATE TECHNOLOGY CO.,LTD. Add：Yuxing Road,Golf Street,Guanlan Town,Bao’an District,Shenzhen Tel：+86-755-28085000 Fax：+86-755-28085605 Postcode：518110 1. Scope This specification applies to the MPIT4030 series of SMD power inductor. 2. Product Identification MPIT ① 4030 – 6R8 ③ ② M - LF ④ ⑤
Product Symbol (T type SMD power inductor)  Product dimensions (4.0×4.0×3.0mm)  Inductance Value： (4R7: 4.7uH 100: 10uH; 101: 100uH)  Induc tance Tolerance：(M: ±20% ; N: ±30%)  Lead free product. 3. Appearance, Dimensions and Material 3.1 Appearance and dimensions 220 h S F Recommended Pattern NOTE: S=Start F=Finish Model MPIT4030 A 4.00±0.20 B 4.00±0.20 Dimensions in mm C D E 3.00Max. 2.00±0.20 1.00±0.20 f 1.90 Typ. g 4.10 Typ. h 3.40 Typ. 3.2 Material List No. 1 2 3 4 Item Ferrite Core Wire Terminal Electrode Magnetic Glue Material Ni-Zn Ferrite Enameled Copper Wire Ag/Ni/Sn/Cu Epoxy resin and magnetic powder 4.Testing Conditions Unless otherwise specified Temperature : Ordinary Temperature ( 5 to 35℃) Humidity : Ordinary Humidity (25 to 85% RH) Atmospheric Pressure : 86 to 106 kPa In case of doubt Temperature : 20±2℃ Humidity : 60 to 75% RH Atmospheric Pressure : 86 to 106 kPa 3 SHENZHEN MICROGATE TECHNOLOGY CO.,LTD. Add：Yuxing Road,Golf Street,Guanlan Town,Bao’an District,Shenzhen Tel：+86-755-28085000 Fax：+86-755-28085605 Postcode：518110 5. Electrical Characteristics And Test Instruments 1 Irms (A) 2 DCR (Ω) ±30% MPIT4030-R91N-LF 0.91±30% 0.022 7.00 3.15 100 MPIT4030-1R2N-LF 1.2±30% 0.025 5.90 2.96 80 MPIT4030-1R5N-LF 1.5±30% 0.030 5.40 2.92 62 MPIT4030-1R8N-LF 1.8±30% 0.030 4.40 2.92 60 Customer Part No. SRF (MHz) MPIT4030-2R2N-LF 2.2±30% 0.035 4.30 2.57 52 MPIT4030-3R3M-LF 3.3±20% 0.040 3.30 2.40 38 MPIT4030-4R3M-LF 4.3±20% 0.051 2.95 2.13 37 MPIT4030-4R7M-LF 4.7±20% 0.060 2.90 2.00 31 MPIT4030-5R6M-LF 5.6±20% 0.065 2.60 1.95 30 MPIT4030-6R2M-LF 6.2±20% 0.070 2.50 1.85 29 MPIT4030-6R8M-LF 6.8±20% 0.084 2.60 1.65 24 MPIT4030-7R5M-LF 7.5±20% 0.084 2.20 1.65 26 MPIT4030-8R2M-LF 8.2±20% 0.090 2.10 1.60 26 MPIT4030-9R1M-LF 9.1±20% 0.095 2.00 1.55 23 MPIT4030-100M-LF 10±20% 0.096 1.95 1.52 21 MPIT4030-120M-LF 12±20% 0.131 1.70 1.30 18 MPIT4030-150M-LF 15±20% 0.189 1.65 1.11 16 MPIT4030-180M-LF 18±20% 0.200 1.40 1.10 10 MPIT4030-220M-LF 22±20% 0.225 1.30 1.00 10 MPIT4030-330M-LF 33±20% 0.320 1.10 0.85 10 MPIT4030-360M-LF 36±20% 0.335 1.05 0.83 9.8 MPIT4030-390M-LF 39±20% 0.345 1.03 0.80 10 MPIT4030-430M-LF 43±20% 0.440 1.00 0.73 9.2 MPIT4030-470M-LF 47±20% 0.445 0.95 0.72 8.4 MPIT4030-510M-LF 51±20% 0.470 0.90 0.70 8.4 MPIT4030-560M-LF 56±20% 0.555 0.85 0.65 8.4 MPIT4030-620M-LF 62±20% 0.829 0.80 0.53 7.0 MPIT4030-680M-LF 68±20% 0.868 0.75 0.52 7.0 MPIT4030-750M-LF 75±20% 0.920 0.70 0.50 6.3 MPIT4030-820M-LF 82±20% 0.970 0.66 0.48 5.6 MPIT4030-910M-LF 91±20% 1.070 0.62 0.46 5.6 MPIT4030-101M-LF 100±20% 1.110 0.60 0.45 5.6 MPIT4030-121M-LF 120±20% 1.250 0.53 0.43 5.4 T-I characteristic curve L-I characteristic curve 80 60 100µH 50 10µH 4.7µH 40 30 20 100µH 100 Inductance(µH) Indictance（uH） 1000 70 Temperature rise ( ℃ ) Temperature rise（℃） Isat (A) Inductance (uH) Microgate Part No. 10 1 10µH 4.7µH 10 0 0 0.0 0.5 1.0 1.5 DC.Current (A) 2.0 2.5 3.0 0.01 0.1 10 4 SHENZHEN MICROGATE TECHNOLOGY CO.,LTD. Add：Yuxing Road,Golf Street,Guanlan Town,Bao’an District,Shenzhen Fax：+86-755-28085605 1 DC.Current（A） DC.Current（A） Tel：+86-755-28085000 DC. Current(A) Postcode：518110 Test instruments and remarks * CHROMA 3302 meter for L and DCR./CHROMA 3302 and 1320 meter for IDC. * L test condition: 100KHz&1V at 20℃ambient; * Rated current:Isat or Irms,whichever is smaller: 1 :Isat: direct current at which the inductance drops approximate 30% from its value without current. 2 :Irms: direct current when the temperature of the product rise (△T =40°C) from 20°C ambient 6. Condition of work 1. The part normal work be allowed ambient temperature: -25℃ ~ +85℃. 2 .The part must be allowed high temperature: +125℃. 3. The part normal work be allowed temperature dependent: 40℃ 4. Ambient temperature of the part is allowed storage temperature: -25℃ ~ +85℃. 5. Storage life: half a year 6 .The part be allowed work ambient frequency: 0.1MHz ~ 1MHz 7. Reliability and Test Condition Item Required Characteristics Test Method/Condition Temperature: 125±2℃ Time : 1000 hours Tested not less than 1 hours, nor more than 2 hours at room temperature. High temperature resistance 125 1000H Temperature : -40±2℃ Time : 1000 hours Tested not less than 1 hour, nor more than 2 hours at room temperature. Low temperature resistance 1. No case deformation or change in appearance. 2. |∆L|/L≤10% 1000H -40℃ 1. 2. 3. Exposure : Temperature:60±2℃, Humidity : 93±3% RH Time : 1000 hours. Tested while the specimens are still in the chamber. Tested not less than 1 hour, nor more than 2 hours at room temperature. Humidity test 1000 5 SHENZHEN MICROGATE TECHNOLOGY CO.,LTD. Add：Yuxing Road,Golf Street,Guanlan Town,Bao’an District,Shenzhen Tel：+86-755-28085000 Fax：+86-755-28085605 Postcode：518110 Item Required Characteristics Test Method/Condition First -40℃ for T time, last 125℃ T time as 1 cycle. Go through 100 cycles. 1. Thermal test shock 2. No case deformation or change in appearance. |∆L|/L≤10% 125℃ 30 min. 30 min. Ambient Temperature -40℃ 30 min. 20sec. (max.) Solderability test Terminal area must have 90% min. solder coverage. Heat endurance of reflow soldering Dip pads in flux then dip in solder pot at 245±5℃ for 0.1mm. NG. AQL=0.65 l L l >L/6 or w >W/6, NG. H 11.Products Storage ⑴ Storage period Products which inspected in MICROGATE over 6 months ago should be examined and used, which can be confirmed with inspection No. marked on the container. Solderability should be checked if this period is exceeded. ⑵ Storage conditions Products should be storage in the warehouse on the following conditions: Temperature: -10 ~+ 40℃ Humidity : Less than 80% relative and humidity No rapid change on temperature and humidity ⑶ Don’t keep products in corrosive gases such as sulfur, chlorine gas or acid, or it may cause oxidization of electrode, resulting in poor solderability. ⑷ Products should be storage on the palette for the prevention of the influence from humidity, dust and so on. ⑸ Products should be storage in the warehouse without heat shock, vibration, direct sunlight and so on. ⑹ Products should be storage under the airtight packaged condition. 10 SHENZHEN MICROGATE TECHNOLOGY CO.,LTD. Add：Yuxing Road,Golf Street,Guanlan Town,Bao’an District,Shenzhen Tel：+86-755-28085000 Fax：+86-755-28085605 Postcode：518110
