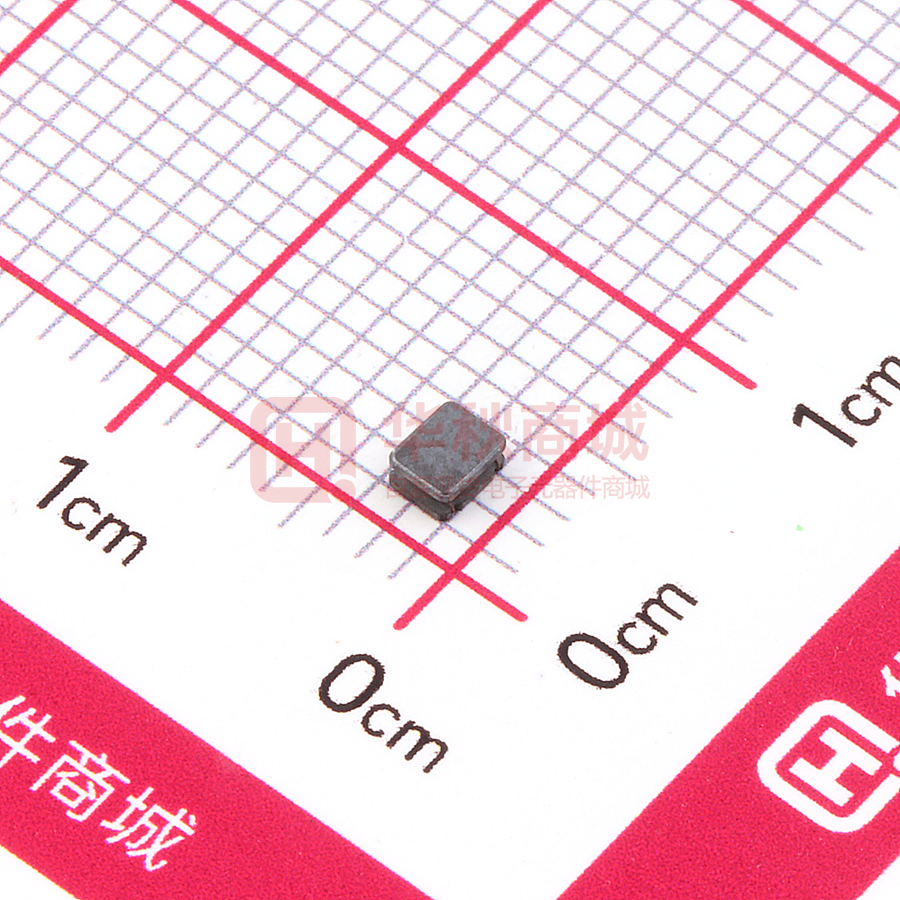

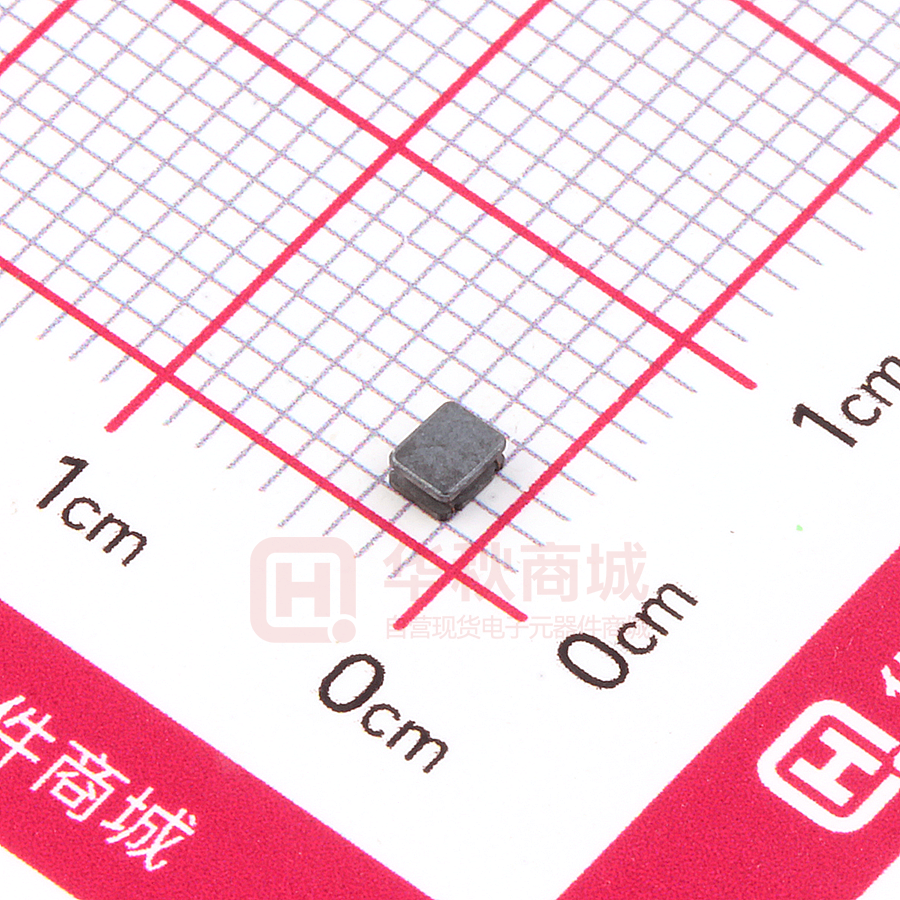

MPIT252012-100M-LF

CUSTOMER: DATE: APPROVAL SPECIFICATION PRODUCT NAME: SMD power inductor CUSTOMER PART NO.: OUR PART NO.: MPIT252012 Series RECEPTION THE SPECIFICATION HAS BEEN ACCEPTED. DATE： ： COMPANY： ： CFMD CHKD RCVD MANUFACTURING NAME 深圳市麦捷微电子科技股份有限公司 SHENZHEN MICROGATE TECHNOLOGY CO.，LTD Address: Yuxing road, Golf Street, Guanlan Town Bao’an District Shenzhen P.R.C Postcode :518110 TEL：86-755-28085000 FAX：86-755-28085605 CFMD. CHKD. DSGD. 目录 CATALOG 规格书版本控制 Component SPEC Version Record……………………………….. .. .. 2 1 适用范围 Scope． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． 3 2 品名构成 Product Identification． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． 3 3 形状、 ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． 3 形状、尺寸和材料 Appearance, Dimensions and Material． 4 测试条件 Testing Conditions． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． 3 5 电气特性 Electrical Characteristics． ．． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． 4 6 工作条件 Condition of work． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． 4 7 信赖性试验 Reliable Performance． ．． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． 8 焊接条件 Recommended Soldering Conditions． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． 7-8 9 包装 Packaging． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． 8-9 5-6 10 产品外观检查标准 Visual inspection standard of product． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． 10 11 存贮条件 Products Storage． ．． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ． ．． ． ． 10 深圳市麦捷微电子科技股份有限公司 地址：深圳市宝安区观澜镇高尔夫大道裕新路 电话(Tel)：0755-28085000 传真(Fax)：0755-28085605 邮编(Postcode)：518110 Component SPEC Version Record Rev. Effective Date Changed Contents Change Reasons Approved By 01 Dec. 10.2012 New released / Charles 2 SHENZHEN MICROGATE TECHNOLOGY CO.,LTD. Add：Yuxing Road,Golf Street,Guanlan Town,Bao’an District,Shenzhen Tel：+86-755-28085000 Fax：+86-755-28085605 Postcode：518110 1. Scope This specification applies to the MPIT252012 series of SMD power inductor. 2. Product Identification MPIT 252012 – 4R7 ① ② ③ M - LF ④ ⑤
Product Symbol (T type SMD power inductor)  Product dimensions (2.5×2.0×1.2mm)  Inductance Value： (4R7: 4.7uH 100: 10uH; 101: 100uH)  Induc tance Tolerance：(M: ±20% ; N: ±30%)  Lead free product. 3. Appearance, Dimensions and Material 3.1 Appearance and dimensions Recommended Land Pattern Model MPIT252012 A 2.50±0.20 B 2.00±0.20 Dimensions in mm C D E 1.20Max. 0.80±0.20 0.80±0.20 f 0.80 Typ. g 2.50Typ. h 2.00Typ. 3.2 Material List No. 1 2 3 4 Item Ferrite Core Wire Terminal Electrode Magnetic Glue Material Ni-Zn Ferrite Enameled Copper Wire Ag/Ni/Sn/Cu Epoxy resin and magnetic powder 4.Testing Conditions Unless otherwise specified Temperature : Ordinary Temperature ( 5 to 35℃) Humidity : Ordinary Humidity (25 to 85% RH) Atmospheric Pressure : 86 to 106 kPa In case of doubt Temperature : 20±2℃ Humidity : 60 to 75% RH Atmospheric Pressure : 86 to 106 kPa 3 SHENZHEN MICROGATE TECHNOLOGY CO.,LTD. Add：Yuxing Road,Golf Street,Guanlan Town,Bao’an District,Shenzhen Tel：+86-755-28085000 Fax：+86-755-28085605 Postcode：518110 5. Electrical Characteristics And Test Instruments Microgate Part No. Customer Part No. Inductance (uH) Isat (A) DCR (Ω) 1 Irms (A) 2 Max. Typ. Max. Typ. Max. Typ. SRF (MHz) MPIT252012-R47N-LF 0.47±30% 0.055 0.042 3.82 4.03 2.55 3.00 161 MPIT252012-R68N-LF 0.68±30% 0.068 0.057 3.28 3.43 2.25 2.70 140 MPIT252012-1R0N-LF 1.0±30% 0.083 0.069 2.59 2.65 2.00 2.60 110 MPIT252012-1R2N-LF 1.2±30% 0.119 0.099 2.38 2.68 1.65 2.10 99 MPIT252012-1R5M-LF 1.5±20% 0.135 0.110 2.24 2.51 1.50 2.02 96 MPIT252012-2R2M-LF 2.2±20% 0.198 0.165 1.85 2.05 1.20 1.64 69 MPIT252012-2R7M-LF 2.7±20% 0.220 0.180 1.72 1.90 1.15 1.45 63 MPIT252012-3R3M-LF 3.3±20% 0.240 0.200 1.61 1.80 1.10 1.40 61 MPIT252012-4R7M-LF 4.7±20% 0.348 0.290 1.15 1.35 0.90 1.17 47 MPIT252012-5R6M-LF 5.6±20% 0.490 0.405 1.15 1.26 0.78 1.04 38 MPIT252012-6R2M-LF 6.2±20% 0.500 0.415 1.03 1.16 0.78 0.95 38 MPIT252012-6R8M-LF 6.8±20% 0.535 0.445 0.98 1.10 0.73 0.85 37 MPIT252012-8R2M-LF 8.2±20% 0.605 0.505 0.98 1.10 0.70 0.80 36 MPIT252012-100M-LF 10±20% 0.640 0.535 0.79 0.84 0.65 0.77 34 MPIT252012-120M-LF 12±20% 0.990 0.825 0.78 0.88 0.51 0.55 28 MPIT252012-150M-LF 15±20% 1.465 1.220 0.68 0.76 0.45 0.50 25 MPIT252012-220M-LF 22±20% 1.820 1.520 0.53 0.55 0.40 0.45 20 Test instruments and remarks * CHROMA 3302 meter for L adn DCR/CHROMA 3302 and 1320 meter for IDC. * L test condition: 100KHz&1V at 20℃ambient; * Rated current:Isat or Irms,whichever is smaller: 1 :Isat: direct current at which the inductance drops approximate 30% from its value without current; 2 :Irms: direct current when the temperature of the product rise (△T =40°C) from 20°C ambient. 6. Condition of work 1. The part normal work be allowed ambient temperature: -25℃ ~ +85℃. 2 .The part must be allowed high temperature: +125℃. 3. The part normal work be allowed temperature dependent: 40℃ 4. Ambient temperature of the part is allowed storage temperature: -25℃ ~ +85℃. 5. Storage life: half a year 6 .The part be allowed work ambient frequency: 0.1MHz ~ 1MHz 4 SHENZHEN MICROGATE TECHNOLOGY CO.,LTD. Add：Yuxing Road,Golf Street,Guanlan Town,Bao’an District,Shenzhen Tel：+86-755-28085000 Fax：+86-755-28085605 Postcode：518110 7. Reliability and Test Condition Item Required Characteristics Test Method/Condition Temperature: 125±2℃ Time : 1000 hours Tested not less than 1 hours, nor more than 2 hours at room temperature. High temperature resistance 125℃ ℃ 1000H Temperature : -40±2℃ Time : 1000 hours Tested not less than 1 hour, nor more than 2 hours at room temperature. Low temperature resistance t 1. No case deformation or change in appearance. 2. |∆L|/L≤10% 1000H -40℃ 1. 2. 3. Exposure : Temperature:60±2℃, Humidity : 93±3% RH Time : 1000 hours. Tested while the specimens are still in the chamber. Tested not less than 1 hour, nor more than 2 hours at room temperature. Humidity test 1000H First -40℃ for T time, last 125℃ T time as 1 cycle. Go through 100 cycles. 1. Thermal test shock 2. No case deformation or change in appearance. |∆L|/L≤10% 30 min. 30 min. 125 Ambient Temperature -40℃ 30 min. 20sec. (max.) 5 SHENZHEN MICROGATE TECHNOLOGY CO.,LTD. Add：Yuxing Road,Golf Street,Guanlan Town,Bao’an District,Shenzhen Tel：+86-755-28085000 Fax：+86-755-28085605 Postcode：518110 Item Required Characteristics Test Method/Condition Solderability test Terminal area must have 90% min. solder coverage. Dip pads in flux then dip in solder pot at 245±5℃ for 0.1mm. NG. AQL=0.65 l L l >L/6 or w >W/6, NG. H 11.Products Storage ⑴ Storage period Products which inspected in MICROGATE over 6 months ago should be examined and used, which can be confirmed with inspection No. marked on the container. Solderability should be checked if this period is exceeded. ⑵ Storage conditions Products should be storage in the warehouse on the following conditions: Temperature: -10 ~+ 40℃ Humidity : Less than 80% relative and humidity No rapid change on temperature and humidity ⑶ Don’t keep products in corrosive gases such as sulfur, chlorine gas or acid, or it may cause oxidization of electrode, resulting in poor solderability. ⑷ Products should be storage on the palette for the prevention of the influence from humidity, dust and so on. ⑸ Products should be storage in the warehouse without heat shock, vibration, direct sunlight and so on. ⑹ Products should be storage under the airtight packaged condition. 10 SHENZHEN MICROGATE TECHNOLOGY CO.,LTD. Add：Yuxing Road,Golf Street,Guanlan Town,Bao’an District,Shenzhen Tel：+86-755-28085000 Fax：+86-755-28085605 Postcode：518110
