ORH-YG36A

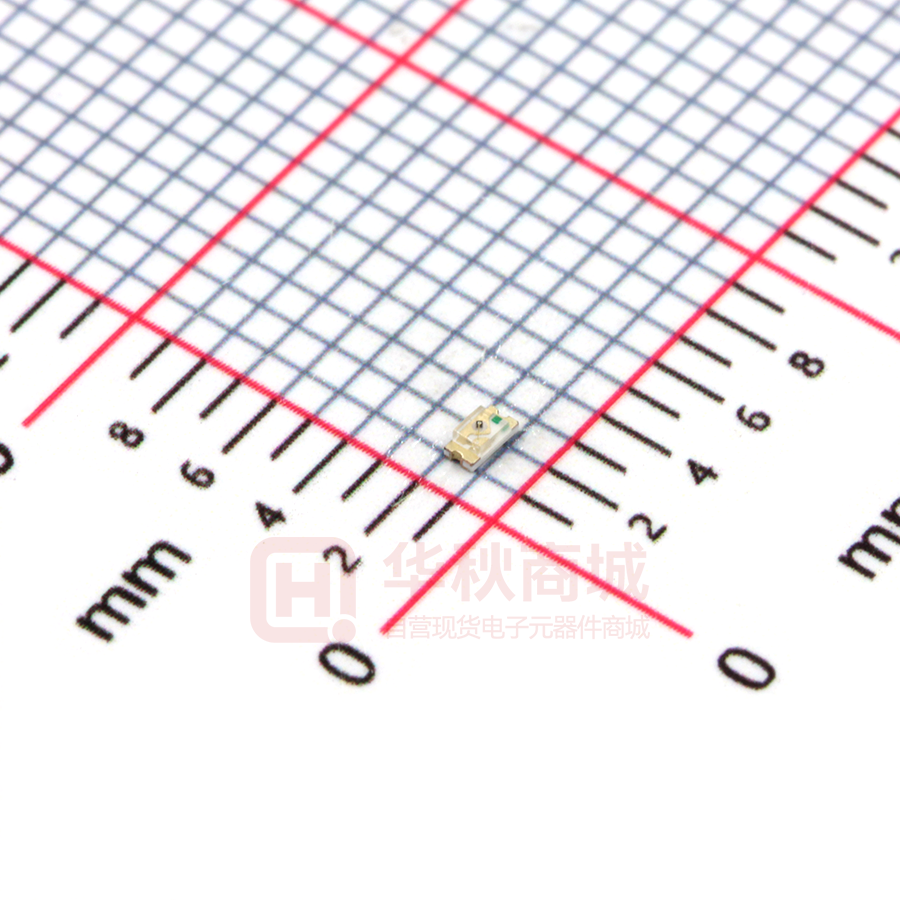

PLCC LED Series Datasheet ORH-YG36A(IF=20mA) 1. Features:          Chip material: AlGaInP/GaAs. Emitted Color: Super yellow green. Lens Appearance: Water Clear. Mono-color type. 1.6x0.8x0.6mm (0603) standard package. Suitable for all SMT assembly methods. Compatible with infrared and vapor phase reflow solder process. Compatible with automatic placement equipment. This product doesn’t contain restriction substance, comply ROHS standard. 2. Applications:     Automotive: Dashboards, stop lamps, turn signals. Backlighting: LCDs, Key pads advertising. Status indicators: Comsumer & industrial electronics. General use. Ver, A0 SHENZHEN ORIENT ELECTRONICS CO. ,LTD. ORH-YG36A 3.Package Dimensions: NOTES: 1). All dimensions are in millimeters (inches). 2). Tolerance is ±0.10mm (0.004”) unless otherwise specified. 3). Specifications are subject to change without notice. 4.Absolute Maximum Ratings(Ta=25℃) Parameter Symbol Rating Unit Power Dissipation Pd 100 mW Forward Current IF 30 mA Peak Forward Current ＊1 IFP 100 mA Operating Temperature Topr -25℃~80℃ - Storage Temperature Tstg -30℃~85℃ - Soldering Temperature Tsol 260℃ - ＊1 Condition for IFP is pulse of 1/10 duty and 0.1msec width. 5. Electrical and optical characteristics(Ta=25℃) Parameter Forward Voltage Symbol Vf Condition IF=20mA Min. Typ. 1.8 - Max. Unit 2.4 V Copyright© 2018 Orient Tech Corporation. All rights Reserved 2 Ver, A0 SHENZHEN ORIENT ELECTRONICS CO. ,LTD. ORH-YG36A Luminous Intensity Iv IF=20mA 18 - 94 mcd Reverse Current IR VR=5V - - 1 μA 574 - nm 578 nm Peak Wave Length λp IF=20mA - Dominant Wave Length λd IF=20mA 566 Spectral Line Half-width Δλ IF=20mA - 17 - nm Veiwing Angle 2θ1/2 - 120 - deg IF=20mA 6.Typical Electro-Optical Characteristics Curves F ig .2 F o r w a r d c u r r e n t d e r a t in g c u r v e v s . a m b ie n t te m p e r a tu r e F ig .1 R e la t iv e in te n s it y v s . w a v e le n g th 1 .0 60 Forward current (mA) Relative radiant intensity 50 0 .5 40 30 20 10 0 580 630 0 680 20 W a v e le n g th ( n m ) 80 100 C ) 3 .0 Relative Luminous intensity 30 20 (Normalized @20mA) 2 .5 40 Forward current (mA) 60 F ig .4 R e la t iv e lu m in o u s in te n s ity v s . a m b ie n t t e m p e r a tu r e F ig .3 F o r w a r d c u r r e n t v s . f o r w a r d v o lta g e 50 10 0 40 A m b ie n t te m p e r a tu r e T a ( 2 .0 1 .5 1 .0 0 .5 1 2 3 4 0 -4 0 5 -2 0 F o r w a r d v o lta g e ( V ) 0 20 40 A m b ie n t te m p e r a tu r e T a ( F ig .5 R e la t iv e lu m in o u s in te n s ity v s . fo rw a rd c u rre n t 60 C ) F ig .6 R a d ia tio n d ia g r a m 0 4 .0 10 20 3 .0 Relative radiant intensity Relative luminous intensity (@20mA) 30 2 .0 1 .0 40 1 .0 0 .9 50 0 .8 60 70 0 .7 80 90 0 10 20 30 40 0 .5 50 0 .3 0 .1 0 .2 0 .4 0 .6 F o rw a rd c u rre n t (m A ) Copyright© 2018 Orient Tech Corporation. All rights Reserved 3 Ver, A0 SHENZHEN ORIENT ELECTRONICS CO. ,LTD. ORH-YG36A 7. Judgment criteria of failure for the reliability Measuring items Forward voltage Reverse current Luminous intensity Symbol VF ( V) IR(uA) Iv ( mcd ) Measuring conditions IF=20mA VR=5V IF=20mA Judgement criteria for failure Over Ux1.2 Over Ux2 Below SX0.5 Note: 1).U means the upper limit of specified characteristics. S means initial value. 2). Measurment shall be taken between 2 hours and after the test pieces have been returned to normal ambient conditions after completion of each test. 8.Bin Limits In t e n s i t y Bi n Li m i t s (A t 20 mA ) BI N CO D E Mi n . (m c d ) Ma x . (m c d ) L 18 28 M 28 42 N 42 63 P 63 94 To l e r a n c e for ea c h Bi n li m i t is ± 15% . Co l o r Bi n Li m i t s (A t 20 mA ) BI N CO D E Mi n . (n m ) Ma x . (n m ) 4 566 569 5 569 572 6 572 575 7 575 578 To l e r a n c e for ea c h Bi n li m i t is ± 1n m . Copyright© 2018 Orient Tech Corporation. All rights Reserved 4 Ver, A0 SHENZHEN ORIENT ELECTRONICS CO. ,LTD. ORH-YG36A V F Bi n Li m i t s (A t 20 mA ) BI N CO D E Mi n . ( v ) Ma x . ( v ) B 1.8 2. 0 C 2.0 2.2 D 2.2 2.4 To l e r a n c e for ea c h Bi n li m i t is ± 0. 0 5 V. 9. BI N ： x x x VF BIN CO DE Co lor BIN CODE Intensity BIN CODE 10.Tapping and packaging specifications(Units: mm) USER DIRECTION OF FEED 13.0∮ 0.5 0.5 ∮ 0.05 4.0∮ 0.1 1.5!O0.1 4.0∮ 0.1 2.0!O0.05 TRAILER 179∮ 1 13.0∮ 0.5 71.0∮ 1 1.75∮ 0.05 8.0∮ 0.3 CATHODE 3.5∮ 0.05 5.3∮ 0.05 END 1.75∮ 0.1 ANODE 0.9 ∮0.05 START LEADER 0.3 FIXING TAPE NOTE: 3000 pcs PER REEL Copyright© 2018 Orient Tech Corporation. All rights Reserved 5 Ver, A0 SHENZHEN ORIENT ELECTRONICS CO. ,LTD. ORH-YG36A 11.Package Method:(unit:mm)Vacuum 12. Package and Label of Products: (1) Package: Products are packed in one bag of 3000 pcs (one taping reel) and a label is attached on each bag. (2) Label: ORIENT LOGO Part No. Quantity BIN Sealing Date x xx xx xx Year Month Day Manufacture Location Copyright© 2018 Orient Tech Corporation. All rights Reserved 6 Ver, A0 SHENZHEN ORIENT ELECTRONICS CO. ,LTD. ORH-YG36A 13.Reliability Test Classification Test Item Reference Standard Operation Life MIL-STD-750:1026 MIL-STD-883:1005 JIS-C-7021 :B-1 High Temperature MIL-STD-202:103B High Humidity JIS-C-7021 :B-11 Endurance Storage Test High MIL-STD-883:1008 Temperature JIS-C-7021 :B-10 Storage Low Temperature JIS-C-7021 :B-12 Storage Temperature MIL-STD-202:107D Cycling MIL-STD-750:1051 MIL-STD-883:1010 JIS-C-7021 :A-4 Thermal Shock MIL-STD-202:107D Environmental MIL-STD-750:1051 Test MIL-STD-883:1011 Solder MIL-STD-202:201A Resistance MIL-STD-750:2031 JIS-C-7021 :A-1 Test Conditions Result Connect with a power If=20mA Ta=Under room temperature Test time=1,000hrs Ta=+65℃±5℃ RH=90%-95% Test time=240hrs 0/20 0/20 High Ta=+85℃±5℃ Test time=1,000hrs 0/20 Low Ta=-35℃±5℃ Test time=1,000hrs 0/20 -35℃ ~ +25℃ ~ +85℃ ~ +25℃ 60min 20min 60min 20min Test Time=5cycle 0/20 -35℃±5℃ ~+85℃±5℃ 20min 20min Test Time=10cycle Preheating： 140℃-160℃,within 2 minutes. Operation heating： 260℃(Max.), within 10seconds. (Max.) 0/20 0/20 14. Soldering : 1). Manual Of Soldering The temperature of the iron tip should not be higher than 300 ℃ (572 ℉ ) and Soldering within 3 seconds per solder-land is to be observed. 2). Reflow Soldering Preheating : 140℃~160℃±5℃,within 2 minutes. Operation heating : 260℃(Max.) within 10 seconds.(Max) Gradual Cooling (Avoid quenching). Copyright© 2018 Orient Tech Corporation. All rights Reserved 7 Ver, A0 SHENZHEN ORIENT ELECTRONICS CO. ,LTD. ORH-YG36A 10 SEC. MAX. Temperature 140~160℃ 260℃ MAX. 4℃ /SEC. MAX. 4℃ /SEC. MAX. OVER 2 MIN. Time 3). DIP soldering (Wave Soldering) : Preheating : 120℃~150℃,within 120~180 sec. Operation heating : 245℃±5℃ within 5 sec.260℃ (Max) Gradual Cooling (Avoid quenching). Temperature Soldering heat Max. 260 ℃ 245 ±5℃ within 5 sec. 120~150℃ Preheat 120~180 sec. Time 15. Handling : Care must be taken not to cause to the epoxy resin portion of BRIGHT LEDs while it is exposed to high temperature. Care must be taken not rub the epoxy resin portion of BRIGHT LEDs with hard or sharp article such as the sand blast and the metal hook. 16. Notes for designing Care must be taken to provide the current limiting resistor in the circuit so as to drive the BRIGHT LEDs within the rated figures. Also, caution should be taken not to overload BRIGHT LEDs with instantaneous voltage at the turning ON and OFF of the circuit. When using the pulse drive care must be taken to keep the average current within the rated figures. Also, the circuit should be designed so as be subjected to reverse voltage when turning off the BRIGHT LEDs. Copyright© 2018 Orient Tech Corporation. All rights Reserved 8 Ver, A0 SHENZHEN ORIENT ELECTRONICS CO. ,LTD. ORH-YG36A 17. Storage: In order to avoid the absorption of moisture, it is recommended to solder BRIGHT LEDs as soon as possible after unpacking the sealed envelope. If the envelope is still packed, to store it in the environment as following: (1) Temperature : 5℃-30℃(41℉)Humidity : RH 60﹪Max. (2) After this bag is opened, devices that will be applied to infrared reflow, vapor-phase reflow, or equivalent soldering process must be: a....Completed within 168 hours. b....Stored at less than 30% RH. (3) Devices require baking before mounting, if: (2) a or (2) b is not met. (4) If baking is required, devices must be baked under below conditions: 48 hours at 60℃±3℃. Copyright© 2018 Orient Tech Corporation. All rights Reserved 9 Ver, A0
