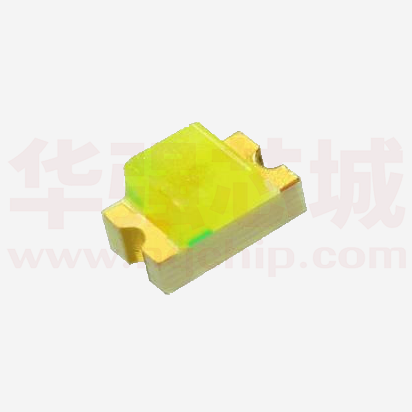

ORH-W45A

PLCC LED Series Datasheet ORH-W45A(IF=15mA) 1. Features:          Chip material: AlInGaN. Emitted Color : Super Blue. Lens Appearance: Water Clear. Mono-color type. 2.0x1.25x0.8mm (0805) standard package. Suitable for all SMT assembly methods. Compatible with infrared and vapor phase reflow solder process. Compatible with automatic placement equipment. This product doesn’t contain restriction substance, comply ROHS standard. 2.Applications:     Automotive: Dashboards, stop lamps, turn signals. Backlighting: LCDs, Key pads advertising. Status indicators: Comsumer & industrial electronics. General use. Ver, A0 SHENZHEN ORIENT ELECTRONICS CO. ,LTD. ORH-W45A 3.Package Dimensions: 4.Absolute Maximum Ratings(Ta=25℃) Parameter Symbol Rating Unit Operating Temperature Storage Temperature Pd IF IFP Topr Tstg 120 30 100 -25℃~80℃ -30℃~85℃ mW mA mA - Soldering Temperature Tsol 260℃ - Power Dissipation Forward Current Peak Forward Current ＊1 ＊1 Condition for IFP is pulse of 1/10 duty and 0.1msec width. 5.Electrical and optical characteristics(Ta=25℃) Parameter Symbol Condition Min. Typ. Max. Unit Forward Voltage Vf IF=15mA 2.8 2.9 3.1 V Luminous Intensity Iv IF=15mA 600 800 900 mcd Reverse Current Chromaticity IR VR=7V - - 1 μA x IF=15mA - 0.33 - - Coordinates Veiwing Angle y IF=15mA - 0.36 - - 2θ1/2 IF=15mA - 120 - deg Copyright© 2018 Orient Tech Corporation. All rights Reserved 2 Ver, A0 SHENZHEN ORIENT ELECTRONICS CO. ,LTD. ORH-W45A 6.Typical Electro-Optical Characteristics Curves Fig.2 Forward current derating curve Fig.1 Relative intensity vs. wavelength vs. ambient temperature 1.0 60 Forward current (mA) Relative radiant intensity 50 0.5 40 30 20 10 0 120 470 0 520 20 Wavelength (nm) 50 100 2.5 30 20 10 (Normalized @20mA) Relative Luminous intensity Forward current (mA) 80 3.0 40 2.0 1.5 1.0 0.5 1 2 3 4 0 -40 5 -20 0 20 40 60 Ambient temperature Ta( C) Forward voltage(V) Fig.5 Relative luminous intensity vs. forward current Fig.6 Radiation diagram 0 2.0 10 20 30 1.5 Relative radiant intensity Relative luminous intensity (@20mA) 60 Fig.4 Relative luminous intensity vs. ambient temperature Fig.3 Forward current vs. forward voltage 0 40 Ambient temperature Ta( C) 1.0 0.5 1.0 40 0.9 50 0.8 60 70 0.7 80 90 0 10 20 30 40 50 0.5 0.3 0.1 0.2 0.4 0.6 Forward current (mA) Copyright© 2018 Orient Tech Corporation. All rights Reserved 3 Ver, A0 SHENZHEN ORIENT ELECTRONICS CO. ,LTD. ORH-W45A 7. Judgment criteria of failure for the reliability Measuring items Forward voltage Reverse current Luminous intensity Symbol VF ( V) IR(uA) Iv ( mcd ) Measuring conditions IF=5mA VR=5V IF=5mA Judgement criteria for failure Over Ux1.2 Over Ux2 Below SX0.5 Note: 1).U means the upper limit of specified characteristics. S means initial value. 2).Measurment shall be taken between 2 hours and after the test pieces have been returned to normal ambient conditions after completion of each test. 8.Bin Limits In t e n s i t y Bi n Li m i t s (A t 15 mA ) BIN CODE Min. (mcd) Max. (mcd) Q 600 700 W 700 800 E 800 900 To l e r a n c e for ea c h Bi n li m i t is ± 15 % . Co l o r Bi n Li m i t s (A t BIN X1 1 0.291 2 0.2963 3 0.3015 4 0.3067 5 0.3122 6 0.3173 1 5m A ) Y1 X2 Y2 X3 Y3 X4 Y4 0.31 0.2963 0.32 0.3108 0.32 0.3058 0.31 0.32 0.3015 0.33 0.316 0.33 0.3108 0.32 0.33 0.3067 0.34 0.3214 0.34 0.316 0.33 0.34 0.3122 0.35 0.3265 0.35 0.3214 0.34 0.35 0.3173 0.36 0.3315 0.36 0.3265 0.35 0.36 0.3225 0.37 0.337 0.37 0.3315 0.36 Copyright© 2018 Orient Tech Corporation. All rights Reserved 4 Ver, A0 SHENZHEN ORIENT ELECTRONICS CO. ,LTD. ORH-W45A V F Bi n Li m i t s (A t 15 mA ) BI N CO D E Mi n . ( v ) Ma x . ( v ) S 2.8 2.9 D 2.9 3 F 3 3.1 To l e r a n c e for ea c h Bi n li m i t is ± 0. 0 5 V. 9. BI N ： x x x VF BIN CO DE Co lor BIN CODE Intensity BIN CODE Copyright© 2018 Orient Tech Corporation. All rights Reserved 5 Ver, A0 SHENZHEN ORIENT ELECTRONICS CO. ,LTD. ORH-W45A 10.Tapping and packaging specifications(Units: mm) 13.0± 0.5 1.0± 0.1 1.42 ± 0.1 4.0 ± 0.1 2.0± 0.05 TRAILER 179± 1 71.0± 1 8.0 ± 0.3 3.5 ± 0.05 1.5± 0.1 1.75 ± 0.1 CATHODE 4.0 ± 0.1 13.0± 0.5 END 5.3 ± 0.05 START 2.26± 0.1 ANODE USER DIRECTION OF FEED LEADER 0.3 FIXING TAPE NOTE: 4000 pcs PER REEL 11.Package Method:(unit:mm) Copyright© 2018 Orient Tech Corporation. All rights Reserved 6 Ver, A0 SHENZHEN ORIENT ELECTRONICS CO. ,LTD. ORH-W45A 12. Package and Label of Products: (1) Package: Products are packed in one bag of 3000 pcs (one taping reel) and a label is attached on each bag. (2) Label: ORIENT LOGO Part No. Quantity BIN Sealing Date x xx xx xx Year Month Day Manufacture Location Copyright© 2018 Orient Tech Corporation. All rights Reserved 7 Ver, A0 SHENZHEN ORIENT ELECTRONICS CO. ,LTD. ORH-W45A 13.Reliability Test Classification Test Item Reference Standard Operation Life MIL-STD-750:1026 MIL-STD-883:1005 JIS-C-7021 :B-1 High Temperature MIL-STD-202:103B High Humidity JIS-C-7021 :B-11 Endurance Storage Test High MIL-STD-883:1008 Temperature JIS-C-7021 :B-10 Storage Low Temperature JIS-C-7021 :B-12 Storage Temperature MIL-STD-202:107D Cycling MIL-STD-750:1051 MIL-STD-883:1010 JIS-C-7021 :A-4 Thermal Shock MIL-STD-202:107D Environmental MIL-STD-750:1051 Test MIL-STD-883:1011 Solder MIL-STD-202:201A Resistance MIL-STD-750:2031 JIS-C-7021 :A-1 Test Conditions Result Connect with a power If=20mA Ta=Under room temperature Test time=1,000hrs Ta=+65℃±5℃ RH=90%-95% Test time=240hrs 0/20 0/20 High Ta=+85℃±5℃ Test time=1,000hrs 0/20 Low Ta=-35℃±5℃ Test time=1,000hrs 0/20 -35℃ ~ +25℃ ~ +85℃ ~ +25℃ 60min 20min 60min 20min Test Time=5cycle 0/20 -35℃±5℃ ~+85℃±5℃ 20min 20min Test Time=10cycle Preheating： 140℃-160℃,within 2 minutes. Operation heating： 260℃(Max.), within 10seconds. (Max.) 0/20 0/20 14. Soldering : 1). Manual Of Soldering The temperature of the iron tip should not be higher than 300 ℃ (572 ℉ ) and Soldering within 3 seconds per solder-land is to be observed. 2). Reflow Soldering Preheating : 140℃~160℃±5℃,within 2 minutes. Operation heating : 260℃(Max.) within 10 seconds.(Max) Copyright© 2018 Orient Tech Corporation. All rights Reserved 8 Ver, A0 SHENZHEN ORIENT ELECTRONICS CO. ,LTD. ORH-W45A 10 SEC. MAX. Temperature 140~160℃ 260℃ MAX. 4℃ /SEC. MAX. 4℃ /SEC. MAX. OVER 2 MIN. Time Gradual Cooling (Avoid quenching). 3). DIP soldering (Wave Soldering) : Preheating : 120℃~150℃,within 120~180 sec. Operation heating : 245℃±5℃ within 5 sec.260℃ (Max) Gradual Cooling (Avoid quenching). Temperature Soldering heat Max. 260 ℃ 245 ±5℃ within 5 sec. 120~150℃ Preheat 120~180 sec. Time 15.Handling : Care must be taken not to cause to the epoxy resin portion of ORIENTLEDs while it is exposed to high temperature. Care must be taken not rub the epoxy resin portion of ORIENT LEDs with hard or sharp article such as the sand blast and the metal hook. 16.Notes for designing: Care must be taken to provide the current limiting resistor in the circuit so as to drive the ORIENT LEDs within the rated figures. Also, caution should be taken not to overload ORIENT LEDs with instantaneous voltage at the turning ON and OFF of the circuit. When using the pulse drive care must be taken to keep the average current within the rated figures. Also, the circuit should be designed so as be subjected to reverse voltage when turning off the ORIENT LEDs. Copyright© 2018 Orient Tech Corporation. All rights Reserved 9 Ver, A0 SHENZHEN ORIENT ELECTRONICS CO. ,LTD. ORH-W45A 17. Storage: In order to avoid the absorption of moisture, it is recommended to solder ORIENT LEDs as soon as possible after unpacking the sealed envelope. If the envelope is still packed, to store it in the environment as following: (1) Temperature : 5℃-30℃(41℉)Humidity : RH 60﹪Max. (2) After this bag is opened, devices that will be applied to infrared reflow, vapor-phase reflow, or equivalent soldering process must be: a....Completed within 24 hours. b....Stored at less than 30% RH. (3) Devices require baking before mounting, if: (2) a or (2) b is not met. (4) If baking is required, devices must be baked under below conditions: 12 hours at 60℃±3℃. Copyright© 2018 Orient Tech Corporation. All rights Reserved 10 Ver, A0
