H455CBC

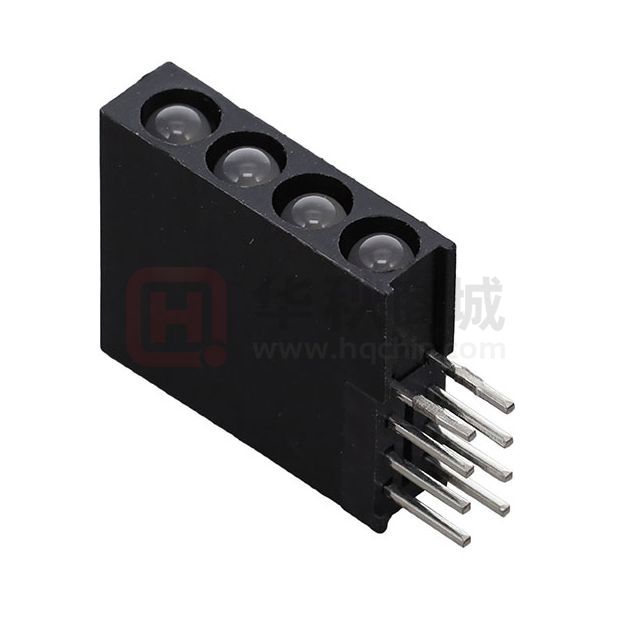

PART NUMBER REV. ITEM Q'TY PART DESCRIPTION 1 1 H-455C T-1 (3mm) Quad-Level LED Holder, 90° Mount 2 4 3BC T-1 (3mm) Non-Flange LED Bi-Colors DATE APPROVED 01/03/06 08/17/07 10/27/10 08/04/16 M. C. M. C. T. Y. J. C. DESCRIPTION A Engineering Release B Added BH-340 to BOM C Removed BH-340 and Updated Data D Engineering Update w/o Changes 1 0.170 [4.3mm] 0.555 [14.1mm] 2 4X Ø.118 [Ø3.0mm] TYP. Holder Face 0.550 [14.0mm] 0.250 [6.4mm] 0.660 [16.8mm] 0.400 [10.2mm] Ø.032+.003 -.002 TYP. 0.250 [6.3mm] 0.075 [1.9mm] 0.150 [3.8mm] 0.225 [5.7mm] 0.100 [2.5mm] 2 0.100 [2.5mm] LED Lead 0.157 [4.0mm] 1 Recommended Mounting Holes 0.020 [0.5mm] 0.100 [2.5mm] SQ. TYP. 0.250 [6.4mm] 0.325 [8.3mm] 0.400 [10.2mm] 0.475 [12.1mm] 2 1 Cathode Cathode RED GREEN Absolute Max. Ratings Chip LED Part No. 3BC Peak Wave Length λp (nm ) Em itted Color GaAsP/GaP 625 HE RED GaP/GaP 568 GREEN Material Lens Appearance WHITE DIFFUSED ∆λ (nm ) Pd (m W) If (m A) Electro-Optical Data @ 20m A Iv (m cd) TYP MAX TYP - 80 30 150 2.0 2.8 6 - 80 30 150 2.1 2.8 6 ABSOLUTE MAXIMUM RATINGS (Ta = 25°C) REVERSE VOLTAGE 5V REVERSE CURRENT ( VR=5V) 100µA OPERATING TEMPERATURE RANGE -25°C ~ 85°C STORAGE TEMPERATURE -30°C ~ 100°C 260°C for 5 Seconds View ing Angle (Deg) 45 STANDARD TOLERANCE ® ( UNLESS OTHERWISE SPECIFIED ) DECIMALS LEAD SOLDERING TEMPERATURE (1/16" FROM BODY) Vf (V) Peak If (m A) .X .XX .XXX ± .1 ± .02 ± .010 DESIGNED: S. Dam CHECKED: T. Yin ANGULAR X° ± 1° 4 THOMAS, IRVINE, CA. 92618 TEL: (949) 951-8808 FAX: (949) 951-3974 TITLE: DATE: 01/03/06 DATE: 01/03/06 T-1 (3mm) SINGLE STATION 90° QUAD-LEVEL ASSEMBLY REVISION: PART NO: H455CBC CAGE CODE : 32559 D SHEET # 1 OF 1 CAD GENERATED DOCUMENT, DO NOT MEASURE DRAWING.
