MBR90200WT

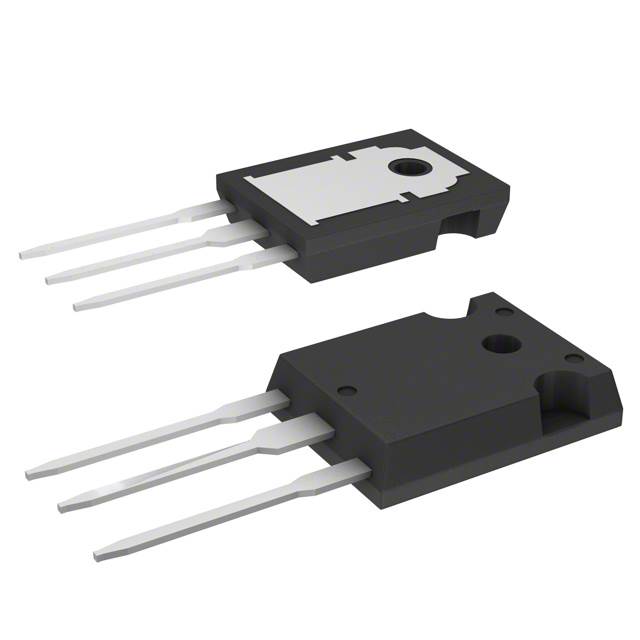

MBR90200WT Technical Data Data Sheet N0112, Rev. - Green Products MBR90200WT SCHOTTKY RECTIFIER Applications: • • • • • Switching power supply Converters Free-Wheeling diodes Reverse battery protection Center tap configuration Features: • • • • • • • • ANODE 1 175°C TJ operation Low forward voltage drop High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance High frequency operation Guard ring for enhanced ruggedness and long term reliability This is a Pb − Free Device All SMC parts are traceable to the wafer lot Additional testing can be offered upon request ANODE 2 1 3 2 COMMON CATHODE BASE Mechanical Dimensions: In mm SYMBOL A A1 A2 b b1 b2 c D D1 D2 E E1 E2 E3 e L L1 P P1 P2 Q S T U MIN. 4.80 2.21 1.90 1.10 0.55 20.80 15.60 19.42 3.50 6.05 OPTION 1(HD) • China - Germany - Korea - Singapore - United States • • http://www.smc-diodes.com - sales@ smc-diodes.com • TYP. 5.00 2.41 2.00 1.20 2.00 3.00 0.60 21.00 16.55 1.20 15.80 13.30 5.00 2.50 5.44 19.92 4.13 3.60 2.50 5.80 6.15 10.00 6.20 MAX. 5.20 2.61 2.10 1.35 0.75 21.20 16.00 20.42 3.70 7.40 6.25 MBR90200WT Technical Data Data Sheet N0112, Rev. - Green Products OPTION 2(CJ) • China - Germany - Korea - Singapore - United States • • http://www.smc-diodes.com - sales@ smc-diodes.com • MBR90200WT Technical Data Data Sheet N0112, Rev. - Green Products OPTION 3(SR) TO-247AD • China - Germany - Korea - Singapore - United States • • http://www.smc-diodes.com - sales@ smc-diodes.com • MBR90200WT Technical Data Data Sheet N0112, Rev. - Green Products Marking Diagram: Where XXXXX is YYWWL MBR 90 200 WT SSG YY WW L = Device Type = Forward Current (90A) = Reverse Voltage (200V) = Configuration = SSG = Year = Week = Lot Number Cautions：Molding resin Epoxy resin UL:94V-0 Ordering Information: Device MBR90200WT Package Shipping TO-247AD (Pb-Free) 30pcs/ tube For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specification. Maximum Ratings: Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forward Current (per device) Peak One Cycle Non-Repetitive Surge Current(per leg) Symbol VRRM VRWM VR Condition - Max. Units 200 V IF(AV) 50% duty cycle @TC =145°C, rectangular wave form 90 A IFSM 8.3 ms, half Sine pulse 860 A • China - Germany - Korea - Singapore - United States • • http://www.smc-diodes.com - sales@ smc-diodes.com • MBR90200WT Technical Data Data Sheet N0112, Rev. - Green Products Electrical Characteristics: Characteristics Forward Voltage Drop (per leg)* Reverse Current (per leg) * Symbol VF1 VF2 IR1 IR2 Junction Capacitance (per leg) Voltage Rate of Change * CT dv/dt Condition @ 45A, Pulse, TJ = 25 °C @ 45A, Pulse, TJ = 125 °C @VR = rated VR TJ = 25 °C @VR = rated VR TJ = 125 °C @VR = 5V, TC = 25 °C fSIG = 1MHz - Typ. 0.86 0.70 0.0001 Max. 0.96 0.86 1 Units V V mA 0.18 25.0 mA 600 900 pF - 10,000 V/μs Pulse Width < 300µs, Duty Cycle
