WSR10N65F
N-Ch MOSFET
General Description
Product Summery
The WSR10N65F is the highest performance trench
N-Ch MOSFET with extreme high cell density,which
provide excellent RDSON and gate charge for most
of the synchronous buck converter applications .
BVDSS
RDSON
ID
650V
0.8Ω
10A
Applications
The WSR10N65F meet the RoHS and Green
Product requirement , 100% EAS
guaranteed with full function reliability
approved.
z AC/DC Power Conversion in Switched Mode Power
Supplies (SMPS).
z Uninterruptible Power Supply(UPS)
Features
z Adapter.
z Advanced high cell density Trench technology

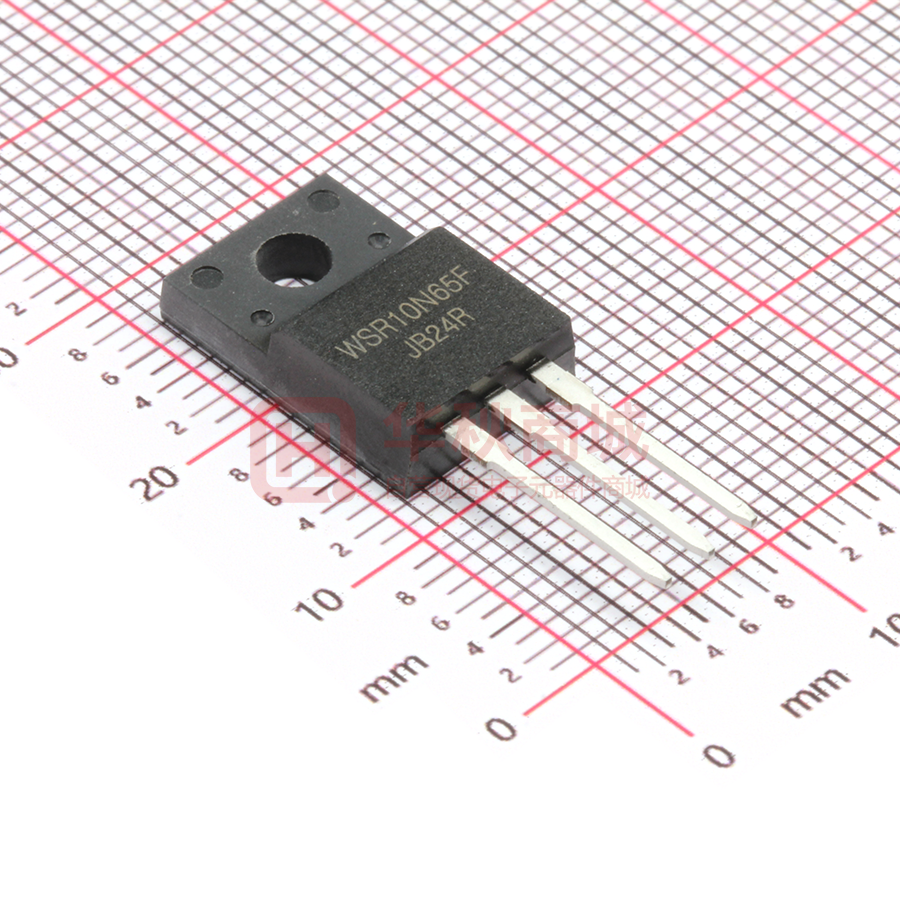

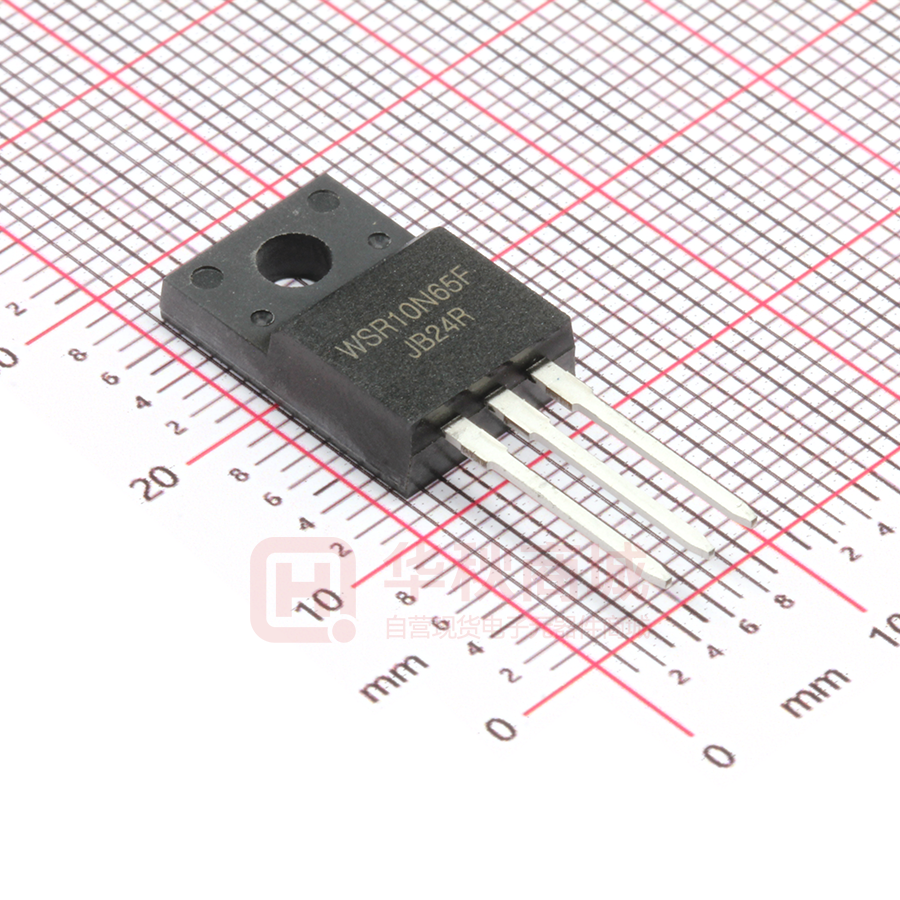

TO-220F Pin Configuration
z Super Low Gate Charge
z Excellent Cdv/dt effect decline
z Green Device Available
Absolute Maximum Ratings
Symbol
Parameter
Rating
Units
VDS
Drain-Source Voltage
650
V
VGS
Gate-Source Voltage
ID@TC=25℃
ID@TC=100℃
IDM
EAS
±30
V
1.5
10
A
1.5
6
A
40
A
900
mJ
39
W
Continuous Drain Current, VGS @ 10V
Continuous Drain Current, VGS @ 10V
1.2.5
Pulsed Drain Current
1
Single Pulse Avalanche Energy
1,5
PD
Total Power Dissipation
TSTG
Storage Temperature Range
-55 to 150
℃
TJ
Operating Junction Temperature Range
-55 to 150
℃
Thermal Data
Symbol
Parameter
Typ.
Max.
Unit
RθJA
Thermal Resistance Junction-ambient 1
---
62.5
℃/W
RθJC
Thermal Resistance Junction-Case1
---
3.2
℃/W
www.winsok.tw
Page 1
Rev 1: May.2019
WSR10N65F
N-Ch MOSFET
Electrical Characteristics (TJ=25 ℃, unless otherwise noted)
Symbol
BVDSS
Parameter
Conditions
Drain-Source Breakdown Voltage
VGS(th)
Typ.
Max.
Unit
650
---
---
V
---
V/℃
0.6
0.8
Ω
2.0
3.0
4.0
V
---
-4.57
---
mV/℃
VDS=650V , VGS=0V , TJ=25℃
---
---
1
VDS=520V , VGS=0V , TJ=55℃
---
---
10
VGS=0V , ID=250uA
△BVDSS/△TJ BVDSS Temperature Coefficient
RDS(ON)
Min.
Reference to 25℃ , ID=250uA
2
Static Drain-Source On-Resistance
Gate Threshold Voltage
VGS=10V , ID=3.5A
VGS=VDS , ID =250uA
-----
0.6
△VGS(th)
VGS(th) Temperature Coefficient
IDSS
Drain-Source Leakage Current
IGSS
Gate-Source Leakage Current
VGS=±30V , VDS=0V
---
---
±100
nA
gfs
Forward Transconductance
VDS=40V , ID=3.5A
---
5
---
S
Qg
Total Gate Charge (10V)
---
21
---
Qgs
Gate-Source Charge
---
7.5
---
Qgd
Td(on)
VDD=520V , VGS=10V , ID=10A
Gate-Drain Charge
---
6
---
Turn-On Delay Time
---
28
---
uA
nC
Rise Time
VDD=300V , VGS=10V ,
---
70
---
Turn-Off Delay Time
ID=10A,RG=25Ω .
---
53
---
Fall Time
---
35
---
Ciss
Input Capacitance
---
1120
---
Coss
Output Capacitance
---
130
---
Crss
Reverse Transfer Capacitance
---
4.9
---
Min.
Typ.
Max.
Unit
---
---
10
A
---
---
40
A
---
---
1.4
V
---
491
---
nS
---
2296
---
nC
Tr
Td(off)
Tf
VDS=25V , VGS=0V , f=1MHz
ns
pF
Diode Characteristics
Symbol
IS
ISM
Parameter
Continuous Source
Current1,2,5
1,2
Pulsed Source Current
1
VSD
Diode Forward Voltage
trr
Reverse Recovery Time
Qrr
Reverse Recovery Charge
Conditions
VG=VD=0V , Force Current
VGS=0V , IS=10A , TJ=25℃
IF=10A , dI/dt=40A/µs , TJ=25℃
Notes:
Note
Note
Note
Note
Note
1:limited by maximum junction temperature.
2:Bond wire current limit.
3:VDS=520V, ID=10A.
4:ID=0.5A, VDD=50V, Tj=25°C.
5:Repetitive Rating : Pulse width limited by maximum junction temperature.
www.winsok.tw
Page 2
Rev 1: May.2019
WSR10N65F
N-Ch MOSFET
Typical Characteristics
Figure 1 Output Characteristics
Figure 3 Rdson-ID Characteristics
Figure 4 Body diode Characteristics
Figure 2 Transfer Characteristics
www.winsok.tw
Page 3
Rev 1: May.2019
WSR10N65F
N-Ch MOSFET
Typical Characteristics
Figure 5 Rdson- Tj Relation
Figure 7 Capacitance vs Vds
www.winsok.tw
Figure 6 BVDSS vs Junction Temperature
Figure 8 VGS vs QG Characteristics
Page 4
Rev 1: May.2019
WSR10N65F
N-Ch MOSFET
Typical Characteristics
Figure 9 Safe Operation Area
Figure 10 Maximum current attenuation
Figure 11 Normalized Maximum Transient Thermal Impedance
www.winsok.tw
Page 5
Rev 1: May.2019
