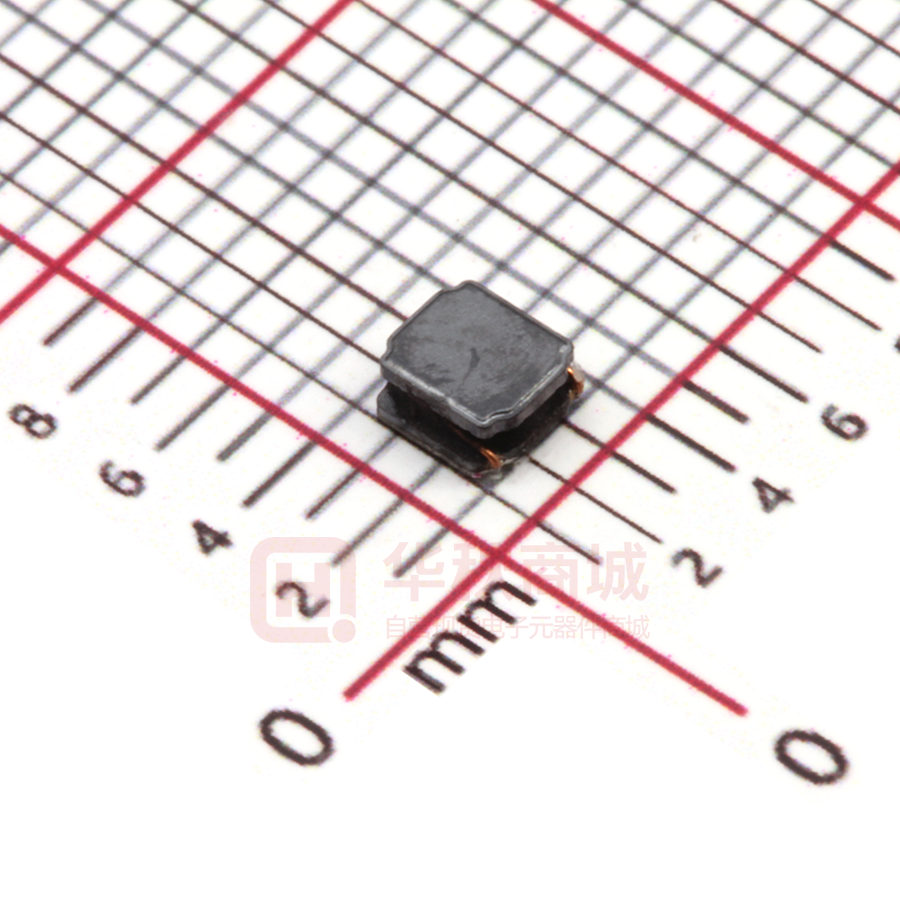

SWPA3015S2R2MT

Wire Wound SMD Power Inductors – SWPA Series Operating temperature range: -40℃~+125℃ (Including self-heating) FEATURES z z z z z Magnetic-resin shielded construction reduces buzz noise to ultra-low levels Metallization on ferrite core results in excellent shock resistance and damage-free durability Closed magnetic circuit design reduces leakage flux and Electro Magnetic Interference (EMI) 30% higher current rating than conventional nductors of equal size Takes up less PCB real estate and save more power APPLICATIONS z z z z z z z LED Lighting Next-generation mobile devices with multifunction such as mobile TV and digital movie cameras Flat-screen TVs, blue-ray disc recorders, set top box Notebooks, desktop computers, servers, graphic cards cards Portable gaming devices, personal navigation systems, personal multimedia devices Automotive systems Telecomm base stations PRODUCT IDENTIFICATION SWPA 3012 S 1R0 N T ① ② ③ ④ ⑤ ⑥ External Dimensions (L×W×H) [mm] Type ① SWPA 252010 252012 3010 3012 3015 4010 4018 4020 4026 4030 5012 5020 5040 6020 6028 6045 8040 Wire Wound SMD Power Inductor Feature Type ③ S Standard Nominal Inductance ④ Example 1R0 100 Nominal Value 1.0μH 10μH Inductance Tolerance ⑤ M N Sunlord ±20% ±30% 2.5×2.0×1.0 2.5×2.0×1.2 3.0×3.0×1.0 3.0×3.0×1.2 3.0×3.0×1.5 4.0×4.0×1.0 4.0×4.0×1.8 4.0×4.0×2.0 4.0×4.0×2.6 4.0×4.0×3.0 5.0×5.0×1.2 5.0×5.0×2.0 5.0×5.0×4.0 6.0×6.0×2.0 6.0×6.0×2.8 6.0×6.0×4.5 8.0×8.0×4.0 Packing ⑥ T Tape Carrier Package Specifications subject to change without notice. Please check our website for latest information. Revised 2013/12/30 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SHAPE AND DIMENSIONS Fig.1 Fig.2 D C B E A F E D Recommended Land Pattern c Fig.3 Unit: mm Series Shape A B C D E F a Typ. b Typ. c Typ. SWPA252010S Fig.1 2.5±0.1 2.0±0.1 1.0Max. 1.5±0.2 0.80±0.2 0.80±0.2 0.80 0.85 2.0 SWPA252012S Fig.1 2.5±0.1 2.0±0.1 1.2Max. 1.5±0.2 0.80±0.2 0.80±0.2 0.80 0.85 2.0 SWPA3010S Fig.2 3.0±0.2 3.0±0.2 1.0Max. 2.5±0.2 0.75±0.2 1.5±0.2 1.5 0.8 2.7 SWPA3012S Fig.2 3.0±0.2 3.0±0.2 1.2Max. 2.5±0.2 0.75±0.2 1.5±0.2 1.5 0.8 2.7 SWPA3015S Fig.2 3.0±0.2 3.0±0.2 1.5Max. 2.5±0.2 0.75±0.2 1.5±0.2 1.5 0.8 2.7 SWPA4010S Fig.3 4.0±0.2 4.0±0.2 1.0Max. 3.3±0.2 0.95±0.2 2.1±0.2 1.9 1.1 3.7 SWPA4018S Fig.2 4.0±0.2 4.0±0.2 1.8Max. 3.3±0.2 0.95±0.2 2.1±0.2 1.9 1.1 3.7 SWPA4020S Fig.2 4.0±0.2 4.0±0.2 2.0Max. 3.3±0.2 0.95±0.2 2.1±0.2 1.9 1.1 3.7 SWPA4026S Fig.3 4.0±0.2 4.0±0.2 2.6Max. 3.3±0.2 0.95±0.2 2.1±0.2 1.9 1.1 3.7 SWPA4030S Fig.2 4.0±0.2 4.0±0.2 3.0Max. 3.3±0.2 0.95±0.2 2.1±0.2 1.9 1.1 3.7 SWPA5012S Fig.3 5.0±0.2 5.0±0.2 1.2Max. 4.0±0.2 1.25±0.2 2.5±0.2 2.3 1.4 4.2 SWPA5020S Fig.3 5.0±0.2 5.0±0.2 2.0Max. 4.0±0.2 1.25±0.2 2.5±0.2 2.3 1.4 4.2 SWPA5040S Fig.3 5.0±0.2 5.0±0.2 4.0Max. 4.0±0.2 1.25±0.2 2.5±0.2 2.3 1.4 4.2 SWPA6020S Fig.2 6.0±0.3 6.0±0.3 2.0Max. 4.9±0.3 1.55±0.3 2.9±0.3 2.8 1.7 5.7 SWPA6028S Fig.2 6.0±0.3 6.0±0.3 2.8Max. 4.9±0.3 1.55±0.3 2.9±0.3 2.8 1.7 5.7 SWPA6045S Fig.2 6.0±0.3 6.0±0.3 4.5Max. 4.9±0.3 1.55±0.3 2.9±0.3 2.8 1.7 5.7 SWPA8040S Fig.2 8.0±0.3 8.0±0.3 4.2Max. 6.3±0.3 2.00±0.3 4.0±0.3 3.8 2.2 7.5 ※*1: All products are printed with Marking except the 252010S, 252012S, 3010S, 3012S and 3015S series. Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2013/12/30 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SWPA252010S Series Part Number Units Symbol SWPA252010SR47NT SWPA252010SR56NT SWPA252010SR68NT SWPA252010S1R0NT SWPA252010S1R5NT SWPA252010S2R2NT SWPA252010S3R3MT SWPA252010S4R7MT SWPA252010S5R6MT SWPA252010S6R8MT SWPA252010S100MT Inductance DC Resistance @100kHz,1V (±20%) μH L 0.47±30% 0.56±30% 0.68±30% 1.0±30% 1.5±30% 2.2±30% 3.3±20% 4.7±20% 5.6±20% 6.8±20% 10±20% Max. Ω Typ. Ω DCR 0.056 0.072 0.074 0.108 0.182 0.209 0.328 0.563 0.563 0.896 1.092 0.047 0.060 0.062 0.090 0.152 0.174 0.273 0.469 0.469 0.747 0.910 Min. Self-resonant Saturation Current Frequency Min. MHz S.R.F 202 150 138 100 79 61 48 40 37 32 26 Max. A Heat Rating Current Typ. A Max. A 3.35 3.20 2.75 2.20 2.10 1.60 1.30 1.15 0.95 0.92 0.78 2.35 2.00 2.00 1.65 1.30 1.20 0.90 0.70 0.73 0.59 0.50 Isat 2.50 2.90 2.20 1.85 1.80 1.20 1.05 0.95 0.80 0.78 0.65 Typ. A Irms 2.56 2.18 2.18 1.80 1.42 1.31 0.98 0.76 0.80 0.64 0.55 SWPA252012S Series Part Number Units Symbol SWPA252012SR47NT SWPA252012SR68NT SWPA252012S1R0NT SWPA252012S1R2NT SWPA252012S1R5MT SWPA252012S1R5NTY01 SWPA252012S2R2MT SWPA252012S2R2NTY02 SWPA252012S2R7MT SWPA252012S3R3MT SWPA252012S3R6MT SWPA252012S4R3MT SWPA252012S4R7MT SWPA252012S5R1MT SWPA252012S5R6MT SWPA252012S6R2MT SWPA252012S6R8MT SWPA252012S7R5MT SWPA252012S8R2MT SWPA252012S9R1MT SWPA252012S100MT SWPA252012S120MT SWPA252012S150MT SWPA252012S220MT Sunlord Inductance DC Resistance @100kHz,1V (±30%) μH L 0.47±30% 0.68±30% 1.0±30% 1.2±30% 1.5±20% 1.5±30% 2.2±20% 2.2±30% 2.7±20% 3.3±20% 3.6±20% 4.3±20% 4.7±20% 5.1±20% 5.6±20% 6.2±20% 6.8±20% 7.5±20% 8.2±20% 9.1±20% 10±20% 12±20% 15±20% 22±20% Max. Ω Typ. Ω 0.056 0.068 0.083 0.119 0.136 0.120 0.199 0.142 0.221 0.244 0.322 0.348 0.348 0.462 0.497 0.500 0.536 0.564 0.607 0.637 0.637 0.992 1.469 1.824 DCR 0.047 0.057 0.069 0.099 0.113 0.100 0.166 0.118 0.184 0.203 0.268 0.290 0.290 0.385 0.414 0.417 0.447 0.470 0.506 0.531 0.531 0.827 1.224 1.520 Min. Self-resonant Saturation Current Frequency Min. MHz S.R.F 160 140 110 100 97 63 69 53 63 62 53 51 47 44 38 38 38 35 36 34 34 28 25 20 Max. A Heat Rating Current Typ. A Max. A 4.27 3.68 2.90 2.67 2.51 2.00 2.07 1.75 1.92 1.80 1.64 1.53 1.25 1.37 1.25 1.16 1.09 1.09 1.10 1.02 0.88 0.88 0.77 0.59 2.15 1.95 1.93 1.46 1.4 1.45 1.15 1.3 1.09 1.04 0.9 0.87 0.84 0.75 0.73 0.73 0.69 0.68 0.65 0.62 0.62 0.51 0.42 0.38 Isat 3.82 3.28 2.59 2.38 2.24 1.80 1.85 1.55 1.72 1.61 1.46 1.37 1.12 1.23 1.11 1.03 0.98 0.97 0.98 0.91 0.79 0.78 0.68 0.53 Typ. A Irms Specifications subject to change without notice. Please check our website for latest information. 2.34 2.13 2.10 1.59 1.53 1.58 1.25 1.42 1.19 1.13 0.98 0.95 0.92 0.82 0.80 0.80 0.75 0.74 0.71 0.68 0.68 0.56 0.46 0.41 Revised 2013/12/30 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SWPA3010S Series Part Number Units Symbol SWPA3010S1R0NT SWPA3010S1R2NT SWPA3010S1R5NT SWPA3010S2R2NT SWPA3010S2R7NT SWPA3010S3R3NT SWPA3010S3R6MT SWPA3010S4R7MT SWPA3010S6R8MT SWPA3010S100MT SWPA3010S120MT SWPA3010S150MT SWPA3010S220MT SWPA3010S270MT SWPA3010S330MT SWPA3010S390MT SWPA3010S430MT SWPA3010S470MT SWPA3010S510MT SWPA3010S560MT Inductance @100kHz,1V DC Resistance (±30%) μH L 1.0±30% 1.2±30% 1.5±30% 2.2±30% 2.7±30% 3.3±30% 3.6±20% 4.7±20% 6.8±20% 10±20% 12±20% 15±20% 22±20% 27±20% 33±20% 39±20% 43±20% 47±20% 51±20% 56±20% Ω DCR 0.065 0.065 0.080 0.110 0.130 0.145 0.165 0.225 0.305 0.400 0.505 0.610 0.930 1.080 1.550 1.750 1.800 1.950 2.200 2.320 Inductance DC Resistance @100kHz,1V (±30%) μH L 0.82±30% 1.0±30% 1.2±30% 1.5±30% 1.8±30% 2.2±30% 2.4±30% 2.7±30% 3.3±20% 3.9±20% 4.7±20% 6.8±20% 10±20% 12±20% 15±20% 18±20% 22±20% 27±20% 33±20% 36±20% Ω DCR 0.030 0.040 0.045 0.045 0.063 0.075 0.068 0.085 0.100 0.145 0.120 0.190 0.265 0.345 0.360 0.545 0.645 0.870 0.875 0.950 Min. Self-resonant Frequency MHz S.R.F 180 137 120 100 90 74 67 59 42 39 36 30 28 25 18 18 18 18 18 16 Saturation Heat Rating Current Current A Isat 1.40 1.25 1.27 1.15 1.00 0.97 0.95 0.75 0.55 0.55 0.43 0.42 0.35 0.30 0.29 0.28 0.23 0.22 0.21 0.21 A Irms 1.45 1.45 1.30 1.09 1.02 0.96 0.90 0.77 0.66 0.58 0.52 0.47 0.38 0.35 0.30 0.28 0.27 0.26 0.25 0.24 Saturation Heat Rating Current Current A Isat 2.05 1.87 2.22 1.62 1.30 1.20 1.15 1.14 1.05 1.00 0.90 0.75 0.60 0.48 0.45 0.43 0.42 0.35 0.36 0.34 A Irms 2.47 2.20 2.01 2.01 1.65 1.55 1.60 1.48 1.36 1.24 1.24 0.98 0.83 0.73 0.71 0.58 0.53 0.47 0.46 0.44 SWPA3012S Series Part Number Units Symbol SWPA3012SR82NT SWPA3012S1R0NT SWPA3012S1R2NT SWPA3012S1R5NT SWPA3012S1R8NT SWPA3012S2R2NT SWPA3012S2R4NT SWPA3012S2R7NT SWPA3012S3R3MT SWPA3012S3R9MT SWPA3012S4R7MT SWPA3012S6R8MT SWPA3012S100MT SWPA3012S120MT SWPA3012S150MT SWPA3012S180MT SWPA3012S220MT SWPA3012S270MT SWPA3012S330MT SWPA3012S360MT Sunlord Min. Self-resonant Frequency MHz S.R.F 180 120 120 110 90 84 100 65 64 61 61 61 42 32 27 25 23 21 18 18 Specifications subject to change without notice. Please check our website for latest information. Revised 2013/12/30 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SWPA3012S Series Part Number Units Symbol SWPA3012S390MT SWPA3012S470MT SWPA3012S680MT SWPA3012S820MT SWPA3012S101MT Inductance DC Resistance @100kHz,1V (±30%) μH L 39±20% 47±20% 68±20% 82±20% 100±20% Ω DCR 1.330 1.450 1.670 2.540 2.860 Inductance DC Resistance @100kHz,1V (±30%) μH L 1.0±30% 1.2±30% 1.5±30% 1.8±30% 2.2±30% 2.7±30% 3.3±20% 3.6±20% 4.3±20% 4.7±20% 5.1±20% 6.2±20% 6.8±20% 10±20% 12±20% 15±20% 18±20% 22±20% 27±20% 33±20% 39±20% 43±20% 47±20% 56±20% 62±20% 68±20% Ω DCR 0.030 0.040 0.050 0.050 0.060 0.075 0.080 0.105 0.115 0.125 0.133 0.195 0.200 0.250 0.320 0.350 0.430 0.460 0.730 0.820 0.995 1.060 1.250 1.280 1.610 2.700 Min. Self-resonant Frequency MHz S.R.F 18 14 12 12 12 Saturation Heat Rating Current Current A Isat 0.30 0.27 0.24 0.17 0.21 A Irms 0.37 0.35 0.33 0.27 0.25 Saturation Heat Rating Current Current A Isat 2.32 2.21 2.30 1.75 1.60 1.52 1.32 1.28 1.20 1.10 1.00 1.00 0.85 0.72 0.70 0.66 0.56 0.52 0.48 0.44 0.41 0.37 0.35 0.33 0.30 0.28 A Irms 2.35 1.95 1.70 1.70 1.60 1.43 1.36 1.20 1.14 1.09 1.05 0.86 0.85 0.77 0.68 0.65 0.59 0.57 0.45 0.43 0.39 0.37 0.35 0.34 0.30 0.23 SWPA3015S Series Part Number Units Symbol SWPA3015S1R0NT SWPA3015S1R2NT SWPA3015S1R5NT SWPA3015S1R8NT SWPA3015S2R2NT SWPA3015S2R7NT SWPA3015S3R3MT SWPA3015S3R6MT SWPA3015S4R3MT SWPA3015S4R7MT SWPA3015S5R1MT SWPA3015S6R2MT SWPA3015S6R8MT SWPA3015S100MT SWPA3015S120MT SWPA3015S150MT SWPA3015S180MT SWPA3015S220MT SWPA3015S270MT SWPA3015S330MT SWPA3015S390MT SWPA3015S430MT SWPA3015S470MT SWPA3015S560MT SWPA3015S620MT SWPA3015S680MT Sunlord Min. Self-resonant Frequency MHz S.R.F 150 110 100 92 86 64 68 59 53 46 49 46 39 41 32 30 23 23 22 20 14 16 14 13 13 11 Specifications subject to change without notice. Please check our website for latest information. Revised 2013/12/30 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SWPA4010S Series Inductance DC Resistance @100kHz,1V (±30%) μH L 1.0±30% 1.5±30% 2.2±20% 3.3±20% 4.7±20% 6.8±20% 10±20% 15±20% 22±20% Ω DCR 0.056 0.070 0.085 0.100 0.140 0.200 0.300 0.430 0.570 Part Number Inductance @100kHz,1V DC Resistance (±30%) Units Symbol SWPA4018S1R0NT SWPA4018S1R5NT SWPA4018S2R2MT SWPA4018S3R3MT SWPA4018S4R7MT SWPA4018S6R8MT SWPA4018S100MT SWPA4018S150MT SWPA4018S220MT SWPA4018S330MT SWPA4018S470MT SWPA4018S680MT SWPA4018S101MT SWPA4018S151MT SWPA4018S221MT μH L 1.0±30% 1.5±30% 2.2±20% 3.3±20% 4.7±20% 6.8±20% 10±20% 15±20% 22±20% 33±20% 47±20% 68±20% 100±20% 150±20% 220±20% Ω DCR 0.025 0.030 0.045 0.070 0.090 0.110 0.180 0.250 0.360 0.530 0.650 1.000 1.750 2.500 4.000 Part Number Units Symbol SWPA4010S1R0NT SWPA4010S1R5NT SWPA4010S2R2MT SWPA4010S3R3MT SWPA4010S4R7MT SWPA4010S6R8MT SWPA4010S100MT SWPA4010S150MT SWPA4010S220MT Min. Self-resonant Frequency MHz S.R.F 116 94 73 58 47 38 31 24 19 Saturation Heat Rating Current Current A Isat 2.00 1.68 1.20 1.10 0.95 0.80 0.62 0.54 0.45 A Irms 1.90 1.70 1.50 1.40 1.20 1.00 0.75 0.60 0.50 Saturation Current Heat Rating Current A Isat 4.80 3.35 2.70 2.45 1.70 1.45 1.30 0.94 0.80 0.56 0.57 0.47 0.40 0.31 0.27 A Irms 2.00 1.80 1.65 1.23 1.20 1.06 0.84 0.65 0.59 0.49 0.42 0.32 0.25 0.22 0.17 SWPA4018S Series Sunlord Min. Self-resonant Frequency MHz S.R.F 80 65 52 44 34 29 24 19 16 12 10 8.3 6.5 5.5 4.0 Specifications subject to change without notice. Please check our website for latest information. Revised 2013/12/30 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SWPA4020S Series Part Number Inductance @100kHz,1V DC Resistance (±30%) Units Symbol SWPA4020S1R0NT SWPA4020S1R2NT SWPA4020S1R5NT SWPA4020S2R2NT SWPA4020S3R3MT SWPA4020S3R6MT SWPA4020S4R7MT SWPA4020S5R1MT SWPA4020S5R6MT SWPA4020S6R2MT SWPA4020S6R8MT SWPA4020S7R5MT SWPA4020S8R2MT SWPA4020S100MT SWPA4020S120MT SWPA4020S150MT SWPA4020S220MT SWPA4020S270MT SWPA4020S330MT SWPA4020S390MT SWPA4020S430MT SWPA4020S470MT SWPA4020S510MT SWPA4020S560MT SWPA4020S620MT SWPA4020S680MT μH L 1.0±30% 1.2±30% 1.5±30% 2.2±30% 3.3±20% 3.6±20% 4.7±20% 5.1±20% 5.6±20% 6.2±20% 6.8±20% 7.5±20% 8.2±20% 10±20% 12±20% 15±20% 22±20% 27±20% 33±20% 39±20% 43±20% 47±20% 51±20% 56±20% 62±20% 68±20% Ω DCR 0.029 0.029 0.035 0.040 0.070 0.055 0.075 0.085 0.090 0.115 0.125 0.115 0.125 0.165 0.175 0.230 0.350 0.545 0.550 0.650 0.660 0.710 0.750 0.800 0.900 1.060 Part Number Inductance @100kHz,1V DC Resistance (±30%) Units Symbol SWPA4020S750MT SWPA4020S820MT SWPA4020S101MT μH L 75±20% 82±20% 100±20% Ω DCR 1.160 1.170 1.550 Min. Self-resonant Frequency MHz S.R.F 75 72 71 49 44 49 42 42 30 36 33 30 27 26 26 24 15 14 11 11 10 10 10 10 9.6 7.7 Saturation Current Heat Rating Current A Isat 4.78 5.10 4.45 3.40 3.20 2.80 2.35 2.30 2.20 2.15 2.20 1.85 1.75 1.60 1.50 1.35 1.05 1.02 0.85 0.82 0.77 0.74 0.70 0.66 0.65 0.61 A Irms 2.15 2.15 1.98 1.85 1.40 1.54 1.34 1.27 1.22 1.08 1.04 1.08 1.04 0.90 0.88 0.77 0.62 0.50 0.49 0.46 0.45 0.44 0.42 0.41 0.39 0.36 Saturation Current Heat Rating Current A Isat 0.70 0.50 0.48 A Irms 0.35 0.34 0.31 SWPA4020S Series Sunlord Min. Self-resonant Frequency MHz S.R.F 7.7 7.2 6.3 Specifications subject to change without notice. Please check our website for latest information. Revised 2013/12/30 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SWPA4026S Series Part Number Inductance @100kHz,1V DC Resistance (±30%) Units Symbol μH L Ω DCR Min. Self-resonant Frequency MHz S.R.F SWPA4026S1R2NT SWPA4026S1R5NT SWPA4026S2R2MT SWPA4026S3R3MT SWPA4026S4R7MT SWPA4026S6R8MT SWPA4026S100MT SWPA4026S150MT SWPA4026S220MT SWPA4026S330MT SWPA4026S470MT 1.2±30% 1.5±30% 2.2±20% 3.3±20% 4.7±20% 6.8±20% 10±20% 15±20% 22±20% 33±20% 47±20% 0.030 0.030 0.040 0.050 0.055 0.065 0.085 0.110 0.165 0.270 0.300 120 100 96 58 46 33 26 19 13 9 6 Part Number Inductance @100kHz,1V DC Resistance (±30%) Units Symbol SWPA4030SR68NT SWPA4030SR91NT SWPA4030S1R0NT SWPA4030S1R2NT SWPA4030S1R5NT SWPA4030S1R8NT SWPA4030S2R2NT SWPA4030S3R3MT SWPA4030S3R9MT SWPA4030S4R3MT SWPA4030S4R7MT SWPA4030S5R6MT SWPA4030S6R8MT SWPA4030S7R5MT SWPA4030S8R2MT SWPA4030S100MT SWPA4030S120MT SWPA4030S150MT SWPA4030S180MT SWPA4030S220MT SWPA4030S330MT SWPA4030S360MT SWPA4030S390MT SWPA4030S470MT μH L 0.68±30% 0.91±30% 1.0±30% 1.2±30% 1.5±30% 1.8±30% 2.2±30% 3.3±20% 3.9±20% 4.3±20% 4.7±20% 5.6±20% 6.8±20% 7.5±20% 8.2±20% 10±20% 12±20% 15±20% 18±20% 22±20% 33±20% 36±20% 39±20% 47±20% Ω DCR 0.010 0.013 0.014 0.015 0.020 0.028 0.030 0.040 0.057 0.055 0.060 0.065 0.090 0.085 0.090 0.100 0.135 0.190 0.200 0.225 0.330 0.335 0.435 0.445 Saturation Current Heat Rating Current A Isat A Irms 3.10 2.40 2.10 1.80 1.45 1.30 1.00 0.90 0.60 0.55 0.40 2.30 2.30 2.00 1.70 1.60 1.50 1.30 1.10 0.90 0.70 0.65 Saturation Current Heat Rating Current A Isat 6.80 6.25 5.26 5.80 4.84 5.40 4.90 3.30 3.00 2.95 2.90 2.60 2.75 2.20 2.10 1.95 1.70 1.65 1.40 1.30 1.10 1.05 1.03 0.95 A Irms 4.56 4.00 4.15 3.82 3.34 3.20 2.95 2.40 2.10 2.10 2.00 1.95 1.60 1.65 1.60 1.50 1.30 1.11 1.10 1.00 0.84 0.83 0.73 0.72 SWPA4030S Series Sunlord Min. Self-resonant Frequency MHz S.R.F 130 100 70 80 62 60 52 38 32 37 31 30 24 26 26 21 18 16 10 10 10 9.8 10 8.4 Specifications subject to change without notice. Please check our website for latest information. Revised 2013/12/30 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SWPA4030S Series Part Number Units Symbol SWPA4030S510MT SWPA4030S560MT SWPA4030S620MT SWPA4030S680MT SWPA4030S750MT SWPA4030S820MT SWPA4030S910MT SWPA4030S101MT SWPA4030S121MT SWPA4030S151MT SWPA4030S471KT SWPA4030S501MT SWPA4030S681MT Inductance DC Resistance @100kHz,1V (±30%) μH L 51±20% 56±20% 62±20% 68±20% 75±20% 82±20% 91±20% 100±20% 120±20% 150±20% 470±10% 500±20% 680±20% Ω DCR 0.470 0.555 0.585 0.868 1.020 1.060 1.100 1.150 1.350 1.800 7.200 6.944 7.580 Min. Self-resonant Frequency MHz S.R.F 8.4 8.4 7 7 6.3 5.6 5.6 5.6 5.4 4.00 2.0 2 1.2 Saturation Heat Rating Current Current A Isat 0.90 0.85 0.80 0.72 0.70 0.66 0.65 0.60 0.55 0.50 0.30 0.28 0.19 A Irms 0.70 0.65 0.63 0.52 0.48 0.47 0.46 0.45 0.42 0.30 0.2 0.15 0.14 SWPA5012S Series Part Number Units Symbol SWPA5012S1R0NT SWPA5012S1R5NT SWPA5012S2R2NT SWPA5012S3R3NT SWPA5012S4R7NT SWPA5012S6R8MT SWPA5012S100MT SWPA5012S150MT Inductance DC Resistance @100kHz,1V (±30%) μH L 1.0±30% 1.5±30% 2.2±30% 3.3±30% 4.7±30% 6.8±20% 10±20% 15±20% Max. Ω 0.068 0.086 0.108 0.151 0.197 0.294 0.413 0.523 Typ. Ω DCR 0.057 0.072 0.090 0.126 0.164 0.245 0.344 0.436 Min. Self-resonant Saturation Current Heat Rating Current Frequency Min. MHz S.R.F 103 68 50 34 31 22 17 13 Max. A Typ. A Max. A 4.70 3.80 3.20 2.60 2.30 1.90 1.50 1.30 2.00 1.90 1.70 1.40 1.30 1.00 0.85 0.80 Isat 4.40 3.70 3.10 2.40 2.20 1.70 1.40 1.20 Typ. A Irms 2.40 2.20 2.00 1.70 1.50 1.20 1.00 0.92 SWPA5020S Series Part Number Units Symbol SWPA5020SR47NT SWPA5020SR75NT SWPA5020S1R0NT SWPA5020S1R2NT SWPA5020S1R5NT SWPA5020S2R2NT SWPA5020S2R7NT SWPA5020S3R0NT SWPA5020S3R3NT SWPA5020S3R6NT SWPA5020S3R9NT SWPA5020S4R3MT SWPA5020S4R7MT Sunlord Inductance DC Resistance @100kHz,1V (±30%) μH L 0.47±30% 0.75±30% 1.0±30% 1.2±30% 1.5±30% 2.2±30% 2.7±30% 3.0±30% 3.3±30% 3.6±30% 3.9±30% 4.3±20% 4.7±20% Ω DCR 0.013 0.017 0.020 0.022 0.026 0.032 0.038 0.038 0.043 0.043 0.043 0.057 0.057 Min. Self-resonant Frequency MHz S.R.F 160 117 114 83 68 57 52 49 46 43 40 37 37 Saturation Heat Rating Current Current A Isat 6.15 5.50 4.10 4.50 4.10 3.20 2.90 2.55 2.55 2.80 2.30 2.50 2.50 A Irms 4.60 4.00 3.80 3.55 3.20 2.90 2.70 2.70 2.50 2.50 2.50 2.20 2.20 Specifications subject to change without notice. Please check our website for latest information. Revised 2013/12/30 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SWPA5020S Series Part Number Units Symbol SWPA5020S5R1MT SWPA5020S5R6MT SWPA5020S6R8MT SWPA5020S7R5MT SWPA5020S8R2MT SWPA5020S9R1MT SWPA5020S100MT SWPA5020S120MT SWPA5020S150MT SWPA5020S180MT SWPA5020S220MT SWPA5020S330MT SWPA5020S470MT SWPA5020S560MT SWPA5020S101MT Inductance DC Resistance @100kHz,1V (±30%) μH L 5.1±20% 5.6±20% 6.8±20% 7.5±20% 8.2±20% 9.1±20% 10±20% 12±20% 15±20% 18±20% 22±20% 33±20% 47±20% 56±20% 100±20% Ω DCR 0.064 0.064 0.083 0.090 0.098 0.110 0.110 0.140 0.165 0.200 0.226 0.390 0.523 0.630 1.100 Inductance DC Resistance @100kHz,1V (±30%) Min. Self-resonant Frequency MHz S.R.F 32 32 30 26 26 24 24 22 20 16 14 10 7 6 6 Saturation Heat Rating Current Current A Isat 2.25 2.30 2.05 1.85 1.85 1.70 1.70 1.50 1.35 1.25 1.15 0.92 0.77 0.77 0.53 A Irms 2.05 2.05 1.80 1.75 1.65 1.55 1.55 1.40 1.25 1.15 1.10 0.90 0.77 0.70 0.53 Saturation Heat Rating Current Current A Isat 7.35 6.50 6.30 4.90 4.30 3.95 3.55 3.50 2.90 2.35 2.00 1.60 1.30 1.10 0.90 0.75 A Irms 4.90 4.15 4.30 3.80 3.60 3.40 3.20 3.00 2.50 2.10 2.00 1.50 1.20 1.00 0.80 0.70 Saturation Heat Rating Current Current A Isat 4.50 6.55 5.30 4.15 A Irms 3.30 3.80 3.80 3.50 SWPA5040S Series Part Number Units Symbol SWPA5040S1R0NT SWPA5040S1R2NT SWPA5040S1R5NT SWPA5040S2R2NT SWPA5040S2R7NT SWPA5040S3R3NT SWPA5040S3R9NT SWPA5040S4R7NT SWPA5040S6R8MT SWPA5040S100MT SWPA5040S150MT SWPA5040S220MT SWPA5040S330MT SWPA5040S470MT SWPA5040S680MT SWPA5040S101MT μH L 1.0±30% 1.2±30% 1.5±30% 2.2±30% 2.7±30% 3.3±30% 3.9±30% 4.7±30% 6.8±20% 10±20% 15±20% 22±20% 33±20% 47±20% 68±20% 100±20% Ω DCR 0.012 0.016 0.015 0.019 0.022 0.024 0.027 0.030 0.043 0.064 0.086 0.129 0.188 0.272 0.400 0.560 Inductance DC Resistance @100kHz,1V (±30%) μH L 0.50±30% 0.68±30% 0.82±30% 1.0±30% Ω DCR 0.014 0.017 0.017 0.020 Min. Self-resonant Frequency MHz S.R.F 117 110 86 50 37 32 29 28 21 18 13 11 9.1 6.7 5.7 4.7 SWPA6020S Series Part Number Units Symbol SWPA6020SR50NT SWPA6020SR68NT SWPA6020SR82NT SWPA6020S1R0NT Sunlord Min. Self-resonant Frequency MHz S.R.F 120 115 110 100 Specifications subject to change without notice. Please check our website for latest information. Revised 2013/12/30 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SWPA6020S Series Part Number Units Symbol SWPA6020S1R2NT SWPA6020S1R5NT SWPA6020S1R8NT SWPA6020S2R0NT SWPA6020S2R2NT SWPA6020S2R7NT SWPA6020S3R3NT SWPA6020S3R9NT SWPA6020S4R3NT SWPA6020S4R7NT SWPA6020S5R6NT SWPA6020S6R2NT SWPA6020S6R8NT SWPA6020S8R2NT SWPA6020S100MT SWPA6020S120MT SWPA6020S150MT SWPA6020S180MT SWPA6020S220MT Inductance DC Resistance @100kHz,1V (±30%) μH L 1.2±30% 1.5±30% 1.8±30% 2.0±30% 2.2±30% 2.7±30% 3.3±30% 3.9±30% 4.3±30% 4.7±30% 5.6±30% 6.2±30% 6.8±30% 8.2±30% 10±20% 12±20% 15±20% 18±20% 22±20% Ω DCR 0.022 0.022 0.028 0.035 0.028 0.035 0.035 0.049 0.049 0.058 0.058 0.079 0.079 0.105 0.105 0.120 0.145 0.180 0.204 Inductance DC Resistance @100kHz,1V (±30%) μH L 1.0±30% 1.5±30% 2.2±30% 2.7±30% 3.3±30% 4.7±30% 5.1±30% 6.2±20% 6.8±20% 8.2±20% 9.1±20% 10±20% 12±20% 15±20% 18±20% 22±20% 27±20% 33±20% 36±20% 39±20% 47±20% 68±20% 75±20% 82±20% 100±20% Ω DCR 0.010 0.013 0.020 0.020 0.025 0.030 0.043 0.047 0.047 0.055 0.074 0.072 0.080 0.125 0.120 0.140 0.155 0.185 0.215 0.225 0.315 0.360 0.410 0.500 0.500 Min. Self-resonant Frequency MHz S.R.F 88 79 68 65 61 56 51 45 44 41 36 31 31 27 27 25 21 18 16 Saturation Heat Rating Current Current A Isat 5.90 4.25 4.85 4.10 3.75 3.90 3.15 3.25 2.70 3.00 2.40 2.30 2.20 2.10 1.75 1.45 1.20 1.20 1.05 A Irms 3.20 3.20 2.75 2.60 2.75 2.60 2.60 2.10 2.10 2.00 1.90 1.80 1.80 1.40 1.40 1.30 1.20 1.08 1.00 Saturation Heat Rating Current Current A Isat 5.75 6.00 5.10 3.80 4.15 3.00 3.20 3.05 2.60 2.30 2.55 2.04 1.80 1.75 1.52 1.45 1.50 1.35 1.25 1.25 1.15 0.80 0.90 0.80 0.65 A Irms 5.20 4.58 3.75 3.75 3.48 3.08 2.60 2.40 2.40 2.25 2.15 1.95 1.85 1.45 1.45 1.40 1.32 1.22 1.13 1.10 1.06 0.86 0.81 0.70 0.70 SWPA6028S Series Part Number Units Symbol SWPA6028S1R0NT SWPA6028S1R5NT SWPA6028S2R2NT SWPA6028S2R7NT SWPA6028S3R3NT SWPA6028S4R7NT SWPA6028S5R1NT SWPA6028S6R2MT SWPA6028S6R8MT SWPA6028S8R2MT SWPA6028S9R1MT SWPA6028S100MT SWPA6028S120MT SWPA6028S150MT SWPA6028S180MT SWPA6028S220MT SWPA6028S270MT SWPA6028S330MT SWPA6028S360MT SWPA6028S390MT SWPA6028S470MT SWPA6028S680MT SWPA6028S750MT SWPA6028S820MT SWPA6028S101MT Sunlord Min. Self-resonant Frequency MHz S.R.F 70 65 48 48 41 35 32 30 27 24 24 23 18 18 15 14 13 12 11 11 9.5 7.7 7.7 7.7 7.1 Specifications subject to change without notice. Please check our website for latest information. Revised 2013/12/30 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SWPA6045S Series Part Number Units Symbol SWPA6045SR82NT SWPA6045S1R0NT SWPA6045S1R2NT SWPA6045S1R5NT SWPA6045S1R8NT SWPA6045S2R2NT SWPA6045S2R3NT SWPA6045S2R7NT SWPA6045S3R0NT SWPA6045S3R3NT SWPA6045S3R6NT SWPA6045S4R3MT SWPA6045S4R7MT SWPA6045S5R1MT SWPA6045S5R6MT SWPA6045S6R8MT SWPA6045S7R5MT SWPA6045S8R2MT SWPA6045S9R1MT SWPA6045S100MT SWPA6045S120MT SWPA6045S150MT SWPA6045S180MT SWPA6045S220MT SWPA6045S270MT SWPA6045S300MT SWPA6045S330MT SWPA6045S360MT SWPA6045S390MT SWPA6045S430MT SWPA6045S470MT SWPA6045S510MT SWPA6045S560MT SWPA6045S620MT SWPA6045S680MT SWPA6045S750MT SWPA6045S820MT SWPA6045S910MT SWPA6045S101MT SWPA6045S121MT SWPA6045S151MT SWPA6045S221MT SWPA6045S331MT Sunlord Inductance DC Resistance @100kHz,1V (±30%) μH L 0.82±30% 1.0±30% 1.2±30% 1.5±30% 1.8±30% 2.2±30% 2.3±30% 2.7±30% 3.0±30% 3.3±30% 3.6±30% 4.3±20% 4.7±20% 5.1±20% 5.6±20% 6.8±20% 7.5±20% 8.2±20% 9.1±20% 10±20% 12±20% 15±20% 18±20% 22±20% 27±20% 30±20% 33±20% 36±20% 39±20% 43±20% 47±20% 51±20% 56±20% 62±20% 68±20% 75±20% 82±20% 91±20% 100±20% 120±20% 150±20% 220±20% 330±20% Ω DCR 0.008 0.011 0.010 0.012 0.012 0.014 0.021 0.015 0.020 0.021 0.021 0.023 0.026 0.026 0.029 0.031 0.034 0.043 0.043 0.048 0.058 0.068 0.081 0.089 0.102 0.132 0.137 0.173 0.180 0.200 0.200 0.207 0.221 0.235 0.289 0.305 0.341 0.359 0.433 0.484 0.580 0.834 1.270 Min. Self-resonant Frequency MHz S.R.F 140 100 100 65 74 52 60 38 35 32 28 23 24 23 23 20 18 21 17 15 13 12 10 10 9.2 7.8 7.8 7.8 7.8 7.7 6.4 6.4 6.4 6.4 6.4 5.0 4.9 4.9 4.2 4.2 4.2 3.5 2.8 Saturation Heat Rating Current Current A Isat 10.40 9.85 8.35 8.80 7.60 6.75 6.00 5.75 5.60 5.90 5.25 4.45 4.97 4.40 4.15 3.90 3.50 3.90 3.35 3.20 2.80 2.50 2.20 2.05 1.90 1.70 1.65 1.62 1.50 1.63 1.40 1.35 1.30 1.25 1.20 1.15 1.05 1.00 0.95 0.85 0.80 0.70 0.57 A Irms 5.90 5.14 5.40 4.95 4.95 4.60 3.50 4.30 3.80 3.70 3.70 3.50 3.30 3.30 3.15 3.00 2.90 2.60 2.60 2.45 2.20 2.05 1.85 1.80 1.65 1.50 1.45 1.40 1.25 1.20 1.20 1.15 1.10 1.10 1.00 0.95 0.90 0.85 0.80 0.77 0.70 0.59 0.57 Specifications subject to change without notice. Please check our website for latest information. Revised 2013/12/30 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SWPA8040S Series Part Number Inductance @100kHz,1V DC Resistance (±30%) Units Symbol SWPA8040SR82NT SWPA8040S1R0NT SWPA8040S1R5NT SWPA8040S2R0NT SWPA8040S2R2NT SWPA8040S3R0NT SWPA8040S3R3NT SWPA8040S3R6NT SWPA8040S3R9NT SWPA8040S4R7NT SWPA8040S5R1NT SWPA8040S5R6NT SWPA8040S6R2NT SWPA8040S6R8MT SWPA8040S8R2MT SWPA8040S100MT SWPA8040S120MT SWPA8040S150MT SWPA8040S180MT SWPA8040S220MT SWPA8040S270MT SWPA8040S330MT SWPA8040S360MT SWPA8040S390MT SWPA8040S430MT SWPA8040S470MT SWPA8040S510MT SWPA8040S560MT SWPA8040S620MT SWPA8040S680MT SWPA8040S750MT SWPA8040S820MT SWPA8040S910MT SWPA8040S101MT SWPA8040S121MT SWPA8040S151MT SWPA8040S221MT SWPA8040S331MT μH L 0.82±30% 1.0±30% 1.5±30% 2.0±30% 2.2±30% 3.0±30% 3.3±30% 3.6±30% 3.9±30% 4.7±30% 5.1±30% 5.6±30% 6.2±30% 6.8±20% 8.2±20% 10±20% 12±20% 15±20% 18±20% 22±20% 27±20% 33±20% 36±20% 39±20% 43±20% 47±20% 51±20% 56±20% 62±20% 68±20% 75±20% 82±20% 91±20% 100±20% 120±20% 150±20% 220±20% 330±20% Ω DCR 0.008 0.008 0.010 0.012 0.012 0.014 0.017 0.017 0.017 0.019 0.019 0.021 0.021 0.024 0.026 0.029 0.041 0.047 0.053 0.069 0.078 0.097 0.102 0.107 0.113 0.136 0.142 0.148 0.182 0.196 0.211 0.225 0.272 0.290 0.334 0.410 0.599 0.889 Min. Self-resonant Frequency MHz S.R.F 94 89 67 43 41 32 27 30 26 24 22 24 20 20 17 15 13 12 11 9.5 9.2 7.8 7.8 7.8 7.8 6.4 6.4 6.4 6.4 4.9 4.9 5.9 4.9 4.2 3.5 3.5 3.5 2.8 Saturation Current Heat Rating Current A Isat 13.8 9.85 8.15 9.25 7.10 6.10 6.50 7.52 5.75 5.90 4.70 6.00 4.45 4.55 4.20 3.60 3.50 2.95 2.70 2.40 2.15 2.05 2.00 1.95 1.90 1.75 1.70 1.55 1.50 1.45 1.35 1.30 1.20 1.15 1.05 1.10 0.85 0.68 A Irms 6.30 6.30 5.65 5.15 5.15 4.70 4.40 4.35 4.35 4.10 4.05 3.85 3.85 3.60 3.45 3.30 2.80 2.60 2.40 2.10 2.00 1.80 1.75 1.70 1.65 1.55 1.50 1.45 1.30 1.25 1.20 1.15 1.05 1.00 0.95 0.85 0.80 0.64 ※1: All test data is referenced to 20°C ambient; ※2: Rated current: Isat or Irms, whichever is smaller; ※*3: Isat: DC current at which the inductance drops approximate 30% from its value without current; ※*4: Irms: DC current that causes the temperature rise (△T =40°C) from 20°C ambient. Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2013/12/30 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com TYPICAL ELECTRICAL CHARACTERISTICS SWPA252010S Series Temperature vs. DC Current Characteristics Inductance vs. DC Current Characteristics 100 80 100 Temperature rise ( ℃) Inductance(μH) 60 10 10μH 10μH 50 Inductance（μH） 15μH 70 3.3μH 0.68μH 40 301 1.0μH 20 10 0 0 0.01 0.0 0.1 0.5 10μH 10 DC. Current(A) 1.0 1.5 1 0.68μH 1 0.1 0.01 10 2.5 2.0 3.3μH 0.1 DC.Current D.C.Current(A) (A) SWPA252012S Series Temperature vs. DC Current Characteristics 100 70 15μH 60 15μH 50 1.0μH 10μH Inductance(μH) Temperature rise ( ℃) 10 Inductance vs. DC Current Characteristics 80 40 30 20 10 1 10μH 1.0μH 10 0 0 0.1 0.0 0.5 1.0 DC.Current (A) 1.5 2.0 0.01 0.1 DC.Current (A) SWPA3010S Series Temperature vs. DC Current Characteristics DC. Current(A) DC.Current (A) 1 10 Inductance vs. DC Current Characteristics 80 100 70 43μH 10μH 60 2.2μH 50 Inductance(μH) Temperaturerise rise(℃) Temperature 1 DC.Current(A)(A) DC.Current 43μH 40 30 20 10 1 0.1 10μH 2.2μH 10 0 0.1 0 0.0 0.5 1.0 1.5 2.0 0.01 0.1 DC.Current(A) DC.Current (A) SWPA3012S Series Temperature vs. DC Current Characteristics 1 10 Inductance vs. DC Current Characteristics 100 80 70 47μH 60 10μH 47μH 4.7μH Inductance (μH) Inductance(μH) ℃) Temperature Temperaturerise rise( (℃) DC. Current(A) DC.Current (A) 50 40 30 20 10 10μH 4.7μH 1 10 0 0.1 0 0.0 0.5 1.0 DC.Current (A) DC.Current (A) Sunlord 1.5 2.0 0.01 0.1 DC. Current(A) DC.Current (A) Specifications subject to change without notice. Please check our website for latest information. 1 Revised 2013/12/30 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com 10 TYPICAL ELECTRICAL CHARACTERISTICS SWPA3015S Series Temperature vs. DC Current Characteristics Inductance vs. DC Current Characteristics 80 100 27μH 50 10μH Inductance(μH) 27μH 60 2.2μH Inductance (μH) Temperaturerise rise((℃) ℃) Temperature 70 40 30 20 10 10μH 1 2.2μH 10 0.1 0 0 0.0 0.5 1.0 1.5 DC.Current (A) 2.0 2.5 0.01 3.0 0.1 DC.Current (A) DC. Current(A) DC.Current (A) 1 10 SWPA4010S Series Temperature vs. DC Current Characteristics 8080 7070 6060 5050 4040 3030 2020 1010 00 Inductance vs. DC Current Characteristic 22μH 22μH Inductance (μH) Inductance(μH) Temperature ( ℃) Temperature rise rise (℃) 100 10μH 10μH 2.2 μH 2.2μH 22μ 22μH 10μ 10μH 10 2.2 2.2μH 1 0.0 0.5 1.0 1.5 DC.Current (A) DC.Current (A) 2.0 2.5 3.0 0.01 0.10 1.00 DC. Current(A) DC.Current (A) 10.00 SWPA4018S Series Temperature vs. DC Current Characteristics 1000 220μH 70 60 Inductance(μH) Temperature rise (℃) 80 Inductance vs. DC Current Characteristics 50 40 30 20 100 10 1 10μH 1.0μH 10 0 0.1 0.01 DC.Current (A) Sunlord 0.1 DC. Current(A) DC.Current (A) Specifications subject to change without notice. Please check our website for latest information. 1 Revised 2013/12/30 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com 10 TYPICAL ELECTRICAL CHARACTERISTICS SWPA4020S Series Temperature vs. DC Current Characteristics Inductance vs. DC Current Characteristics 80 60 100μH 50 10μH   2.2μH 40 30 20 Inductance (μH) Temperature rise ( ℃) 70 10 0 0.0 0.5 1.0 1.5 2.0 DC.Current (A) 2.5 3.0 3.5 DC.Current (A) DC.Current (A) SWPA4026S Series Temperature vs. DC Current Characteristics 80 70 60 50 40 30 20 10 0 Inductance vs. DC Current Characteristics 10 μH 33μH 0.0 1.0 Inductance (μH) ) Inductance(μH Temperaturerise rise (℃ (℃)) Temperature 100 1.2μH 2.0 DC.Current (A) 3.0 33 μH 10 10 μH 1 1.2 μH 0 0.01 4.0 0.1 DC.Current (A) SWPA4030S Series Temperature vs. DC Current Characteristics 80 1 10 Inductance vs. DC Current Characteristics 1000 60 100μH 50 10μH Inductance (μH) Inductance(μH) 70 Temperature rise ( ℃) DC. Current(A) DC.Current (A) 4.7μH 40 30 20 100 10 1 100μH 10μH 4.7μH 10 0 0.1 0 0.0 0.5 1.0 1.5 DC.Current (A) 2.0 2.5 0.01 3.0 0.1 DC.Current (A) 1 DC. Current(A) 10 DC.Current (A) SWPA5020S Series Temperature vs. DC Current Characteristics Inductance vs. DC Current Characteristics 100 80 12μH 3.3μH 2.2μH 60 Inductance Inductance(μH) (μH) Temperature rise ( ℃) 70 50 40 30 20 12μH 10 3.3μH 2.2μH 1 10 0.1 0 0.0 1.0 2.0 3.0 DC. Current(A) DC.Current (A) Sunlord 4.0 5.0 0.01 0.1 1 10 DC. Current(A) DC.Current (A) Specifications subject to change without notice. Please check our website for latest information. Revised 2013/12/30 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com TYPICAL ELECTRICAL CHARACTERISTICS SWPA5040S Series Temperature vs. DC Current Characteristics Inductance vs. DC Current Characteristics 100 100 10μH 60 Inductance (μH) Temperature rise ( ℃) 80 2.2μH 4.7μH 40 10μH 10 4.7μH 2.2μH 1 20 0 0.00 1.00 2.00 3.00 4.00 5.00 0.1 0.01 6.00 0.1 1 10 DC. Current(A) (A) DC.Current DC.Current (A) DC. Current(A) SWPA6020S Series Temperature vs. DC Current Characteristics Inductance vs. DC Current Characteristics 80 100 60 22μH 50 6.8μH Inductance(μH) Temperature rise ( ℃) 70 2.2μH 40 30 20 10 22μH 10 6.8μH 2.2μH 1 0.1 0 0 0.1 0.0 1.0 2.0 3.0 DC.Current (A) 4.0 5.0 0.01 0.1 DC.Current (A) SWPA6028S Series Temperature vs. DC Current Characteristics 80 Inductance vs. DC Current Characteristics 47μH 60 47μH 50 10μH 2.2μH Inductance(μH) Temperature rise ( ℃) 10 100 70 40 30 20 10 10μH 2.2μH 1 10 0.1 0.1 0 0 0.0 1.0 2.0 3.0 DC.Current (A) 4.0 5.0 0.01 DC.Current (A) 1.00 10.00 100 70 3.6μH 10μH 47μH Inductance(μH) 60 40 DC. Current(A) Inductance vs. DC Current Characteristics 80 50 0.10 DC.Current (A) SWPA6045S Series Temperature vs. DC Current Characteristics Temperature Temperature riserise(A) (℃) 1 DC. Current(A) DC.Current (A) 47μH 30 20 10 10μH 3.6μH 1 10 0 0.0 0 0.1 1.0 2.0 3.0 4.0 DC.Current(A) DC.Current (A) Sunlord 5.0 6.0 7.0 0.1 1 DC. Current(A) 10 DC.Current (A) Specifications subject to change without notice. Please check our website for latest information. Revised 2013/12/30 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com TYPICAL ELECTRICAL CHARACTERISTICS SWPA8040S Series Temperature vs. DC Current Characteristics Inductance vs. DC Current Characteristics 100 80 39μH 60 50 39μH 40 10μH Inductance(μH) Temperature rise ( ℃) 70 3.0μH 30 20 10 10μH 3.0μH 1 10 0 0.1 0 0.0 1.0 2.0 3.0 DC.Current (A) 4.0 5.0 6.0 0.1 1 DC.Current (A) DC. Current(A) DC.Current (A) 10 PACKAGING Type Tape Width Reel Diameter Quantity (pcs) 252010/252012 8mm 178mm 2K 3010/3012/3015 8mm 178mm 2K 4010 12 mm 330 mm 5K 4018/4020 12 mm 330mm 3K 4026 12 mm 330mm 2.5K 4030 12 mm 330mm 2K 5012 12 mm 330mm 4.5 5020 12 mm 330mm 2.5 5040 12 mm 330mm 1.5 6010/6012/6020 16 mm 330mm 2.5K 6028 16 mm 330mm 2K 6040/6045 16 mm 330mm 1.5K 8040 16 mm 330mm 1K Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2013/12/30 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com 100 RECOMMENDED SOLDERING TECHNOLOGIES ● Re-flowing Profile: △ Preheat condition: 150 ~200℃/60~120sec. △ Allowed time above 217℃: 60~90sec. △ Max temp: 260℃ △ Max time at max temp: 10sec. △ Solder paste: Sn/3.0Ag/0.5Cu △ Allowed Reflow time: 2x max [Note: The reflow profile in the above table is only for qualification and is not meant to specify board assembly profiles. Actual board assembly profiles must be based on the customer's specific board design, solder paste and process, and should not exceed the parameters as the Reflow profile shows.] ● Iron Soldering Profile. △ Iron soldering power: Max.30W △ Pre-heating: 150 ℃/60 sec. △ Soldering Tip temperature: 350℃ Max. △ Soldering time: 3sec Max. △ Solder paste: Sn/3.0Ag/0.5Cu △ Max.1 times for iron soldering [Note: Take care not to apply the tip of the soldering iron to the terminal electrodes.] Sunlord Peak 260℃ max 260℃ 217℃ Max Ramp Up Rate=3℃/sec. Max Ramp Down Rate=6℃/sec. 60～90sec. 200℃ 150℃ 60～120sec. 25℃ Time 25℃ to Peak =8 min max 3sec. Max. 350℃ Soldering Iron Power: max. 30W Diameter of Soldering Iron 1.0mm max. Tc ℃ Specifications subject to change without notice. Please check our website for latest information. Revised 2013/12/30 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com
