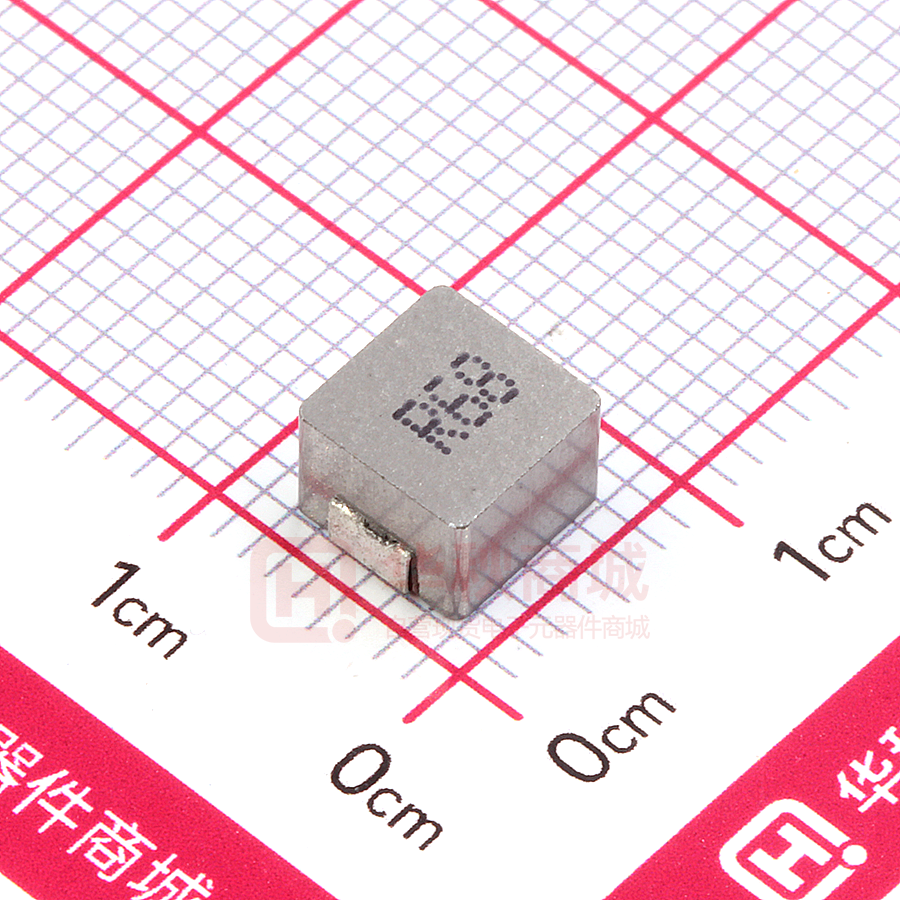

SLO0650H Series SMD Molding Power Inductor ◆ Features Pb 、Magnetically shielded construction, low DC resistance； 、The use of magnetic iron powder ensure capability for large current； 3、Low audible core noise； 4、Ideal for DC-DC converter applications in hand held personal computer and etc； 5、Frequency Range: up to 3.0MHz； 6、RoHS compliant。 1 2 ◆ Applications 、Smart phone、MID； 、Next-generation mobile devices with multifunction such as adding color TV and digital movie cameras； 3、Flat-screen TVs, blue-ray disc recorders, set top box； 4、Notebooks, desktop computers, servers, graphic cards； 5、Portable gaming devices, personal navigation systems, personal multimedia devices； 6、Automotive systems； 7、Telecomm base stations。 1 2 ◆ Lead Free Part Numbering SLO (1) 0650 (2) H (3) 100 M (4) (5) ： ： (1) (2) (3) (4) T T (6) (7) Series Type Dimension A X C Material Code Inductance 2R2=2.2μH 100=10μH (5) Inductance Tolerance M= 20%, Y= 30% (6) Company Code (7) Packaging packed in embossed carrier tape ； ； ： ± ： ± ◆ Dimensions Series SLO0650H Rev.01 A±0.3(mm) B±0.3 (mm) C (mm) D±0.3 (mm) E±0.3 (mm) 7.1 6.6 5.0 Max 3.0 1.7 Page 1 of 4 www.sunltech.com SLO0650H Series ◆ Specification Ω Rdc (m ) Test a condition HEAT RATING CURRENT(Idc) DC AMPS1 (Typ.) SATURATION CURRENT(Isat) DC AMPS2 (Typ.) μ Typ. Max SLO0650HR22MTT 0.22 1.1 1.3 100KHz/1V 30.0 35.0 SLO0650HR47MTT 0.47 2.9 3.8 100KHz/1V 20.0 21.0 SLO0650HR68MTT 0.68 3.2 4.2 100KHz/1V 18.0 16.0 SLO0650HR82MTT 0.82 3.9 4.9 100KHz/1V 16.5 17.0 SLO0650H1R0MTT 1.0 5.2 6.5 100KHz/1V 12.0 13.0 SLO0650H1R5MTT 1.5 7.3 8.5 100KHz/1V 10.0 10.0 SLO0650H2R2MTT 2.2 10.0 12.5 100KHz/1V 9.5 10.0 SLO0650H3R3MTT 3.3 14.0 20.9 100KHz/1V 8.5 9.0 SLO0650H4R7MTT 4.7 24.0 27.0 100KHz/1V 6.5 8.0 SLO0650H6R8MTT 6.8 34.0 38.0 100KHz/1V 5.5 7.0 SLO0650H100MTT 10.0 48.0 55.0 100KHz/1V 6.0 4.5 SLO0650H150MTT 15.0 76.0 85.0 100KHz/1V 3.1 4.0 SLO0650H220MTT 22.0 110 130 100KHz/1V 2.6 3.5 SLO0650H330MTT 33.0 160 200 100KHz/1V 2.3 3.0 SLO0650H470MTT 47.0 252 290 100KHz/1V 2.0 2.8 △ ℃ Part Number INDUCTANCE Lo( H) SLO0650H Series NOTES: 1. DC current (Idc) that will cause an approximate T of 40 2. DC current (Isat) that will cause Lo to drop approximately 20% 3. All test data is referenced to 25 ambient 4. Operating Temperature Range -55 to +150 5. The part temperature (ambient + temp rise) should not exceed 150 under the worst operating conditions. Circuit design, component placement, PWB trace size and thickness, airflow and other cooling provisions all affect the part temperature. Part temperature should be verified in the end application. ℃ Rev.01 ℃ ℃ Page 2 of 4 ℃ www.sunltech.com SLO0650H Series ◆ Wave Soldering ◆ Hand soldering Rev.01 Page 3 of 4 www.sunltech.com SLO0650H Series ◆ Reliability Mechanical ℃ ~+125℃ -45℃ ~ + 1 2 5 ℃ -55 Rev.01 Page 4 of 4 www.sunltech.com
