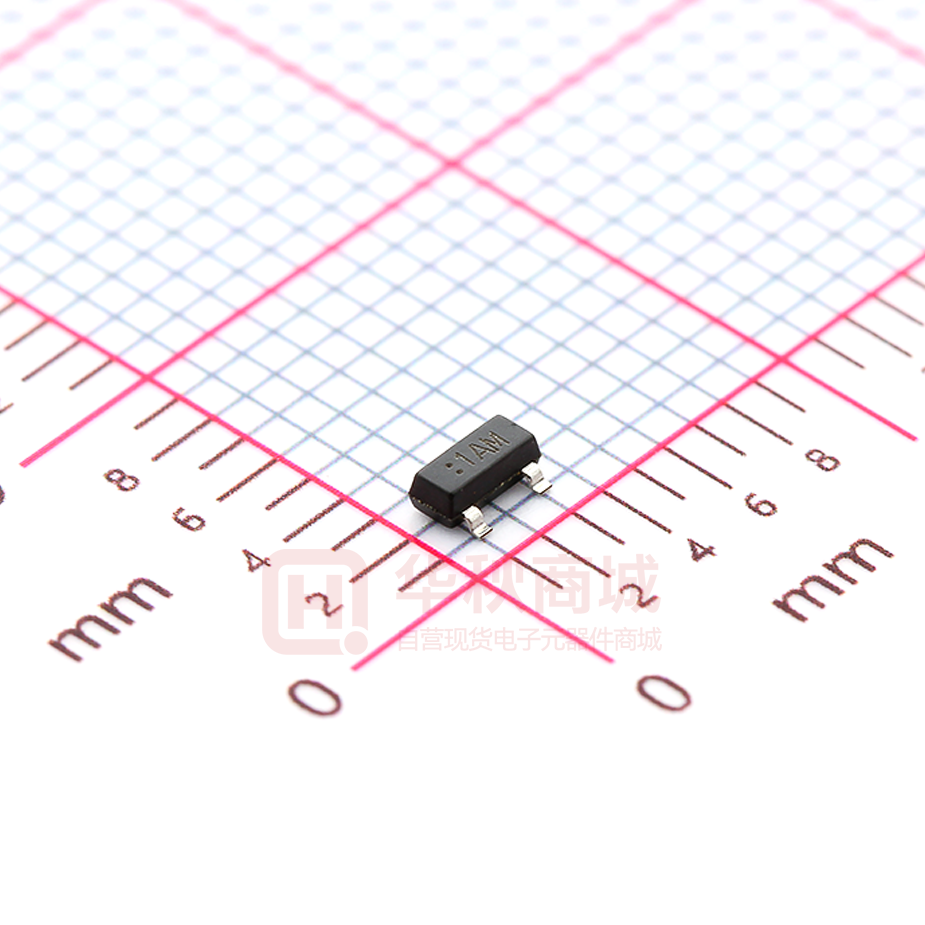

MMBT3904

Integrated in OVP&OCP products provider MMBT3904 SOT-23 贴片塑封三极管 SOT-23 Plastic-Encapsulate Transistors SOT-23 特征 Features  与 MMBT3906 配对; Complementary to MMBT3906  最大功率耗散 200mW; Power Dissipation of 200mW  高稳定性和可靠性。High Stability and High Reliability 机械数据 Mechanical Data Marking: 1AM    封装: SOT-23 封装 SOT-23 Small Outline Plastic Package 环氧树脂 UL 易燃等级 Epoxy UL: 94V-0 安装位置: 任意 Mounting Position: Any 极限值和温度特性(TA = 25℃ 除非另有规定) Maximum Ratings & Thermal Characteristics (Ratings at 25℃ ambient temperature unless otherwise specified.) 参数 Parameters 符号 Symbol 数值 Value 单位 Unit Collector-Base Voltage VCBO 60 V Collector-Emitter Voltage VCEO 40 V Emitter -Base Voltage VEBO 6 V Collector Current-Continuous IC 200 mA Collector Power Dissipation PC 200 mW Junction Temperature Tj 150 ℃ Storage Temperature Tstg -55-+150 ℃ Thermal resistance From junction to ambient RθJA 625 ℃/W 电特性 (TA = 25℃ 除非另有规定) Electrical Characteristics (Ratings at 25℃ ambient temperature unless otherwise specified). 参数 Parameter 符号 Symbols 测试条件 Test Condition Collector-base breakdown voltage Collector-emitter breakdown voltage Emitter-base breakdown voltage Collector cut-off current Collector cut-off current Emitter cut-off current V(BR)CBO V(BR)CEO V(BR)EBO ICEX ICBO IEBO hFE(1) hFE(2) hFE(3) VCE(sat) VBE(sat) fT td tr ts tf IC=10uA, IE=0 IC=1mA, IB=0 IE=10uA, IC=0 VCE=30V, VEB(off)=3V VCB=60V, IE=0 VEB=5V, IC=0 VCE=1V, IC=10mA VCE=1V, IC=50mA VCE=1V, IC=100mA IC=50mA, IB=5mA IC=50mA, IB=5mA VCE=20V, IC=10mA,f=100MHz VCC=3V, VBE(off)=-0.5V, IC=10mA, IB1=1mA VCC=3V, VBE(off)=-0.5V, IC=10mA, IB1=1mA VCC=3V, IC=10mA, IB1=IB2=1mA VCC=3V, IC=10mA, IB1=IB2=1mA DC current gain Collector-emitter saturation voltage Base -emitter saturation voltage Transition frequency Delay time Rise time Storage time Fall time 界限 Limits Min 60 40 6 100 60 30 Max 50 100 100 300 0.30 0.95 300 35 35 200 50 单位 Unit V V V nA nA nA V V MHz nS nS nS nS CLASSIFICATION OF hFE(1) HFE 100-300 RANK L H RANGE 100-200 200-300 Rev.A_Aug,2017 -1- www.wpmtek.com Integrated in OVP&OCP products provider Rev.A_Aug,2017 MMBT3904 -2- www.wpmtek.com Integrated in OVP&OCP products provider MMBT3904 SOT-23 PACKAGE OUTLINE Plastic surface mounted package 焊盘设计参考Precautions: PCB Design Recommended land dimensions for SOT-23 diode. Electrode patterns for PCBs Rev.A_Aug,2017 -3- www.wpmtek.com
