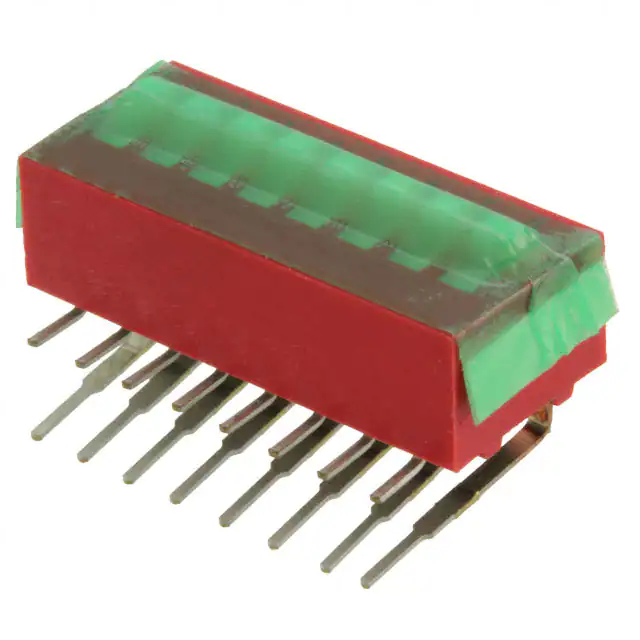

78B08SRAT

Thru-Hole DIP Switches SERIES 78B Right Angle Option Features • Easy Access • SPST Circuitry • 2-10 and 12 positions available • Sealed versions available Series 78B DIMENSIONS Applications Telecommunications, computers and peripherals, instruments and controls. in inches (and millimeters) DIP Switches Right Angle Assemblies As Shipped Right Angle Assemblies As Installed SPECIFICATIONS Mechanical Mechanical Life: 2,000 operations per switch. Operation Temp: -40°C to + 85°C Storage Temp: -55°C to + 85°C VibrationTest: Per Method 204, Test Condition B, 1 mS opening (10 mS allowed) Shock Test: MIL-STD-202F METHOD 213 Test Condition A, 1ms (10 allowed) Electrical Electrical Life: 10,000 operations per switch 24VDC, 25mA. Non-Switching Rating: 100mA, 50VDC. Switching rating: 150mA, 30DVC; 10mA, 50mVDC Contact Resistance: 30mΩ max. at initial. Insulation Resistance: (at 100VDC) 5,000MΩ min. Dielectric Strength: 750VAC/1 minute. Capacitance: 2pF max. Materials Soldering and cleaning process *For the most current soldering & cleaning processing guidelines, reference Grayhill Dip Switch Processing Information, Bulletin 1234 cleaning tape sealed products: Passes immersion test using water/ detergent. Acceptable solutions include 1-11 trichlorethane, freon, (TF, TE, or TMS), isopropyl alcohol, detergent (140°F maximum). Terpene acceptable for Series 90 only. Solutions which are not recommended include acetone, methylene chloride, freon TMC . Pressure wash cleaning processes are not recommended for tape seal switches. Wave Soldering: Recommended solder temperature: 500°F (260C) max 5 seconds. Contact Ball: Brass with gold plating over nickel Terminals: Brass with gold plating over nickel Nonconductive Parts: Plastic UL94V-0 Potting Material: Epoxy Shorting Member (Ball): Brass, gold-plated over nickel barrier. Protective Cover: Polycarbonate. Tape Seal: Polyester film Tape Seal Integrity: Passes gross leak test using 125°C flourinert for 20 seconds minimum. Reference MIL-STD-202, Method 112. Hand Soldering: Use a soldering iron of 30 Watts or less, controlled at 608°F (320° C) approximately 2 seconds while applying solder. cleaning: Tape sealed versions withstand cleaning processes. ORDERING INFORMATION Series 78B, 78F, 78G, 78H, 78J, 78K, 78RB Styles available as right angle Number of Positions 2 through 12 RoHS compliant 78B08SRAT Right Angle S= Top Tape Sealed, Blank=Unsealed 78R 78K 78H 78F 78J Tape Sealed DIP 17 Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois 60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
