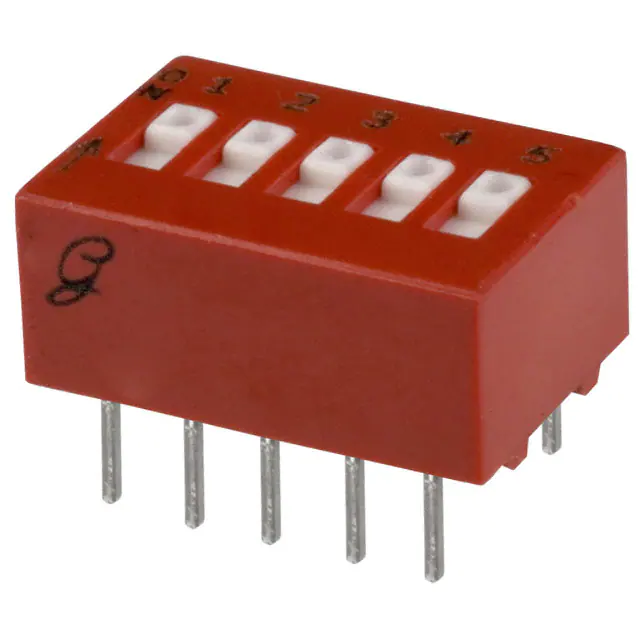

78RB05ST

Thru-Hole DIP Switches FEATURES • Raised and Recessed Slides • SPST, 2PST, 3PST, 4PST • Sealed Base Standard • Spring and Ball Contact • Top Tape Seal Option SERIES 78 SPST To 4PST Slide 78 DIP Switches DIMENSIONS In inches (and millimeters) Typical Multiple Pole Switch with Raised Slides (Switch shown here is 78H02, 4PST) Single Pole/Single Throw Switch in Raised and Recessed Slides .380 ± .010 (9,65 ± 0,25) O N Note: Recessed slides have a dimple for tool actuation. For recessed slides, the .295 dimension does not apply. 1 2 3 4 5 6 7 8 9 10 .380 ± .010 (9,65 ± 0,25) SEE ORDERING INFORMATION A .020 ± .002 (0,51 ± 0,05) .020 ± .002 (0,51 ± 0,05) .090 ± .005 (2,29 ± 0,13) .100 ± .005 (2,5 ± 0,13) C L Single Pole/Single Throw Switch 1 O N 1 2 3 4 Typical Circuit Diagram O N 1 2PST 3PST 4PST For switches with 5, 6, 7, 8, or 10PST circuitry, contact Grayhill. *A top tape seal is required for switches that are machine soldered or heavily cleaned after hand soldering. To order top seal versions, add "S" to the Grayhill part number. B-11 .020 ± .002 (0,51 ± 0,05) .090 ± .005 (2,29 ± 0,13) .100 ± .005 (2,5 ± 0,13) C L C L No. of Circuitry Positions SPST O N C L .180 ± .010 (4,57 ± 0,25) .012 ± .001 (0,30 ± 0,03) .300 + .030 –.000 (7,62 + 0,76) ORDERING INFORMATION CIRCUITRY Typical Multiple Pole Switch DIM. B 2PST = .100 (2,54 3PST = .200 (5,08) 4PST = .300 (7,62) A = .245 + .000 –.020 (6,22 + 0,51) .050 ± .005 (1,27 ± 0,13) TYP. C L 1 2 3 4 DIM. B ± .002 (± 0,05) .295 + .000 –.020 (7,49 –0,51) .156 + .015 –.010 (3,96 + 0,38 –0,25) TYP. C L O N 2 SEE ORDERING INFORMATION .070 (1,78) REF. .060 ± .002 (1,52 ± 0,05) 1 O N Length Inches Length Metric No./ Tube Raised Slides* Recessed Slides* 2 3 4 5 6 7 8 9 10 12 0.280" 0.380" 0.480" 0.580" 0.680" 0.780" 0.880" 0.980" 1.080" 1.280" 7,1mm 9,7mm 12,2mm 14,7mm 17,3mm 19,8mm 22,4mm 24,9mm 27,4mm 32,5mm 35 27 21 18 15 13 12 10 9 8 78B02 78B03 78B04 78B05 78B06 78B07 78B08 78B09 78B10 78B12 78RB02 78RB03 78RB04 78RB05 78RB06 78RB07 78RB08 78RB09 78RB10 78RB12 1 2 3 4 5 6 0.280" 0.480" 0.680" 0.880" 1.080" 1.280" 7,1mm 12,2mm 17,3mm 22,4mm 27,4mm 32,5mm 35 21 15 12 9 8 78F01 78F02 78F03 78F04 78F05 78F06 Recessed Slides Not Available 1 2 3 0.380" 0.680" 0.980" 9,7mm 17,3mm 24,9mm 27 15 10 78G01 78G02 78G03 1 2 0.480" 0.880" 12,2mm 22,4mm 21 12 78H01 78H02 ADDITIONAL INFORMATION For Specifications see page B-14. For other Options and Accessories, see page B-20. Available from your local Grayhill Distributor. For prices and discounts, contact a local Sales Office, an authorized local Distributor or Grayhill. Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois 60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
