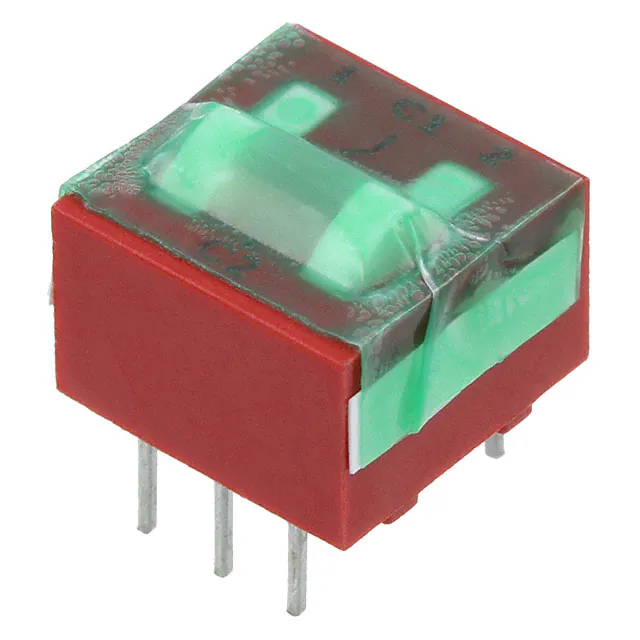

Thru-Hole DIP Switches SERIES 76 and 78 SPDT DIMENSIONS: Series 76 DIP Switches FEATURES • Raised and Recessed Rocker, and Toggle Actuated Styles • SPDT with a Common Pole, or SPDT with 2 Isolated Circuits • Spring and Ball Contact • Top Tape Seal Option for Most Styles CIRCUITRY: Series 76 In inches (and millimeters) Series 76 Raised Rocker SPDT with Common True Form C Switching Toggle-DIP .380 ± .010 (9,65 ± 0,25) 1 C1 2 .447 ± .015 (11,35 ± 0,38) TYP. A = .247 ± .010 (6,27 ± 0,25) .380 ± .010 (9,65 ± 0,25) 1 C1 2 1 C1 2 C2 .020 + .005 –.000 (0,51 + 0,13) A .156 + .015 –.010 (3,96 + 0,38 –0,25) .050 ± .005 (1,27 ± 0,13) .090 ± .005 (2,29 ± 0,13) TYP. .100 ± .005 (2,54 ± 0,13) TYP. .020 ± .002 (0,51 ± 0,05) TYP. .180 ± .010 (4,57 ± 0,25) C L DIMENSIONS: Series 78 .295 + .000 –.020 (7,49 –0,51) C L Recessed Rocker 1 2 3 4 C2 1 C1 1 C1 .247 ± .010 (6,27 ± 0,25) .012 ± .001 (0,30 ± 0,03) .300 + .030 –.000 (7,62 + 0,76) CIRCUITRY: Series 78 In inches (and millimeters) Series 78 Slide 0.380 ± .005 (9,65 ± 0,13) C2 SPDT, 2 Circuits (No Commons) Dot on cover indicates active terminal when slide is on that side of switch. Contact is made with terminal on opposite side. 5 DIM. A SEE CHART .100 ± .002 (2,54 ± 0,05) 1 .070 (1,78) REF. A .020 ± .002 (0,51 ± 0,05) .020 ± .002 (0,51 ± 0,05) TYP. .090 ± .005 (2,29 ± 0,13) TYP. .100 ± .005 (2,54 ± 0,13) TYP. 1 .295 + .000 –.020 (7,49 –0,51) .156 + .015 –.010 (3,96 + 0,38 –0,25) TYP. A = .245 + .000 –.020 (6,22 + 0,51) .050 ± .005 (1,27 ± 0,13) TYP. C L C L C L C L .180 ± .010 (4,57 ± 0,25) .012 ± .001 (0,30 ± 0,03) .300 + .030 –.000 (7,62 + 0,76) To create common poles, tie together 2 adjoining terminals on 1 (either) side of switch. ORDERING INFORMATION Circuitry Positions Length Inches Length Metric No./ Tube Raised Type* Recessed Rockers* ToggleDIP* SPDT Form C 2 3 4 0.380" 0.580" 0.780" 9,7mm 14,7mm 19,8mm 27 18 13 76SC02T 76SC03T 76SC04T 76RSC02T 76RSC03T 76RSC04T 76STC02T 76STC03T 76STC04T SPDT 2 Circuits 1 2 3 4 5 6 0.280" 0.480" 0.680" 0.880" 1.080" 1.280" 7,1mm 12,2mm 17,3mm 22,4mm 27,4mm 32.5mm 35 21 15 12 9 8 78J01T 78J02T 78J03T 78J04T 78J05T 78J06T — — — — — — — — — — Available from your local Grayhill Distributor. For prices and discounts, contact a local Sales Office, an authorized local Distributor or Grayhill. *To order top seal versions, add "S" before the "T" in the Grayhill part number. Not available on Toggle-DIP. Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois 60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com DIP 12 Thru-Hole DIP Switches SPECIFICATIONS: Standard Styles Ratings 78 90B 2,000 2,000 2,000 Make-and-break Current Rating: Operations per switch position at these resistive loads 1 mA, 5 Vdc; 50 mA, 30 Vdc; or 150 mA, 30 Vdc: 10 mA, 30 Vdc; or 10 mA, 50 mVdc: 10 mA, 50 mVdc; or 25 mA, 24 Vdc; or 100 mA, 6 Vdc: 2,000 — — 2,000 — — — 2,000 2,000 ≤ 30 mΩ ≤ 100 mΩ ≤ 30 mΩ ≤ 100 mΩ ≤ 20 mΩ ≤ 100 mΩ Insulation Resistance: Minimum, at 100 Vdc between adjacent closed contacts and also across open switch contacts Initially (Mohms): After life (Mohms): 5,000 1,000 5,000 1,000 5,000 1,000 Dielectric Strength: Minimum voltage (AC, RMS) measured between adjacent closed contacts and also across open switch contacts. lnitially: After life: 750 V 500 V 750 V 500 V 500 V 500 V Contact Resistance: Initially: After life, at 10 mA, 50 mVdc, open circuit: Current Carry Rating: Maximum rise of 20°C 5A 4A 3A Switch Capacitance: At 1 megahertz 2 pF 2 pF 2 pF Operating Temperature Range: -40°C to + 85°C -40°C to + 85°C -40°C to + 85°C Storage Temperature Range: -55°C to + 85°C -55°C to + 85°C -55°C to + 85°C DIP Switches 76 Mechanical Life: Operations per switch position Mechanical Ratings Soldering Information Materials and Finishes Vibration Resistance: Per Method 204, Test Condition B, 1 mS opening (10 mS allowed) Mechanical Shock: Per Method 213, Test Condition A. 1 mS opening (10 mS allowed) Thermal Shock Resistance: Per specification; no failures; passes contact resistance. Terminal Strength: Per specification Thermal Aging: 1,000 hours at 85°C; no failures. Series 90 MIDIP and Series 76 recessed rocker (76RSB style) sealed switches have been tested to EIA Standard RS-448-2. Similar performance can be expected from other sealed Series 76 and 78 DIP switches. Solderability: Per MIL-STD-202, Method 208 Resistance to Soldering Heat: 76RSB: Passes EIA Standard using two, four, and six second soldering time. 90: Per MIL-S-83504, six second test. Fluxing: Per EIA RS-448-2 with flux touching switch body. Cleaning: 76, 78 and 90 series tape sealed products: Passes immersion test using water/ detergent. Acceptable solutions include 1-1-1 trichlorethane, freon, (TF, TE, or TMS), isopropyl alcohol, detergent (140°F maximum). Terpene acceptable for Series 90 only. Solutions which are not recommended include acetone, methylene chloride, freon TMC. Shorting Member (Ball): Brass, gold-plated over nickel barrier. Base Contacts: Copper alloy, gold-plated over nickel barrier. Terminals: Copper alloy, matte tin plated over nickel barrier. Non-Conductive Parts: Thermoplastic (UL94V-O) Potting Material: Epoxy, 76,78 only. Protective Cover: 76,78, only-Polycarbonate. Tape Seal: 76, 78: Polyester film 90: Polyimide film Tape Seal Integrity: Passes gross leak test using 125°C flourinert for 20 seconds minimum. Reference MIL-STD-202, Method 112. Environmental Ratings Meets all requirements of MIL- S-83504. Where Grayhill performance is superior, the MIL spec is listed in parentheses. Moisture Resistance: Per MIL-STD-202, Method 106. Recommended Soldering Conditions: Reflow Soldering Profile: (260°C Peak Temperature) REFLOW TEMPERATURE PROFILE: MAX 260° 255° 230° 150° Room Temperature 120-150 sec. 5-10 sec. 60 sec. WAVE SOLDERING: 260°C maximum solder temperature for 5 seconds max. Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois 60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com DIP 14
