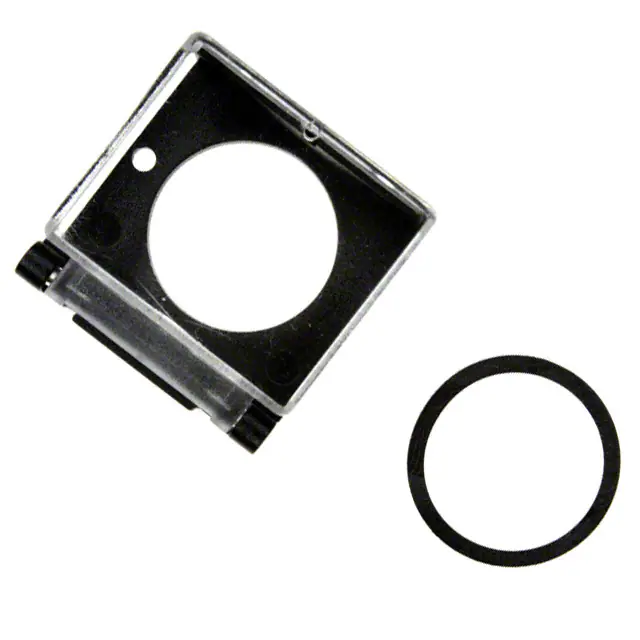

A01FG1

A01 series Keylock & selector switches Distinctive features and specifications A018_AX1607US Panel Sealed to IP65 Single pole to four pole changeover Custom engraving & overmould key Push on tab terminals 6A 250VAC PANEL CUT OUT ELECTRICAL SPECIFICATIONS Round & Square bezel operators only Ø16.00 0.00/+0.30 (.629 DIA .000/+.011 ) 7.25 (.285) • Current/Voltage Rating : 10mA 5VAC min, 6A 250VAC, 6A 12VDC • Initial Contact Resistance : 10mΩ max at 1Amp 4VDC • Insulation Resistance : 50MΩ min • Dielectric Strength : 750V between open contacts, 5KV live to accessible • Electrical Life : 50,000 cycles min • Contact Gap : >1mm (0.039) • Insulation : Class 2 MECHANICAL SPECIFICATIONS • Mechanical Life (operator) : Momentary, 1 million cycles, maintained 100,000 cycles • Lamp : Midget grove T1 ¾ filament, neon or LED • Terminals : Solder/quick connect 2.8mm (0.110) GENERAL SPECIFICATIONS 1.50 (.059) Rectangular bezel operators only Ø16.00 0.00/+0.30 (.629 DIA .000/+.011 ) Ø2.00 (.078 DIA) AGENCY APPROVALS • Operating Temperature : -20°C to +55°C • Solder Heat Resistance : 350°C for 5 seconds • Sealing : Panel sealed to IP65, rear of panel IP40 10.50 (.413) Max panel thickness 8mm (0.314) MATERIALS • Key : Nickel plated steel • Key Barrel : Chrome plated alloy • Operator : PBT • Nut : ABS • Camtrack Momentary : PPE • Camtrack Maintained : PPSU • Switch Block 1 & 2 pole : PBT • Switch Block 3 & 4 pole : PEI • Contacts : Gold plated silver Dimensions : first dimensions are in mm while inches are shown in brackets. Refer to the following pages for further information. Mounting accessories : standard hardware 1 nut and 1 sealing washer. The company reserves the right to change specifications without notice. APEM www.apem.com 1 A01 series Keylock & selector switches Panel cut-out Ø16 (0.755) Keylock Selector APEM www.apem.com 2 A01 series Keylock & selector switches Overview Keylock Operator + Switch block Key position + Switch block Lever position Selector Operator Unsealed switches & indicators (IP40) suffix 01 to the end of the part number. Screen engraving insertable legends, & bi-color LED’s please contact APEM APEM www.apem.com 3 A01 series Keylock & selector switches Accessories Flush mount bezels Ø25.00 (.984 DIA) Ø16.00 (.630DIA) Ø22.00 (.866 DIA) 18.15 (.715) Ø16.00 (.630DIA) 23.80 (.937) 18.10 (.712) 20.40 (.803) 23.80 (.937) 12.00 (.472) 29.80 (1.173) 11.00 (.433) +0.20 20.60 0.00 +.008 (.811 .000) 12.00 (.472) 23.80 (.937) Ø16.00 (.630DIA) 20.40 (.803) 18.10 (.712) Dark grey plastic material – supplied with sealing washer +0.20 22.20 0.00 +.008 .000 ) +0.20 +0.20 20.60 0.00 (.811 +.008 .000 ) 26.70 0.00 (1.051 +.008 .000 ) Rectangular : A01FM1 (.874 Square : A01FM Round : A01FM2 Ø25.00 (.984 DIA) Ø16.00 (.630DIA) Ø22.00 (.866 DIA) 18.15 (.715) Ø25.00 (.984 DIA) Ø16.00 (.630DIA) 18.15 (.715) Ø22.00 (.866 DIA) Anodised aluminium/matt black 11.00 (.433) 11.00 (.433) +0.20 22.20 0.00 +.008 .000 ) +0.20 22.20 0.00 +.008 .000 ) (.874 (.874 Round natural anodised : A01FMM Round matt black : A01FMMG PCB Sockets 7.65 (.301) 7.65 (.301) (.167) 1,10 0,043 4,25 0,167 4,25 0,167 6,00 0,236 6,00 0,236 A01PC1 A01PC2 A01PC3 A01PC4 A01PC5 0.80 (.031) Single pole, non illuminated : Double pole, non illuminated : Single pole, illuminated : Double pole, illuminated : Indicator : 236 Part No. 7,65 0,301 7,65 0,301 18,40 0,724 18,25 0,719 Number of Poles 5,00 0,197 10,25 0,404 10,50 0,413 0 Dimensions : first dimensions are in mm while inches are shown in brackets. Refer to the following pages for further information. The company reserves the right to change specifications without notice. APEM www.apem.com 4 A01 series Keylock & selector switches Accessories 13.50 (.531) 13.50 (.531) Flap guards 18.00 (.708) 24.00 (.945) 12.00 (.472) 9.00 (.354) 24.00 (.945) 24.00 (.945) 13.65 (.537) 13.65 (.537) To fit rectangular bezel : A01FG1 To fit round & Square bezel: A01FM2 Alluminium bezel protection guards 12.00 (.472) 9.00 Ø 16.05 18.20 (.717) Ø16.00 (.630DIA) Rectangular : A01MG1 Anti rotation ring Square : A01MG Round natural anodised: A01MG2 Matt black : A01MG2G Blanking plugs 24.0 (.946) 18.0 (.709) Ø18.0 (.709 DIA) A01LW 2.00 (.078) Rectangular : A0131 www.apem.com 18.0 (.709) 18.00 (.708) 18.0 (.709) 14.75 (.580) Ø16.00 (.629DIA) 18.00 (.708) 12.00 (.472) 10.15 (.399) 24.00 (.944) Ø16.00 (.630DIA) APEM Ø 19.60 18.00 (.708) 10.00 18.00 (.708) Ø2.00 (.078DIA) Square : A0132 Round : A0133 5 A01 series Keylock & selector switches Installation & tools Installation guide PANEL MOUNTING ASSEMBLY PUSHBUTTONS & INDICATORS SCREEN ROTARY LEVER SWITCHES KEYLOCK SWITCHES LEGEND REFLECTOR LOCATING SLOT BULB POLARISING DOT FIXING NUT 8.00 max (.314 max) PANEL SEAL OPERATOR LATCH SWITCH BLOCK • Drill/punch hole shaped as shown on page one. • Assemble front operator through hole, fit fxing nut and tighten to a maximum torque of 0.8Nm using tool No. 30-0001. • Wire chosen switch block as required and slide onto operator until latch engages. • Fit bulb if required using tool No. 30-0002. • Snap screen onto reflector assembly with legend in between if required and snap onto front operator, take care to line up the locating slot with the polarising dot and not to damage the internal seal • To place/remove the bulb use the bulb extractor 30-0002. SWITCH BLOCK ASSEMBLY To assemble switch block to the operator, firstly, take care to line up the switch block with the back of the operator. Once in position slide on to the back of the operator. N.B. Ensure latch is fully engaged correctly onto the switch block. To remove switch block, depress the latch and slide the switch block off the operator. Tools Nut fixing key Bulb remover 30-0001 APEM 30-0002 www.apem.com 3
