BMA280-SHUTL

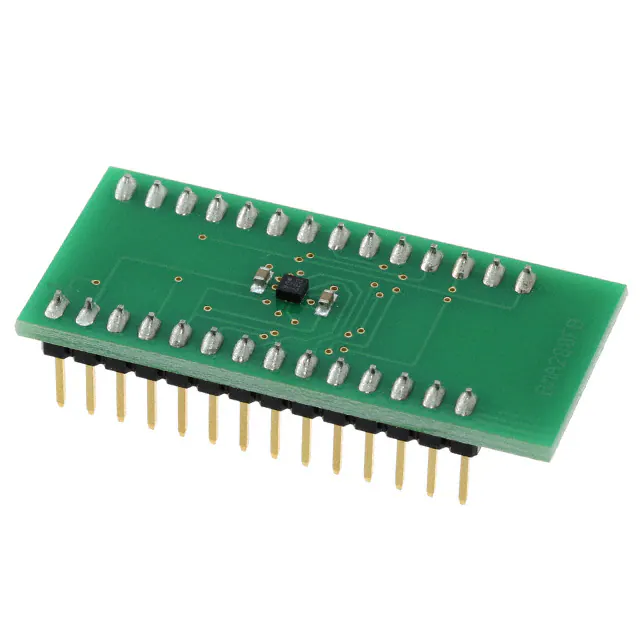

Bosch Sensortec BMA280 Shuttle Board GENERAL DESCRIPTION The Bosch Sensortec BMA280 shuttle-board is a PCB with a BMA280 acceleration sensor mounted on it. It allows easy access to the sensors pins via a simple socket. As all Bosch Sensortec sensor shuttle boards have identical footprint, they can be plugged into Bosch Sensortec’s advanced development tools (e.g. the Development Board). Of course, the BMA280 shuttle board can also be used for customer’s own implementations. Note: Product photo may differ from real product’s appearance. Shuttle board outline dimensions (all dimensions in mm) Bosch Sensortec | BMA280 2|2 BMA280 shuttle board electrical layout DELIVERABLES „ BMA280 shuttle board Headquarters Bosch Sensortec GmbH Gerhard-Kindler-Strasse 9 72770 Reutlingen · Germany Telephone +49 7121 3535 900 Fax +49 7121 3535 909 www.bosch-sensortec.com Data & Specification are preliminary and subject to change without notice | | Bosch Sensortec GmbH reserves all rights in the event of industrial property rights. We reserve all rights of disposal such as copying and passing on to third parties. BOSCH and the symbols are registered trademarks of Robert Bosch GmbH, Germany. BST-DHW-FL014-00 / Version_1.0_022012
