XXGDDCNANF-25.000000

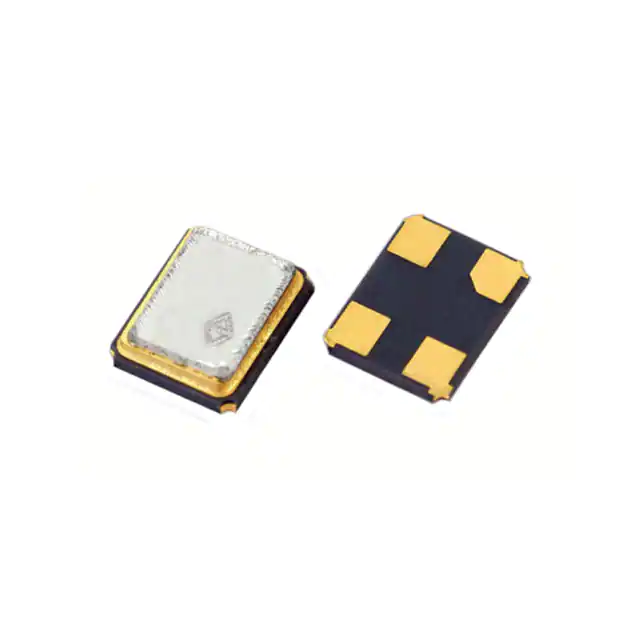

XX Type 3.2 x 2.5 mm SMD Crystal Actual Size FEATURE - Conforms to AEC-Q200 - Typical 3.2 x 2.5 x 0.75 mm ultra thin ceramic package. - 8mm width Tape & Reel package for automatic assembly. - Tight tolerance 10 ppm available. TYPICAL APPLICATION - Automotive - Bluetooth, Mobile Phone, GPS - Wireless LAN, 4G/LTE - Hard Disk RoHS Compliant DIMENSION (mm) SOLDER PAD L AYOUT (mm) [ B O T T O M V IE W ] #3 #1 #2 2.20 GND #2 and #4 are connected to the cover (please connect to ground) #3 1.20 1.0 0.75±0.10 1.50±0.10 2.10±0.10 #1 #2 #4 0.85±0.10 1.60 0.75 Max. [ S ID E V IE W ] #4 1.10 2.50±0.1 GND 0.5 [ T O P V IE W ] 3.20±0.1 ELECTRICAL SPECIFICATION Parameter Min. Storage Temp. Range Standard Frequency Level of Drive Shunt Capacitance (Co) Insulation Resistance Aging Typical -55 500 MΩ @ DC100V Max. 16, 24, 26, 27, 32, 40 10 ±1.0 to ±3.0 Unit 125 MHz µw pF 200 3.0 - ppm / year Standard frequencies are frequencies which the crystal has been designed and does not imply a stock position. EQUIVALENT SERIES RESISTANCE (E. S. R.) Frequency Range 8 MHz ≤ Fo < 10 MHz 10 MHz Fo 13 MHz 13 MHz < Fo 19.5 MHz 19.5 MHz < Fo 27 MHz 27 MHz < Fo 60 MHz FREQ. STABILITY vs. TEMP. RANGE Temp. ( o C) * ppm ±5 ±10 ±15 MODE E.S.R A1 A1 A1 A1 A1
