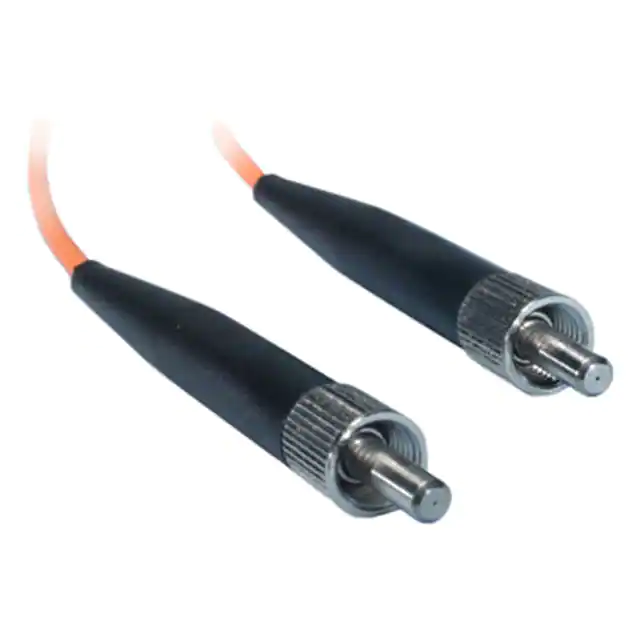

IF-639-50-0

INDOOR INDUSTRIAL CABLE Specification Sheet 2.5 mm Based Construction 200 µm General Purpose Product Description OFS 2.5 mm HCS fiber cables are designed primarily for industrial data-communication applications. Taking advantage of the durability and toughness of HCS optical fibers, these tight-buffer cables surround the fiber with high-strength aramid yarn and are protected with a tough 2.5 mm diameter PVC jacket. Simplex, zipcord, and duplex configurations are available. Typical Applications • Laser power delivery • Industrial communications • Factory automation • Near-IR spectroscopy Features and Benefits • Lowest cost solution for data communication jumpers • 200 µm fiber-based for high strength and reliability • Flame retardant • Small and flexible constructions • Crimp and cleave ST/SMA connectors are applied in 60 seconds or less • All heavy metal free materials Related Products & Capabilities • ST, SMA connectors sold separately • Preterminated assemblies/jumpers Illustrated Cable Constructions Buffer • Crimp and Cleave Termination Kits to match chosen connectors • Insertion Loss Test Kit Optical Fiber Aramid Yarn Outer Jacket Cable Simplex Part # AC01281-10 Ask us about options available with this cable construction:
Uncabled Fiber Sub-units
Higher Fiber Counts
Additional Buffer Colors
Connectorization
Other Upgrades Zipcord Part # AC01282-10 To order items on this spec sheet, please contact our facility in:
Avon, Connecticut 1-860-678-0371 1-888-438-9936 toll free (USA and Canada only) Fax 1-860-674-8818
or by email inquiry to: Info@SpecialtyPhotonics.com Duplex Part # AC03720-10 OFS Specialty Photonics Division 55 Darling Drive, Avon, CT 06001 25 Schoolhouse Road, Somerset, NJ 08873 Priorparken 680 DK-2605 Broendby, Denmark www.SpecialtyPhotonics.com 180 General Purpose Cable Specifications 2.5 Simplex 200 µm Step-Index 2.5 Zipcord 200 µm Step-Index 2.5 Duplex 200 µm Step-Index ≤6 dB/km ≤6 dB/km ≤6 dB/km Fiber core diameter Sub-unit diameter 200 ± 4 µm not applicable 200 ± 4 µm 2.5 ± 0.2 mm 200 ± 4 µm 2.5 ± 0.2 mm Outer cable diameter Cable weight 2.5 ± 0.2 mm 6.5 kg/km 2.5 x 5.2 mm 11.0 kg/km 3.5 x 6.0 mm 20.0 kg/km Fiber count/construction Intended environment Simplex Indoor Zipcord Indoor Duplex Indoor Outer jacket material Outer jacket color PVC Orange PVC Orange PVC Orange Optical Properties Attenuation @ 850 nm Cable Design Installation and Usage Specifications Maximum installation tensile load Maximum operating tensile load 110 lbs. (489 N) 55 lbs. (245 N) 165 lbs. (734 N) 85 lbs. (378 N) 220 lbs. (979 N) 110 lbs. (489 N) Minimum bend radius under load Minimum bend radius unloaded 38 mm 25 mm 38 mm 25 mm 53 mm 35 mm -20 to +80°C -40 to +80°C -20 to +80°C -40 to +80°C -20 to +80°C -40 to +80°C HCP-M0200T-A01VS HCP-M0200T-A02VZ HCP-M0200T-A02VD AC01281-10 AC01282-10 Operating temperature Storage temperature Product Description Code Order by Part Number AC03720-10 Compatible SMA Splice Bushing This document is for informational purposes only and is not intended to modify or supplement any OFS warranties or specifications relating to any of its products and services. Copyright © 2005 Furukawa Electric North America, Inc. All Rights Reserved. HCS is a registered trademark in the USA of Furukawa Electric North America, Inc. ST is a registered trademark of Furukawa Electric North America, Inc. FiberWire is a trademark of Furukawa Electric North America, Inc. 0505 Compatible SMA Connector 181 www.SpecialtyPhotonics.com Cable Compatible ST Connector
