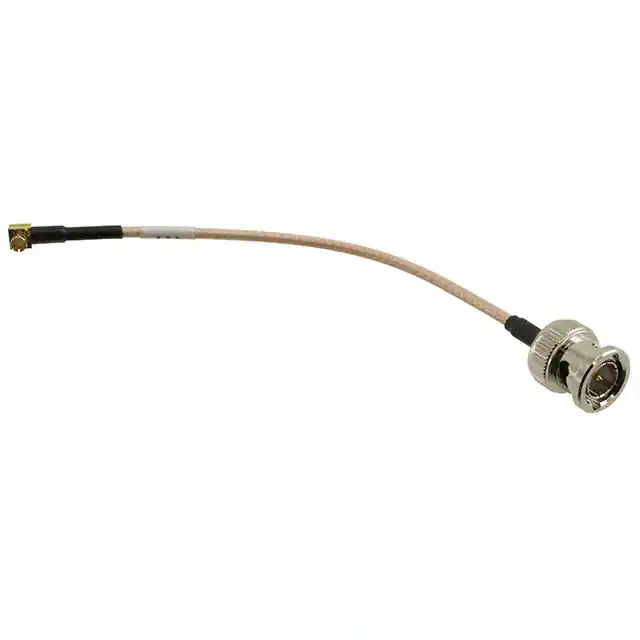

RF179-74SP3-72RP2-0254

RF-18 (Rev 28JUN18) RF179–74BJ3–72RP1–0200 75 W OPTIMIZED RG 179 CABLES 30 AWG 75 W RG 179 coax cable Mates with: BNC7T, MCX7, MMCX7, SMB7H, DIN7A SPECIFICATIONS For complete specifications see www.samtec.com?RF179 RF Connector: Outer Contact Material: Ni plated Brass (BNC) Au plated Brass (SMB) Au plated BeCu (MCX, MMCX7, DIN) Center Contact Material: Au plated Brass (BNC-P, MCX, MMCX7) Au plated BeCu (SMB) Au plated Copper Alloy (DIN, BNC-J) Insulator Material: PTFE Operating Temperature: -50 °C to +165 °C Impedance: 75 W Frequency Range: 0~4 GHz * (Cable & connector dependent) RoHS Compliant: Yes RG 179 Cable: Impedance: 75 W ±3 W Capacitance: 64 pF/meter Propagation Delay: 4.83 nsec/meter Max Attenuation (cable only): 0.8 dB @ 1 GHz for 1 meter Conductor Size: 30 AWG, (0.31 mm) .012" dia. Conductor Material: Silver Plated Copper Conductor Resistance: 0.34 W/meter max Current Rating: 3 A DC Insulator Diameter: (1.6 mm) .063" Insulator Material: PTFE Dielectric Constant: 1.8 dK Shield Material: Silver Plated Copper Jacket Material: FEP Jacket Diameter: (2.54 mm) .100" Bend Radius: 10.2 mm Jacket Temp Rating: -50 °C to +165 °C Jacket Color: Amber RoHS Compliant: Yes Standard Heat Shrink Solutionator ® DESIGN IN A MINUTE • Create a full system: cable assembly and board level mates, 50 Ω and 75 Ω solutions • Free samples available • Visit: rf.samtec.com Single or Double Ended * See connector component pages for specific range. END 1 CONNECTOR CABLE TYPE END 2 CONNECTOR Specify END OPTIONS from chart RF179 = RG 179 Cable XXXX = OAL (millimeters) –77RP2–74SP3 SHOWN END OPTIONS END OPTIONS –73SP4 = 75 W MMCX7 Straight Plug (10 µ" (0.25 µm) Gold on Center Contact, Gold Flash on Shell) –72RP1 = 75 W MCX Right-angle Plug (30 µ" (0.76 µm) Gold on Center Contact, Gold Flash on Shell) –73RP1 = 75 W MMCX7 Right-angle Plug (30 µ" (0.76 µm) Gold on Center Contact, Gold Flash on Shell) –72SP1 = 75 W MCX Straight Plug (30 µ" (0.76 µm) Gold on Center Contact, Gold Flash on Shell) –73SJ4 = 75 W MMCX7 Straight Jack (10 µ" (0.25 µm) Gold on Center Contact, Gold Flash on Shell) –77SP1 = 75 W SMB Straight Plug (30 µ" (0.76 µm) Gold on Center Contact, Gold Flash on Shell) Due to technical progress, all designs, specifications and components are subject to change without notice. WWW.SAMTEC.COM All parts within this catalog are built to Samtec’s specifications. Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply. RF179–78SP4–77SP1–0200 RF179–72SP1–73SJ4–0100 RF179 SERIES Straight or Right-angle terminations ALSO AVAILABLE Wide variety of 75 W end options including BNC, MCX and SMB (MOQ Required) OTHER SOLUTIONS • Additional stripping and tinning options • Additional plating options • Additional end connector combinations • Cable connector kits (see cable components catalog pages) OVERALL LENGTH –“XXXX” = Overall Length in millimeters –0100 (100 mm) 3.94" minimum STRIPPED & TINNED (Dimensions in mm) CALLOUT –303030 –303040 –403030 –403040 –404040 END OPTIONS –77RP1 = 75 W SMB Right-angle Plug (30 µ" (0.76 µm) Gold on Center Contact, Gold Flash on Shell) –74SP3 = 75 W BNC Straight Plug –D4SP3 = 75 W BNC Die Cast Straight Plug (10 µ" (0.25 µm) Gold on Center Contact, Nickel on Shell) –74BJ3 = 75 W BNC Bulkhead Jack (10 µ" (0.25 µm) Gold on Center Contact, Nickel on Shell) A 3.0 3.0 4.0 4.0 4.0 B 3.0 3.0 3.0 3.0 4.0 C 3.0 4.0 3.0 4.0 4.0 Both center conductor and braid shield are stripped, only the center conductor is tinned. END OPTIONS –78SP4 = 75 W DIN Straight Plug (10 µ" (0.25 µm) Gold on Center Contact, Nickel on Shell) –SING = Single Ended (End 2 callout) XXXXXX = Stripped & Tinned (End 2 callout) Due to technical progress, all designs, specifications and components are subject to change without notice. WWW.SAMTEC.COM All parts within this catalog are built to Samtec’s specifications. Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply. B C A
