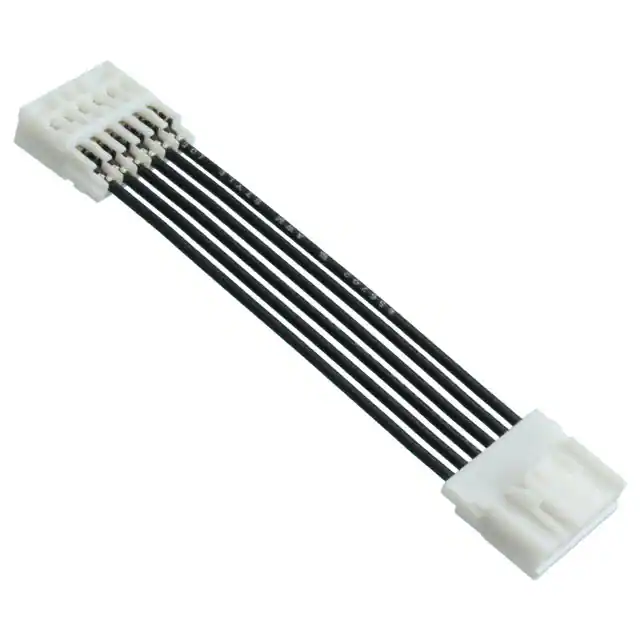

A06XAF06XAF22K51A

3 CONNECTOR PART NO. 2 IPI CHECK DESCRIPTION 1 See Table 1 XAF CONNECTOR 2 UL10002, 22 AWG BLACK 1 EOR CHECK Applicable Tooling BCD TABLE 1 ITEM 1 1 1 1 1 1 1 1 D NUMBER OF CIRCUITS 2 3 4 5 6 8 10 20 CONNECTOR PART NO. 02XAF-2S 03XAF-2S 04XAF-2S 05XAF-2S 06XAF-2S 08XAF-2S 10XAF-2S 20XAF-2S ASSEMBLY PART NUMBER A02XAF02XAF22K51A A03XAF03XAF22K51A A04XAF04XAF22K51A A05XAF05XAF22K51A A06XAF06XAF22K51A A08XAF08XAF22K51A A10XAF10XAF22K51A A20XAF20XAF22K51A TOTAL WIRE REQUIRED 101.6 152.4 203.2 254.0 304.8 406.4 508.0 1,016.0 D (78.4 +/- 3.0) C 50.8 +/- 3.0 1 PIN 1 C 1 PIN 1 2.5 THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO J.S.T. AND SHALL NOT BE USED OR SHOWN WITHOUT WRITTEN PERMISSION. 4 ITEM 2 B B Electrical Specifications Current: 3.0A AC/DC Voltage: 150V AC/DC SCALE 1: 1 DIMENSIONS CUSTOMER NAME All dimensions are in MM with a tolerance of +/- 3.0 unless otherwise specified. A DRAWN BY 1 Add electrical specifications REV. 6/27/2018 DESCRIPTION 4 DATE 3 SP A DESCRIPTION 2.5 mm Pitch XAF Standard Catalog Assembly - 2" Overall Len gth – Pin out: 1 to 1 ASSEMBLY PART NO. STEVEN PILKINGTON BY CUSTOMER PART NO. CHECK ED BY SEE TABLE 1 DRAWING NO. & REVISION JUSTIN BAKER 2 REVISED GAM-037 3/7/2016 1
