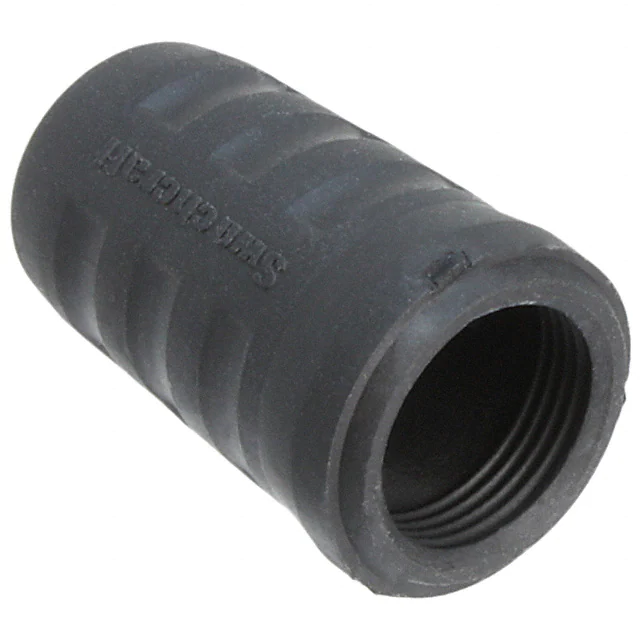

EN3BOOT

1.09 0.625 A A E LUBRICATED AREA NOTES: E 1. MATERIALS: BOOT - THERMOPLASTIC RUBBER COLOR - SEE TABLE SYNTHETIC LUBRICANT E 0.127 2. ALL DIMENSIONS FOR REFERENCE ONLY. 0.434 3. THIS PART IS RoHS COMPLIANT. R0.05 SECTION A-A F PART NUMBER REV EN3BOOT E EN3BOOTR A COLOR BLACK RED CUSTOMER DRAWING THIS DRAWING DESCRIBES A DESIGN CONSIDERED PROPRIETARY IN NATURE, DEVELOPED AND MANUFACTURED BY SWITCHCRAFT INC. AND IS RELEASED ON A CONFIDENTIAL BASIS FOR IDENTIFICATION PURPOSES ONLY. UNLESS OTHERWISE SPECIFIED F 27190 8-20-13 TO TJK E 01/19/10 PNK SRC 1. ALL DIMENSIONS IN INCHES D ECO #26490 ECO #25759 REDRAWN IN SW 12/05/07 PNK SRC - TWO PLACE DECIMALS 0.02 C ECO #25087 06/16/05 PNK SRC - THREE PLACE DECIMALS 0.005 B ECO #21309 08/21/96 PNK A ECO #21001 10-1-96 DATE REV ECO NUMBER REVISIONS SIZE WIDTH MULT FINISH SRC DATE DRAWN BY MM RB 1-Oct-96 MM BY APVD DO NOT SCALE DRAWING SolidWorks CAD File A TEMPER MATERIAL SPEC No. FIRST USED ON NAME LBS/M SPEC No. SCALE 2:1 CHKD RB 10-1-96 BOOT APVD RB 10-1-96 SHEET PART No. 1 EN3BOOT OF 1 REV F
