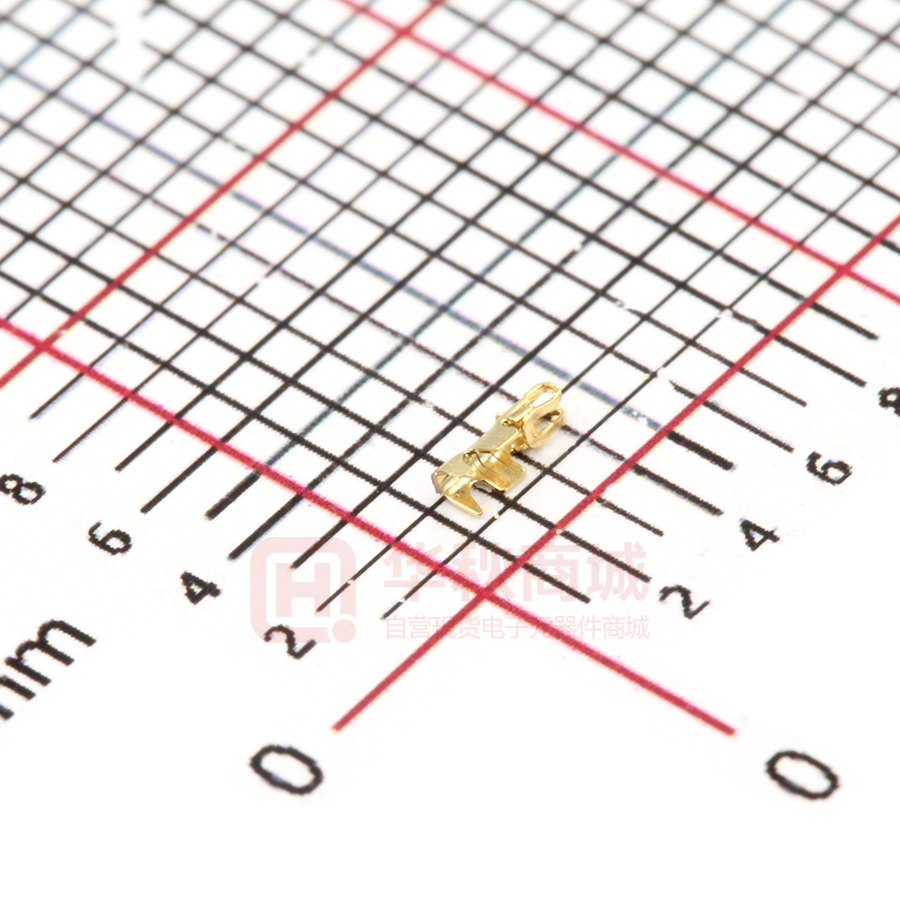

SACH-003G-P0.2

ACH CONNECTOR 1.2mm pitch/Disconnectable Crimp style Wire-to-wire connectors Specifications ––––––––––––––––––– • Current rating: 2 A AC, DC • Voltage rating: 50 V AC, DC • Temperature range: -25˚C to +85˚C (including temperature rise in applying electrical current) • Contact resistance: Initial value/ 10 mΩ max. After environmental tests/ 20 mΩ max. • Insulation resistance: 100 MΩ min. • Withstanding voltage: 500 VAC/minute • Applicable wire: Conductor size/ AWG #30 to #28 Insulation O.D./ 0.5 to 0.63 mm * Refer to "General Instruction and Notice when using Terminals and Connectors" at the end of this catalog. * Contact JST for details. * Compliant with RoHS. This is the wire-to-wire connector for DC power supply . Standards––––––––––––––––––––––– • Connector for DC power supply • Common use with the existing socket contact of ACH connector (for PC board) 0 Recognized E60389 1 Certified LR20812 Assembly layout 1.85 6.8 1 ACH CONNECTOR Contact 0.8 Socket contact 0.8 Plug contact 4.05 2.95 1.45 2.3 1.45 1.25 1.2 Applicable wire Model No. Plug contact SACHP-003G-P0.2 0.7 0.6 0.95 0.7 Socket contact SACH-003G-P0.2 mm2 AWG # Insulation O.D. (mm) Q’ty/reel 0.05∼0.08 30∼28 0.5∼0.63 30,000 Material and Finish Copper alloy, nickel-undercoated, gold-plated RoHS compliance Contact Crimping machine Crimp applicator SACHP-003G-P0.2 AP-K2N MKS-L-10-3 Applicator Dies Crimp applicator with dies MK/SACHP-003-02 APLMK SACHP003-02 − − Contact SACH-003G-P0.2 Crimping machine Crimp applicator AP-K2N − MKS-L-10-3 Applicator Dies Crimp applicator with dies MK/SACH-003-02 APLMK SACH003-02 − − − Housing Plug housing Socket housing 5.25 3.2 1.2 2.6 2.25 3.8 1.2 3.2 2 Circuit No.1 mark Circuit No.1 mark Model No. Plug housing Socket housing ACHTP-02V-S ACHTR-02V-S 1.85 1.2 3.5 Q’ty/box 1,000 Material PBT, UL94V-0, natural (white) RoHS compliance 2
