Photocoupler
Product Data Sheet
MOC3052 SERIES
Spec No.: DS70-2001-025
Effective Date: 04/28/2010
Revision: D
LITE-ON DCC
RELEASE
BNS-OD-FC001/A4
LITE-ON Technology Corp. / Optoelectronics
No.90,Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C.
Tel: 886-2-2222-6181 Fax: 886-2-2221-1948 / 886-2-2221-0660
http://www.liteon.com/opto
LITE - O N TECH NO LO G Y CO RP O RATIO N
Property of Lite-on Only
FEATURES
* Isolation voltage between input and output Viso : 5,000Vrms
* 6pin DIP photocoupler, triac driver output
* High repetitive peak off-state voltage VDRM : Min. 600V
* High critical rate of rise of off-state voltage
( dv/dt : MIN. 1000V / s )
January 2010
* Dual-in-line package :
MOC3052
* Wide lead spacing package :
MOC3052M

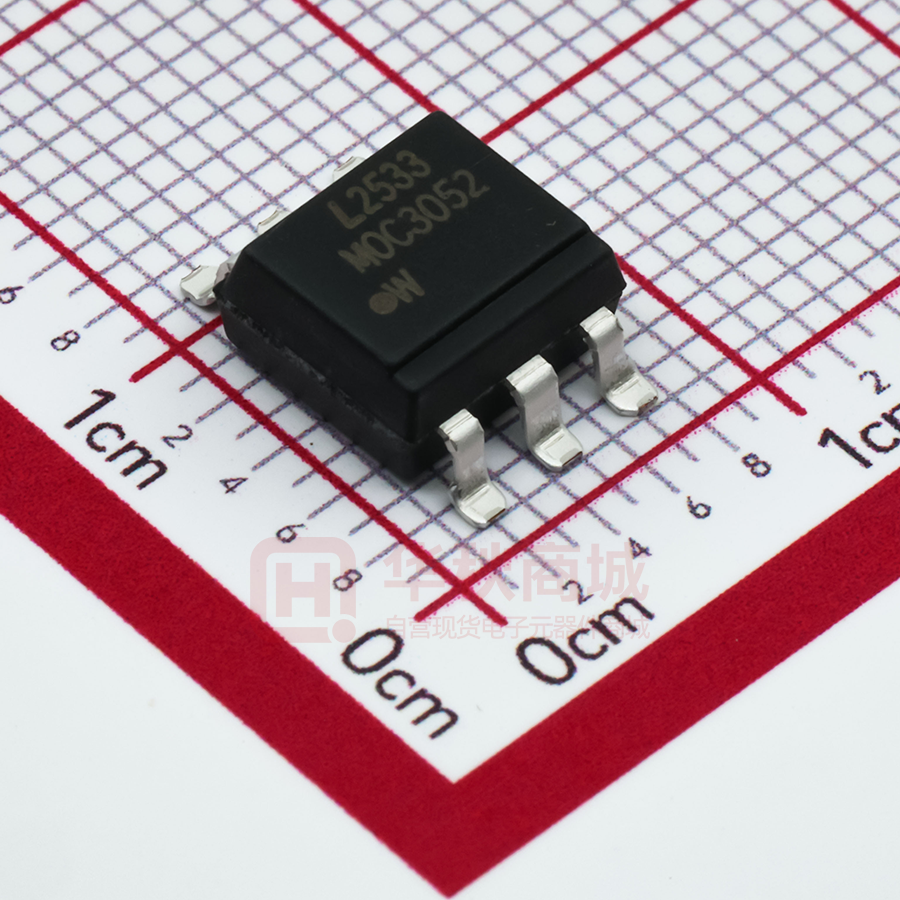

* Surface mounting package :
MOC3052S
* Tape and reel packaging :
MOC3052S-TA1
* Safety approval
UL / CSA / FIMKO / VDE* approved
*Required “V” ordering option
APPLICATIONS
* Incandescent Lamp Dimmers
* Interfacing Microprocessors to 115 and 240 Vac Peripherals
* Lamp Ballasts
* Motor Controls
* Solid State Relays
* Static AC Power Switch
* Solenoid / Valve Controls
* Temperature Controls
Part No. : MOC3052 SERIES
BNS-OD-C131/A4
Page :
1 of 8
LITE - O N TECH NO LO G Y CO RP O RATIO N
Property of Lite-on Only
OUTLINE DIMENSIONS
Dual-in-line package :
Wide lead spacing package:
*1. Year date code.
*2. 2-digit work week.
*3. Factory identification mark shall be marked.
(Z : Taiwan, Y : Thailand, X : China-TJ, W : China-CZ)
*4. Model No.: MOC3052
Part No. : MOC3052 SERIES
BNS-OD-C131/A4
Page :
2 of 8
LITE - O N TECH NO LO G Y CO RP O RATIO N
Property of Lite-on Only
OUTLINE DIMENSIONS
Surface mounting package :
*1. Year date code.
*2. 2-digit work week.
*3. Factory identification mark shall be marked.
(Z : Taiwan, Y : Thailand, X : China-TJ, W : China-CZ)
*4. Model No.: MOC3052
Part No. : MOC3052 SERIES
BNS-OD-C131/A4
Page :
3 of 8
LITE - O N TECH NO LO G Y CO RP O RATIO N
Property of Lite-on Only
TAPING DIMENSIONS
Tape and reel package :
MOC3052S-TA1
Description
Tape wide
Pitch of sprocket holes
Distance of compartment
Distance of compartment to compartment
Part No. : MOC3052 SERIES
BNS-OD-C131/A4
Symbol
W
P0
F
P2
P1
Dimensions in mm ( inches )
16 0.3 ( .63 )
4 0.1 ( .15 )
7.5 0.1 ( .295 )
2 0.1 ( .079 )
12 0.1 ( .472 )
Page :
4 of 8
LITE - O N TECH NO LO G Y CO RP O RATIO N
Property of Lite-on Only
ABSOLUTE MAXIMUM RATING
( Ta = 25C )
PARAMETER
SYMBOL
RATING
UNIT
Forward Current
IF
50
mA
Reverse Voltage
VR
6
V
Power Dissipation
PD
100
mW
Off-State Output Terminal Voltage
VDRM
600
V
Peak Repetitive Surge Current
( PW=100s, 120pps )
ITSM
1
A
PC
300
mW
Ptot
330
mW
Viso
5,000
Vrms
Ambient Operating Temperature Range
TA
-40 ~ +100
C
Storage Temperature Range
Tstg
-55 ~ +150
C
TL
260
C
INPUT
OUTPUT
Collector Power Dissipation
Total Power Dissipation
*1 Isolation Voltage
*2 Soldering Temperature
*1. AC For 1 Minute, R.H. = 40 ~ 60%
Isolation voltage shall be measured using the following method.
(1) Short between anode and cathode on the primary side and between collector,
emitter on the secondary side.
(2) The isolation voltage tester with zero-cross circuit shall be used.
(3) The waveform of applied voltage shall be a sine wave.
*2. For 10 Seconds
Part No. : MOC3052 SERIES
BNS-OD-C131/A4
Page :
5 of 8
LITE - O N TECH NO LO G Y CO RP O RATIO N
Property of Lite-on Only
ELECTRICAL - OPTICAL CHARACTERISTICS
( Ta = 25C )
PARAMETER
SYMBOL MIN. TYP. MAX. UNIT
CONDITIONS
Forward Voltage
VF
—
1.2
1.4
V
IF=20mA
Reverse Current
IR
—
0.05
10
A
VR=6V
*1 Peak Blocking Current, Either
Direction
IDRM
—
—
100
nA
VDRM = 600V
Peak On-State Voltage, Either
Direction
VTM
—
—
3.0
V
ITM=100 mA Peak
dv/dt
1000
—
—
V/s
Led Trigger Current, Current
Required to Latch Output,
Either Direction
IFT
—
—
10
mA
Holding Current, Either
Direction
IH
—
400
—
A
INPUT
OUTPUT
*2 Critical rate of Rise of
Off-State Voltage
*3
COUPLED
Main Terminal
Voltage = 3V
*1 Test voltage must be applied within dv/dt rating.
*2 This is static dv/dt. Commutating dv/dt is a function of the load-driving thyristor(s) only.
*3 All devices are guaranteed to trigger at an IF value less than or equal to max IFT. Therefore,
recommended operating IF lies between max 10mA for MOC3052 and absolute max IF (50mA)
Part No. : MOC3052 SERIES
BNS-OD-C131/A4
Page :
6 of 8
LITE - O N TECH NO LO G Y CO RP O RATIO N
Property of Lite-on Only
CHARACTERISTICS CURVES
F ig .1 F o rw a rd C u rre n t vs.
F ig .2 O n -sta te C u rre n t vs. A m b ie n t
A m b ie n t T e m p e ra tu re
T e m p e ra tu re
50
ITM , o n-state c urrent (A)
Fo rw ard c urrent I F (m A)
60
40
30
20
10
0
-40 -20
0
20
40
60
0.10
0.05
0
-40 -20
80 100 120
o
20
40
60
80 100 120
Am b ient tem p erature Ta ( C )
F ig .3 M in im u m T rig g e r C u rre n t
F ig .4 F o rw a rd C u rre n t vs. F o rw a rd
vs. A m b ie n t T e m p e ra tu re
V o lta g e
10
100
VP = 6V
R L = 100
8
Fo rw ard c urrent I F (m A)
M inim um trig g er c urrent I FT (m A)
0
o
Am b ient tem p erature Ta ( C )
6
4
2
0
o
o
60 C
40 C
20 C
80 C
100 C
o
o
o
10
1
20
40
60
80
100
0.4
o
0.8
1.2
1.6
F ig .5 O n -sta te V o lta g e vs. A m b ie n t
F ig .6 H o ld in g C u rre n t vs.
T e m p e ra tu re
A m b ie n t T e m p e ra tu re
3.0
1
2.6
VP = 6V
Fo rw ard c urrent I H (m A)
O n-state vo ltag e V TM (V)
I TM = 100m A
2.2
1.8
1.4
1.0
0.1
0.01
20
40
60
80
100
o
Am b ient tem p erature Ta ( C )
Part No. : MOC3052 SERIES
BNS-OD-C131/A4
2.0
Fo rw ard vo ltag e V F (V)
Am b ient tem p erature ( C )
20
40
60
80
100
o
Am b ient Tem p erature Ta ( C )
Page :
7 of 8
LITE - O N TECH NO LO G Y CO RP O RATIO N
Property of Lite-on Only
CHARACTERISTICS CURVES
RECOMMENDED FOOT PRINT PATTERNS (MOUNT PAD)
Unit : mm
Part No. : MOC3052 SERIES
BNS-OD-C131/A4
Page :
8 of 8
