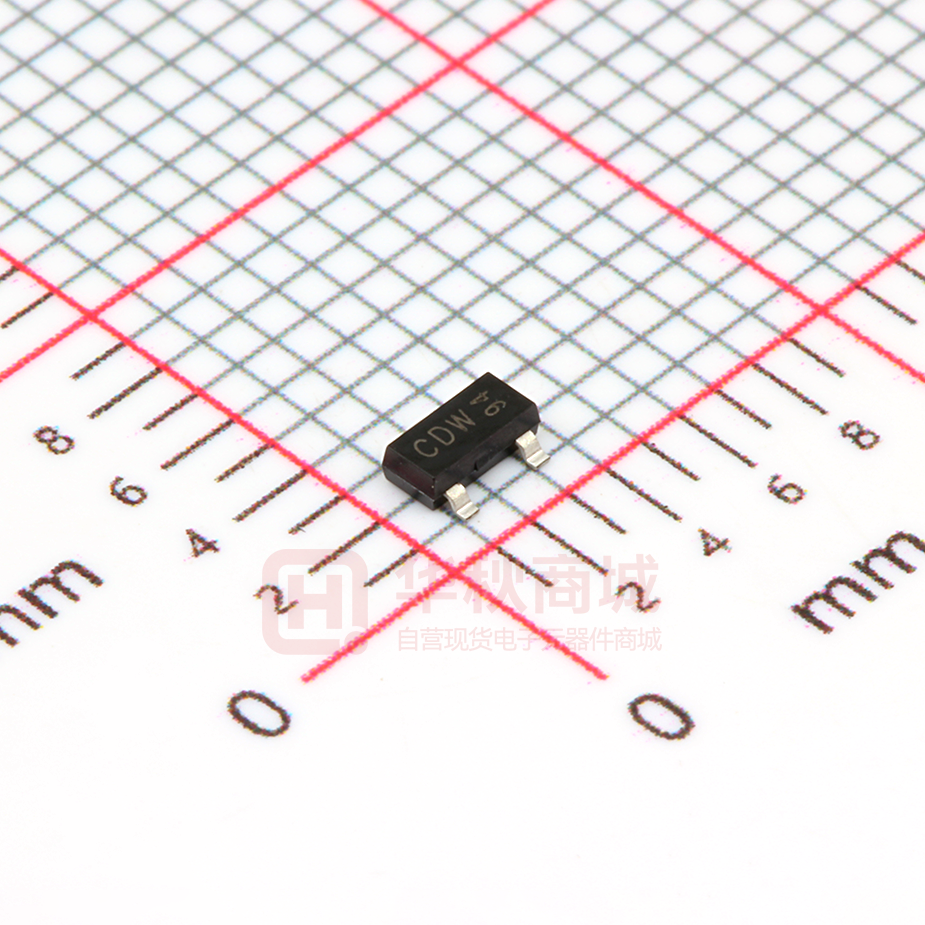

TL431ACDBZR,215

TL431 family Adjustable precision shunt regulators Rev. 6 — 9 January 2019 Product data sheet 1. Product profile 1.1. General description Three-terminal shunt regulator family with an output voltage range between Vref = 2.495 V and 36 V, to be set by two external resistors. Table 1. Product overview Reference voltage Temperature range (Tamb) tolerance (Vref) 0 °C to 70 °C -40 °C to 85 °C -40 °C to 125 °C Pinning configuration (see Table 5) 2.0 % TL431QDBZR normal pinning TL431FDT normal pinning TL431MFDT mirrored pinning TL431AQDBZR normal pinning TL431AFDT normal pinning TL431AMFDT mirrored pinning TL431BQDBZR normal pinning TL431BFDT normal pinning TL431BMFDT mirrored pinning 1.0 % 0.5 % TL431CDBZR TL431ACDBZR TL431BCDBZR TL431IDBZR TL431AIDBZR TL431BIDBZR 1.2. Features and benefits • • • • • • • • Programmable output voltage up to 36 V Three different reference voltage tolerances: • Standard grade: 2 % • A-Grade: 1 % • B-Grade: 0.5 % Typical temperature drift: 9 mV (in a range of 0 °C up to 70 °C) Low output noise Typical output impedance: 0.2 Ω Sink current capability: 1 mA to 100 mA AEC-Q100 qualified (grade 1) TL431 family Nexperia Adjustable precision shunt regulators 1.3. Applications • • • • Shunt regulator Precision current limiter Precision constant current sink Isolated feedback loop for Switch Mode Power Supply (SMPS) 1.4. Quick reference data Table 2. Quick reference data Symbol Parameter VKA cathode-anode voltage IK cathode current Vref reference voltage Conditions VKA = Vref; IK = 10 mA; Tamb = 25 °C Min Typ Max Unit Vref - 36 V 1 - 100 mA 2440 2495 2550 mV • Standard-Grade (2.0 %) • A-Grade (1.0 %) 2470 2495 2520 mV • B-Grade (0.5 %) 2483 2495 2507 mV 2. Pinning information Table 3. Pinning Pin Symbol Description Simplified outline Graphic symbol SOT23; normal pinning: All types without MFDT ending 1 K cathode 2 REF reference 3 A anode REF 3 A K 006aab355 1 2 SOT23; mirrored pinning: All types with MFDT ending 1 REF reference 2 K cathode 3 A anode A Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 6 — 9 January 2019 K 006aab355 1 TL431_FAM REF 3 2 © Nexperia B.V. 2019. All rights reserved 2 / 19 TL431 family Nexperia Adjustable precision shunt regulators 3. Ordering information Table 4. Ordering information Type number Package Name TL431CDBZR Description Version TO-236AB plastic surface-mounted package; 3 leads SOT23 TL431IDBZR TL431QDBZR TL431FDT TL431MFDT TL431ACDBZR TL431AIDBZR TL431AQDBZR TL431AFDT TL431AMFDT TL431BCDBZR TL431BIDBZR TL431BQDBZR TL431BFDT TL431BMFDT 4. Marking Table 5. Marking codes Type number Marking code [1] Type number Marking code [1] TL431CDBZR CA% TL431AFDT AS% TL431IDBZR CB% TL431AMFDT AV% TL431QDBZR CC% TL431BCDBZR CG% TL431FDT AR% TL431BIDBZR CH% TL431MFDT AU% TL431BQDBZR CJ% TL431ACDBZR CD% TL431BFDT AT% TL431AIDBZR CE% TL431BMFDT AW% TL431AQDBZR CF% - - [1] TL431_FAM Product data sheet % = placeholder for manufacturing site code. All information provided in this document is subject to legal disclaimers. Rev. 6 — 9 January 2019 © Nexperia B.V. 2019. All rights reserved 3 / 19 TL431 family Nexperia Adjustable precision shunt regulators 5. Functional diagram The TL431 family comprises a range of 3-terminal adjustable shunt regulators, with specified thermal stability over applicable automotive and commercial temperature ranges. The output voltage can be set to any value between Vref (approximately 2.5 V) and 36 V with two external resistors (see Figure 8). These devices have a typical output impedance of 0.2 Ω. Active output circuitry provides a very sharp turn-on characteristic, making these devices excellent replacements for Zener diodes in many applications like on-board regulation, adjustable power supplies and switching power supplies. CATHODE REF Vref ANODE Fig. 1. 006aab569 Functional diagram TL431_FAM Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 6 — 9 January 2019 © Nexperia B.V. 2019. All rights reserved 4 / 19 TL431 family Nexperia Adjustable precision shunt regulators 6. Limiting values Table 6. Limiting values In accordance with the Absolute Maximum Rating System (IEC 60134). Symbol Parameter VKA Conditions Min Max Unit cathode-anode voltage - 37 V IK cathode current -100 150 mA Iref reference current -0.05 Ptot total power dissipation 10 mA [1] - 350 mW [2] - 580 mW [3] - 950 mW - 150 °C TL431XCDBZR 0 +70 °C TL431XIDBZR -40 +85 °C TL431XQDBZR TL431XFDT -40 +125 °C storage temperature -65 +150 °C Tj junction temperature Tamb ambient temperature Tstg [1] [2] [3] Tamb ≤ 25 °C Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard footprint. 2 Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for anode 1 cm . Device mounted on a ceramic PCB, Al2O3, standard footprint. 006aab570 1250 Ptot (mW) 1000 (1) 750 (2) 500 (3) 250 0 - 75 - 25 25 75 125 175 Tamb (°C) 1. Ceramic PCB, Al2O3, standard footprint 2 2. FR4 PCB, mounting pad for anode 1 cm 3. FR4 PCB, standard footprint Fig. 2. Power derating curves Table 7. ESD maximum ratings Tamb = 25 °C unless otherwise specified. TL431_FAM Product data sheet Symbol Parameter Conditions Min Max Unit VESD electrostatic discharge voltage MIL-STD-883 (human body model) - 4 kV All information provided in this document is subject to legal disclaimers. Rev. 6 — 9 January 2019 © Nexperia B.V. 2019. All rights reserved 5 / 19 TL431 family Nexperia Adjustable precision shunt regulators 7. Recommended operating conditions Table 8. Operating conditions Symbol Parameter Conditions Min Max Unit VKA cathode-anode voltage Vref 36 V IK cathode current 1 100 mA 8. Thermal characteristics Table 9. Thermal characteristics Symbol Parameter Conditions Rth(j-a) in free air Rth(j-sp) [1] [2] [3] [4] TL431_FAM Product data sheet thermal resistance from junction to ambient thermal resistance from junction to solder point Min Typ Max Unit [1] - - 360 K/W [2] - - 216 K/W [3] - - 132 K/W [4] - - 50 K/W Device mounted on an FR4 PCB, single-sided copper, tin-plated and standard footprint. 2 Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for anode 1 cm . Device mounted on a ceramic PCB, Al2O3, standard footprint. Soldering point of anode. All information provided in this document is subject to legal disclaimers. Rev. 6 — 9 January 2019 © Nexperia B.V. 2019. All rights reserved 6 / 19 TL431 family Nexperia Adjustable precision shunt regulators 9. Characteristics Table 10. Characteristics Tamb = 25 °C unless otherwise specified. Symbol Parameter Conditions Min Typ Max Unit Standard-Grade (2.0 %): TL431CDBZR; TL431IDBZR; TL431QDBZR; TL431FDT; TL431MFDT Vref reference voltage VKA = Vref; IK = 10 mA 2440 2495 2550 mV ΔVref reference voltage variation VKA = Vref; IK = 10 mA TL431CDBZR Tamb = 0 °C to 70 °C - 9 16 mV TL431IDBZR Tamb = -40 °C to 85 °C - 17 34 mV TL431QDBZR Tamb = -40 °C to 125 °C ΔVKA = 10 V to Vref - -1.4 -2.7 mV/V TL431FDT TL431MFDT ΔVref/ΔVKA reference voltage variation to cathode -anode voltage variation ratio IK = 10 mA ΔVKA = 36 V to 10 V - -1 -2 mV/V Iref reference current IK = 10 mA; R1 = 10 kΩ; R2 = open - 2 4 μA ΔIref reference current variation IK = 10 mA; R1 = 10 kΩ; R2 = open TL431CDBZR Tamb = 0 °C to 70 °C - 0.4 1.2 μA TL431IDBZR Tamb = -40 °C to 85 °C - 0.8 2.5 μA TL431QDBZR Tamb = -40 °C to 125 °C TL431FDT TL431MFDT IK(min) minimum cathode current VKA = Vref - 0.4 1 mA Ioff off-state current VKA = 36 V; Vref = 0 - 0.1 1 μA ZKA dynamic cathode-anode impedance IK = 0.1 mA to 100 mA; VKA = Vref; f < 1 kHz - 0.20 0.5 Ω A-Grade (1 %): TL431ACDBZR; TL431AIDBZR; TL431AQDBZR; TL431AFDT; TL431AMFDT Vref reference voltage VKA = Vref; IK = 10 mA 2470 2495 2520 mV ΔVref reference voltage variation VKA = Vref; IK = 10 mA TL431ACDBZR TL431AIDBZR Tamb = 0 °C to 70 °C - 9 16 mV Tamb = -40 °C to 85 °C - 17 34 mV TL431AQDBZR Tamb = -40 °C to 125 °C ΔVKA = 10 V to Vref - -1.4 -2.7 mV/V TL431AFDT TL431AMFDT ΔVref/ΔVKA reference voltage variation to cathode-anode voltage variation ratio IK = 10 mA ΔVKA = 36 V to 10 V - -1.0 -2.0 mV Iref IK = 10 mA; R1 = 10 kΩ; R2 = open - 2.0 4.0 μA reference current TL431_FAM Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 6 — 9 January 2019 © Nexperia B.V. 2019. All rights reserved 7 / 19 TL431 family Nexperia Adjustable precision shunt regulators Symbol Parameter Conditions Min Typ Max Unit ΔIref reference current variation IK = 10 mA; R1 = 10 kΩ; R2 = open TL431ACDBZR Tamb = 0 °C to 70 °C - 0.4 1.2 μA TL431AIDBZR Tamb = -40 °C to 85 °C TL431AQDBZR Tamb = -40 °C to 125 °C - 0.8 2.5 μA - 0.4 0.6 mA TL431AFDT TL431AMFDT IK(min) minimum cathode current VKA = Vref TL431ACDBZR Tamb = 0 °C to 70 °C TL431AIDBZR Tamb = -40 °C to 85 °C TL431AQDBZR Tamb = -40 °C to 125 °C TL431AFDT TL431AMFDT Ioff off-state current VKA = 36 V; Vref = 0 - 0.1 0.5 μA ZKA dynamic cathode-anode impedance IK = 0.1 mA to 100 mA; VKA = Vref; f < 1 kHz - 0.2 0.5 Ω 2483 2495 2507 mV B-Grade (0.5 %): TL431BCDBZR; TL431BIDBZR; TL431BFDT; TL431BMFDT Vref reference voltage VKA = Vref; IK = 10 mA ΔVref reference voltage variation VKA = Vref; IK = 10 mA TL431BCDBZR Tamb = 0 °C to 70 °C - 9 16 mV TL431BIDBZR Tamb = -40 °C to 85 °C - 17 34 mV TL431BQDBZR Tamb = -40 °C to 125 °C ΔVKA = 10 V to Vref - -1.4 -2.7 mV/V TL431BFDT TL431BMFDT ΔVref/ΔVKA reference voltage variation to cathode-anode voltage variation ratio IK = 10 mA ΔVKA = 36 V to 10 V - -1.0 -2.0 mV/V Iref reference current IK = 10 mA; R1 = 10 kΩ; R2 = open - 2.0 4.0 μA ΔIref reference current variation IK = 10 mA; R1 = 10 kΩ; R2 = open TL431BCDBZR Tamb = 0 °C to 70 °C - 0.4 1.2 μA TL431BIDBZR Tamb = -40 °C to 85 °C - 0.8 2.5 μA TL431BQDBZR Tamb = -40 °C to 125 °C - 0.4 0.6 mA TL431BFDT TL431BMFDT IK(min) minimum cathode current VKA = Vref TL431BCDBZR Tamb = 0 °C to 70 °C TL431BIDBZR Tamb = -40 °C to 85 °C TL431BQDBZR Tamb = -40 °C to 125 °C TL431BFDT TL431BMFDT Ioff off-state current VKA = 36 V; Vref = 0 - 0.1 0.5 μA ZKA dynamic cathode-anode impedance IK = 0.1 mA to 100 mA; VKA = Vref; f < 1 kHz - 0.2 0.5 Ω TL431_FAM Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 6 — 9 January 2019 © Nexperia B.V. 2019. All rights reserved 8 / 19 TL431 family Nexperia Adjustable precision shunt regulators aaa-028484 2.60 Vref (V) IK (mA) 2.56 100 2.52 50 2.48 0 2.44 - 50 2.40 -75 -25 25 75 125 Tamb (°C) - 100 IK = 10 mA; VKA = Vref Fig. 3. 006aab572 150 -2 -1 0 1 2 VKA (V) 3 VKA = Vref; Tamb = 25 °C Reference voltage as a function of ambient temperature; typical values INPUT Fig. 4. VKA Cathode current as a function of cathode-anode voltage; typical values aaa-028485 5 Iref (µA) IK 4 3 Vref 2 GND 1 006aab573 IK = 10 mA; VKA = Vref Fig. 5. 0 -75 Test circuit to Figures 3 and 4 -25 25 75 125 Tamb (°C) IK = 10 mA; R1 = 10 kΩ; R2 = open Fig. 6. TL431_FAM Product data sheet Reference current as a function of ambient temperature; typical values All information provided in this document is subject to legal disclaimers. Rev. 6 — 9 January 2019 © Nexperia B.V. 2019. All rights reserved 9 / 19 TL431 family Nexperia Adjustable precision shunt regulators INPUT 006aab575 0 VKA IK ΔVref (mV) R1 Iref - 20 R2 Vref - 40 GND 006aab576 - 60 0 10 20 30 VKA (V) 40 Fig. 8. Test circuit to Figures 6 and 7 IK = 10 mA; Tamb = 25 °C Fig. 7. Reference voltage variation as a function of cathode-anode voltage; typical values INPUT aaa-028486 250 Ioff (nA) VKA Ioff 200 150 100 GND 50 006aab578 VKA = 36 V; Vref = 0 V 0 -75 -25 25 75 125 Tamb (°C) Fig. 10. Test circuit to Figure 9 VKA = 36 V; Vref = 0 V Fig. 9. Off-state current as a function of ambient temperature; typical values TL431_FAM Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 6 — 9 January 2019 © Nexperia B.V. 2019. All rights reserved 10 / 19 TL431 family Nexperia Adjustable precision shunt regulators aaa-028490 6 220 Ω VKA (1) VI VO (V) PULSE GENERATOR f = 100 kHz 4 50 Ω (2) GND 2 006aab581 Tamb = 25 °C Fig. 12. Test circuit to Figure 11 0 -1 1 3 5 t (µs) 7 1. input 2. output Tamb = 25 °C Fig. 11. Input voltage and output voltage as a function of time; typical values VKA aaa-028487 60 IK Av (dB) 9 µF 40 20 GND aaa-017869 IK = 10 mA; Tamb = 25 °C 0 Fig. 14. Test circuit to Figure 13 1 10 102 103 f (kHz) 104 IK = 10 mA; Tamb = 25 °C Fig. 13. Voltage amplification as a function of frequency; typical values TL431_FAM Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 6 — 9 January 2019 © Nexperia B.V. 2019. All rights reserved 11 / 19 TL431 family Nexperia Adjustable precision shunt regulators aaa-028488 102 VKA 1 kΩ IK ZKA (Ω) 50 Ω 10 GND 1 006aab587 IK = 10 mA; Tamb = 25 °C Fig. 16. Test circuit to Figure 15 10-1 1 10 102 103 f (kHz) 104 IK = 10 mA; Tamb = 25 °C Fig. 15. Dynamic cathode-anode impedance as a function of frequency; typical values aaa-028489 100 IK (mA) (1) (1) 80 60 40 stable stable oscillation 20 0 1 102 10 103 104 CL (nF) Tamb = 25 °C (1) VKA = Vref VKA = 5 V; no oscillation VKA = 10 V; no oscillation VKA = 15 V; no oscillation Fig. 17. Cathode current as a function of load capacitance, typical values 150 Ω IK R1 = 10 kΩ CL IK 150 Ω CL VBATT VBATT R2 GND VKA = Vref; Tamb = 25 °C Fig. 18. Test circuit to Figure 17 TL431_FAM Product data sheet GND 006aab589 006aab590 VKA > 5 V; stable operation; T amb = 25 °C Fig. 19. Test circuit to Figure 17 All information provided in this document is subject to legal disclaimers. Rev. 6 — 9 January 2019 © Nexperia B.V. 2019. All rights reserved 12 / 19 TL431 family Nexperia Adjustable precision shunt regulators 10. Application information V+ VOUT R1 R2 006aab592 Fig. 20. Shunt regulator V+ VOUT R1 R2 006aab593 Fig. 21. Series pass regulator V+ VOUT VIN 006aab594 Tth = Vref TIN < Vref => VOUT > 0 TIN > Vref => VOUT ≅ 2 Fig. 22. Single-supply comparator with temperature-compensated threshold V+ RCL IOUT 006aab595 Fig. 23. Constant current souce TL431_FAM Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 6 — 9 January 2019 © Nexperia B.V. 2019. All rights reserved 13 / 19 TL431 family Nexperia Adjustable precision shunt regulators V+ VOUT R1 R2 006aab596 Fig. 24. High-current shunt regulator ISINK V+ RS 006aab597 Fig. 25. Constant current sink REGULATOR LINE VOUT GND R3 R1 REF R2 GND 006aac482 Fig. 26. TL431 in control loop of SMPS TL431_FAM Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 6 — 9 January 2019 © Nexperia B.V. 2019. All rights reserved 14 / 19 TL431 family Nexperia Adjustable precision shunt regulators 11. Test information Quality information This product has been qualified in accordance with the Automotive Electronics Council (AEC) standard Q100 - Failure mechanism based stress test qualification for integrated circuits, and is suitable for use in automotive applications. 12. Package outline 3.0 2.8 1.1 0.9 3 0.45 0.15 2.5 1.4 2.1 1.2 1 2 0.48 0.38 1.9 Dimensions in mm 0.15 0.09 04-11-04 Fig. 27. Package outline SOT23 (TO-236AB) 13. Soldering 3.3 2.9 1.9 solder lands 3 2 1.7 solder resist solder paste 0.6 (3×) 0.7 (3×) occupied area Dimensions in mm 0.5 (3×) 0.6 (3×) 1 sot023_fr Fig. 28. Reflow soldering footprint SOT23 (TO-236AB) TL431_FAM Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 6 — 9 January 2019 © Nexperia B.V. 2019. All rights reserved 15 / 19 TL431 family Nexperia Adjustable precision shunt regulators 2.2 1.2 (2×) 1.4 (2×) solder lands 4.6 solder resist 2.6 occupied area Dimensions in mm 1.4 preferred transport direction during soldering 2.8 4.5 sot023_fw Fig. 29. Wave soldering footprint SOT23 (TO-236AB) TL431_FAM Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 6 — 9 January 2019 © Nexperia B.V. 2019. All rights reserved 16 / 19 TL431 family Nexperia Adjustable precision shunt regulators 14. Revision history Table 11. Revision history Document ID Release date Data sheet status Change notice Supersedes TL431_8_FAM v.6 20190109 Product data sheet - TL431FAM v.5 Modifications • • • • TL431SDT and TL431MSDT removed Figures of TL431XDBZR and TL431XFDT updated The format of this data sheet has been redesigned to comply with the identity guidelines of Nexperia. Legal texts have been adapted to the new company name where appropriate. TL431FAM v.5 20150901 Product data sheet - TL431FAM v.4 TL431FAM v.4 20110630 Product data sheet - TL431FAM v.3 TL431FAM v.3 20101105 Product data sheet - TL431FAM v.2 TL431FAM v.2 20100120 Product data sheet - TL431FAM v.1 TL431FAM v.1 20090806 Product data sheet - - TL431_FAM Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 6 — 9 January 2019 © Nexperia B.V. 2019. All rights reserved 17 / 19 TL431 family Nexperia Adjustable precision shunt regulators equipment, nor in applications where failure or malfunction of an Nexperia product can reasonably be expected to result in personal injury, death or severe property or environmental damage. Nexperia and its suppliers accept no liability for inclusion and/or use of Nexperia products in such equipment or applications and therefore such inclusion and/or use is at the customer's own risk. 15. Legal information Data sheet status Document status [1][2] Product status [3] Definition Quick reference data — The Quick reference data is an extract of the product data given in the Limiting values and Characteristics sections of this document, and as such is not complete, exhaustive or legally binding. Objective [short] data sheet Development This document contains data from the objective specification for product development. Preliminary [short] data sheet Qualification This document contains data from the preliminary specification. Applications — Applications that are described herein for any of these products are for illustrative purposes only. Nexperia makes no representation or warranty that such applications will be suitable for the specified use without further testing or modification. Product [short] data sheet Production This document contains the product specification. [1] [2] [3] Please consult the most recently issued document before initiating or completing a design. The term 'short data sheet' is explained in section "Definitions". The product status of device(s) described in this document may have changed since this document was published and may differ in case of multiple devices. The latest product status information is available on the internet at https://www.nexperia.com. Definitions Draft — The document is a draft version only. The content is still under internal review and subject to formal approval, which may result in modifications or additions. Nexperia does not give any representations or warranties as to the accuracy or completeness of information included herein and shall have no liability for the consequences of use of such information. Short data sheet — A short data sheet is an extract from a full data sheet with the same product type number(s) and title. A short data sheet is intended for quick reference only and should not be relied upon to contain detailed and full information. For detailed and full information see the relevant full data sheet, which is available on request via the local Nexperia sales office. In case of any inconsistency or conflict with the short data sheet, the full data sheet shall prevail. Product specification — The information and data provided in a Product data sheet shall define the specification of the product as agreed between Nexperia and its customer, unless Nexperia and customer have explicitly agreed otherwise in writing. In no event however, shall an agreement be valid in which the Nexperia product is deemed to offer functions and qualities beyond those described in the Product data sheet. Disclaimers Limited warranty and liability — Information in this document is believed to be accurate and reliable. However, Nexperia does not give any representations or warranties, expressed or implied, as to the accuracy or completeness of such information and shall have no liability for the consequences of use of such information. Nexperia takes no responsibility for the content in this document if provided by an information source outside of Nexperia. In no event shall Nexperia be liable for any indirect, incidental, punitive, special or consequential damages (including - without limitation - lost profits, lost savings, business interruption, costs related to the removal or replacement of any products or rework charges) whether or not such damages are based on tort (including negligence), warranty, breach of contract or any other legal theory. Customers are responsible for the design and operation of their applications and products using Nexperia products, and Nexperia accepts no liability for any assistance with applications or customer product design. It is customer’s sole responsibility to determine whether the Nexperia product is suitable and fit for the customer’s applications and products planned, as well as for the planned application and use of customer’s third party customer(s). Customers should provide appropriate design and operating safeguards to minimize the risks associated with their applications and products. Nexperia does not accept any liability related to any default, damage, costs or problem which is based on any weakness or default in the customer’s applications or products, or the application or use by customer’s third party customer(s). Customer is responsible for doing all necessary testing for the customer’s applications and products using Nexperia products in order to avoid a default of the applications and the products or of the application or use by customer’s third party customer(s). Nexperia does not accept any liability in this respect. Limiting values — Stress above one or more limiting values (as defined in the Absolute Maximum Ratings System of IEC 60134) will cause permanent damage to the device. Limiting values are stress ratings only and (proper) operation of the device at these or any other conditions above those given in the Recommended operating conditions section (if present) or the Characteristics sections of this document is not warranted. Constant or repeated exposure to limiting values will permanently and irreversibly affect the quality and reliability of the device. Terms and conditions of commercial sale — Nexperia products are sold subject to the general terms and conditions of commercial sale, as published at http://www.nexperia.com/profile/terms, unless otherwise agreed in a valid written individual agreement. In case an individual agreement is concluded only the terms and conditions of the respective agreement shall apply. Nexperia hereby expressly objects to applying the customer’s general terms and conditions with regard to the purchase of Nexperia products by customer. No offer to sell or license — Nothing in this document may be interpreted or construed as an offer to sell products that is open for acceptance or the grant, conveyance or implication of any license under any copyrights, patents or other industrial or intellectual property rights. Export control — This document as well as the item(s) described herein may be subject to export control regulations. Export might require a prior authorization from competent authorities. Translations — A non-English (translated) version of a document is for reference only. The English version shall prevail in case of any discrepancy between the translated and English versions. Trademarks Notice: All referenced brands, product names, service names and trademarks are the property of their respective owners. Notwithstanding any damages that customer might incur for any reason whatsoever, Nexperia’s aggregate and cumulative liability towards customer for the products described herein shall be limited in accordance with the Terms and conditions of commercial sale of Nexperia. Right to make changes — Nexperia reserves the right to make changes to information published in this document, including without limitation specifications and product descriptions, at any time and without notice. This document supersedes and replaces all information supplied prior to the publication hereof. Suitability for use in automotive applications — This Nexperia product has been qualified for use in automotive applications. Unless otherwise agreed in writing, the product is not designed, authorized or warranted to be suitable for use in life support, life-critical or safety-critical systems or TL431_FAM Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 6 — 9 January 2019 © Nexperia B.V. 2019. All rights reserved 18 / 19 TL431 family Nexperia Adjustable precision shunt regulators Contents 1. Product profile.............................................................. 1 1.1. General description......................................................1 1.2. Features and benefits..................................................1 1.3. Applications................................................................. 2 1.4. Quick reference data................................................... 2 2. Pinning information......................................................2 3. Ordering information....................................................3 4. Marking.......................................................................... 3 5. Functional diagram.......................................................4 6. Limiting values............................................................. 5 7. Recommended operating conditions..........................6 8. Thermal characteristics............................................... 6 9. Characteristics.............................................................. 7 10. Application information........................................... 13 11. Test information........................................................ 15 12. Package outline........................................................ 15 13. Soldering................................................................... 15 14. Revision history........................................................17 15. Legal information......................................................18 © Nexperia B.V. 2019. All rights reserved For more information, please visit: http://www.nexperia.com For sales office addresses, please send an email to: salesaddresses@nexperia.com Date of release: 9 January 2019 TL431_FAM Product data sheet All information provided in this document is subject to legal disclaimers. Rev. 6 — 9 January 2019 © Nexperia B.V. 2019. All rights reserved 19 / 19
