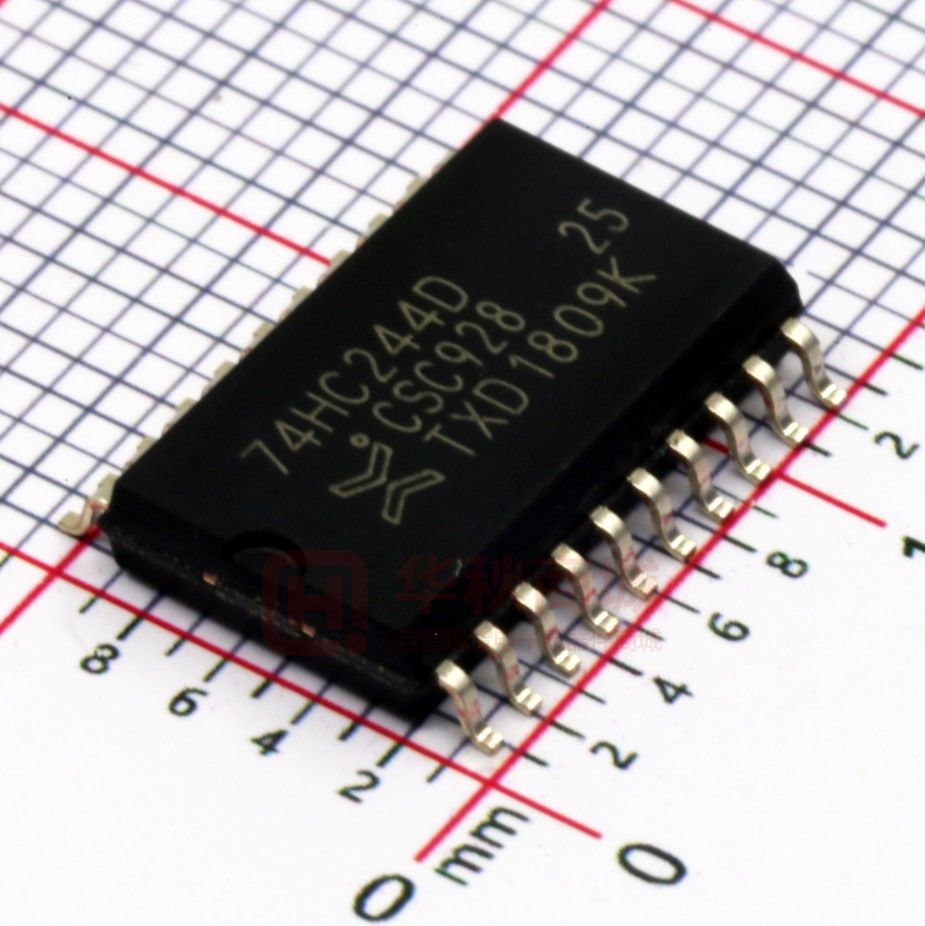

74HC244D,653

74HC244; 74HCT244 Octal buffer/line driver; 3-state Rev. 5 — 26 February 2016 Product data sheet 1. General description The 74HC244; 74HCT244 is an 8-bit buffer/line driver with 3-state outputs. The device can be used as two 4-bit buffers or one 8-bit buffer. The device features two output enables (1OE and 2OE), each controlling four of the 3-state outputs. A HIGH on nOE causes the outputs to assume a high-impedance OFF-state. Inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC. 2. Features and benefits  Input levels:  For 74HC244: CMOS level  For 74HCT244: TTL level  Octal bus interface  Non-inverting 3-state outputs  Complies with JEDEC standard no. 7 A  ESD protection:  HBM JESD22-A114F exceeds 2000 V  MM JESD22-A115-A exceeds 200 V  Multiple package options  Specified from 40 C to +85 C and 40 C to +125 C 3. Ordering information Table 1. Ordering information Type number 74HC244D Package Temperature range Name Description Version 40 C to +125 C SO20 plastic small outline package; 20 leads; body width 7.5 mm SOT163-1 40 C to +125 C SSOP20 plastic shrink small outline package; 20 leads; body width 5.3 mm SOT339-1 40 C to +125 C TSSOP20 plastic thin shrink small outline package; 20 leads; body width 4.4 mm SOT360-1 40 C to +125 C DHVQFN20 plastic dual-in-line compatible thermal enhanced SOT764-1 very thin quad flat package; no leads; 20 terminals; body 2.5  4.5  0.85 mm 74HCT244D 74HC244DB 74HCT244DB 74HC244PW 74HCT244PW 74HC244BQ 74HCT244BQ 74HC244; 74HCT244 Nexperia Octal buffer/line driver; 3-state 4. Functional diagram           $
