NJM319
VOLTAGE COMPARATOR
■ GENERAL DESCRIPTION
The NJM319 is precision high-speed dual comparator
fabricated on a single monolithic chip. It is designed to operate
over a wide range of supply voltages down to single 5V logic
and ground. The uncommitted collector of the output stage
makes the NJM319 compatible with RTL, DTL and TTL as well
as capable of driving lamps and relays at currents up to 25mA.
■ FEATURES
● Operating Voltage
● Single Supply Operation
● Response Time
● Output Current
● Package Outline
● Bipolar Technology

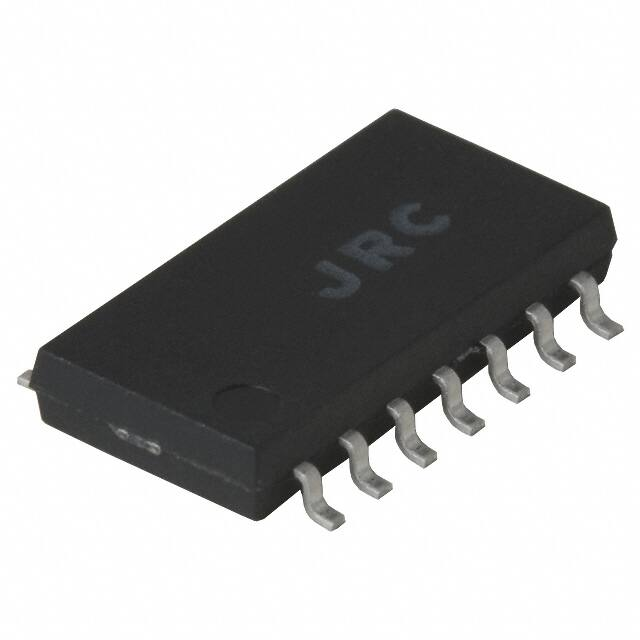

■ PACKAGE OUTLINE
NJM319D
NJM319M
( +5V~+36V )
( 80ns typ. )
( 25mA @ Sink Current )
DIP14, DMP14, SSOP14
NJM319V
■ PIN CONFIGURATION
(TOP VIEW)
NJM319D
NJM319M
NJM319V
PIN FUNCTION
1. NC
2. NC
3. A GND
4. A +INPUT
5. A −INPUT
6. V
7. B OUTPUT
8. B GND
9. B +INPUT
10. B −INPUT
+
11. V
12. A OUTPUT
13. NC
14. NC
■ EQUIVALENT CIRCUIT ( 1/2 Shown )
Ver.2007-06-25
-1-
NJM319
■ ABSOLUTE MAXIMUM RATINGS
( Ta=25˚C )
PARAMETER
Supply Voltage
Input Voltage
Differential Input Voltage
Power Dissipation
Output to Negative Supply Voltage
GND to Negative Supply Voltage
GND to Positive Supply Voltage
Operating Temperature Range
Storage Temperature Range
SYMBOL
+ V /V
VIC
VID
PD
∆VO-N
∆VG-N
∆VG-P
Topr
Tstg
RATINGS
36
± 15 ( note1 )
± 5 ( note2 )
( DIP14 ) 500
( DMP14 ) 300
( SSOP14 ) 300
36
25
18
-40~+85
-40~+125
UNIT
V
V
V
mW
V
V
V
˚C
˚C
( note1 ) For supply voltage less than ±15V,the absolute maximum input voltage is equal to the supply voltage.
( note2 ) Do not apply voltage more than 5V at the point between +INPUT and –INPUT.
■ ELECTRICAL CHARACTERISTICS
( Ta=25˚C,V+/V-=±15V )
PARAMETER
Input Offset Voltage
Input Offset Current
Input Bias Current
Voltage Gain
Response Time
Saturation Voltage
Output Leakage Current
Positive Supply Current
Positive Supply Current
Negative Supply Current
-2-
SYMBOL
VIO
IIO
IB
AV
tR
VSAT
ILEAK
+
I1
+
I2
I
TEST CONDITION
RS≤5kΩ
VIN:100mV Step Input
5mV Over Drive
VIN≤-10mV,ISINK=25mA
VIN≥10mV,V =GND=0V,VOUT=35V
+
V =5V,V =0V
MIN.
78
-
TYP.
2.0
80
250
92
80
MAX.
8.0
200
1000
-
UNIT
mV
nA
nA
dB
ns
-
0.75
0.2
4.3
8
3
1.5
10
12.5
5
V
µA
mA
mA
mA
Ver.2007-06-25
NJM319
■ TYPICAL CHARACTERISTICS
Ver.2007-06-25
-3-
NJM319
■ TYPICAL CHARACTERISTICS
■ TYPICAL APPLICATIONS
Relay Driver
Window Detector
TTL Output
[CAUTION]
The specifications on this databook are only
given for information , without any guarantee
as regards either mistakes or omissions. The
application circuits in this databook are
described only to show representative usages
of the product and not intended for the
guarantee or permission of any right including
the industrial rights.
-4-
Ver.2007-06-25
