BAW56

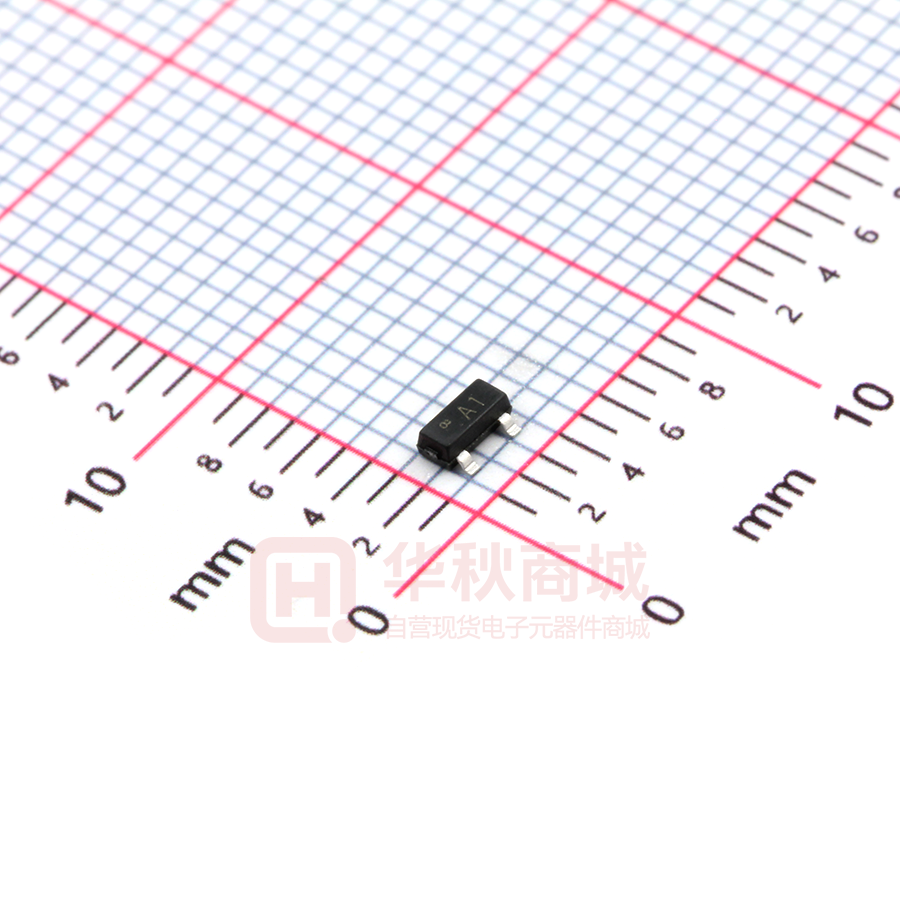

BAW56-HAF Silicon Epitaxial Planar Switching Diode Features • Small package 3 • Low forward voltage • Fast reverse recovery time • Small total capacitance 1 • Halogen and Antimony Free(HAF), RoHS compliant 2 Marking Code: A1 TO-236 Plastic Package Applications • Ultra high speed switching application Absolute Maximum Ratings (Ta = 25 ) Parameter Symbol Value Unit VRRM 100 V Continuous Reverse Voltage VR 75 V Forward Current (DC) IF 215 mA IFRM 450 mA IFSM 0.5 1 4 A Ptot 350 mW Tj 150 Tstg - 65 to + 150 Symbol Max. Unit RθJA 357 /W Peak Repetitive Reverse Voltage Repetitive Peak Forward Current Non-repetitive Peak Forward Surge Current at t = 1 s at t = 1 ms at t = 1 μs Power Dissipation Operating Junction Temperature Storage Temperature Range Thermal Characteristics Parameter Thermal Resistance from Junction to Ambient 1) 1) Device mounted on FR-4 substrate PC board, with minimum recommended pad layout. ® 1/4 Dated: 28/06/2021 Rev: 04 BAW56-HAF Characteristics at Ta = 25 Parameter Symbol Max. Unit Forward Voltage at IF = 1 mA at IF = 10 mA at IF = 50 mA at IF = 150 mA VF VF VF VF 715 855 1 1.25 mV mV V V Reverse Current at VR = 25 V at VR = 75 V at VR = 25 V, TJ = 150 at VR = 75 V, TJ = 150 IR IR IR IR 30 1 30 50 nA µA µA µA Cd 2 pF trr 4 ns Diode Capacitance at VR = 0 , f = 1 MHz Reverse Recovery Time at IF= 10 mA, Irr = 0.1 X IR, VR = 6 V, RL = 100 Ω ® 2/4 Dated: 28/06/2021 Rev: 04 BAW56-HAF Electrical Characteristics Curves Fig 2. Capacitance characteristics Fig 1. Power Derating Curve Cj,Junction Capacitance(pF) Ptot, Power Dissipation (mW) 600 500 400 300 200 100 0 0 25 50 75 100 Ta, Ambient Temperature ( 125 150 ) VR, Reverse Voltage (V) Fig 3. Reverse Characteristics IF,Forward Current(mA) IR, Reverse Current (µA) Fig 4. Forward Characteristics VR, Reverse Voltage (V) VF, Forward Voltage (V) ® 3/4 Dated: 28/06/2021 Rev: 04 BAW56-HAF Package Outline (Dimensions in mm) Unit mm A 1.20 0.89 A1 0.100 0.013 B 1.40 1.20 TO-236 C 0.19 0.08 D 3.04 2.80 E 2.6 2.2 F 1.02 0.89 G 2.04 1.78 L 0.51 0.37 L1 0.2 MIN Recommended Soldering Footprint 2.0 1.0 0.8 1.0 0.8 1.9 Packing information Pitch Reel Size Package Tape Width (mm) mm inch mm inch TO-236 8 4 ± 0.1 0.157 ± 0.004 178 7 Per Reel Packing Quantity 3,000 Marking information " A1 " = Part No. " • " = HAF (Halogen and Antimony Free) .A1 " YM " = Date Code Marking " Y " = Year " M " = Month Font type: Arial ® 4/4 Dated: 28/06/2021 Rev: 04
