NuMicro M058S Series Datasheet
ARM Cortex® -M0
32-bit Microcontroller
The information described in this document is the exclusive intellectual property of
Nuvoton Technology Corporation and shall not be reproduced without permission from Nuvoton.
Nuvoton is providing this document only for reference purposes of NuMicro microcontroller based
system design. Nuvoton assumes no responsibility for errors or omissions.
All data and specifications are subject to change without notice.
For additional information or questions, please contact: Nuvoton Technology Corporation.
www.nuvoton.com
Nov. 27, 2014
Page 1 of 72
Rev.1.03
NUMICRO™ M058S SERIES DATASHEET
NuMicro™ M058S Series
Datasheet
NuMicro M058S Series Datasheet
TABLE OF CONTENTS
1 GENERAL DESCRIPTION ···················································································································7
2 FEATURES ············································································································································8
NUMICRO™ M058S SERIES DATASHEET
3 ABBREVIATIONS ·······························································································································11
3.1 List of Abbreviations ·························································································································11
4 PARTS INFORMATION LIST AND PIN CONFIGURATION ···························································12
™
4.1 NuMicro M058S Series Selection Guide ·····················································································12
4.2 Pin Configuration ·······························································································································13
4.2.1 TSSOP20 pin ·······························································································································13
4.2.2 QFN 33-pin ···································································································································14
4.2.3 LQFP 48-pin ·································································································································15
4.2.4 LQFP 64-pin ·································································································································16
4.3 Pin Description ··································································································································17
5 BLOCK DIAGRAM ······························································································································21
5.1 NuMicro M058S Block Diagram ···································································································21
6 FUNCTIONAL DESCRIPTION ···········································································································22
®
®
6.1 ARM Cortex -M0 Core ···················································································································22
6.2 System Manager ·······························································································································24
6.2.1 Overview ·······································································································································24
6.2.2 System Reset ······························································································································24
6.2.3 System Power Architecture ·······································································································25
6.2.4 System Memory Map ··················································································································26
6.2.5 Whole System Memory Mapping ······························································································28
6.2.6 System Timer (SysTick) ·············································································································29
6.2.7 Nested Vectored Interrupt Controller (NVIC) ··········································································30
6.3 Clock Controller ·································································································································34
6.3.1 Overview ·······································································································································34
6.3.2 Clock Generator Block Diagram ·······························································································34
6.3.3 System Clock & SysTick Clock ·································································································37
6.3.4 Power-down Mode Clock ···········································································································38
6.3.5 Frequency Divider Output ··········································································································38
6.4 Flash Memory Controller (FMC) ·····································································································40
6.4.1 Overview ·······································································································································40
6.4.2 Features········································································································································40
6.5 General Purpose I/O (GPIO) ···········································································································41
6.5.1 Overview ·······································································································································41
6.5.2 Features········································································································································41
6.6 Timer Controller (TMR) ····················································································································42
6.6.1 Overview ·······································································································································42
6.6.2 Features: ······································································································································42
6.7 PWM Generator and Capture Timer (PWM) ·················································································43
6.7.1 Overview ·······································································································································43
6.7.2 Features········································································································································44
Nov. 27, 2014
Page 2 of 72
Rev.1.03
NuMicro M058S Series Datasheet
6.8 Watchdog Timer (WDT) ···················································································································45
6.8.1 Overview ·······································································································································45
6.8.2 Features········································································································································45
6.9 Window Watchdog Timer (WWDT) ································································································46
6.9.1 Overview ·······································································································································46
6.9.2 Features········································································································································46
6.10 UART Interface Controller (UART) ·······························································································47
6.10.1
Overview ·······························································································································47
6.10.2
Features ································································································································47
2
2
6.11 I C Serial Interface Controller (I C) ······························································································48
6.11.1
Overview ·······························································································································48
6.11.2
Features ································································································································48
6.12 Serial Peripheral Interface (SPI) ···································································································49
6.12.1
Overview ·······························································································································49
6.12.2
Features ································································································································49
6.13 Analog-to-Digital Converter (ADC) ·······························································································50
6.13.1
Overview ·······························································································································50
6.13.2
Features ································································································································50
7 ELECTRICAL CHARACTERISTICS··································································································51
7.1 Absolute Maximum Ratings ·············································································································51
7.2 DC Electrical Characteristics ···········································································································52
7.4 Analog Characteristics ·····················································································································59
7.4.1 12-bit SARADC Specification ····································································································59
7.4.2 LDO Specification ·······················································································································61
7.4.3 Low Voltage Reset Specification ······························································································62
7.4.4 Brown-Out Detector Specification·····························································································62
7.4.5 Power-On Reset Specification (5V) ··························································································62
7.4.6 Temperature Sensor Specification ···························································································62
7.4.7 Comparator Specification ···········································································································63
7.5 Flash DC Electrical Characteristics ································································································64
7.6 SPI Dynamic Characteristics ···········································································································65
7.6.1 Dynamic Characteristics of Data Input and Output Pin ·························································65
8 PACKAGE DIMENSIONS ···················································································································67
8.1 TSSOP-20 (4.4x6.5 mm) ·················································································································67
2
8.2 QFN-33 (5X5 mm , Thickness 0.8mm, Pitch 0.5 mm) ································································68
2
8.3 LQFP-48 (7x7x1.4mm Footprint 2.0mm) ·····················································································69
2
8.4 LQFP-64 (7x7x1.4mm Footprint 2.0mm) ·····················································································70
Nov. 27, 2014
Page 3 of 72
Rev.1.03
NUMICRO™ M058S SERIES DATASHEET
7.3 AC Electrical Characteristics ···········································································································56
7.3.1 External Crystal ···························································································································56
7.3.2 External Oscillator ·······················································································································56
7.3.3 Typical Crystal Application Circuits ··························································································57
7.3.4 Internal 22.1184 MHz RC Oscillator ·························································································58
7.3.5 Internal 10 kHz RC Oscillator ····································································································58
NuMicro M058S Series Datasheet
NUMICRO™ M058S SERIES DATASHEET
9 REVISION HISTORY ···························································································································71
Nov. 27, 2014
Page 4 of 72
Rev.1.03
NuMicro M058S Series Datasheet
LIST OF FIGURES
Figure 4.1-1 NuMicro M058S Series Selection Code ................................................................. 12
Figure 4.2-1 NuMicro M058S TSSOP20 Pin Diagram ................................................................ 13
Figure 4.2-2 NuMicro M058S Series QFN-33 Pin Diagram ........................................................ 14
Figure 4.2-3 NuMicro M058S Series LQFP-48 Pin Diagram ...................................................... 15
Figure 4.2-4 NuMicro M058S Series LQFP-64 Pin Diagram ...................................................... 16
Figure 5.1-1 NuMicro M058S Block Diagram.............................................................................. 21
Figure 6.1-1 Functional Block Diagram .......................................................................................... 22
™
Figure 6.2-1 NuMicro M058S Power Architecture Diagram ........................................................ 25
Figure 6.3-1 Clock Generator Block Diagram ................................................................................ 34
Figure 6.3-2 Clock Source Controller Overview (1/2) .................................................................... 35
Figure 6.3-3 Clock Source Controller Overview (2/2) .................................................................... 36
Figure 6.3-4 System Clock Block Diagram .................................................................................... 37
Figure 6.3-5 SysTick clock Control Block Diagram ........................................................................ 37
Figure 6.3-6 Clock Source of Frequency Divider ........................................................................... 38
Figure 6.3-7 Block Diagram of Frequency Divider ......................................................................... 39
Figure 7.3-1 Typical Crystal Application Circuit ............................................................................. 57
Figure 7.6-1 SPI Master Mode Timing ........................................................................................... 65
Figure 7.6-2 SPI Slave Mode Timing ............................................................................................. 66
NUMICRO™ M058S SERIES DATASHEET
Nov. 27, 2014
Page 5 of 72
Rev.1.03
NuMicro M058S Series Datasheet
LIST OF TABLES
Table 3.1-1 List of Abbreviations.................................................................................................... 11
Table 4.1-1 NuMicro M058S Series Selection Guide ................................................................. 12
NUMICRO™ M058S SERIES DATASHEET
Table 6.2-1 Address Space Assignments for On-Chip Modules ................................................... 27
Table 6.2-2 Exception Model ......................................................................................................... 31
Table 6.2-3 System Interrupt Map Vector Table ............................................................................ 32
Table 6.2-4 Vector Figure Format .................................................................................................. 33
Table 6.4-1 M058S Series Function Difference List (FMC) ........................................................... 40
Nov. 27, 2014
Page 6 of 72
Rev.1.03
NuMicro M058S Series Datasheet
1
GENERAL DESCRIPTION
™
®
®

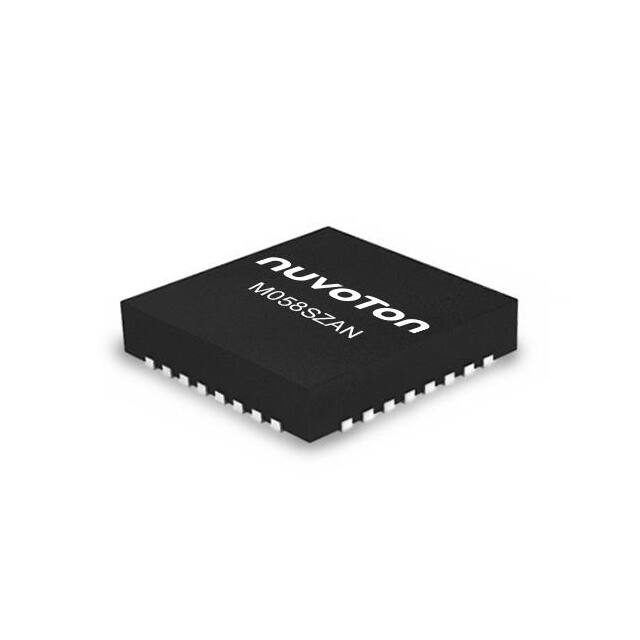

The NuMicro M058S is a 32-bit microcontroller with embedded ARM Cortex -M0 core for
®
industrial control and applications which need rich communication interfaces. The Cortex -M0 is
ARM embedded processor with 32-bit performance and cost-effective microcontroller.
™
The NuMicro M058S can run up to 50 MHz. Thus it can afford to support a variety of industrial
™
control and applications which need high CPU performance. The NuMicro M058S has 32 KB
flash, 4 KB data flash, 4 KB flash for the ISP, and 4 KB SRAM.
2
Many system level peripheral functions, such as I/O Port, Timer, UART, SPI, I C, PWM, ADC,
™
Watchdog Timer, and Brown-Out Detector, have been incorporated into the NuMicro M058S in
order to reduce component count, board space and system cost. These useful functions make the
™
NuMicro M058S powerful for a wide range of applications.
™
Additionally, the NuMicro M058S is equipped with IAP (In-Application Programming), ISP (InSystem Programming) and ICP (In-Circuit Programming) functions, which allow the user to
update the program memory without removing the chip from the actual end product.
NUMICRO™ M058S SERIES DATASHEET
Nov. 27, 2014
Page 7 of 72
Rev.1.03
NuMicro M058S Series Datasheet
2
FEATURES
NUMICRO™ M058S SERIES DATASHEET
Core
ARM® Cortex® -M0 core runs up to 50 MHz.
One 24-bit system timer.
Supports low power sleep-mode.
A single-cycle 32-bit hardware multiplier.
NVIC for the 32 interrupt inputs, each with 4-levels of priority.
Supports Serial Wire Debug (SWD) interface and 2 watchpoints/4 breakpoints.
Wide Operating Voltage Range: 2.5V to 5.5V
Memory
Clock Control
Up to 55 general-purpose I/O (GPIO) pins for LQFP-64 package
Four I/O modes:
Quasi bi-direction
Push-Pull output
Open-Drain output
Input only with high impendence
TTL/Schmitt trigger input selectable
I/O pin can be configured as interrupt source with edge/level setting
Configurable I/O mode after POR
Timer
Programmable system clock source
22.1184 MHz internal oscillator
4~24 MHz external crystal input
10 kHz low-power oscillator for Watchdog Timer and wake-up in Sleep mode
PLL allows CPU operation up to the maximum 50 MHz
I/O Port
32 KB Flash for program memory (APROM)
4 KB Flash for data memory (DataFlash)
4 KB Flash for loader (LDROM)
4 KB SRAM for internal scratch-pad RAM (SRAM)
Provides four channel 32-bit timers, one 8-bit pre-scale counter with 24-bit up-timer for
each timer.
Independent clock source for each timer.
24-bit timer value is readable through TDR (Timer Data Register)
Provides one-shot, periodic and toggle operation modes.
Provide event counter function.
Provide external capture/reset counter function.
Additional functions:
Two more timer clock sources from external trigger and internal 10 kHz
TIMER wake-up function
External capture input source selected from TxEX
Toggle mode output pins selected from TxEX or TMx
Inter-Timer trigger mode
WDT (Watchdog Timer)
Nov. 27, 2014
Page 8 of 72
Rev.1.03
NuMicro M058S Series Datasheet
WWDT (Window Watchdog Timer)
Supports Master/Slave mode
Full-duplex synchronous serial data transfer
Provides 3 wire function
Variable length of transfer data from 8 to 32 bits
MSB or LSB first data transfer
Supports Byte Suspend mode in 32-bit transmission
Additional functions
PLL clock source
4-level depth FIFO buffer for better performance and flexibility in SPI Burst
Transfer mode
2
IC
Nov. 27, 2014
Up to two sets of I2C device
Supports master/slave mode
Bidirectional data transfer between master and slave
Multi-master bus (no central master).
Arbitration between simultaneously transmitting masters without corruption of serial
data on the bus
Serial clock synchronization allows devices with different bit rates to communicate via
Page 9 of 72
Rev.1.03
NUMICRO™ M058S SERIES DATASHEET
Programmable baud-rate generator
Buffered receiver and transmitter, each with 16 bytes FIFO
Optional flow control function (CTS and RTS)
Supports IrDA(SIR) function
Supports RS485 function
Supports LIN function
SPI
Up to two built-in 16-bit PWM generators, providing four PWM outputs or two
complementary paired PWM outputs
Individual clock source, clock divider, 8-bit pre-scalar and dead-zone generator for
each PWM generator
PWM interrupt synchronized to PWM period
16-bit digital Capture timers (shared with PWM timers) with rising/falling capture inputs
Supports capture interrupt
Additional functions
Internal 10 kHz to PWM clock source
Polar inverse function
Center-aligned type function
Timer duty interrupt enable function
Two kinds of PWM interrupt period/duty type selection
Period/duty trigger ADC function
UART
6-bit down counter with 11-bit prescale for wide range window selected
PWM
Multiple clock sources
Supports wake-up from Power-down or Sleep mode
Interrupt or reset selectable on watchdog time-out
Time-out reset delay period time can be selected
NuMicro M058S Series Datasheet
NUMICRO™ M058S SERIES DATASHEET
one serial bus.
Serial clock synchronization can be used as a handshake mechanism to suspend and
resume serial transfer.
Programmable clocks allow versatile rate control.
Supports multiple address recognition (four slave address with mask option)
ADC
12-bit SAR ADC
Up to 8-ch single-ended input or 4-ch differential input
Supports Single mode/Burst mode/Single-cycle Scan mode/Continuous Scan mode
Supports 2’ complement/un-signed format in differential mode conversion results
Each channel with an individual result register
Supports conversion value monitoring (or comparison) for threshold voltage detection
Conversion started either by software trigger or external pin trigger
Additional functions
A/D conversion started by PWM center-aligned trigger or edge-aligned trigger
PWM trigger delay function
ISP (In-System Programming) and ICP (In-Circuit Programming)
IAP (In-Application Programming)
One built-in temperature sensor with 1℃ resolution
BOD (Brown-out Detector)
With 4 levels: 4.4V/3.7V/2.7V/2.2V
Supports Brown-Out interrupt and reset option
96-bit unique ID
LVR (Low Voltage Reset)
Threshold voltage levels: 2.0V
Operating Temperature: -40℃~85℃
Packages:
Nov. 27, 2014
Green package (RoHS)
64-pin LQFP, 48-pin LQFP, 33-pin QFN, 20-pin TSSOP
Page 10 of 72
Rev.1.03
NuMicro M058S Series Datasheet
3
ABBREVIATIONS
3.1 List of Abbreviations
Description
ADC
Analog-to-Digital Converter
APB
Advanced Peripheral Bus
AHB
Advanced High-Performance Bus
BOD
Brown-out Detection
FIFO
First In, First Out
FMC
Flash Memory Controller
GPIO
General-Purpose Input/Output
HCLK
The Clock of Advanced High-Performance Bus
HIRC
22.1184 MHz Internal High Speed RC Oscillator
HXT
4~24 MHz External High Speed Crystal Oscillator
IAP
In Application Programming
ICP
In Circuit Programming
ISP
In System Programming
LDO
Low Dropout Regulator
LIRC
10 kHz internal low speed RC oscillator (LIRC)
NVIC
Nested Vectored Interrupt Controller
PCLK
The Clock of Advanced Peripheral Bus
PLL
Phase-Locked Loop
PWM
Pulse Width Modulation
SPI
Serial Peripheral Interface
SPS
Samples per Second
TMR
Timer Controller
UART
Universal Asynchronous Receiver/Transmitter
UCID
Unique Customer ID
WDT
Watchdog Timer
WWDT
Window Watchdog Timer
NUMICRO™ M058S SERIES DATASHEET
Acronym
Table 3.1-1 List of Abbreviations
Nov. 27, 2014
Page 11 of 72
Rev.1.03
NuMicro M058S Series Datasheet
4
PARTS INFORMATION LIST AND PIN CONFIGURATION
APROM (KB)
RAM (KB)
Data Flash (KB)
ISP ROM (KB)
I/O
Timer (32-Bit)
UART
SPI
I2C
PWM (16-bit)
ADC (12-bit)
WDT
WWDT
ISP/ICP/IAP
Package
Operating
Temperature
Range(℃)
Connectivity
M058SFAN
32
4
4
4
14
4
1
1
1
1
2
√
√
√
TSSOP20
-40 to +85
M058SZAN
32
4
4
4
26
4
1
1
1
2
5
√
√
√
QFN33
-40 to +85
M058SLAN
32
4
4
4
42
4
1
1
2
4
8
√
√
√
LQFP48
-40 to +85
M058SSAN
32
4
4
4
55
4
1
1
2
4
8
√
√
√
LQFP64
-40 to +85
Part Number
NUMICRO™ M058S SERIES DATASHEET
4.1 NuMicro™ M058S Series Selection Guide
Table 4.1-1 NuMicro M058S Series Selection Guide
M058S - X X X
CPU core
ARM Cortex M0
Temperature
Part Number
58S: 32 KB Flash ROM
N: - 40℃ ~ +85℃
Reserved
Package
Ｓ:
Ｌ:
Ｚ:
Ｆ:
LQFP64
LQFP48
QFN33
TSSOP20
Figure 4.1-1 NuMicro M058S Series Selection Code
Nov. 27, 2014
Page 12 of 72
Rev.1.03
NuMicro M058S Series Datasheet
4.2 Pin Configuration
4.2.1
TSSOP20 pin
T2, AIN0,P1.0
1
20
AVDD
SPISS, AIN4, P1.4
2
19
VDD
/RST
3
18
P0.5, MOSI
RXD, P3.0
4
17
P0.6, MISO
16
P0.7, SPICLK
15
P4.7, ICE_DAT
M058S
TSSOP
20-pin
AVSS
5
TXD, P3.1
6
SDA0, T0, P3.4
7
14
P4.6, ICE_CLK
CKO, SCL0, T1, P3.5
8
13
P2.3, PWM3
XTAL2, P7.0
9
12
LDO_CAP
XTAL1, P7.1
10
11
VSS
Figure 4.2-1 NuMicro M058S TSSOP20 Pin Diagram
NUMICRO™ M058S SERIES DATASHEET
Nov. 27, 2014
Page 13 of 72
Rev.1.03
NuMicro M058S Series Datasheet
QFN 33-pin
P0.1
P0.0
VDD
AVDD
T2, AIN0, P1.0
AIN2, P1.2
AIN3, P1.3
AIN4, P1.4
NUMICRO™ M058S SERIES DATASHEET
4.2.2
32 31 30 29 28 27 26 25
AIN5, P1.5
1
24 P0.4, SPISS
/RST
2
23 P0.5, MOSI
RXD, P3.0
3
22 P0.6, MISO
AVSS
4
TXD, P3.1
5
T0EX, STADC, INT0, P3.2
6
19 P4.6, ICE_CLK
SDA0, T0, P3.4
7
18 P2.6
CKO, SCL0, T1, P3.5
8
21 P0.7, SPICLK
QFN 33-Pin
20 P4.7, ICE_DAT
33 VSS
9
17 P2.5
10 11 12 13 14 15 16
P2.4
P2.3, PWM3
P2.2, PWM2
LDO_CAP
VSS
XTAL1, P7.1
XTAL2, P7.0
P3.6, CKO
Figure 4.2-2 NuMicro M058S Series QFN-33 Pin Diagram
Nov. 27, 2014
Page 14 of 72
Rev.1.03
NuMicro M058S Series Datasheet
4.2.3
LQFP 48-pin
PWM2, P4.2
SPISS, AIN4, P1.4
AIN3, P1.3
AIN2, P1.2
T3,AIN1, P1.1
T2, AIN0,P1.0
AVDD
VDD
P0.0
P0.1
TXD, CTS, P0.2
RXD, RTS, P0.3
48
47
46
45
44
43
42
41
40
39
38
37
MOSI, AIN5, P1.5
1
36
P4.1, PWM1, T3EX
MISO, AIN6, P1.6
2
35
P0.4, SPISS
SPICLK, AIN7, P1.7
3
34
P0.5, MOSI
/RST
4
33
P0.6, MISO
RXD, P3.0
5
32
P0.7, SPICLK
AVSS
6
31
P4.7, ICE_DAT
TXD, P3.1
7
30
P4.6, ICE_CLK
T0EX, STADC, INT0, P3.2
8
29
P4.5, SDA1
T1EX, INT1, P3.3
9
28
P4.4, SCL1
SDA0, T0, P3.4
10
27
P2.7
CKO, SCL0, T1, P3.5
11
26
P2.6
PWM3, P4.3
12
25
P2.5
48-pin LQFP
20
21
22
23
24
P2.0, PWM0
P2.1, PWM1
P2.2, PWM2
P2.3, PWM3
P2.4
P4.0, PWM0, T2EX
NUMICRO™ M058S SERIES DATASHEET
19
XTAL1, P7.1
LDO_CAP
16
XTAL2, P7.0
18
15
P3.7
VSS
14
P3.6, CKO
17
13
Figure 4.2-3 NuMicro M058S Series LQFP-48 Pin Diagram
Nov. 27, 2014
Page 15 of 72
Rev.1.03
NuMicro M058S Series Datasheet
LQFP 64-pin
PWM2, P4.2
SPISS, AIN4, P1.4
AIN3, P1.3
AIN2, P1.2
T3, AIN1, P1.1
T2, AIN0, P1.0
P6.7
P6.6
Vref
AVDD
VDD
VSS
P0.0
P0.1
TXD, CTS0, P0.2
RXD, RTS0, P0.3
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
NUMICRO™ M058S SERIES DATASHEET
4.2.4
MOSI, AIN5, P1.5
1
48
P4.1, PWM1, T3EX
MISO, AIN6, P1.6
2
47
P0.4, SPISS
SPICLK, AIN7, P1.7
3
46
P0.5, MOSI
/RST
4
45
P0.6, MISO
RXD, P3.0
5
44
P0.7, SPICLK
AVSS
6
43
P6.3
T1EX,P5.1
7
42
P6.2
SDA0,P5.2
8
41
P6.1
SCL0,P5.3
9
40
P6.0
LQFP 64-Pin
TXD, P3.1
10
39
P4.7, ICE_DAT
T0EX, STADC, INT0, P3.2
11
38
P4.6, ICE_CLK
T1EX, INT1, P3.3
12
37
P4.5, SDA1
SDA0, T0, P3.4
13
36
P4.4, SCL1
CKO, SCL0, T1, P3.5
14
35
P2.7
PWM3, P4.3
15
34
P2.6
CKO, P3.6
16
33
P2.5
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
P3.7
XTAL2, P7.0
XTAL1, P7.1
VSS
VDD
LDO_CAP
P5.4
P5.5
P5.6
P5.7
P2.0, PWM0
P2.1, PWM1
P2.2, PWM2
P2.3, PWM3
P2.4
P4.0, PWM0, T2EX
Figure 4.2-4 NuMicro M058S Series LQFP-64 Pin Diagram
Nov. 27, 2014
Page 16 of 72
Rev.1.03
NuMicro M058S Series Datasheet
4.3 Pin Description
Pin Number
TSSOP
QFN
LQFP
Alternate Function
LQFP
Type[1]
Description
VDD
P
Power supply to I/O ports and
LDO source for internal PLL and
digital circuit.
VSS
P
Symbol
1
20
33
48
19
27
41
2
3
64
21
54
12
11
20
17
33
Ground pin for digital circuit.
53
20
28
42
55
AVDD
P
Power supply to internal analog
circuit.
5
4
6
6
AVSS
P
Analog Ground pin for analog
circuit.
NC
NC
56
Vref
P
Voltage reference input for
ADC
LDO output pin
LDO
12
13
18
22
P
_CAP
18
connected
capacitor.
2
4
4
/RST
I
(ST)
26
40
52
P0.0
I/O
25
39
51
P0.1
I/O
NC
38
50
P0.2
CTS
TXD[2]
I/O
NC
37
49
P0.3
RTS
RXD[2]
I/O
24
35
47
P0.4
SPISS[2]
I/O
23
34
46
P0.5
MOSI[2]
I/O
Nov. 27, 2014
Page 17 of 72
with
a
1uF
/RST pin is a Schmitt trigger
input pin for hardware device
reset. A “Low” on this pin for
768 clock counter of Internal
RC 22M while the system
clock is running will reset the
device. /RST pin has an
internal pull-up resistor
allowing power-on reset by
simply connecting an external
capacitor to GND.
PORT0: General purpose I/O
port, which can be configured
by software in four modes. Its
multifunction pins are for
CTS1, RTS1, CTS0, RTS0,
SPISS, MOSI, MISO, and
SPICLK.
The pins SPISS, MOSI,
MISO, and SPICLK are for
the SPI function use.
CTS: Clear to Send input pin
Rev.1.03
NUMICRO™ M058S SERIES DATASHEET
3
Note: This pin needs to be
NuMicro M058S Series Datasheet
Pin Number
TSSOP
QFN
LQFP
Alternate Function
LQFP
Type[1]
Symbol
NUMICRO™ M058S SERIES DATASHEET
1
20
33
48
64
17
22
33
45
P0.6
2
MISO[2]
I/O
for UART
I/O
RTS: Request to Send output
pin for UART
16
21
32
44
P0.7
SPICLK[2]
1
29
43
59
P1.0
T2
AIN0
I/O
NC
44
60
P1.1
T3
AIN1
I/O
30
45
61
P1.2
AIN2
I/O
31
46
62
P1.3
AIN3
I/O
32
47
63
P1.4
SPISS[2]
AIN4
I/O
1
1
1
P1.5
MOSI[2]
AIN5
I/O
NC
2
2
P1.6
MISO[2]
AIN6
I/O
NC
3
3
P1.7
SPICLK[2]
AIN7
I/O
NC
19
27
P2.0
PWM0[2]
I/O
NC
20
28
P2.1
PWM1[2]
I/O
14
21
29
P2.2
PWM2[2]
I/O
15
22
30
P2.3
PWM3[2]
I/O
16
23
31
P2.4
I/O
17
25
33
P2.5
I/O
18
26
34
P2.6
I/O
NC
27
35
P2.7
I/O
4
3
5
5
P3.0
RXD[2]
I/O
6
5
7
10
P3.1
TXD[2]
I/O
6
8
11
P3.2
/INT0
NC
9
12
P3.3
/INT1
2
13
Nov. 27, 2014
Description
3
The RXD/TXD pins are for
UART function use.
STADC
Page 18 of 72
T0EX
I/O
T1EX
I/O
PORT1: General purpose I/O
port, which can be configured
by software in four modes. Its
multifunction pins are for T2,
T3, SPISS0, MOSI, MISO,
and SPICLK.
The pins SPISS0, MOSI,
MISO, and SCLK are for the
SPI function use.
The pins AIN0~AIN7 are for
the 12 bits ADC function use.
The T2/T3 pins are for
Timer2/3 external event
counter input.
PORT2: General purpose I/O
port, which can be configured
by software in four modes. It
has an alternative function.
The pins PWM0~PWM3 are
for the PWM function use.
PORT3: General purpose I/O
port, which can be configured
by software in four modes. Its
multifunction pins are for
RXD, TXD, /INT0, /INT1, T0
and T1.
The RXD/TXD pins are for
Rev.1.03
NuMicro M058S Series Datasheet
Pin Number
TSSOP
QFN
LQFP
Alternate Function
LQFP
Type[1]
Symbol
1
2
20
33
48
64
7
7
10
13
P3.4
T0
SDA0
8
8
11
14
P3.5
T1
SCL0
9
13
16
P3.6
Description
3
CKO[2]
CKO
I/O
UART function use.
I/O
The SDA0/SCL0 pins are for
I2C0 function use.
I/O
CKO: HCLK clock output
The STADC pin is for ADC
external trigger input.
NC
14
17
P3.7
I/O
The T0/T1 pins are for
Timer0/1 external event
counter input.
The T0EX/T1EX pins are for
external capture/reset trigger
input of Timer0/1.
24
32
P4.0
PWM0[2]
T2EX
I/O
NC
36
48
P4.1
PWM1[2]
T3EX
I/O
NC
48
64
P4.2
PWM2[2]
I/O
NC
12
15
P4.3
PWM3[2]
I/O
NC
28
36
P4.4
SCL1
I/O
NC
29
37
P4.5
SDA1
I/O
14
19
30
38
P4.6
ICE_CLK
I/O
15
20
31
39
P4.7
ICE_DAT
I/O
NC
NC
7
P5.1
T1EX
I/O
NC
NC
8
P5.2
SDA0
I/O
NC
NC
9
P5.3
SCL0
I/O
NC
NC
23
P5.4
I/O
NC
NC
24
P5.5
I/O
NC
NC
25
P5.6
I/O
NC
NC
26
P5.7
I/O
NC
NC
40
P6.0
I/O
Nov. 27, 2014
Page 19 of 72
PORT4: General purpose I/O
port, which can be configured
by software in four modes. Its
multifunction pins are for
PWM0-3, SCL1, SDA1,
ICE_CLK and ICE_DAT.
The ICE_CLK/ICE_DAT pins
are for JTAG-ICE function
use.
PWM0-3 can be used from
P2.0-P2.3 or P4.0-P4.3.
The T2EX/T3EX pins are for
external capture/reset trigger
input of Timer2/3.
PORT5: General purpose I/O
port, which can be configured
by software in four modes. Its
multifunction pins are for
T0EX, T1EX, SDA0 and
SCL0.
The T0EX/T1EX pins are for
external capture/reset trigger
input of Timer0/1.
The SDA0/SCL0 pins are for
I2C0 function use.
PORT6: General purpose I/O
Rev.1.03
NUMICRO™ M058S SERIES DATASHEET
NC
NuMicro M058S Series Datasheet
Pin Number
TSSOP
QFN
LQFP
Alternate Function
LQFP
Symbol
1
NUMICRO™ M058S SERIES DATASHEET
20
2
Type[1]
Description
port, which can be configured
by software in four modes.
3
33
48
64
NC
NC
41
P6.1
I/O
NC
NC
42
P6.2
I/O
NC
NC
43
P6.3
I/O
NC
NC
57
P6.6
I/O
NC
NC
58
P6.7
I/O
10
15
18
P7.0
I/O,
9
XTAL2
O
I/O,
10
11
16
19
P7.1
XTAL1
I(ST)
PORT7: General purpose I/O port,
which can be configured by
software in four modes. Its
multifunction pins are for XTAL
XTAL: External 4~24 MHz (high
speed) crystal pin.
Note 1: I/O type description. I: Input, O: Output, I/O: Quasi-bidirectional, D: Open-drain, P: Power pins, ST: Schmitt trigger.
Note 2: The PWM0 ~ PWM3, RXD, TXD, RXD1, TXD1, SCL1, SDA1 and CKO can be assigned to different pins. However, a
pin function can only be assigned to a pin at the same time, i.e. software cannot assign RXD to P0.3 and P3.0 at the same time.
Nov. 27, 2014
Page 20 of 72
Rev.1.03
NuMicro M058S Series Datasheet
5
BLOCK DIAGRAM
5.1 NuMicro M058S Block Diagram
Memory
ARM
PWM / Timer
32-bit Timer x 4
LDROM
4 KB
APROM
32 KB
Analog Interface
12-bit ADC x 8
Watchdog Timer
Cortex-M0
50 MHz
Window Watchdog
Timer
SRAM
4 KB
DataFlash
4 KB
PWM/Capture
Timer x 4
Bridge
AHB Bus
APB Bus
Power Control
Clock Control
Connectivity
I/O Ports
LDO
PLL
UART x 1
General Purpose
I/O
Power On Reset
High Speed
Crystal Osc.
4 ~ 24 MHz
SPI x 1
External Interrupt
I2C x 2
Reset Pin
LVR
Brown-out
Detection
Low Speed
Oscillator
10 kHz
High Speed
Oscillator
22.1184 MHz
NUMICRO™ M058S SERIES DATASHEET
Figure 5.1-1 NuMicro M058S Block Diagram
Nov. 27, 2014
Page 21 of 72
Rev.1.03
NuMicro M058S Series Datasheet
6
FUNCTIONAL DESCRIPTION
ARM® Cortex® -M0 Core
6.1
NUMICRO™ M058S SERIES DATASHEET
®
The Cortex -M0 processor is a configurable, multistage, 32-bit RISC processor. It has an AMBA AHBLite interface and includes an NVIC component. It also has optional hardware debug functionality. The
processor can execute Thumb code and is compatible with other Cortex-M profile processor. The
profile supports two modes -Thread and Handler modes. Handler mode is entered as a result of an
exception. An exception return can only be issued in Handler mode. Thread mode is entered on Reset,
and can be entered as a result of an exception return. Figure 6.1-1 shows the functional controller of
processor.
Cortex-M0 components
Cortex-M0 processor
Nested
Vectored
Interrupt
Controller
(NVIC)
Interrupts
Debug
Cortex-M0
Processor
Core
Breakpoint
and
Watchpoint
Unit
Bus matrix
Debugger
interface
Wakeup
Interrupt
Controller
(WIC)
AHB-Lite interface
Debug
Access Port
(DAP)
Serial Wire or
JTAG debug port
Figure 6.1-1 Functional Block Diagram
The implemented device provides:
A low gate count processor the features:
®
The ARMv6-M Thumb instruction set.
Thumb-2 technology.
ARMv6-M compliant 24-bit SysTick timer.
A 32-bit hardware multiplier.
The system interface supports little-endian data accesses.
The ability to have deterministic, fixed-latency, interrupt handling.
Load/store-multiples and multicycle-multiplies that can be abandoned and restarted to
facilitate rapid interrupt handling.
C Application Binary Interface compliant exception model.
This is the ARMv6-M, C Application Binary Interface(C-ABI) compliant exception model that
enables the use of pure C functions as interrupt handlers.
Nov. 27, 2014
Page 22 of 72
Rev.1.03
NuMicro M058S Series Datasheet
Low power sleep-mode entry using Wait For Interrupt (WFI), Wait For Event(WFE)
instructions, or the return from interrupt sleep-on-exit feature.
NVIC features:
32 external interrupt inputs, each with four levels of priority.
Dedicated non-Maskable Interrupt (NMI) input.
Supports for both level-sensitive and pulse-sensitive interrupt lines
Supports Wake-up Interrupt Controller (WIC) and provides Ultra-low Power Sleep mode
Debug support:
Four hardware breakpoints.
Two watchpoints.
Program Counter Sampling Register (PCSR) for non-intrusive code profiling.
Single step and vector catch capabilities.
Bus interfaces:
Single 32-bit AMBA-3 AHB-Lite system interface that provides simple integration to all
system peripherals and memory.
Single 32-bit slave port that supports the DAP (Debug Access Port).
NUMICRO™ M058S SERIES DATASHEET
Nov. 27, 2014
Page 23 of 72
Rev.1.03
NuMicro M058S Series Datasheet
6.2
System Manager
6.2.1
Overview
NUMICRO™ M058S SERIES DATASHEET
System management includes the following sections:
6.2.2
System Resets
System Power Architecture
System Memory Map
System management registers for Part Number ID, chip reset and on-chip controllers
reset, and multi-functional pin control
System Timer (SysTick)
Nested Vectored Interrupt Controller (NVIC)
System Control registers
System Reset
The system reset can be issued by one of the following listed events. For these reset event flags
can be read by RSTSRC register.
Hardware Reset
Power-on Reset (POR)
Low level on the Reset Pin (nRST)
Watchdog Timer Time-out Reset (WDT)
Low Voltage Reset (LVR)
Brown-out Detector Reset (BOD)
Software Reset
MCU Reset - SYSRESETREQ(AIRCR[2])
Cortex-M0 Core One-shot Reset - CPU_RST(IPRSTC1[1])
Chip One-shot Reset - CHIP_RST(IPRSTC1[0])
Note: ISPCON.BS keeps the original value after MCU Reset and CPU Reset.
Nov. 27, 2014
Page 24 of 72
Rev.1.03
NuMicro M058S Series Datasheet
6.2.3
System Power Architecture
In this device, the power architecture is divided into three segments.
Analog power from AVDD and AVSS provides the power for analog components
operation. AVDD must be equal to VDD to avoid leakage current.
Digital power from VDD and VSS supplies the power to the I/O pins and internal
regulator which provides a fixed 1.8 V power for digital operation.
The output of internal voltage regulator, LDO_CAP, requires an external capacitor which should
be located close to the corresponding pin. Analog power (AV DD) should be the same voltage level
as the digital power (VDD). The following figure shows the power distribution of the M058S series.
Analog Comparator
AVDD
12-bit
SAR-ADC
Low
Voltage
Reset
AVSS
Temperature
Sensor
Flash
Digital Logic
Brown
Out
Detector
Internal
22.1184 MHz and
10 kHz Oscillator
LDO_CAP
1.8V
1uF
POR18
I/O cell
GPIO Pins
POR50
PVSS
VDD VSS
M058 Series Power Distribution
™
Figure 6.2-1 NuMicro M058S Power Architecture Diagram
Nov. 27, 2014
Page 25 of 72
Rev.1.03
NUMICRO™ M058S SERIES DATASHEET
5V to 1.8V
LDO
PLL
NuMicro M058S Series Datasheet
6.2.4
System Memory Map
NUMICRO™ M058S SERIES DATASHEET
The NuMicro M058S series provides 4 GB addressing space. The addressing space assigned
to each on-chip controllers are shown in the following table. The detailed register definition,
addressing space, and programming details will be described in the following sections for each
on-chip peripheral. The NuMicro M058S series only supports little-endian data format.
Addressing Space
Token
Modules
0x0000_0000 – 0x0000_7FFF
FLASH_BA
FLASH Memory Space (32 KB)
0x2000_0000 – 0x2000_0FFF
SRAM_BA
SRAM Memory Space (4 KB)
Flash & SRAM Memory Space
AHB Modules Space (0x5000_0000 – 0x501F_FFFF)
0x5000_0000 – 0x5000_01FF
GCR_BA
System Global Control Registers
0x5000_0200 – 0x5000_02FF
CLK_BA
Clock Control Registers
0x5000_0300 – 0x5000_03FF
INT_BA
Interrupt Multiplexer Control Registers
0x5000_4000 – 0x5000_7FFF
GPIO_BA
GPIO (P0~P7) Control Registers
0x5000_C000 – 0x5000_FFFF
FMC_BA
Flash Memory Control Registers
APB Modules Space (0x4000_0000 ~ 0x400F_FFFF)
0x4000_4000 – 0x4000_00FF
WDT_BA
Watchdog Timer Control Registers
0x4000_4100 – 0x4000_7FFF
WWDT_BA
Window Watchdog Timer Control Registers
0x4001_0000 – 0x4001_3FFF
TMR01_BA
Timer0/Timer1 Control Registers
0x4002_0000 – 0x4002_3FFF
I2C0_BA
I C0 Interface Control Registers
0x4003_0000 – 0x4003_3FFF
SPI0_BA
SPI0 with master/slave function Control Registers
0x4004_0000 – 0x4004_3FFF
PWMA_BA
PWM0/1/2/3 Control Registers
0x4005_0000 – 0x4005_3FFF
UART0_BA
UART0 Control Registers
0x400E_0000 – 0x400E_FFFF
ADC_BA
Analog-Digital-Converter (ADC) Control Registers
0x4011_0000 – 0x4011_3FFF
TMR23_BA
Timer2/Timer3 Control Registers
0x4012_0000 – 0x4012_3FFF
I2C1_BA
I2C1 Interface Control Registers
2
System Control Space (0xE000_E000 ~ 0xE000_EFFF)
0xE000_E010 – 0xE000_E0FF
SYST_BA
System Timer Control Registers
0xE000_E100 – 0xE000_ECFF
NVIC_BA
External Interrupt Controller Control Registers
Nov. 27, 2014
Page 26 of 72
Rev.1.03
NuMicro M058S Series Datasheet
0xE000_ED00 – 0xE000_ED8F
SCB_BA
System Control Block Registers
Table 6.2-1 Address Space Assignments for On-Chip Modules
NUMICRO™ M058S SERIES DATASHEET
Nov. 27, 2014
Page 27 of 72
Rev.1.03
NuMicro M058S Series Datasheet
6.2.5
Whole System Memory Mapping
M058S
4 GB
0xFFFF_FFFF
NUMICRO™ M058S SERIES DATASHEET
Reserved
System Control
Reserved
|
System Control
0xE000_F000
System Control Block
0xE000_ED00
SCB_BA
0xE000_EFFF
External Interrupt Controller
0xE000_E100
NVIC_BA
0xE000_E000
System Timer Control
0xE000_E010
SYST_BA
0xE000_DFFF
System Control Space
0xE000_E000
SCS_BA
|
0x6002_0000
EBI
0x6001_FFFF
0x6000_0000
0x5FFF_FFFF
Reserved
|
AHB peripherals
0x5020_0000
FMC
0x5000_C000
FLASH_BA
0x501F_FFFF
GPIO Control
0x5000_4000
GPIO_BA
0x5000_0000
Interrupt Multiplexer Control
0x5000_0300
INT_BA
0x4FFF_FFFF
Clock Control
0x5000_0200
CLK_BA
System Global Control
0x5000_0000
GCR_BA
I2C1 Control
0x4012_0000
I2C1_BA*
Timer2/Timer3 Control
0x4011_0000
TMR23_BA
ADC Control
0x400E_0000
ADC_BA
0x4000_0000
UART0 Control
0x4005_0000
UART0_BA
0x3FFF_FFFF
PWM0/1/2/3 Control
0x4004_0000
PWMA_BA
SPI0 Control
0x4003_0000
SPI0_BA
I2C Control
0x4002_0000
I2C0_BA
0x2000_1000
Timer0/Timer1 Control
0x4001_0000
TMR01_BA
0x2000_0FFF
WDT Control
0x4000_4000
WDT_BA
WWDT Control
0x4000_4100
WWDT_BA*
AHB
Reserved
|
0x4020_0000
0x401F_FFFF
APB
1 GB
Reserved
4 KB SRAM
(M052/M054/M058/M0516)
0.5 GB
APB peripherals
|
|
|
0x2000_0000
0x1FFF_FFFF
Reserved
|
0x0001_0000
0x0000_7FFF
32 KB on-chip Flash
0 GB
Nov. 27, 2014
|
0x0000_0000
Page 28 of 72
Rev.1.03
NuMicro M058S Series Datasheet
6.2.6
System Timer (SysTick)
®
The Cortex -M0 includes an integrated system timer, SysTick. SysTick provides a simple, 24-bit
clear-on-write, decrementing, wrap-on-zero counter with a flexible control mechanism. The
counter can be used as a Real Time Operating System (RTOS) tick timer or as a simple counter.
When system timer is enabled, it will count down from the value in the SysTick Current Value
Register (SYST_CVR) to 0, and reload (wrap) to the value in the SysTick Reload Value Register
(SYST_RVR) on the next clock edge, then decrement on subsequent clocks. When the counter
transitions to 0, the COUNTFLAG status bit is set. The COUNTFLAG bit clears on reads.
The SYST_CVR value is UNKNOWN on reset. Software should write to the register to clear it to
zero before enabling the feature. This ensures the timer will count from the SYST_RVR value
rather than an arbitrary value when it is enabled.
If the SYST_RVR is 0, the timer will be maintained with a current value of 0 after it is reloaded
with this value. This mechanism can be used to disable the feature independently from the timer
enable bit.
®
®
For more detailed information, please refer to the documents “ARM Cortex -M0 Technical
®
Reference Manual” and “ARM v6-M Architecture Reference Manual”.
NUMICRO™ M058S SERIES DATASHEET
Nov. 27, 2014
Page 29 of 72
Rev.1.03
NuMicro M058S Series Datasheet
6.2.7
Nested Vectored Interrupt Controller (NVIC)
®
NUMICRO™ M058S SERIES DATASHEET
The Cortex -M0 provides an interrupt controller as an integral part of the exception mode, named
as “Nested Vectored Interrupt Controller (NVIC)”, which is closely coupled to the processor core
and provides following features:
Nested and Vectored interrupt support
Automatic processor state saving and restoration
Reduced and deterministic interrupt latency
The NVIC prioritizes and handles all supported exceptions. All exceptions are handled in “Handler
Mode”. This NVIC architecture supports 32 (IRQ[31:0]) discrete interrupts with 4 levels of priority.
All of the interrupts and most of the system exceptions can be configured to different priority
levels. When an interrupt occurs, the NVIC will compare the priority of the new interrupt to the
current running one’s priority. If the priority of the new interrupt is higher than the current one, the
new interrupt handler will override the current handler.
When an interrupt is accepted, the starting address of the interrupt service routine (ISR) is fetched
from a vector table in memory. There is no need to determine which interrupt is accepted and
branch to the starting address of the correlated ISR by software. While the starting address is
fetched, NVIC will also automatically save processor state including the registers “PC, PSR, LR,
R0~R3, R12” to the stack. At the end of the ISR, the NVIC will restore the mentioned registers
from stack and resume the normal execution. Thus it will take less and deterministic time to
process the interrupt request.
The NVIC supports “Tail Chaining” which handles back-to-back interrupts efficiently without the
overhead of states saving and restoration and therefore reduces delay time in switching to
pending ISR at the end of current ISR. The NVIC also supports “Late Arrival” which improves the
efficiency of concurrent ISRs. When a higher priority interrupt request occurs before the current
ISR starts to execute (at the stage of state saving and starting address fetching), the NVIC will
give priority to the higher one without delay penalty. Thus it advances the real-time capability.
For more detailed information, please refer to the “ARM
®
Manual” and “ARM v6-M Architecture Reference Manual”.
Nov. 27, 2014
Page 30 of 72
®
®
Cortex -M0 Technical Reference
Rev.1.03
NuMicro M058S Series Datasheet
6.2.7.1
Exception Model and System Interrupt Map
™
The following table lists the exception model supported by NuMicro M058S series. Software can
set four levels of priority on some of these exceptions as well as on all interrupts. The highest
user-configurable priority is denoted as “0” and the lowest priority is denoted as “3”. The default
priority of all the user-configurable interrupts is “0”. Note that priority “0” is treated as the fourth
priority on the system, after three system exceptions “Reset”, “NMI” and “Hard Fault”.
Exception Name
Vector Number
Priority
Reset
1
-3
NMI
2
-2
Hard Fault
3
-1
Reserved
4 ~ 10
Reserved
SVCall
11
Configurable
Reserved
12 ~ 13
Reserved
PendSV
14
Configurable
SysTick
15
Configurable
Interrupt (IRQ0 ~ IRQ31)
16 ~ 47
Configurable
Table 6.2-2 Exception Model
Vector
Address
Source
Module
1-15
Powerdown
Wakeup
Interrupt description
System exceptions
16
0x40
0
BOD_INT
Brown-out
Brown-out low voltage detected
Yes
interrupt
17
0x44
1
WDT_INT
WDT
Watchdog Timer interrupt
18
0x48
2
EINT0
GPIO
External signal interrupt from P3.2
Yes
pin
19
0x4C
3
EINT1
GPIO
External signal interrupt from P3.3
Yes
pin
20
0x50
4
GP01_INT
GPIO
External signal
P0[7:0] / P1[7:0]
21
0x54
5
GP234_INT
GPIO
External
interrupt
P2[7:0]/P3[7:0]/P4[7:0],
P32 and P33
Nov. 27, 2014
Page 31 of 72
interrupt
Yes
from
Yes
from
except Yes
Rev.1.03
NUMICRO™ M058S SERIES DATASHEET
Exception
Number
Interrupt
Number
Interrupt
(Bit
in
Name
Interrupt
Registers)
NUMICRO™ M058S SERIES DATASHEET
NuMicro M058S Series Datasheet
22
0x58
6
PWMA_INT
PWM0~3
PWM0, PWM1, PWM2 and PWM3
No
interrupt
23
0x5C
7
Reserved
-
-
-
24
0x60
8
TMR0_INT
TMR0
Timer 0 interrupt
No
25
0x64
9
TMR1_INT
TMR1
Timer 1 interrupt
No
26
0x68
10
TMR2_INT
TMR2
Timer 2 interrupt
No
27
0x6C
11
TMR3_INT
TMR3
Timer 3 interrupt
No
28
0x70
12
UART0_INT
UART0
UART0 interrupt
Yes
29
0x74
13
Reserved
-
-
-
30
0x78
14
SPI0_INT
SPI0
SPI0 interrupt
No
31
0x7C
15
Reserved
-
-
-
32
0x80
16
GP5_INT
GPIO
External
P5[7:0]
signal
interrupt
from
33
0x84
17
GP67_INT
GPIO
External signal
P6[7:0] / P7[1:0]
interrupt
from
34
0x88
18
I2C0_INT
I2C0
I2C0 interrupt
Yes
35
0x8C
19
I2C1_INT
I2C1
I2C1 interrupt
Yes
36
0x90
20
CAP0_INT
PWM
PWM0 capture in interrupt
No
37
0x94
21
CAP1_INT
PWM
PWM1 capture in interrupt
No
38
0x98
22
CAP2_INT
PWM
PWM2 capture in interrupt
No
39
0x9C
23
CAP3_INT
PWM
PWM3 capture in interrupt
No
40-43
0x90-0xAC
20-27
Reserved
-
-
-
44
0xB0
28
PWRWU_INT
CLKC
Clock controller interrupt for chip
Yes
wake-up from Power-down state
45
0xB4
29
ADC_INT
ADC
ADC interrupt
46-47
0xB8-0xBC
30-31
Reserved
-
-
Yes
Yes
No
Table 6.2-3 System Interrupt Map Vector Table
6.2.7.2
Vector Table
When an interrupt is accepted, the processor will automatically fetch the starting address of the
interrupt service routine (ISR) from a vector table in memory. For ARMv6-M, the vector table base
address is fixed at 0x00000000. The vector table contains the initialization value for the stack
pointer on reset, and the entry point addresses for all exception handlers. The vector number on
previous page defines the order of entries in the vector table associated with exception handler
Nov. 27, 2014
Page 32 of 72
Rev.1.03
NuMicro M058S Series Datasheet
entry as illustrated in previous section.
Vector Table Word Offset
Description
0
SP_main – The Main stack pointer
Vector Number
Exception Entry Pointer using that Vector Number
Table 6.2-4 Vector Figure Format
6.2.7.3
Operation Description
NVIC interrupts can be enabled and disabled by writing to their corresponding Interrupt SetEnable or Interrupt Clear-Enable register bit-field. The registers use a write-1-to-enable and write1-to-clear policy, both registers reading back the current enabled state of the corresponding
interrupts. When an interrupt is disabled, interrupt assertion will cause the interrupt to become
Pending, however, the interrupt will not activate. If an interrupt is Active when it is disabled, it
remains in its Active state until cleared by reset or an exception return. Clearing the enable bit
prevents new activations of the associated interrupt.
NVIC interrupts can be pended/un-pended using a complementary pair of registers to those used
to enable/disable the interrupts, named the Set-Pending Register and Clear-Pending Register
respectively. The registers use a write-1-to-enable and write-1-to-clear policy, both registers
reading back the current pended state of the corresponding interrupts. The Clear-Pending
Register has no effect on the execution status of an Active interrupt.
NVIC interrupts are prioritized by updating an 8-bit field within a 32-bit register (each register
supporting four interrupts).
Nov. 27, 2014
Page 33 of 72
Rev.1.03
NUMICRO™ M058S SERIES DATASHEET
The general registers associated with the NVIC are all accessible from a block of memory in the
System Control Space and will be described in next section.
NuMicro M058S Series Datasheet
6.3
Clock Controller
6.3.1
Overview
NUMICRO™ M058S SERIES DATASHEET
The clock controller generates clocks for the whole chip, including system clocks and all
peripheral clocks. The clock controller also implements the power control function with the
individually clock ON/OFF control, clock source selection and clock divider. The chip enters
®
Power-down mode when Cortex -M0 core executes the WFI instruction only if the
PWR_DOWN_EN (PWRCON[7]) bit and PD_WAIT_CPU (PWRCON[8]) bit are both set to 1.
After that, chip enters Power-down mode and waits for wake-up interrupt source triggered to exit
Power-down mode. In Power-down mode, the clock controller turns off the 4~24 MHz external
high speed crystal (HXT) and 22.1184 MHz internal high speed RC oscillator (HIRC) to reduce
the overall system power consumption. The following figures show the clock generator and the
overview of the clock source control.
6.3.2
Clock Generator Block Diagram
The clock generator consists of 4 clock sources as listed below:
4~24 MHz external high speed crystal oscillator (HXT)
Programmable PLL output clock frequency (PLL source can be selected from external
4~24 MHz external high speed crystal (HXT) or 22.1184 MHz internal high speed
oscillator (HIRC)) (PLL FOUT)
22.1184 MHz internal high speed RC oscillator (HIRC)
10 kHz internal low speed RC oscillator (LIRC)
XTL12M_EN (PWRCON[0])
HXT
XTAL1
PLL_SRC (PLLCON[19])
4~24 MHz HXT
XTAL2
0
OSC22M_EN (PWRCON[2])
PLL
PLL FOUT
1
22.1184 MHz
HIRC
HIRC
OSC10K_EN(PWRCON[3])
LIRC
10 kHz
LIRC
Legend:
HXT = 4~24 MHz external high speed crystal oscillator
HIRC = 22.1184 MHz internal high speed RC oscillator
LIRC = 10 kHz internal low speed RC oscillator
Figure 6.3-1 Clock Generator Block Diagram
Nov. 27, 2014
Page 34 of 72
Rev.1.03
NuMicro M058S Series Datasheet
HIRC
111
LIRC
CPUCLK
CPU
011
PLL FOUT
010
Reserved
1/(HCLK_N+1)
HCLK
001
HXT
PCLK
000
I2C0
I2C1
CLKSEL0[2:0]
HIRC
FMC
HCLK
1
PLL FOUT
SPI0
SPI1
0
CLKSEL1[4:5]*
HIRC
11
HCLK
10
PLL FOUT
01
HXT
1/(ADC_N+1)
ADC
1/(UART_N+1)
UART 0
00
CLKSEL1[3:2]
HIRC
11
HXT
01
00
CLKSEL1[25:24]
LIRC
BOD
Legend:
HXT = 4~24 MHz external high speed crystal oscillator
HIRC = 22.1184 MHz internal high speed RC oscillator
LIRC = 10 kHz internal low speed RC oscillator
Figure 6.3-2 Clock Source Controller Overview (1/2)
Nov. 27, 2014
Page 35 of 72
Rev.1.03
NUMICRO™ M058S SERIES DATASHEET
PLL FOUT
NUMICRO™ M058S SERIES DATASHEET
NuMicro M058S Series Datasheet
HIRC
111
Reserved
101
T0~T3**
011
HCLK
010
HXT
TMR 0
TMR 1
TMR 2
TMR 3
000
CLKSEL1[22:20]
CLKSEL1[18:16]
CLKSEL1[14:12]
CLKSEL1[10:8]
HIRC
1/2
111
HCLK
1/2
011
HXT
1/2
010
Reserved
001
HXT
000
CPUCLK
1
0
SysTick
SYST_CSR[2]
CLKSEL0[5:3]
HIRC
11
HCLK
10
Reserved
01
HXT
00
FDIV
PWM 2-3
PWM 0-1
CLKSEL2[7:2]
CLKSEL1[31:28]
LIRC
HCLK/2048
LIRC
HCLK
1/2048
11
11
WWDT
10
CLKSEL2[17:16]*
10
Reserved
WDT
01
CLKSEL1[1:0]
Legend:
HXT = 4~24 MHz external high speed crystal oscillator
HIRC = 22.1184 MHz internal high speed RC oscillator
LIRC = 10 kHz internal low speed RC oscillator
Note1: T0 is for TMR0, T1 is for TMR1, T2 is for TMR2 and T3 is for TMR3.
Figure 6.3-3 Clock Source Controller Overview (2/2)
Nov. 27, 2014
Page 36 of 72
Rev.1.03
NuMicro M058S Series Datasheet
6.3.3
System Clock & SysTick Clock
The system clock has 4 clock sources which were generated from clock generator block. The
clock source switch depends on the register HCLK_S (CLKSEL0[2:0]). The block diagram is
shown below.
HCLK_S (CLKSEL0[2:0])
22.1184 MHz
HIRC
10 kHz LIRC
PLL FOUT
Reserved
4~24 MHz HXT
111
011
CPUCLK
010
1/(HCLK_N+1)
001
HCLK_N (CLKDIV[3:0])
HCLK
PCLK
CPU
AHB
APB
000
CPU in Power Down Mode
Legend:
HXT = 4~24 MHz external high speed crystal oscillator
HIRC = 22.1184 MHz internal high speed RC oscillator
LIRC = 10 kHz internal low speed RC oscillator
Figure 6.3-4 System Clock Block Diagram
STCLK_S (CLKSEL0[5:3])
22.1184 MHz
HIRC
HCLK
4~24 MHz HXT
Reserved
4~24 MHz HXT
1/2
111
1/2
011
1/2
010
STCLK
001
000
Legend:
HXT = 4~24 MHz external high speed crystal oscillator
HIRC = 22.1184 MHz internal high speed RC oscillator
LIRC = 10 kHz internal low speed RC oscillator
Figure 6.3-5 SysTick clock Control Block Diagram
Nov. 27, 2014
Page 37 of 72
Rev.1.03
NUMICRO™ M058S SERIES DATASHEET
The clock source of SysTick in Cortex-M0 core can use CPU clock or external clock
(SYST_CSR[2]). If using external clock, the SysTick clock (STCLK) has 4 clock sources. The
clock source switch depends on the setting of the register STCLK_S (CLKSEL0[5:3]. The block
diagram is shown below.
NuMicro M058S Series Datasheet
6.3.4
Power-down Mode Clock
NUMICRO™ M058S SERIES DATASHEET
When chip enters Power-down mode, system clocks, some clock sources, and some peripheral
clocks will be disabled. Some clock sources and peripherals clocks are still active in Power-down
mode.
The clocks still kept active are listed below:
6.3.5
Clock Generator
10 kHz internal low speed oscillator clock
Peripherals Clock (when 10 kHz low speed oscillator is adopted as clock source)
Frequency Divider Output
This device is equipped with a power-of-2 frequency divider which is composed by 16 chained
divide-by-2 shift registers. One of the 16 shift register outputs selected by a sixteen to one
multiplexer is reflected to the CKO pin. Therefore there are 16 options of power-of-2 divided
1
16
clocks with the frequency from Fin/2 to Fin/2 where Fin is input clock frequency to the clock
divider.
(N+1)
The output formula is Fout = Fin/2
, where Fin is the input clock frequency, Fout is the clock
divider output frequency and N is the 4-bit value in FREQDIV.FSEL[3:0].
When write 1 to DIVIDER_EN (FRQDIV[4]), the chained counter starts to count. When write 0 to
DIVIDER_EN (FRQDIV[4]), the chained counter continuously runs till divided clock reaches low
state and stay in low state.
If DIVIDER1(FRQDIV[5]) set to 1, the frequency divider clock (FRQDIV_CLK) will bypass powerof-2 frequency divider. The frequency divider clock will be output to CKO pin directly.
FRQDIV_S (CLKSEL2[3:2])
22.1184 MHz
HIRC
HCLK
10 kHz LIRC
4~24 MHz HXT
FDIV_EN (APBCLK[6])
11
FRQDIV_CLK
10
01
00
Legend:
HXT = 4~24 MHz external high speed crystal oscillator
HIRC = 22.1184 MHz internal high speed RC oscillator
LIRC = 10 kHz internal low speed RC oscillator
Figure 6.3-6 Clock Source of Frequency Divider
Nov. 27, 2014
Page 38 of 72
Rev.1.03
NuMicro M058S Series Datasheet
DIVIDER_EN
(FRQDIV[4])
Enable
divide-by-2 counter
FRQDIV_CLK
1/2
1/22
FSEL
(FRQDIV[3:0])
16 chained
divide-by-2 counter
1/23
…...
1/215
DIVIDER1
(FRQDIV[5])
1/216
000
000
0
1
:
:
111
111
0
1
16 to 1
MUX
0
CKO
1
Figure 6.3-7 Block Diagram of Frequency Divider
NUMICRO™ M058S SERIES DATASHEET
Nov. 27, 2014
Page 39 of 72
Rev.1.03
NuMicro M058S Series Datasheet
6.4 Flash Memory Controller (FMC)
6.4.1
Overview
NUMICRO™ M058S SERIES DATASHEET
The M058S Series are equipped with 64/32/16/8 KB on chip embedded Flash memory for
application program (APROM) that can be updated through ISP registers. In-SystemProgramming (ISP) and In-Application-Programming (IAP) enable user to update program
memory when chip is soldered on PCB. After chip power on Cortex-M0 CPU fetches code from
APROM or LDROM decided by boot select (CBS) in CONFIG0. By the way, it also provides
additional 4 KB DATA Flash for user to store some application depended data before chip power
off in 64/32/16/8 KB APROM model.
It provides more settings in CONFIG0 to support more advanced functions, including power-on
with tri-state I/O, default to enable WDT after booting, enable WDT in Power-down mode, and IAP
functions. The following table shows the added functions of M058S Series.
M058S Series
CONFIG[6]
To support IAP function and Multi-Boot function
CONFIG[10]
Select I/O state after booting
CONFIG[30]
To support WDT in Power-Down mode when WDT is default on after booting
CONFIG[31]
To support WDT default on after booting
Table 6.4-1 M058S Series Function Difference List (FMC)
6.4.2
Features
Runs up to 50 MHz with zero wait state for continuous address read access
32 KB application program memory (APROM)
4 KB in system programming (ISP) loader program memory (LDROM)
Fixed 4 KB Data Flash
All embedded flash memory supports 512 bytes page erase
Nov. 27, 2014
Page 40 of 72
Rev.1.03
NuMicro M058S Series Datasheet
6.5
General Purpose I/O (GPIO)
6.5.1
Overview
There are 58 General Purpose I/O pins shared with special feature functions in this MCU. The 58
pins are arranged in 9 ports named with P0, P1… to P7. Each port equips maximum 8 pins
except P7[1:0]. Each one of the 58 pins is independent and has the corresponding register bits to
control the pin mode function and data
The I/O type of each of I/O pins can be software configured individually as input, output, opendrain or quasi-bidirectional mode. The all pins of I/O type stay in quasi-bidirectional mode and port
data register Px_DOUT[7:0] resets to 0x000_00FF. Each I/O pin equips a very weakly individual
pull-up resistor which is about 110K~300K for VDD which is from 5.0V to 2.5V.
6.5.2
Features
Four I/O modes:
Input only with high impedance
Push-pull output
Open-drain output
Quasi-bidirectional TTL/Schmitt trigger input mode selected by Px_MFP[23:16]
I/O pin configured as interrupt source with edge/level setting
I/O pin internal pull-up resistor enabled only in Quasi-bidirectional I/O mode
Enabling the pin interrupt function will also enable the pin wake-up function
Configurable default I/O mode of all pins after reset by CIOINI(CONFIG[10]) setting
CIOINI = 0, all GPIO pins in Input tri-state mode after chip reset
CIOINI = 1, all GPIO pins in Quasi-bidirectional mode after chip reset
Nov. 27, 2014
Page 41 of 72
NUMICRO™ M058S SERIES DATASHEET
Rev.1.03
NuMicro M058S Series Datasheet
6.6 Timer Controller (TMR)
NUMICRO™ M058S SERIES DATASHEET
6.6.1
Overview
The Timer Controller includes four 32-bit timers, TIMER0 ~ TIMER3, allowing user to easily
implement a timer control for applications. The timer can perform functions, such as frequency
measurement, delay timing, clock generation, and event counting by external input pins, and
interval measurement by external capture pins.
6.6.2
Features:
Four sets of 32-bit timers with 24-bit up counter and one 8-bit prescale counter
Independent clock source for each timer
Provides four timer counting modes: one-shot, periodic, toggle and continuous counting
Time-out period = (Period time of timer clock input) * (8-bit prescale counter + 1) * (24-bit
TCMP)
Maximum counting cycle time = (1 / T MHz) * (2 ) * (2 ), T is the period time of timer clock
24-bit up counter value is readable through TDR (Timer Data Register)
Supports event counting function to count the input event from external counter pin (T0~T3)
24-bit capture value is readable through TCAP (Timer Capture Data Register)
Supports external capture pin (T0EX~T3EX) for interval measurement
Supports external capture pin (T0EX~T3EX) to reset 24-bit up counter
Supports chip wake-up from Idle/Power-down mode if a timer interrupt signal is generated
Supports Inter-Timer trigger mode
8
Nov. 27, 2014
Page 42 of 72
24
Rev.1.03
NuMicro M058S Series Datasheet
6.7 PWM Generator and Capture Timer (PWM)
6.7.1
Overview
TM
The NuMicro M058S has one sets of PWM groups supporting a total of two sets of PWM
generators, which can be configured as four independent PWM outputs, PWM0~PWM3, or as two
complementary PWM pairs, (PWM0, PWM1) and (PWM2, PWM3) with 2 programmable Deadzone generators.
Each PWM generator has one 8-bit prescaler, one clock divider with 5 divided frequencies (1, 1/2,
1/4, 1/8, 1/16), two PWM Timers including two clock selectors, two 16-bit PWM counters for PWM
period control, two 16-bit comparators for PWM duty control and one Dead-zone generator. The 2
sets of PWM generators provide four independent PWM period interrupt flags set by hardware
when the corresponding PWM period down counter reaches 0. Each PWM period interrupt source
with its corresponding enable bit can cause CPU to request PWM interrupt. The PWM generators
can be configured as one-shot mode to produce only one PWM cycle signal or auto-reload mode
to output PWM waveform continuously.
When DZEN01 (PCR[4]) is set, PWM0 and PWM1 perform complementary PWM paired function;
the paired PWM period, duty and Dead-zone are determined by PWM0 timer and Dead-zone
generator 0. Similarly, the complementary PWM pairs of (PWM2, PWM3) are controlled by PWM2
timers and Dead-zone generator 2. Refer to figures below for the architecture of PWM Timers.
To prevent PWM driving output pin with unsteady waveform, the 16-bit period down counter and
16-bit comparator are implemented with double buffer. When user writes data to
counter/comparator buffer registers, the updated value will be loaded into the 16-bit down
counter/ comparator at the time down counter reaching 0. The double buffering feature avoids
glitch at PWM outputs.
The value of PWM counter comparator is used for pulse high width modulation. The counter
control logic changes the output to high level when down-counter value matches the value of
compare register.
The alternate feature of the PWM-Timer is digital input Capture function. If Capture function is
enabled, the PWM output pin is switched as capture input mode. The Capture0 and PWM0 share
one timer which is included in PWM0 and the Capture1 and PWM1 share PWM1 timer, and etc.
Therefore user must set the PWM-Timer before enabling the Capture feature. After capture
feature is enabled, the capture always latched PWM-counter to Capture Rising Latch Register
(CRLR) when input channel has a rising transition and latched PWM-counter to Capture Falling
Latch Register (CFLR) when input channel has a falling transition. Capture channel 0 interrupt is
programmable by setting CRL_IE0 (CCR0[1]) (Rising latch Interrupt enable) and CFL_IE0
(CCR0[2]) (Falling latch Interrupt enable) to decide the condition of interrupt occur. Capture
channel 1 has the same feature by setting CRL_IE1 (CCR0[17]) and CFL_IE1 (CCR0[18]). The
capture channel 2 to channel 3 on each group have the same feature by setting the
corresponding control bits in CCR2. For each group, whenever Capture issues Interrupt 0/1/2/3,
the PWM counter 0/1/2/3 will be reload at this moment.
The maximum captured frequency that PWM can capture is confined by the capture interrupt
latency. When capture interrupt occurred, software will do at least three steps, including: Read
Nov. 27, 2014
Page 43 of 72
Rev.1.03
NUMICRO™ M058S SERIES DATASHEET
When the 16-bit period down counter reaches 0, the interrupt request is generated. If PWM-Timer
is set as Auto-reload mode when the down counter reaches 0, it is reloaded with PWM Counter
Register (CNRx) automatically and then starts decreasing repeatedly. If the PWM-Timer is set as
one-shot mode, the down counter will stop and generate one interrupt request when it reaches 0.
NuMicro M058S Series Datasheet
PIIR to get interrupt source, read CRLRx/CFLRx (x = 0~3) to get capture value and finally write 1
to clear PIIR to 0. If interrupt latency will take time T0 to finish, the capture signal mustn’t
transition during this interval (T0). In this case, the maximum capture frequency will be 1/T0.
NUMICRO™ M058S SERIES DATASHEET
6.7.2
Features
PWM function:
PWM group has two PWM generators. Each PWM generator supports one 8-bit prescaler, one
clock divider, two PWM-Timers (down counter), one dead-zone generator and two PWM outputs.
PWMA (PWM group A) is a group of PWM which support 4 PWM channels or 2
complementary PWM paired channels
PWM group has two PWM generators with each PWM generator supporting one 8-bit
prescaler, two clock dividers, two PWM-Timers, one Dead-zone generator and two PWM
outputs.
Up to 16-bit resolution
One-shot or Auto-reload mode
Edge-aligned type or Center-aligned type option
PWM trigger ADC start-to-conversion
Capture function:
Timing control logic shared with PWM generators
Supports 4 Capture input channels shared with 4 PWM output channels
Each channel supports one rising latch register (CRLRx), one falling latch register (CFLRx)
and Capture interrupt flag (CAPIFx)
Nov. 27, 2014
Page 44 of 72
Rev.1.03
NuMicro M058S Series Datasheet
6.8 Watchdog Timer (WDT)
6.8.1
Overview
The purpose of Watchdog Timer is to perform a system reset when system runs into an unknown state.
This prevents system from hanging for an infinite period of time. Besides, this Watchdog Timer
supports the function to wake-up system from Idle/Power-down mode.
6.8.2
Features
18-bit free running up counter for Watchdog Timer time-out interval
Selectable time-out interval (2 ~ 2 ) WDT_CLK cycle and the time-out interval period is
104 ms ~ 26.3168 s if WDT_CLK = 10 kHz
System kept in reset state for a period of (1 / WDT_CLK) * 63
Supports Watchdog Timer reset delay period
4
18
Selectable reset delay period 3/18/130/1026 * WDT_CLK
Supports to force Watchdog Timer enabled after chip powered on or reset while CWDTEN
(CONFIG[31] Watchdog Enable) bit is set to 0.
Supports Watchdog Timer time-out wake-up function only if WDT clock source is selected
as 10 kHz
NUMICRO™ M058S SERIES DATASHEET
Nov. 27, 2014
Page 45 of 72
Rev.1.03
NuMicro M058S Series Datasheet
6.9 Window Watchdog Timer (WWDT)
6.9.1
Overview
NUMICRO™ M058S SERIES DATASHEET
The purpose of Window Watchdog Timer is to perform a system reset within a specified window
period to prevent software run to uncontrollable status by any unpredictable condition.
6.9.2
Features
6-bit down counter value (WWDTCVAL) and 6-bit compare window value (WINCMP) to
make the WWDT time-out window period flexible
Supports 4-bit value to programmable maximum 11-bit prescale counter period of WWDT
counter
Nov. 27, 2014
Page 46 of 72
Rev.1.03
NuMicro M058S Series Datasheet
6.10 UART Interface Controller (UART)
6.10.1 Overview
TM
The NuMicro M058S provides two channels of Universal Asynchronous Receiver/Transmitters
(UART). UART Controller performs Normal Speed UART, and support flow control function. The
UART Controller performs a serial-to-parallel conversion on data received from the peripheral,
and a parallel-to-serial conversion on data transmitted from the CPU. The UART controller also
supports IrDA SIR Function, LIN master/slave function and RS-485 function mode. Each UART
Controller channel supports seven types of interrupts.
6.10.2 Features
Full duplex, asynchronous communications
Separate receive / transmit 16/16 bytes entry FIFO for data payloads
Supports hardware auto flow control/flow control function (CTS, RTS) and programmable
RTS flow control trigger level
Programmable receiver buffer trigger level
Supports programmable baud-rate generator for each channel individually
Supports CTS wake up function
Supports 8 bit receiver buffer time out detection function
Programmable transmitting data delay time between the last stop and the next start bit by
setting UA_TOR [DLY] register
Supports break error, frame error, parity error and receive / transmit buffer overflow detect
function
Fully programmable serial-interface characteristics
Programmable number of data bit, 5, 6, 7, 8 bit character
Programmable parity bit, even, odd, no parity or stick parity bit generation and
detection
Programmable stop bit, 1, 1.5, or 2 stop bit generation
Supports IrDA SIR function mode
Supports for 3/16 bit duration for normal mode
Supports LIN function mode
Supports LIN master/slave mode
Supports programmable break generation function for transmitter
Supports break detect function for receiver
Supports RS-485 function mode.
Supports RS-485 9bit mode
Supports hardware or software enable to program RTS pin to control RS-485
transmission direction directly
Nov. 27, 2014
Page 47 of 72
Rev.1.03
NUMICRO™ M058S SERIES DATASHEET
NuMicro M058S Series Datasheet
6.11 I2C Serial Interface Controller (I2C)
6.11.1 Overview
NUMICRO™ M058S SERIES DATASHEET
2
I C is a two-wire, bi-directional serial bus that provides a simple and efficient method of data
2
exchange between devices. The I C standard is a true multi-master bus including collision
detection and arbitration that prevents data corruption if two or more masters attempt to control
2
the bus simultaneously. There are two sets of I C which supports Power-down wake up function.
6.11.2 Features
2
The I C bus uses two wires (SDA and SCL) to transfer information between devices connected to
2
the bus. The main features of the I C bus include:
2
Supports up to two I C ports
Master/Slave mode
Bidirectional data transfer between master and slave
Multi-master bus (no central master)
Arbitration between simultaneously transmitting masters without corruption of serial data on
the bus
Serial clock synchronization allowing devices with different bit rates to communicate via one
serial bus
Serial clock synchronization used as a handshake mechanism to suspend and resume serial
transfer
Built-in a 14-bit time-out counter requesting the I C interrupt if the I C bus hangs up and
timer-out counter overflows.
Programmable clocks allowing for versatile rate control
Supports 7-bit addressing mode
Supports multiple address recognition ( four slave address with mask option)
Supports Power-down Wake-up function
2
Nov. 27, 2014
Page 48 of 72
2
Rev.1.03
NuMicro M058S Series Datasheet
6.12 Serial Peripheral Interface (SPI)
6.12.1 Overview
The Serial Peripheral Interface (SPI) applies to synchronous serial data communication and
allows full-duplex transfer. Devices communicate in Master/Slave mode with 4-wire bi-direction
TM
interface. The NuMicro M058S contains one set of SPI controllers performing a serial-to-parallel
conversion on data received from a peripheral device, and a parallel-to-serial conversion on data
transmitted to a peripheral device. SPI controller can be configured as a master or a slave device.
6.12.2 Features
One set of SPI controllers
Supports Master or Slave mode operation
Configurable transfer bit length
Provides transmit/receive can be transferred up to two times word transaction in one transfer
Provides FIFO buffers
Supports MSB or LSB first transfer
Supports byte reorder function
Supports byte or word suspend mode
Supports Slave 3-wire mode
SPI bus clock rate can be configured to equal the system clock rate
NUMICRO™ M058S SERIES DATASHEET
Nov. 27, 2014
Page 49 of 72
Rev.1.03
NuMicro M058S Series Datasheet
6.13 Analog-to-Digital Converter (ADC)
NUMICRO™ M058S SERIES DATASHEET
6.13.1 Overview
The NuMicro™ M058S series contains one 12-bit successive approximation analog-to-digital
converter (SAR A/D converter) with eight input channels. The A/D converter supports four
operation modes: Single, Burst, Single-cycle Scan and Continuous Scan mode. The A/D
converter can be started by software, external pin (STADC/P3.2) or PWM trigger.
6.13.2 Features
Analog input voltage range: 0 ~ AVDD.
12-bit resolution and 10-bit accuracy is guaranteed
Up to eight single-end analog input channels or 4 differential analog input channels
Maximum ADC peripheral clock frequency is 16 MHz
Up to 760 kSPS sample rate
Four operation modes:
Single mode: A/D conversion is performed one time on a specified channel.
Burst mode: A/D converter samples and converts the specified single channel and
sequentially stores the result in FIFO.
Single-cycle Scan mode: A/D conversion is performed only one cycle on all specified
channels with the sequence from the smallest numbered channel to the largest
numbered channel.
Continuous Scan mode: A/D converter continuously performs Single-cycle Scan mode
until software stops A/D conversion.
An A/D conversion can be started by:
Software Write 1 to ADST bit
External pin (STADC)
PWM trigger with optional start delay period
Each conversion result is held in data register of each channel with valid and overrun
indicators.
Conversion result can be compared with specified value and user can select whether to
generate an interrupt when conversion result matches the compare register setting.
Channel 7 supports 3 input sources: external analog voltage, internal band-gap voltage and
Internal temperature sensor output.
Nov. 27, 2014
Page 50 of 72
Rev.1.03
NuMicro M058S Series Datasheet
7
ELECTRICAL CHARACTERISTICS
7.1
Absolute Maximum Ratings
SYMBOL
PARAMETER
MIN
MAX
UNIT
VDD VSS
-0.3
+7.0
V
VIN
VSS-0.3
VDD +0.3
V
1/tCLCL
4
24
MHz
Operating Temperature
TA
-40
+85
C
Storage Temperature
TST
-55
+150
C
-
120
mA
Maximum Current out of VSS
120
mA
Maximum Current sunk by a I/O pin
35
mA
Maximum Current sourced by a I/O
pin
35
mA
Maximum Current sunk by total I/O
pins
100
mA
Maximum Current sourced by total
I/O pins
100
mA
DC Power Supply
Input Voltage
Oscillator Frequency
Maximum Current into VDD
Note: Exposure to conditions beyond those listed under absolute maximum ratings may adversely affects the lift and reliability of the device.
NUMICRO™ M058S SERIES DATASHEET
Nov. 27, 2014
Page 51 of 72
Rev.1.03
NuMicro M058S Series Datasheet
7.2
DC Electrical Characteristics
(VDD -VSS=2.5~5.5V, TA = 25C, FOSC = 50 MHz unless otherwise specified.)
SPECIFICATION
PARAMETER
SYM.
TEST CONDITIONS
NUMICRO™ M058S SERIES DATASHEET
MIN.
TYP.
MAX.
UNIT
5.5
V
VDD =2.5V ~ 5.5V up to 50 MHz
Operation voltage
VDD
2.5
LDO Output Voltage
VLDO
1.7
1.8
1.9
V
VDD ≥ 2.5V
Band Gap Analog Input
VBG
-5%
1.20
+5%
V
VDD =2.5V ~ 5.5V
AVDD
VDD
VDD
V
Analog Operating
Voltage
Operating Current
Normal Run Mode
@ 50 MHz
Operating Current
Normal Run Mode
@ 22 MHz
Operating Current
Normal Run Mode
@ 12 MHz
Nov. 27, 2014
IDD1
20.6
mA
VDD = 5.5V@ 50 MHz,
enable all peripherals and PLL, XTAL=12
MHz
IDD2
14.4
mA
VDD =5.5V@ 50 MHz,
disable all peripherals and enable PLL,
XTAL=12 MHz
IDD3
18.9
mA
VDD = 3.3V@ 50 MHz,
enable all peripherals and PLL, XTAL=12
MHz
IDD4
12.8
mA
VDD = 3.3V@ 50 MHz,
disable all peripherals and enable PLL,
XTAL=12 MHz
IDD5
6.2
mA
VDD = 5.5V@ 22 MHz,
enable all peripherals and IRC 22 MHz,
disable PLL
IDD6
3.4
mA
VDD =5.5V@ 22 MHz,
disable all peripherals and enable IRC 22
MHz, disable PLL
IDD7
6.1
mA
VDD = 3.3V@ 22 MHz,
enable all peripherals and IRC 22 MHz,
disable PLL
VDD = 3.3V@ 22 MHz,
disable all peripherals and enable IRC 22
MHz, disable PLL
IDD8
3.4
mA
IDD9
5.3
mA
VDD = 5.5V@ 12 MHz,
enable all peripherals and disable PLL,
XTAL=12 MHz
IDD10
3.7
mA
VDD = 5.5V@ 12 MHz,
disable all peripherals and disable PLL,
XTAL=12 MHz
IDD11
4.0
mA
VDD = 3.3V@ 12 MHz,
enable all peripherals and disable PLL,
XTAL=12 MHz
IDD12
2.3
mA
VDD = 3.3V@ 12 MHz,
disable all peripherals and disable PLL,
XTAL=12 MHz
Page 52 of 72
Rev.1.03
NuMicro M058S Series Datasheet
Operating Current
Normal Run Mode
@ 4 MHz
Operating Current
Normal Run Mode
@10 KHz
Operating Current
Idle Mode
@ 50 MHz
Operating Current
Idle Mode
@ 12 MHz
Nov. 27, 2014
3.4
mA
VDD = 5.5V@ 4 MHz,
enable all peripherals and disable PLL,
XTAL=4 MHz
IDD14
2.6
mA
VDD = 5.5V@ 4 MHz,
disable all peripherals and disable PLL,
XTAL=4 MHz
IDD15
2.0
mA
VDD = 3.3V@ 4 MHz,
enable all peripherals and disable PLL,
XTAL=4 MHz
IDD16
1.3
mA
VDD = 3.3V@ 4 MHz,
disable all peripherals and disable PLL,
XTAL=4 MHz
IDD17
98.7
uA
VDD = 5.5V@ 10 KHz,
enable all peripherals and IRC10 KHz,
disable PLL
IDD18
97.4
uA
IDD19
86.4
uA
VDD = 5.5V@ 10 KHz,
disable all peripherals and enable IRC
10KHz, disable PLL
VDD = 3.3V@ 10 KHz,
enable all peripherals and IRC 10 KHz,
disable PLL
VDD = 3.3V@ 10 KHz,
disable all peripherals and enable IRC 10
KHz, disable PLL
IDD20
85.2
uA
IIDLE1
16.2
mA
VDD = 5.5V@ 50 MHz, enable all
peripherals and PLL, XTAL=12 MHz
IIDLE2
10.0
mA
VDD =5.5V@ 50 MHz, disable all
peripherals and enable PLL, XTAL=12
MHz
IIDLE3
14.6
mA
IIDLE4
8.5
mA
VDD = 3V@50 MHz, disable all peripherals
and enable PLL, XTAL=12 MHz
IIDLE5
4.3
mA
VDD = 5.5V@ 22MHz,
enable all peripherals and IRC 22MHz,
disable PLL
IIDLE6
1.5
mA
IIDLE7
4.2
mA
VDD = 3V@ 50 MHz, enable all peripherals
and PLL, XTAL=12 MHz
VDD =5.5V@ 22MHz,
disable all peripherals and enable IRC 22
MHz, disable PLL
VDD = 3.3V@ 22 MHz,
enable all peripherals and IRC 22 MHz,
disable PLL
VDD = 3.3V@ 22 MHz,
disable all peripherals and enable IRC
22MHz, disable PLL
IIDLE8
1.4
mA
IIDLE9
4.3
mA
VDD = 5.5V@ 12 MHz,
enable all peripherals and disable PLL,
XTAL=12MHz
IIDLE10
2.6
mA
VDD = 5.5V@ 12 MHz,
disable all peripherals and disable PLL,
XTAL=12MHz
Page 53 of 72
Rev.1.03
NUMICRO™ M058S SERIES DATASHEET
Operating Current
Idle Mode
@ 22 MHz
IDD13
NUMICRO™ M058S SERIES DATASHEET
NuMicro M058S Series Datasheet
Operating Current
Idle Mode
@ 4 MHz
Operating Current
Idle Mode
@10 KHz
Standby Current
Power-down Mode
(Deep Sleep Mode)
IIDLE11
2.9
mA
VDD = 3.3V@ 12 MHz,
enable all peripherals and disable PLL,
XTAL=12MHz
IIDLE12
1.3
mA
VDD = 3.3V@ 12 MHz,
disable all peripherals and disable PLL,
XTAL=12MHz
IIDLE13
3.0
mA
VDD = 5.5V@ 4 MHz,
enable all peripherals and disable PLL,
XTAL=4MHz
IIDLE14
2.3
mA
VDD = 5.5V@ 4 MHz,
disable all peripherals and disable PLL,
XTAL=4MHz
IIDLE15
1.7
mA
VDD = 3.3V@ 4 MHz,
enable all peripherals and disable PLL,
XTAL=4MHz
IIDLE16
1.0
mA
VDD = 3.3V@ 4 MHz,
disable all peripherals and disable PLL,
XTAL=4MHz
IIDLE17
97.8
uA
VDD = 5.5V@ 10 KHz,
enable all peripherals and IRC 10 KHz,
disable PLL
IIDLE18
96.5
uA
IIDLE19
85.5
uA
VDD = 5.5V@ 10 KHz,
disable all peripherals and enable IRC 10
KHz, disable PLL
VDD = 3.3V@ 10 KHz,
enable all peripherals and IRC 10 KHz,
disable PLL
VDD = 3.3V@ 10 KHz,
disable all peripherals and enable IRC 10
KHz, disable PLL
IIDLE20
84.4
uA
IPWD1
10
A
VDD = 5.5V, No load @ Disable BOV
function
IPWD2
10
A
VDD = 3.0V, No load @ Disable BOV
function
Input Current P0/1/2/3/4
(Quasi-bidirectional
mode)
IIN1
-75
-
+15
A
VDD = 5.5V, VIN = 0V or VIN= VDD
Input Leakage Current
P0/1/2/3/4
ILK
-1
-
+1
A
VDD = 5.5V, 0reset voltage
-
1
-
nA
Temperature Sensor Specification
PARAMETER
Nov. 27, 2014
CONDITIONS
MIN.
TYP.
MAX.
UNIT
Supply voltage[1]
1.62
1.8
1.98
V
Temperature
-40
-
85
℃
Gain
-1.72
-1.76
-1.80
mV/℃
Page 62 of 72
Rev.1.03
NuMicro M058S Series Datasheet
Temp=0 ℃
Offset
717
725
733
mV
Note[1]: Internal operation voltage comes from LDO.
7.4.7
Comparator Specification
PARAMETER
CONDITION
MIN.
TYP.
MAX.
UNIT
Temperature
-
-40
25
85
℃
VDD
-
2.4
3
5.5
V
VDD current
-
-
40
80
uA
Input offset voltage
-
10
20
mV
Output swing
-
0.1
-
VDD -0.1
V
Input common mode range
-
0.1
-
VDD -0.1
V
DC gain
-
-
70
-
dB
Propagation delay
@VCM=1.2 V and
VDIFF=0.1 V
-
200
-
ns
Hysteresis
@VCM=0.2 V ~ VDD -0.2V
-
±10
-
mV
-
-
2
us
@CINP=1.3 V
Stable time
CINN=1.2 V
NUMICRO™ M058S SERIES DATASHEET
Nov. 27, 2014
Page 63 of 72
Rev.1.03
NuMicro M058S Series Datasheet
7.5 Flash DC Electrical Characteristics
NUMICRO™ M058S SERIES DATASHEET
SYMBOL
PARAMETER
CONDITIONS
MIN.
Temp=85 ℃
10
TYP.
MAX.
UNIT
TRET
Retention time
TERASE
Page erase time
19
20
21
ms
TMESS
Mess erase time
30
40
50
ms
TPROG
Program time
38
40
42
us
VDD
Supply voltage
1.62
1.8
1.98
V[2]
IDD1
Read current
0.25
mA
IDD2
Program/Erase current
7
mA
IPD
Power down current
20
uA
1.
2.
3.
year
1
Number of program/erase cycles.
VDD is source from chip LDO output voltage.
Guaranteed by design, not test in production.
Nov. 27, 2014
Page 64 of 72
Rev.1.03
NuMicro M058S Series Datasheet
7.6 SPI Dynamic Characteristics
7.6.1
Dynamic Characteristics of Data Input and Output Pin
Symbol
Parameter
Min.
Typ.
Max.
Unit
SPI Master Mode (VDD = 4.5 V ~ 5.5 V, 30 pF loading Capacitor)
tDS
Data setup time
0
-
-
ns
tDH
Data hold time
3
-
-
ns
tV
Data output valid time
-
3.5
4.5
ns
SPI Master Mode (VDD = 3.0 V ~ 3.6 V, 30 pF loading Capacitor)
tDS
Data setup time
ns
tDH
Data hold time
ns
tV
Data output valid time
ns
SPI Slave Mode (VDD = 4.5 V ~ 5.5 V, 30 pF loading Capacitor)
tDS
Data setup time
0
-
-
ns
tDH
Data hold time
3
-
-
ns
tV
Data output valid time
-
20
27.5
ns
SPI Slave Mode (VDD = 3.0 V ~ 3.6 V, 30 pF loading Capacitor)
Data setup time
ns
tDH
Data hold time
ns
tV
Data output valid time
ns
CLKP=0
SPICLK
CLKP=1
tV
MOSI
Data Valid
Data Valid
tDS
MISO
Data Valid
CLKP=0, TX_NEG=1, RX_NEG=0
or
CLKP=1, TX_NEG=0, RX_NEG=1
tDH
Data Valid
tV
Data Valid
MOSI
tDS
MISO
Nov. 27, 2014
Data Valid
CLKP=0, TX_NEG=0, RX_NEG=1
or
CLKP=1, TX_NEG=1, RX_NEG=0
tDH
Data Valid
Data Valid
Figure 7.6-1 SPI Master Mode Timing
Page 65 of 72
Rev.1.03
NUMICRO™ M058S SERIES DATASHEET
tDS
NuMicro M058S Series Datasheet
CLKP=0
SPICLK
CLKP=1
NUMICRO™ M058S SERIES DATASHEET
tDS
MOSI
Data Valid
tDH
Data Valid
CLKP=0, TX_NEG=1, RX_NEG=0
or
CLKP=1, TX_NEG=0, RX_NEG=1
tv
MISO
Data Valid
tDS
MOSI
Data Valid
tDH
Data Valid
Data Valid
Data Valid
Data Valid
tv
MISO
CLKP=0, TX_NEG=0, RX_NEG=1
or
CLKP=1, TX_NEG=1, RX_NEG=0
Figure 7.6-2 SPI Slave Mode Timing
Nov. 27, 2014
Page 66 of 72
Rev.1.03
NuMicro M058S Series Datasheet
8
PACKAGE DIMENSIONS
8.1 TSSOP-20 (4.4x6.5 mm)
NUMICRO™ M058S SERIES DATASHEET
Nov. 27, 2014
Page 67 of 72
Rev.1.03
NuMicro M058S Series Datasheet
NUMICRO™ M058S SERIES DATASHEET
8.2 QFN-33 (5X5 mm2, Thickness 0.8mm, Pitch 0.5 mm)
Nov. 27, 2014
Page 68 of 72
Rev.1.03
NuMicro M058S Series Datasheet
8.3
LQFP-48 (7x7x1.4mm2 Footprint 2.0mm)
H
36
25
37
24
48
13
H
12
1
Controlling dimension : Millimeters
A
A1
A2
b
c
D
E
e
HD
HE
L
L1
Y
0
Nov. 27, 2014
Dimension in inch
Dimension in mm
Min Nom Max
Min Nom Max
0.002 0.004
0.006
0.05
0.055
0.057
1.35
1.40
1.45
0.006 0.008
0.010
0.15
0.20
0.25
0.004 0.006
0.008
0.10
0.15
0.20
0.272 0.276
0.280
6.90
7.00
7.10
0.272 0.276
0.280
6.90
7.00
7.10
0.020
0.026
0.35
0.50
0.65
0.053
0.014
0.10
NUMICRO™ M058S SERIES DATASHEET
Symbol
0.15
0.350
0.354
0.358
8.90
9.00
9.10
0.350
0.354
0.358
8.90
9.00
9.10
0.018
0.024
0.030
0.45
0.60
0.75
1.00
0.039
0.004
0
Page 69 of 72
7
0.10
0
7
Rev.1.03
NuMicro M058S Series Datasheet
LQFP-64 (7x7x1.4mm2 Footprint 2.0mm)
NUMICRO™ M058S SERIES DATASHEET
8.4
Nov. 27, 2014
Page 70 of 72
Rev.1.03
NuMicro M058S Series Datasheet
9
REVISION HISTORY
Revision
Date
1.00
Jun. 12, 2014
First version
1.01
Jul. 24, 2014
Corrected 7.5 Flash DC Electrical Characteristics.
1.02
Sep. 12, 2014
1.03
Nov. 27, 2014
Description
1.
2.
3.
4.
5.
6.
Adjusted the format of Table 4.1-1 NuMicro M058S Series Selection Guide.
Updated Figure 4.1-1 NuMicro M058S Series Selection Code.
Added Chapter 3 ABBREVIATIONS.
Added 7.6 SPI Dynamic Characteristics.
Changed the order of Chapter 5 BLOCK DIAGRAM and Chapter 6
FUNCTIONAL DESCRIPTION.
Fixed typos and obscure descriptions.
1.
Fixed typos of Table 4.1-1 NuMicro M058S Series Selection Guide
NUMICRO™ M058S SERIES DATASHEET
Nov. 27, 2014
Page 71 of 72
Rev.1.03
NUMICRO™ M058S SERIES DATASHEET
NuMicro M058S Series Datasheet
Important Notice
Nuvoton Products are neither intended nor warranted for usage in systems or equipment, any
malfunction or failure of which may cause loss of human life, bodily injury or severe property
damage. Such applications are deemed, “Insecure Usage”.
Insecure usage includes, but is not limited to: equipment for surgical implementation, atomic
energy control instruments, airplane or spaceship instruments, the control or operation of
dynamic, brake or safety systems designed for vehicular use, traffic signal instruments, all
types of safety devices, and other applications intended to support or sustain life.
All Insecure Usage shall be made at customer’s risk, and in the event that third parties lay
claims to Nuvoton as a result of customer’s Insecure Usage, customer shall indemnify the
damages and liabilities thus incurred by Nuvoton.
Nov. 27, 2014
Page 72 of 72
Rev.1.03
工商网监
湘ICP备2023018690号
