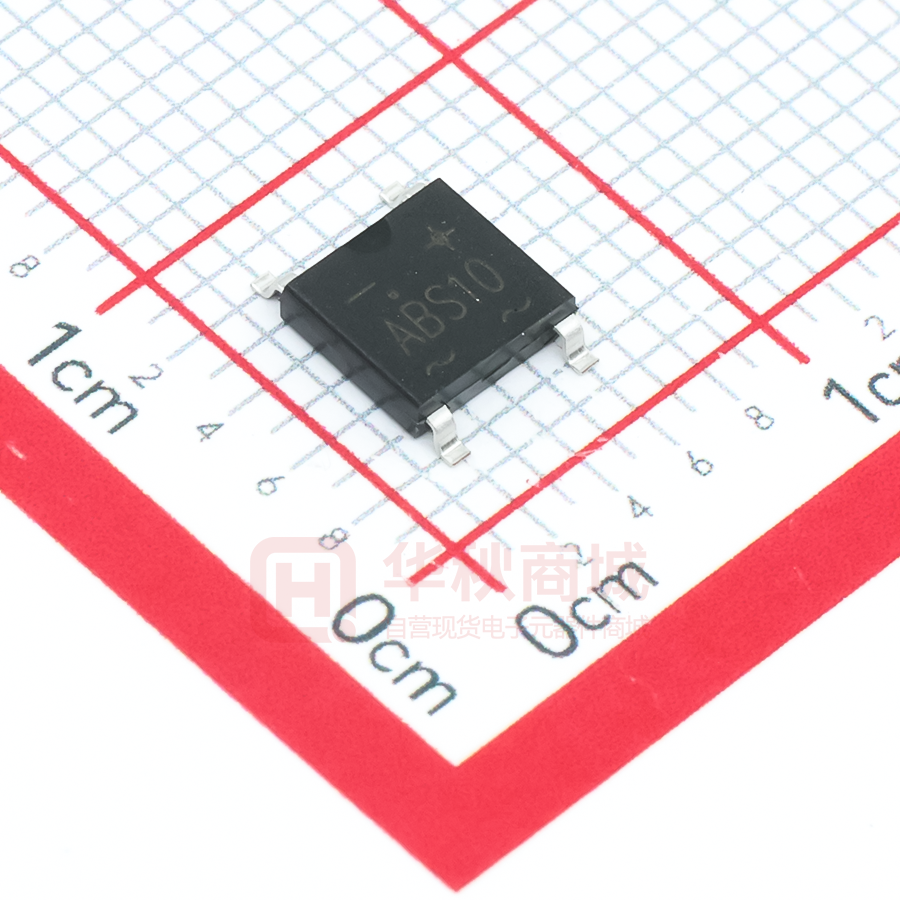

ABS10

ABS05-ABS10 BRIDGE RECTIFIER FEATURES  Low Reverse voltage leakage current  Glass Passivated Die Construction  Low Forward Voltage Drop  High forward surge current capability  Small Surface Mount device ABS MECHANICAL DATA  Case: ABS  Case Material: Molded Plastic. UL flammability  Classification Rating: 94V-0  Moisture Sensitivity: Level 1 per J-STD-020  Weight: 0.10 grams (approximate) MAXIMUM RATINGS (TA = 25°C unless otherwise noted) Parameter Symbol ABS05 ABS1 ABS2 ABS4 ABS6 ABS8 ABS10 Unit Repetitive peak reverse voltage VRRM 50 100 200 400 600 800 1000 V DC Reverse Voltage VR 50 100 200 400 600 800 1000 V RMS Reverse Voltage VRMS 35 70 140 280 420 560 700 V Mean rectifying current(Note1) IF 1.0 A Non-Repetitive Peak Forward Surge Current @ t = 8.3 ms IFSM 35 A Thermal Resistance Junction To Ambient RθJA 80 °C/W From Junction Temperature TJ -55 ~+150 °C Storage Temperature TSTG -55 ~+150 °C ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise specified) Parameter Symbol Min Max Unit Conditions Forward voltage VF 1.0 V IF=0.5A Forward voltage VF 1.1 V IF=1.0A Reverse current T=25°C IR 5 uA VR=1000V Reverse current T=125°C IR 100 uA VR=1000V Junction capacitance CJ 10 pF V=4VDC,f=1MH © SHENZHEN HOTTECH ELECTRONICS CO.,LTD E-mail:hkt@heketai.com 1/4 ABS05-ABS10 BRIDGE RECTIFIER Typical Characteristics Fig.2 Typical Reverse Characteristics 1.2 1.0 0.8 0.6 0.4 0.2 Resistive or Inductive Load 0.0 25 50 75 100 125 150 175 Instaneous Reverse Current（μ A） Average Rectified Output Current (A) Fig.1 Average Rectified Output Current Derating Curve 100 T J =125°C 10 1.0 T J =25°C 0.1 00 60 80 100 120 140 Fig.4 Typical Junction Capacitance Junction Capacitance ( pF) Instaneous Forward Current (A) Fig.3 Typical Instaneous Forward Characteristics T J =25°C 1.0 0.1 pulse with 300μs 1% duty cycle 0.01 0.0 40 percent of Rated Peak Reverse Voltage (%) Case Temperature (°C) 10 20 100 T J =25°C 10 1 0.5 1.0 1.5 2.0 0.1 1.0 10 100 Reverse Voltage (V) Instaneous Forward Voltage (V) Peak Forward Surage Current (A) Fig.5 Maximum Non-Repetitive Peak Forward Surage Current 40 8.3 ms Single Half Sine Wave (JEDEC Method) 30 20 10 00 1 10 100 Number of Cycles © SHENZHEN HOTTECH ELECTRONICS CO.,LTD E-mail:hkt@heketai.com 2/4 ABS05-ABS10 BRIDGE RECTIFIER ABS Package Outline Dimensions Symbol Dimensions In Millimeters Min. Max. A 4.80 B Dimensions In Inches Max. 5.30 Min. 0.189 4.20 4.60 0.165 0.181 C 0.15 0.25 0.006 0.010 D ------ 0.20 ------ 0.008 E 6.00 6.80 0.236 0.268 G 0.30 0.70 0.012 0.028 H 0.90 1.10 0.035 0.043 J ------ 1.50 ------ 0.059 K 3.80 4.20 0.150 0.165 L 1.22 1.72 0.048 0.068 0.209 ABS Suggested Pad Layout Note: 1.Controlling dimension: in millimeters 2.General tolerance: ±0.05mm 3.The pad layout is for reference purposes only © SHENZHEN HOTTECH ELECTRONICS CO.,LTD E-mail:hkt@heketai.com 3/4 ABS05-ABS10 BRIDGE RECTIFIER ABS Tape and Reel ABS Embossed Carrier Tape DIMENSIONS ARE IN MILLIMETER TYPE A B C d E F P0 P P1 W ABS 5.31 6.68 1.85 Ø1.50 1.75 5.50 4.00 8.00 2.00 12.00 TOLERANCE ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ABS Tape Leader and Trailer ABS Reel DIMENSIONS ARE IN MILLIMETER REEL OPTION 13’’ DIA TOLERANCE D D1 D2 G H I W1 W2 Ø330 75.0 13.00 R165 R37.50 R6.50 12.40 17.60 ±2 ±1 ±1 ±1 ±1 ±1 ±1 ±1 © SHENZHEN HOTTECH ELECTRONICS CO.,LTD E-mail:hkt@heketai.com 4/4
