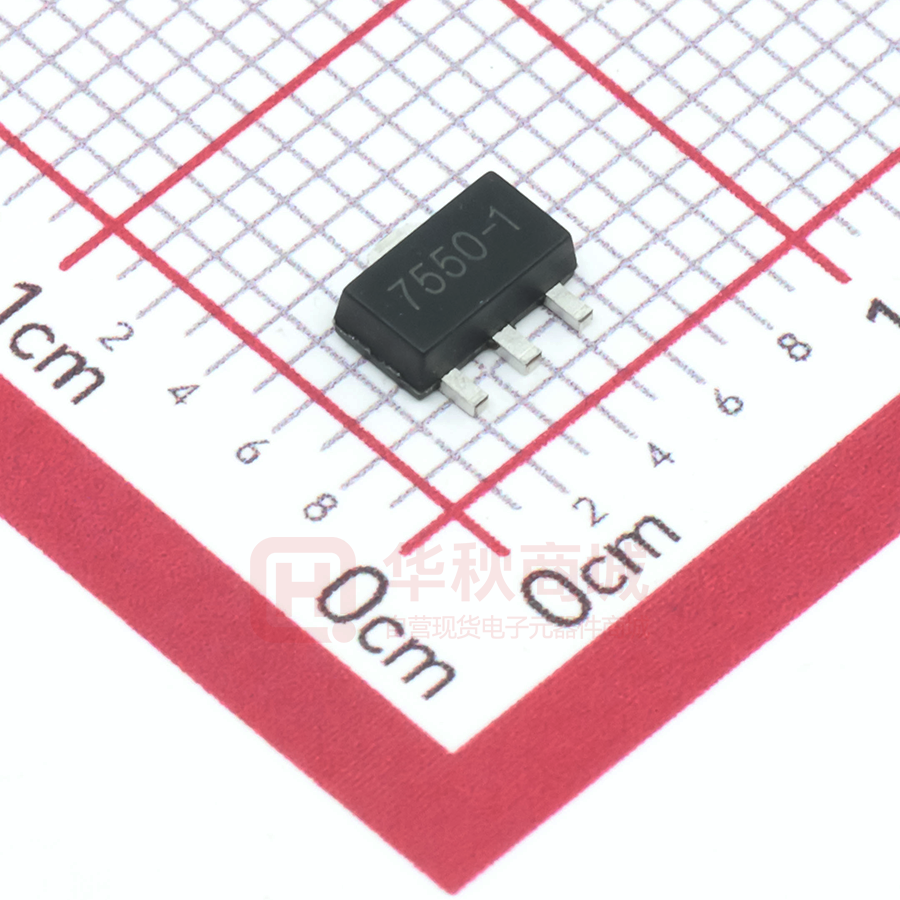

HT7550-1

HT75xx-xT89 LOW DROP LINEAR VOLTAGE REGULATORS GENERAL :75xx-x FEATURES  Low Dropout Voltage  Low power consumption  Low temperature coefficient  High input voltage (up to 24V)  High output current : 100mA (Pd ≤250mW)  Surface Mount device SOT-89 APPLICATIONS  Battery-powered equipment  Communication equipment  Audio/Video equipment MECHANICAL DATA      SCHEMATIC DIAGRAM Case: SOT-89 Case Material: Molded Plastic. UL flammability Classification Rating: 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 Weight: 0.055 grams (approximate) V IN V O U T V re f G N D SELECTION TABLE Part No. HT7530 HT7530-1 HT7530-2 HT7530-3 HT7533 HT7533-1 HT7533-2 HT7533-3 HT7536 HT7536-1 HT7536-2 HT7536-3 HT7544 HT7544-1 HT7544-2 HT7544-3 HT7550 HT7550-1 HT7550-2 HT7550-3 HT7580 HT7580-1 HT7580-2 HT7580-3 ©GUANGDONG HOTTECH INDUSTRIAL CO.,LTD Output Voltage 3.0V 3.3V 3.6V 4.4V 5.0V 8.0V E-mail:hkt@heketai.com Tolerance 5% 3% 1% 2% 5% 3% 1% 2% 5% 3% 1% 2% 5% 3% 1% 2% 5% 3% 1% 2% 5% 3% 1% 2% 1/8 HT75xx-xT89 GENERAL :75xx-x LOW DROP LINEAR VOLTAGE REGULATORS ABOSLUTE MAXIMUM RATINGS(Ta=25℃ unless otherwise noted) Parameter Input Voltage Power Dissipation Operating Temperature Storage Temperature Range Symbol Value Unit Vi -0.3V~26V V PD 250 mW TOPR 0~70 °C TSTG -50 ~+125 °C ELECTRICAL CHARACTERISTICS OF HT7530(Ta=25℃unless otherwise specified ) Parameter Symbol HT7530 Output voltage HT7530-1 HT7530-2 VOUT HT7530-3 Min Typ Max Unit 2.85 3.0 3.15 V 2.91 3.0 3.09 V 2.97 3.0 3.03 V 2.94 3.0 3.06 V 60 100 Output Current IOUT Load Regulation ΔVOUT 60 Voltage Drop VDIF 100 Current Consumption ISS 10 ΔVOUT/(ΔVINxVOUT) 0.2 Line Regulation Input Voltage VIN Temperature Coefficient 150 20 24 ΔVOUT/ΔTa VIN=5V,IOUT=10mA mA VIN=5V mV VIN=5V,1mA≤IOUT≤50mA mV IOUT=1mA µA VIN=5V,No Load %/V 4V≤VIN≤12V,IOUT=1mA V mV/°C ±0.45 Conditions VIN=5V,IOUT=10mA, 0°C
