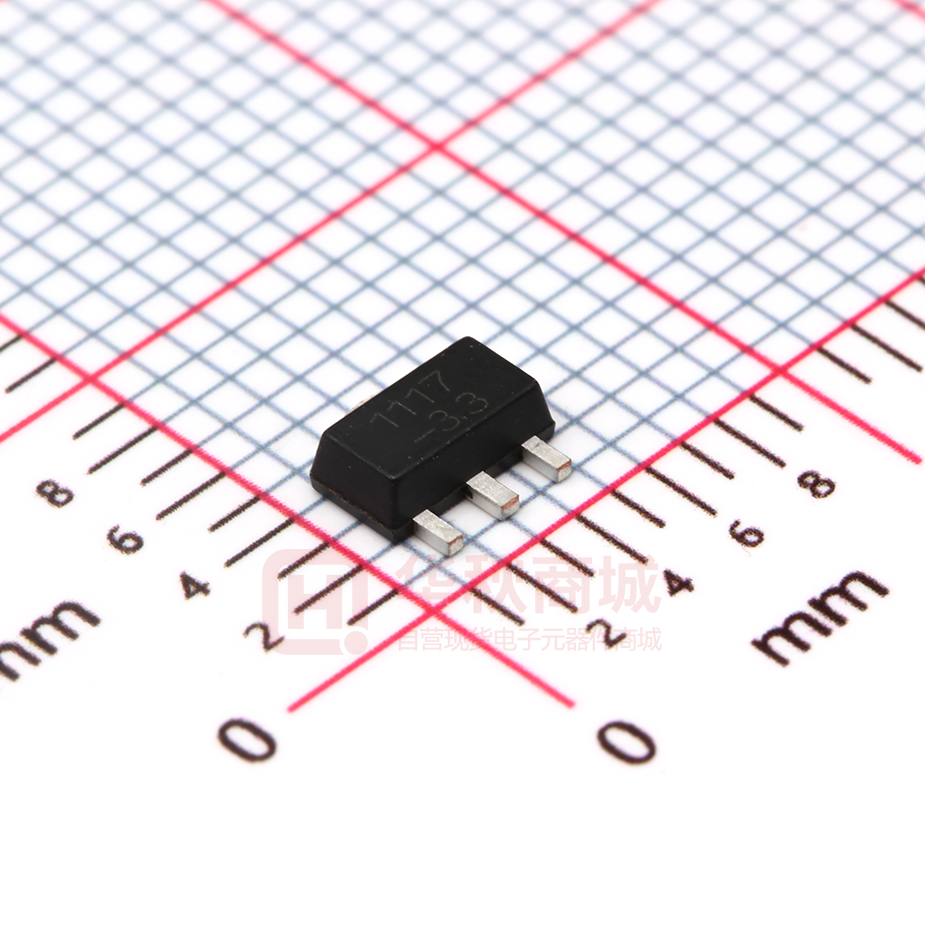

PJ1117SQ-3.3
Low Dropout Voltage Regulator
Features
Maximum output current is 800mA
Range of operation input voltage: Max 15V
Line regulation: 0.03%/V (Typ.)
SOT-89
Applications
LCD monitor and LCD TV
Communication equipment
Power management for computer
1.GND 2.VOUT 3.VIN
General Description
PJ1117SQ-3.3 is a low dropout three-terminal regulators with
a dropout of 1.3V at 800mA load current. Its features a very
low standby current 2mA compared to 5mA of competitor.
It offers thermal shut down function, to assure the
stability of chip and power system. And it uses trimming
technique to guarantee output voltage accuracy within ± 2%.
Block Diagram
www.pingjingsemi.com
Revision:1.0 Jul-2019
1/4
PJ1117SQ-3.3
Low Dropout Voltage Regulator
Absolute Maximum Ratings (TA=25℃ unless otherwise specified)
Symbol
VIN
Parameter
Units
Rating
Supply Voltage
V
15
TOPR
Operating Temperature
-40 ~ +125
°C
TSTG
Storage Temperature
-40 ~ +150
°C
RθJA
Junction-to-Ambient
45
℃/W
Note: These are stress ratings only. Stresses exceeding the range specified under Absolute Maximum Ratings may cause
substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is
not implied and prolonged exposure to extreme conditions may affect device reliability.
Electrical Characteristics (TA=25℃ )
Symbol
Parameter
Test Conditions
Min.
Typ.
Max.
Units
VOUT
Output Voltage
0≤IOUT≤800mA,4.75V≤VIN≤12V
3.234
3.3
3.366
V
△VOUT
Load Regulation
10mA≤IOUT≤800mA,V IN=4.8V
6
24
mV
VD
Voltage Drop
1.3
1.5
V
IQ
Quiescent Current
5
10
mA
△VOUT
Line Regulation
0.2
%/V
△VOUT
△Ta
IOUT=800mA
VIN=12V
4.8V≤VIN≤12V
0.03
IOUT=10mA
±100
Temperature Coefficient
ppm
Application Circuits
9,1
9,1
C 1
PJ1117SQ
C 2
GND
uF
C o m m o n
www.pingjingsemi.com
Revision:1.0 Jul-2019
9OUT
9OUT
22uF
G N D
C o m m o n
2/4
PJ1117SQ-3.3
Low Dropout Voltage Regulator
Electrical Characteristics Curves
Load Transient Response
Temperature stability
Output Voltage
Deviation(mV)
1.5
1.0
0.5
0
-0.5
-.
-.
-.
-50
-25
0
25
50
75
100 125 150
Load Current(A)
Output Voltage Change(%)
2.0
Time(μS)
Temperature(℃)
Line Transient Response
Ripple suppression VS Current
8.50
100
CIN=1 F
C OUT=10 F tantalum
IOUT=0.1A
Power-Supply Rejection Ratio(dB)
Input Voltage
Deviation(V)
9.50
7.50
6.50
Output Voltage
Deviation(mV)
40
20
0
-20
- 40
0
20 40 60 80 100
120 140 160 180
Time(μS)
www.pingjingsemi.com
Revision:1.0 Jul-2019
200
90
fRIPPLE=120Hz
VRIPPLE≤ 3VPP
80
70
60
fRIPPLE=20KHz
50
VRIPPLE ≤ 0.5Vpp
40
30
VOUT=5V
20
CADJ=25μF
10
COUT=25μF
0
0
200
400
600
800
1000
ILOAD(mA)
3/4
PJ1117SQ-3.3
Low Dropout Voltage Regulator
Package Outline
SOT-89
Dimensions in mm
Ordering information
Device
PJ1117SQ-3.3
www.pingjingsemi.com
Revision:1.0 Jul-2019
Package
Shipping
SOT-89
1000PCS/Reel&Tape
4/4
