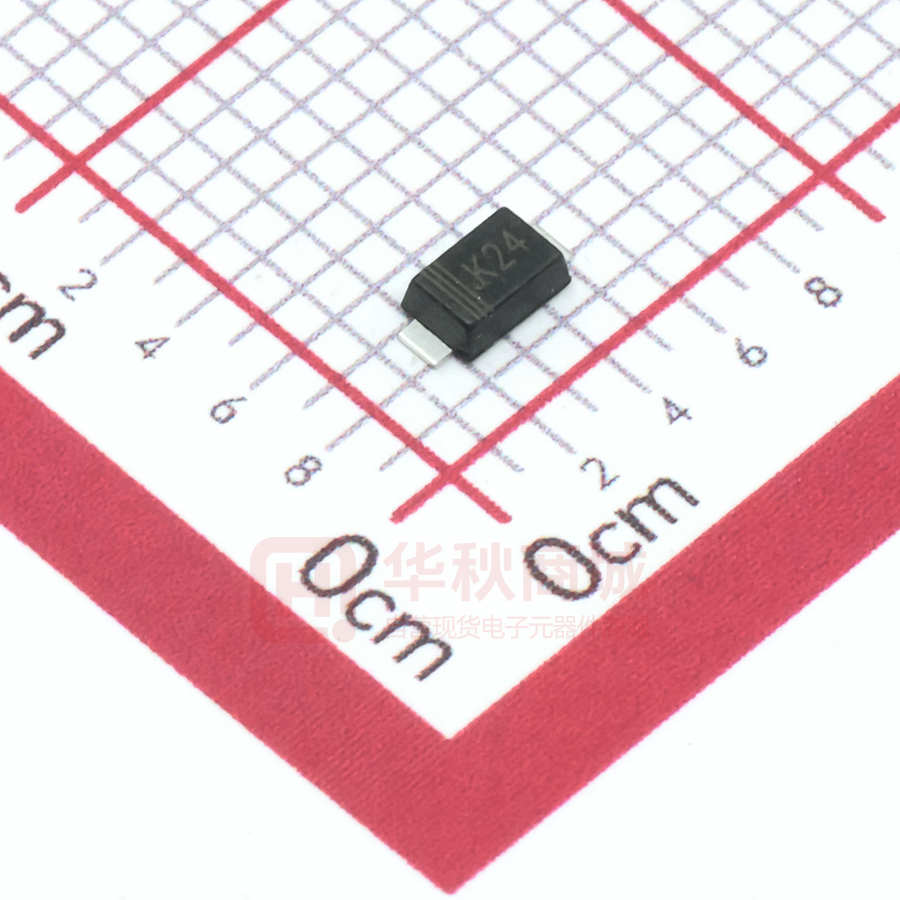

SS24L

SS22L-SS210L SCHOTTKY BARRIER DIODE FEATURES  Small Surface Mount device  Low power loss, high efficiency  High temperature soldering guaranteed:260°C/10 seconds at terminals  Guard ring for over voltage protection  For use in low voltage high frequency inverters, free wheeling, and polarity protection applications SOD-123FL MECHANICAL DATA     Case: SOD-123FL Case Material: Molded Plastic. UL flammability Classification Rating: 94V-0 Weight: 0.0155 grams (approximate) MAXIMUM RATINGS (TA = 25°C unless otherwise noted) Parameter Symbol SS22L SS23L SS24L SS26L SS28L SS210L SS215L SS220L Unit Repetitive peak reverse voltage VRRM 20 30 40 60 80 100 150 200 V DC Reverse Voltage VR 20 30 40 60 80 100 150 200 V RMS Reverse Voltage Non-Repetitive Peak Forward Surge Current @ t = 8.3 ms Mean rectifying current VRMS 14 21 28 42 56 70 105 140 V IFSM 50 A 2.0 A Thermal Resistance IF RθJA 85 °C/W Junction Temperature TJ 150 °C Storage Temperature TSTG -55 ~+175 °C ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise specified) Parameter Forward voltage Reverse current T=25°C Reverse current T=100°C Junction capacitance Symbol SS22L SS23L SS24L SS26L SS28L SS210L SS215L SS220L VF IR IR CJ © SHENZHEN HOTTECH ELECTRONICS CO.,LTD 0.5 0.7 0.85 0.9 0.5 20 160 E-mail:hkt@heketai.com Unit 0.92 V mA mA pF Conditions IF=2A V=VR V=4V,f=1MHz 1/4 SS22L-SS210L SCHOTTKY BARRIER DIODE Typical Characteristics FIG. 2 MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT FIG.1 FORWARD CURRENT DERATING CURVE PEAK FORWARD SURGE CURRENT (A) AVERAGE FORWARD CURRENT (A 2.5 2 1.5 SS25L-SS220L SS22L-SS24L 1 0.5 RESISTIVE OR INDUCTIVE LOAD 0 50 60 70 80 90 100 110 120 130 140 150 160 170 50 8.3ms Single Half Sine-Wave JEDEC Method 40 30 20 10 0 1 10 LEAD TEMPERATURE (oC) NUMBER OF CYCLES AT 60 Hz FIG. 3 TYPICAL FORWARD CHARACTERISTICS FIG. 4 TYPICAL REVERSE CHARACTERISTICS 100 INSTANTANEOUS REVERSE A CURRENT (mA) INSTANTANEOUS FORWARD A CURRENT (A) 100 SS25L-SS26L 10 100 SS215L-SS220L SS22L-SS24L 1 SS22L-SS24L SS25L-SS220L TJ=125℃ 10 1 0.1 TJ=75℃ 0.01 TJ=25℃ SS29L-SS210L 0.001 0.1 0 0.2 0.4 0.6 0.8 1 1.2 1.4 0 1.6 JUNCTION CAPACITANCE (pF) a 100 f=1.0MHz Vslg=50mVp-p 10 0.1 1 10 REVERSE VOLTAGE (V) © SHENZHEN HOTTECH ELECTRONICS CO.,LTD 100 TRANSIENT THERMAL IMPEDANCE (℃/W) FIG. 5 TYPICAL JUNCTION CAPACITANCE 40 60 80 100 120 140 PERCENT OF RATED PEAK REVERSE VOLYAGE(%) FORWARD VOLTAGE (V) 1000 20 FIG. 6 TYPICAL TRANSIENT THERMAL IMPEDANCE 100 10 1 0.1 0.01 0.1 1 T-PULSE DURATION(S) E-mail:hkt@heketai.com 10 100 2/4 SS22L-SS210L SCHOTTKY BARRIER DIODE SOD-123FL Package Outline Dimensions Symbol Dimensions In Millimeters Min. Max. A 0.75 B Dimensions In Inches Max. 0.95 Min. 0.029 1.60 2.00 0.063 0.079 C 2.60 3.00 0.103 0.119 D 0.90 1.20 0.036 0.047 E 0.12 0.22 0.005 0.009 F G 0.8Typ 3.50 0.037 0.032Typ 3.90 0.138 0.159 SOD-123FL Suggested Pad Layout Note: 1.Controlling dimension: in millimeters 2.General tolerance: ±0.05mm 3.The pad layout is for reference purposes only © SHENZHEN HOTTECH ELECTRONICS CO.,LTD E-mail:hkt@heketai.com 3/4 SS22L-SS210L SCHOTTKY BARRIER DIODE SOD-123FL Tape and Reel SOD-123FL Embossed Carrier Tape DIMENSIONS ARE IN MILLIMETER TYPE A B C d E F P0 P P1 W SOD-123FL 2.10 4.00 1.25 Ø1.50 1.75 3.50 4.00 4.00 2.00 8.00 TOLERANCE ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 ±0.1 SOD-123FL Tape Leader and Trailer SOD-123FL Reel DIMENSIONS ARE IN MILLIMETER REEL OPTION 7’’ DIA TOLERANCE D D1 D2 G H I W1 W2 Ø178 54.40 13.00 R78 R25.60 R6.50 9.50 12.30 ±2 ±1 ±1 ±1 ±1 ±1 ±1 ±1 © SHENZHEN HOTTECH ELECTRONICS CO.,LTD E-mail:hkt@heketai.com 4/4
