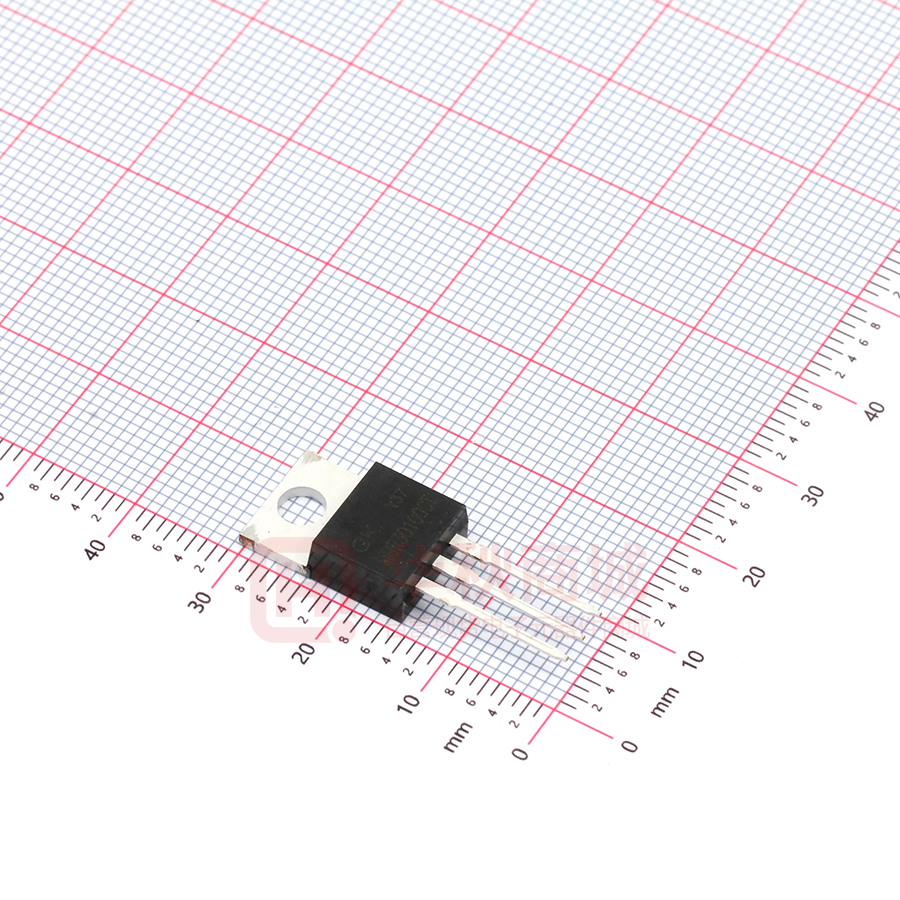

MBR30100CT

MBR3020CT THRU MBR30200CT 30.0 AMP SCHOTTKY BARRIER RECTIFIERS VOLTAGE RANGE 20 to 200 Volts CURRENT 30.0 Amperes FEATURES * Low forward voltage drop * High current capability * High reliability * High surge current capability * Good for switching mode application TO-220AB .412 (10.5) MAX. .108 (2.75) 3.8 f +.2 HOLE THRU .248 (6.3) MECHANICAL DATA * Case: Molded plastic * Epoxy: UL 94V-0 rate flame retardant * Lead: Lead solderable per MIL-STD-202, method 208 guranteed * Polarity: As Marked * Mounting position: Any .180 (4.6) .050 (1.27) .595 (15.1) MAX. .550 (14.0) .158 (4.0) MIN. MAX. .051 MAX. (1.3) .040 MAX. (1.0) .100 (2.54) .120 (3.05) PIN 1 + PIN 3 CASE PIN 2 Positive CT Suffix "C" Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating 25 C ambient temperature uniess otherwies specified. Single phase half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. TYPE NUMBER Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current MBR3020CT MBR3045CT MBR3060CT MBR3080CT MBR30100CTMBR30150CT MBR30200CT UNITS 20 14 20 45 32 45 60 42 60 80 56 80 at Rated DC Blocking Voltage Ta=100 C Typical Junction Capacitance (Note1) Typical Thermal Resistance R JC (Note 2) Operating Temperature Range TJ Storage Temperature Range TSTG 150 105 150 200 140 200 0.55 250 0.85 0.2 0.7 50 570 2.5 -65 +150 -65 +150 V V V A 30 at Tc=125 C Peak Forward Surge Current, 8.3 ms single half sine-wave superimposed on rated load (JEDEC method) Maximum Instantaneous Forward Voltage at 30A Maximum DC Reverse Current Ta=25 C 100 70 100 0.92 A V mA mA pF C/W C C NOTES: 1. Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2. Thermal Resistance Junction to Case. REV 1.0 2015 JAN PAGE:1/2 RATING AND CHARACTERISTIC CURVES (MBR3020CT THRU MBR30200CT) FIG.1-TYPICAL FORWARD CURRENT DERATING CURVE FIG.2-TYPICAL FORWARD CT 30 45 25 0 20 40 60 80 100 120 140 160 180 200 CASE TEMPERATURE,( C) FIG.3-MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT -M MB R3 02 00 C T BR 30 10 0C T -M T T 0C 06 0C R3 02 MB R3 TR3 01 50 C 8.0 MB 0 R3 08 0C T 5 MB 10 30 MB 15 BR 50 20 INSTANTANEOUS FORWARD CURRENT,(A) AVERAGE FORWARD CURRENT,(A) CHARACTERISTICS 30 1.0 Tj=25 C Pulse Width 300us 1% Duty Cycle 0.1 PEAK FORWARD SURGE CURRENT,(A) 250 .01 200 .1 .3 .5 .7 .9 1.1 1.3 1.5 FORWARD VOLTAGE,(V) 150 8.3ms Single Half Tj=25 C Sine Wave 100 JEDEC method 50 FIG.5 - TYPICAL REVERSE CHARACTERISTICS 0 1 5 50 10 100 100 NUMBER OF CYCLES AT 60Hz REVERSE LEAKAGE CURRENT, (mA) FIG.4-TYPICAL JUNCTION CAPACITANCE JUNCTION CAPACITANCE,(pF) 1400 1200 1000 800 600 400 10 Tj=100 C 1.0 Tj=75 C .1 Tj=25 C 200 0 .01 .05 .1 .5 1 REVERSE VOLTAGE,(V) 5 10 50 100 .01 0 20 40 60 80 100 120 140 PERCENT OF RATED PEAK REVERSE VOLTAGE,(%) REV 1.0 2015 JAN PAGE:2/2
