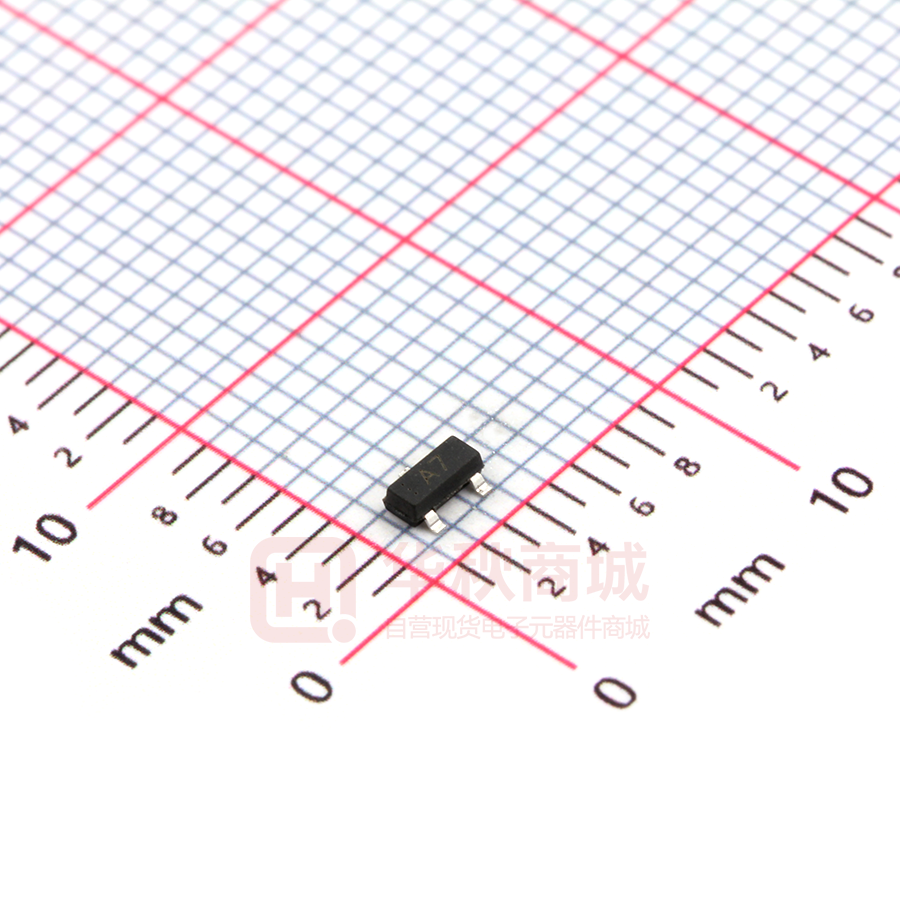

BAV99

BAW56/BAV70/BAV99 SWITCHING Switching Fast Switching Diode SOT-23 - ROHS Features  Fast Switching Speed  For General Purpose Switching Applications  High Conductance BAW56 Marking: A1 BAV70 Marking: A4 BAV99 Marking: A7 Maximum Ratings & Thermal Characteristics (Ratings at 25℃ ambient temperature unless otherwise specified.) Symbol Limits Unit Reverse voltage VR 70 V Forward Current IF 200 mA IFM(surge) 500 mA PD 225 mW RθJA 556 ℃/W TJ 150 ℃ TSTG -55-150 ℃ Parameter Peak Forward Surge Current Power Dissipation Thermal Resistance Junction to Ambient Air Junction temperature Storage temperature range Electrical Characteristics ( Ratings at 25℃ ambient temperature unless otherwise specified). Parameter Reverse Breakdown Voltage Symbol Min. VR 70 Typ. Max. Unit Conditions V IR=100μA VF1 0.715 V IF=1mA VF2 0.855 V IF=10mA VF3 1 V IF=50mA VF4 1.25 V IF=150mA Reverse current IR 2.5 μA VR=70V Capacitance between terminals CT 1.5 pF VR=0,f=1MHz Reverse recovery time t rr 6 ns Forward voltage Rev 8: Nov 2014 www.born-tw.com IF = IR = 10mA, Irr= 0.1 x IR, RL = 100Ω Page 1 of 2 BAW56/BAV70/BAV99 SWITCHING Switching Fast Switching Diode ROHS SOT -23 PACKAGE OUTLINE Plastic surface mounted package SOT-23 (UNIT)：mm Rev 8: Nov 2014 www.born-tw.com Page 2 of 2
