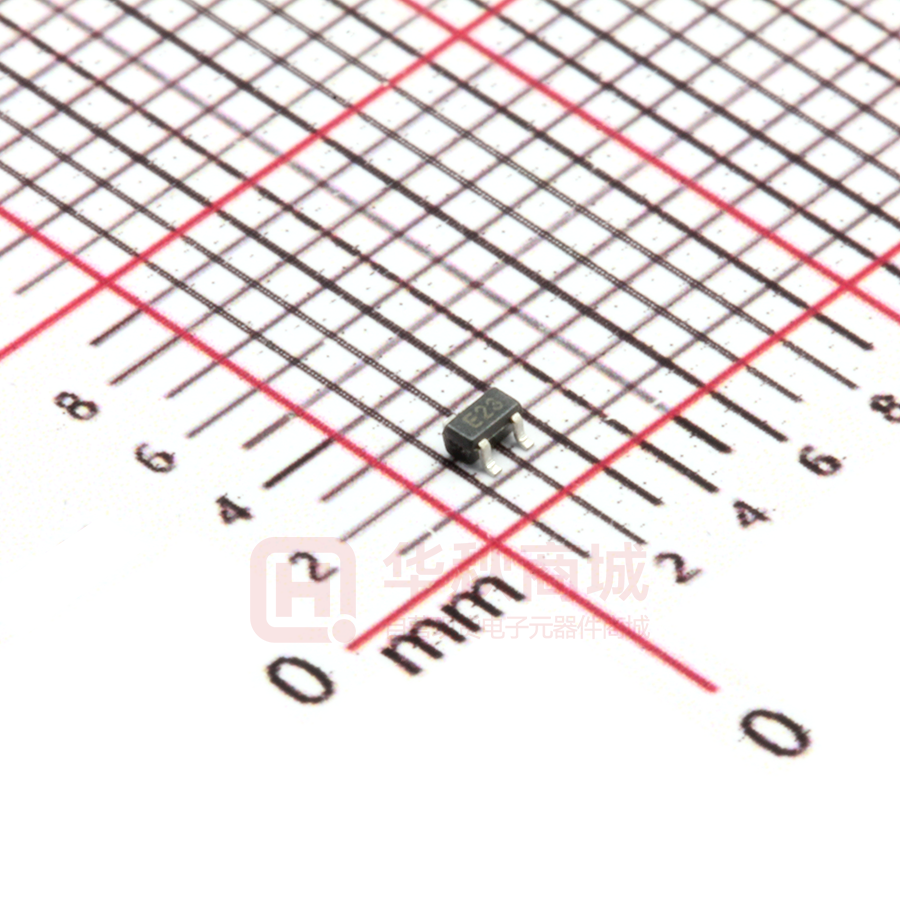

DTC143ZE
NPN Silicon Epitaxial Planar Digital Transistor
Features
• With built-in bias resistors
• Simplify circuit design
• Reduce a quantity of parts and
manufacturing process
Collector
(Output)
Base
(Input)
R1
R2
Emitter
(Common)
Absolute Maximum Ratings (Ta = 25 OC)
Parameter
Symbol
Value
Unit
VCEO
50
V
Input Voltage
VI
- 5 to + 30
V
Collector Current
IC
100
mA
Power Dissipation
Ptot
150
mW
Tj
150
O
Tstg
- 55 to + 150
O
Collector Emitter Voltage
Junction Temperature
Storage Temperature Range
C
C
Characteristics at Ta = 25 OC
Parameter
Symbol
Min.
Typ.
Max.
Unit
DC Current Gain
at VCE = 5 V, IC = 10 mA
hFE
80
-
-
-
Collector Base Cutoff Current
at VCB = 50 V
ICBO
-
-
0.5
µA
Emitter Base Cutoff Current
at VEB = 5 V
IEBO
-
-
1.8
mA
VCE(sat)
-
-
0.3
V
Input on Voltage
at VCE = 0.3 V, IC = 5 mA
VI(on)
-
-
1.3
V
Input off Voltage
at VCE = 5 V, IC = 100 µA
VI(off)
0.5
-
-
V
Transition frequency
at VCE = 10 V, -IE = 5 mA, f = 100 MHz
fT
-
250
-
MHz
Input Resistance
R1
3.29
4.7
6.11
KΩ
Resistance Ratio
R 2 / R1
8
10
12
-
Collector Emitter Saturation Voltage
at IC = 5 mA, IB = 0.25 mA
REV.08
1 of 2
DTC143ZE
REV.08
2 of 2
