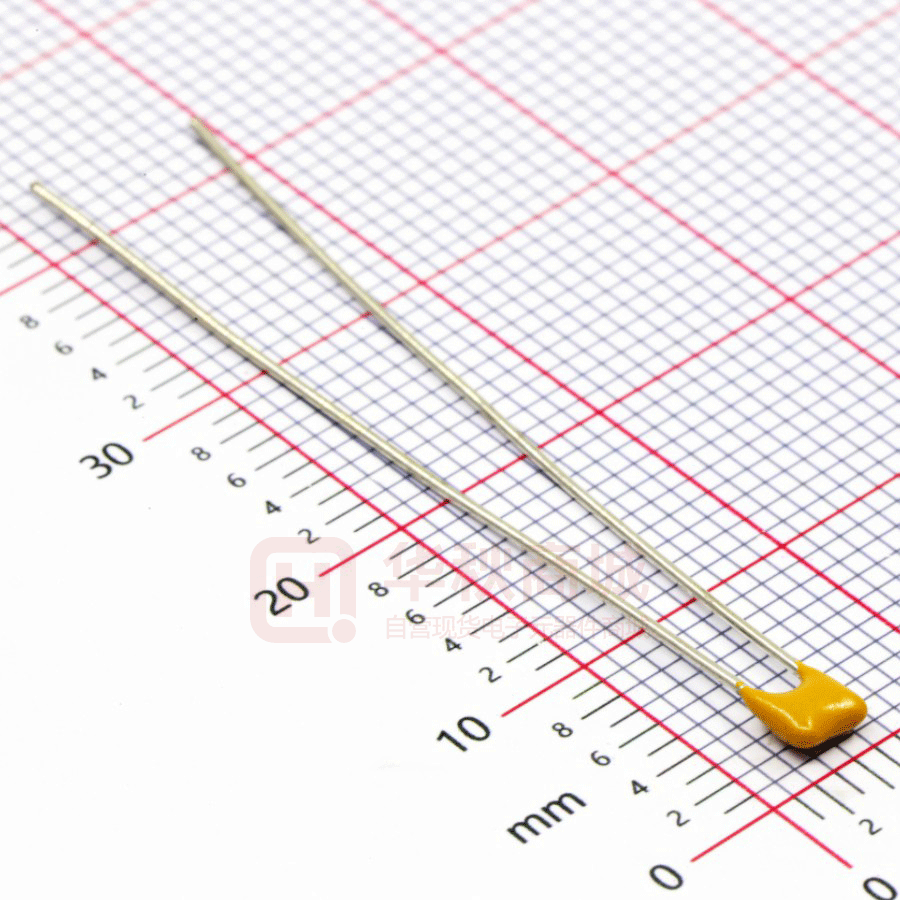

MCRR25103X7RK0050

MCRR Series Multilayer Ceramic Capacitors General Information Lead length=25.4min, Lead dia=0.508 Features: • Cost effective dipped radial multilayer ceramic capacitors. • High reliability and performance. • Applications for C0G dielectric tuned circuits and filters where low loss and stability are required. • X7R dielectric offers high capacitance values in compact sizes with good stability. • Z5U dielectric can be used in coupling and decoupling applications where change of capacitance with temperature is not important. Conformally Coated Radial Leaded MLC. Temperature Coefficients: C0G (NP0), X7R, Z5U. 200, 100, 63/50 Volts. C0G (NP0) Dielectric Case Material: Epoxy. Lead Material: Solderable. Size and Capacitance Specifications EIA Characteristic Capacitance in pF Height (H) 3.81 7.62 Width (W) 3.81 5.08 Depth (D) 2.54 3.18 Lead Spacing (L.S.) 2.54 5.08 Lead Diameter (L.D.) 0.508 0.508 Voltage WVDC Part Number 10 MCRR25100C0GJ0200 22 MCRR25220C0GJ0200 33 MCRR25330C0GJ0200 47 MCRR25470C0GJ0200 10 MCRR50100C0GJ0200 22 MCRR50220C0GJ0200 33 MCRR50330C0GJ0200 47 MCRR50470C0GJ0200 100 MCRR50101C0GJ0200 220 MCRR50221C0GJ0200 100 MCRR25101C0GJ0100 220 MCRR25221C0GJ0100 330 MCRR25331C0GJ0100 470 MCRR25471C0GJ0100 1000 MCRR25102C0GJ0100 470 MCRR50471C0GJ0100 1000 MCRR50102C0GJ0100 Voltage, DC 200 Voltage, DC 100 200 100 Dimensions: Millimetres = Industry preferred values Page 1 31/05/05 V1.0 MCRR Series Multilayer Ceramic Capacitors X7R Dielectric Size and Capacitance Specifications EIA Characteristic Capacitance in pF Height (H) 3.81 7.62 5.08 7.62 7.62 Width (W) 3.81 5.08 5.08 5.08 7.62 Depth (D) 2.54 3.18 3.18 3.18 3.81 Lead Spacing (L.S.) 2.54 5.08 2.54 5.08 5.08 Lead Diameter (L.D.) 0.508 0.508 0.508 0.508 0.508 WVDC WVDC 100 WVDC 63/50 WVDC 63/50 Voltage WVDC Part Number 1000 MCRR25102X7RK0100 2200 MCRR25222X7RK0100 3300 MCRR25332X7RK0100 4700 MCRR25472X7RK0100 10,000 MCRR25103X7RK0100 22,000 MCRR25223X7RK0100 1000 MCRR50102X7RK0100 2200 MCRR50222X7RK0100 3300 MCRR50332X7RK0100 4700 MCRR50472X7RK0100 10,000 MCRR50103X7RK0100 22,000 MCRR50223X7RK0100 100,000 MCRR50104X7RK0100 10,000 MCRR25103X7RK0050 33,000 MCRR25333X7RK0050 47,000 MCRR25473X7RK0050 100,000 MCRR25104X7RK0050 100,000 MCRR25104Z5UM0050 33,000 MCRR50333X7RK0050 47,000 MCRR50473X7RK0050 100,000 MCRR50104X7RK0050 220,000 MCRR50224X7RK0050 470,000 MCRR50474X7RK0050 1,000,000 MCRR50105X7RK0050 100 63/50 WVDC 63/50 Dimensions: Millimetres = Industry preferred values Page 2 31/05/05 V1.0 MCRR Series Multilayer Ceramic Capacitors Z5U Dielectric Size and Capacitance Specifications EIA Characteristic Capacitance in pF Height (H) 5.08 7.62 7.62 Width (W) 5.08 5.08 7.62 Depth (D) 3.18 3.18 3.81 Lead Spacing (L.S.) 2.54 5.08 5.08 Lead Diameter (L.D.) 0.508 0.508 0.508 Voltage WVDC WVDC WVDC WVDC Part Number 63/50 63/50 63/50 100,000 MCRR25104Z5UM0050 100,000 MCRR50104Z5UM0050 470,000 MCRR50474Z5UM0050 1,000,000 MCRR50105Z5UM0050 2,200,000 MCRR50225Z5UM0050 Dimensions: Millimetres = Industry preferred values Page 3 31/05/05 V1.0 MCRR Series Multilayer Ceramic Capacitors Part Number Explanation: MCRR 25 100 X7R J Type Lead Pitch Significant Figure for Capacitance and Multiplier Temperature Coefficient Tolerance 0200 Voltage Part Number Codes Lead Pitch: 25 = 2.54, 50 = 5.08 Significant Figures of Capacitance and Multiplier: First two digits are the significant figures of capacitance. Third digit indicates the additional number of zeros. For example, order 100,000 pF as 104 Temperature Coefficient: C0G (NP0), X7R, Z5U Capacitance Tolerances: C0G (NP0) : J = ±5% X7R : K = ±10% Z5U : M = ±20% Voltages: 50 = 63/50 Vdc 100 = 100 Vdc 200 = 200 Vdc Page 4 31/05/05 V1.0 MCRR Series Multilayer Ceramic Capacitors Notes: International Sales Offices: AUSTRALIA – Farnell InOne FINLAND – Farnell InOne NETHERLANDS – Farnell InOne SWITZERLAND – Farnell InOne Tel No: Tel No: Tel No: ++ 61 2 9645 8888 Fax No: ++ 61 2 9644 7898 Fax No: ++ 358 9 345 5411 Fax No: ++ 31 30 241 7333 Tel No: ++ 41 1 204 64 64 Fax No: ++ 41 1 204 64 54 AUSTRIA – Farnell InOne FRANCE – Farnell InOne NEW ZEALAND – Farnell InOne UK – Farnell InOne Tel No: Tel No: Tel No: Tel No: ++ 43 662 2180 680 ++ 358 9 560 7780 ++ 33 474 68 99 99 ++ 31 30 241 7373 ++ 64 9 357 0646 ++ 44 8701 200 200 Fax No: ++ 43 662 2180 670 Fax No: ++ 33 474 68 99 90 Fax No: ++ 64 9 357 0656 Fax No: ++ 44 8701 200 201 BELGIUM – Farnell InOne GERMANY – Farnell InOne NORWAY – Farnell InOne UK – BuckHickman InOne Tel No: Tel No: Tel No: ++ 45 44 53 66 66 ++ 44 8450 510 150 ++ 32 3 475 2810 ++ 49 89 61 39 39 39 Fax No: ++ 32 3 227 3648 Fax No: ++ 49 89 613 59 01 Fax No: ++ 45 44 53 66 02 ++ 44 8450 510 130 BRAZIL – Farnell-Newark InOne HONG KONG – Farnell-Newark InOne Tel No: ++ 852 2268 9888 PORTUGAL – Farnell InOne UK – CPC ++ 55 11 4066 9400 Tel No: ++ 34 93 475 8804 ++ 44 8701 202 530 Fax No: ++ 55 11 4066 9410 Fax No: ++ 852 2268 9899 Fax No: ++ 34 93 474 5288 ++ 44 8701 202 531 CHINA – Farnell-Newark InOne IRELAND – Farnell InOne SINGAPORE – Tel No: Tel No: Tel No: ++86 10 6238 5152 Fax No: ++86 10 6238 5022 Farnell-Newark InOne Tel No: ++ 65 6788 0200 ++ 353 1 830 9277 Fax No: ++ 353 1 830 9016 Fax No: ++ 65 6788 0300 export EXPORT – Farnell InOne Tel No: ++ 44 8701 200 208 Fax No: ++ 44 8701 200 209 For enquiries from all other markets DENMARK – Farnell InOne ITALY – Farnell InOne SPAIN – Farnell InOne Tel No: Tel No: Tel No: ++ 45 44 53 66 44 ++ 39 02 93 995 200 ++ 34 93 475 8805 Fax No: ++ 45 44 53 66 06 Fax No: ++ 39 02 93 995 300 Fax No: ++ 34 93 474 5107 ESTONIA – Farnell InOne MALAYSIA – SWEDEN – Farnell InOne http://www.farnellinone.com Tel No: ++ 358 9 560 7780 Fax No: ++ 358 9 345 5411 Farnell-Newark InOne Tel No: ++ 60 3 7873 8000 Fax No: ++ 60 3 7873 7000 Tel No: ++ 46 8 730 50 00 Fax No: ++ 46 8 83 52 62 http://www.buckhickmaninone.com http://www.cpc.co.uk Disclaimer This data sheet and its contents (the "Information") belong to the Premier Farnell Group (the "Group") or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group's liability for death or personal injury resulting from its negligence. Multicomp is the registered trademark of the Group. © Premier Farnell plc 2004. Page 5 31/05/05 V1.0
