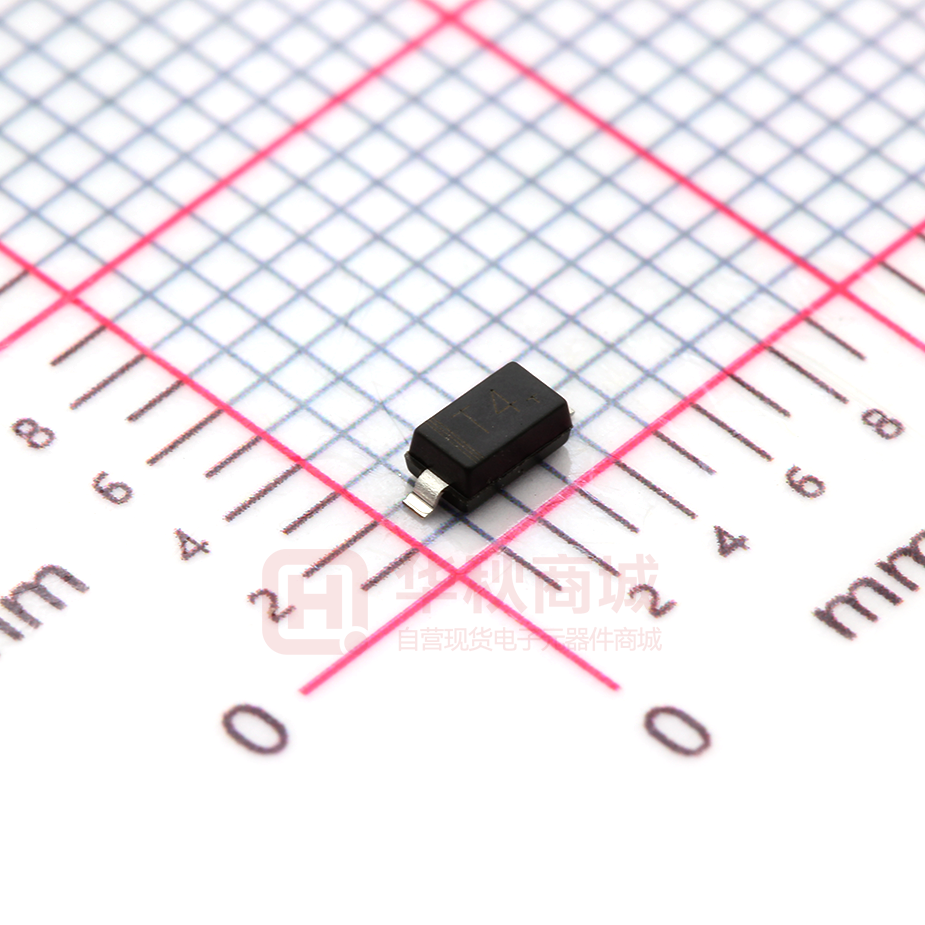

1N4148W-T4

Plastic-Encapsulate Diodes 1N4148W FAST SWITCHING DIODES FEATURES Fast Switching Speed + - Surface Mount Package Ideally Suited for Automatic Insertion For General Purpose Switching Applications SOD-123 High Conductance MARKING: T4 MAXIMUM RATINGS (TA=25 unless otherwise noted) Symbol Value Units Non-Repetitive Peak reverse voltage VRM 100 V Peak Repetitive Peak reverse voltage VRRM 75 V Working Peak Reverse Voltage VRWM 75 V VR 75 V Parameter DC Blocking R(RMS) RMS Reverse Voltage 53 V Forward Continuous Current IFM 300 mA Average Rectified Output Current IO 150 mA Peak forward surge current @=1.0μs IFSM 2.0 A Peak forward surge current @=1.0s IFSM 1.0 A Power Dissipation Pd 500 mW RθJA 250 /W Junction temperature Tj 150 Storage temperature TSTG -65~+150 Thermal ELECTRICAL CHARACTERISTICS (Tamb=25 Parameter Symbol unless otherwise specified) Min Typ Max Unit Conditions Forward voltage VF1 0.715 V I F =1mA Forward voltage VF2 0.855 V I F =10 mA Forward voltage VF3 1.0 V I F =50 mA Forward voltage VF4 1.25 V I F =150 mA Reverse current IR1 1 μA VR =75 V Reverse current IR2 25 nA VR =20 V Capacitance between terminals CT 2 pF VR =0V,f=1MHz Reverse Recovery Time trr 4 ns IF=IR=10mA Irr=0.1XIR,RL=100 Ω GUANGDONG HOTTECH INDUSTRIAL CO., LTD Page:P2-P1 Plastic-Encapsulate Diodes 1N4148W Typical Characteristics GUANGDONG HOTTECH INDUSTRIAL CO., LTD Page:P2-P2
