Plastic-Encapsulate Diodes
SCHOTTKY DIODES
MMBD4148A/CA/CC/SE
FEATURES
Fast Switching Speed
For General Purpose Switching Applications
High Conductance
MARKING
SOT-23
MMBD4148A:5H
MMBD4148CA:D6
MAXIMUM RATINGS (TA=25

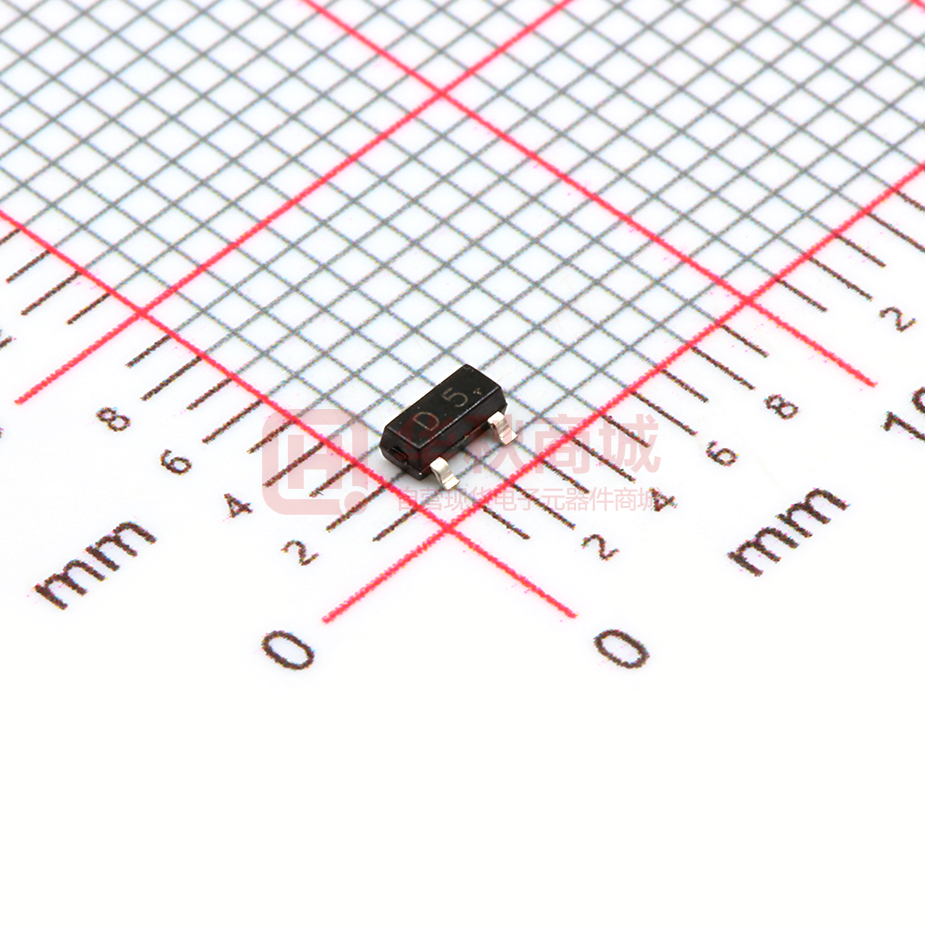

MMBD4148CC:D5
MMBD4148SE:D4
unless otherwise noted)
Paramet
er voltage
Non-Repetitive Peak reverse
Symbol
Limits
Unit
VRM
100
V
Peak Repetitive Peak reverse voltage
VRRM
Working Peak Reverse Voltage
VRWM
100
V
VR
VR(RMS)
53
V
Forward Continuous Current
IFM
300
mA
Average Rectified Output Current
IO
200
mA
DC Blocking
Voltage
RMS Reverse Voltage
Peak forward surge current @=1.0μs
2.0
I
A
1.0
@=1.0
PD
350
mW
RθJA
357
/W
Junction temperature
Tj
150
Storage temperature
TSTG
-65~+150
Power Dissipation
s
Thermal Resistance Junction to Ambient
Electrical Ratings @TA=25
Parameter
Reverse Breakdown Voltage
Symbol
Min.
Typ.
Max.
Unit
Conditions
V (BR) R1
100
V
IR=100μA
V (BR) R2
75
V
IR=5μA
VF
1
V
IF=10mA
IR1
5
μA
VR=75V
IR2
25
nA
VR=25V
Capacitance between terminals
CT
4
pF
VR=0V,f=1MHz
Reverse Recovery Time
trr
4
ns
Forward voltage
Reverse current
IF=IR=10mA,
GUANGDONG HOTTECH
INDUSTRIAL CO,. LTD.
VR=6V,Irr=0.1XIR,RL=100Ω
Page:P2-P1
Plastic-Encapsulate Diodes
MMBD4148A/CA/CC/SE Typical Characteristics
GUANGDONG HOTTECH
INDUSTRIAL CO,. LTD.
Page:P2-P2
