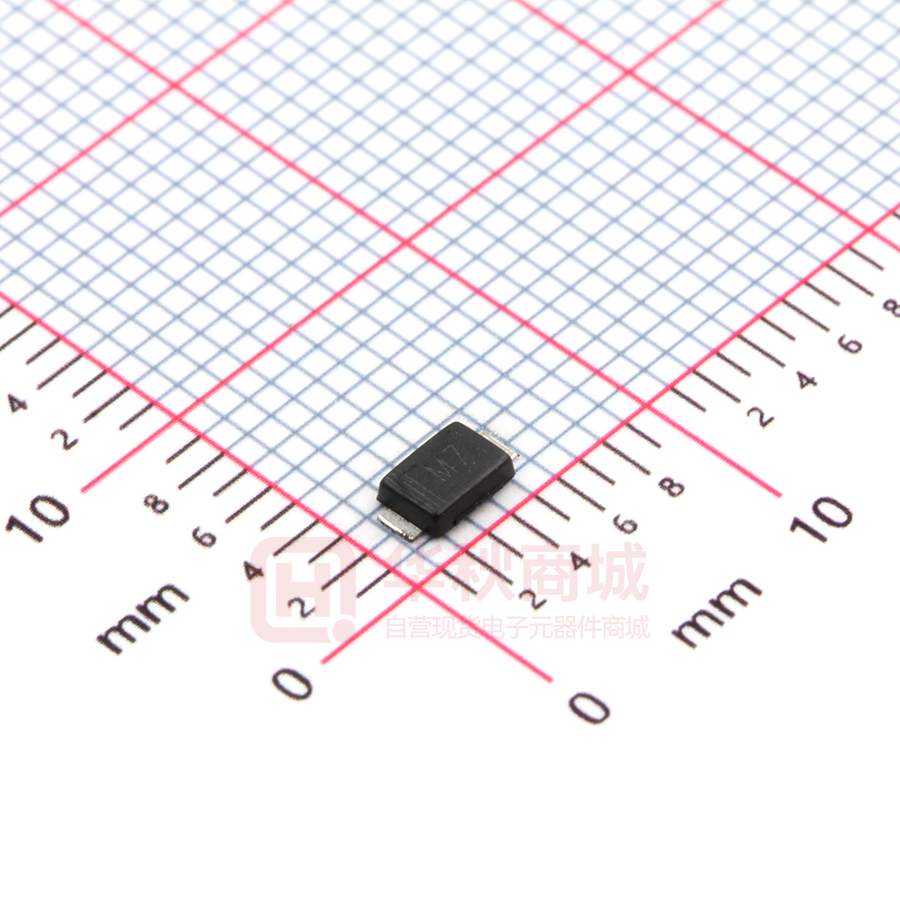

M7F

Plastic-Encapsulate Diodes 1.0 AMP. Surface Mount Rectifiers M1F ---M7F Cathode Band Top View FEATURES For surface mounted application 0.106(2.70) 0.094(2.40) Low forward voltage drop 0.063(1.60) 0.051(1.30) High current capability 0.146(3.7) 0.130(3.3) Easy pick and place High surge current capability 0.0091(0.23) 0.0071(0.18) 0.051(1.30) 0.043(1.10) Plastic material used carries Underwriters Laboratory Classification 94V-0 260oC / 10 seconds at terminals 0.051(1.30) 0.039(1.0) MECHANICAL DATA 0.193(4.90) 0.173(4.40) Case: Molded plastic SMAF Terminals: Pure tin plated, lead free Dimensions in inches and (millimeters) solderable per J-STD-002B and JESD22-B102D. SMAF Polarity: Indicated by cathode band Packaging: 12mm tapeper EIA STD RS-481 MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 OC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. MDD Catalog Number Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TL=75 C Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Maximum instantaneous forward voltage at 1.0A Maximum DC reverse current TA=25 C at rated DC blocking voltage TA=100 C Typical junction capacitance (NOTE 1) Typical thermal resistance (NOTE 2) Operating junction and storage temperature range SYMBOLS M1F M2F M3F M4F M5F M6F M7F UNITS VRRM VRMS VDC 50 35 50 100 70 100 200 140 200 400 280 400 600 420 600 800 560 800 1000 700 1000 VOLTS VOLTS VOLTS I(AV) 1.0 Amp IFSM 30.0 Amps VF 1.1 Volts IR 5.0 50.0 µA CJ RθJA TJ,TSTG 15.0 75.0 -50 to +150 pF C/W C Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2.P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas GUANGDONG HOTTECH INDUSTRIAL CO., LTD Page:P2-P1 Plastic-Encapsulate Diodes M1F ---M7F Typical Characteristics 2.0 1.0 25 50 75 100 125 150175 LEAD TEMPERATURE .o C PEAK FORWARD SURGE CURRENT, AMPERES AVERAGE FORWARD CURRENT, AMPERES 30 SINGLE PHASE HALF WAVE 60Hz RESISTIVE OR INDUCTIVE LOAD P.C.B MOUNTED ON 0.315x0.315"(8.0x8.0mm) COPPER PAD AREAS 25 15 10 5 1 INSTANTANEOUS FORWARD CURRENT, MICROAMPERES INSTANTANEOUS REVERSE CURRENT, MICROAMPERES 10 Tj =125o C Tj =75o C Tj =25o C 0.01 0.001 0 20 40 60 5 10 20 50 100 Fig. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 100 0.1 2 NUMBER OF CYCLES AT 60 Hz Fig. 1-FORWARD CURRENT DERATING CURVE 1 8.3ms Single Half Sine Wave (JEDEC Method) 20 80 100 120 140 PERCENT OF PEAK REVERSE VOLTAGE, % 100 50 20 10 5 2 1 0.5 0.2 0.1 0.05 0.02 0.01 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 INSTANTANEOUS FORWARD VOLTAGE , VOLTS Fig. 4-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS Fig. 3-TYPICAL REVERSE CHARACTERISTICS 500 200 100 50 Units Mounted On 20in2 (5.4mm 2 )+0.5mil inches(0.013mm) Thick Copper Land Areas CAPACITANCE. pF THERMAL IMPEDANCE (oC/W) 1000 20 10 5 2 1 0.01 0.1 1 10 Tj =25 oC f=1.0MHz Vsig=50mVp-p 50 20 10 5 2 1 0 1.0 10 100 1000 100 REVERSE VOLTAGE VOLTS Fig. 5-TRANSIENT THERMAL IMPEDANCE GUANGDONG HOTTECH 100 REVERSE VOLTAGE VOLTS Fig. 6-TYPICAL JUNCTION CAPACITANCE INDUSTRIAL CO., LTD Page:P2-P2
