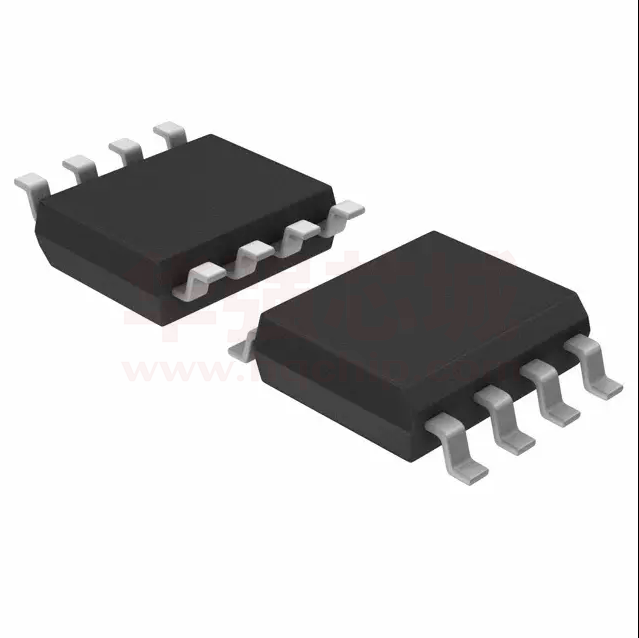

TS2278A(MSOP-8)

TS2177A/TS2178A TS2277A/TS2278A TS2478A Trusignal Microelectronics DATASHEET MAY 2018 REVIEW Oct. 2022 10MHz, Rail-to-Rail I/O CMOS Operational Amplifier FEATURES         Low Offset Voltage: 1mV (TYP) High Gain: 102dB (TYP) High Gain Bandwidth Product: 10MHz Rail-to-Rail Input/Output Low IB: 5pA (TYP) Low Supply Voltage: +2.5V to +5.5V Low Power Consumption: 1.1mA at 5V (Per Amplifier) Extended Temperature: -40°C to +125°C APPLICATIONS         Signal Conditioning Current Sensor Amplifier Battery-Powered Applications Portable Devices Active Filtering Weight Scale Sensor Medical/Industrial Instrumentation Power Converter/Inverter PRODUCT DESCRIPTION The TS2177A/TS2178A families of products are low noise, low voltage and low power operational amplifiers with high gain-bandwidth product of 10MHz and slew rate of 10V/μs. The maximum input offset voltage is only 3.5mV and the input common mode range extends beyond the supply rails. TS2177A/TS2178A families of operational amplifiers are specified at the full temperature range of −40C to +125C under single or dual power supplies of 2.7V to 5.5V, however these products will operate under an extended supply range from 2.5V to 5.5V at a reduced temperatures range. The TS2177A and TS2277A have a power-down feature that reduces the supply current to 1μA. PIN ASSIGNMENTS TS2178A TS2177A 5 V+ OUT 1 + +IN 3 4 -IN +IN 3 SOT-23-6L TS2178A TS2177A NC 1 8 Enable 7 V+ -IN 2 7 V+ 6 OUT +IN 3 6 OUT 8 NC -IN 2 + +IN 3 V- 4 5 NC V- 4 TS2278A OUTA 1 V- 4 7 OUTB + + - 6 -INB 5 +INB SOP8, MSOP8, TSSOP8 REV KY1.4.2A -INA 2 14 OUTD - 5 NC OUTA 1 + - -IND 3 12 +IND V+ 4 11 V- +INB 5 10 +INC -INB 6 9 -INC OUTB 7 8 OUTC - + + - TS2277A -INA 2 9 OUTB +INA 3 8 -INB V+ OUTA -INA +INA V- 7 +INB Underside die pad must be connected to V- 6 EnableB MSOP10 www.trusignal.com OUTB -INB +INB EnableB EnableA EnableA 5 13 SOP14, TSSOP14 10 V+ V- 4 + +INA TS2277A 8 V+ +INA 3 1 SOP8 SOP8 - OUTA 4 -IN SOT-23-5L NC 1 -INA 2 5 Enable V- 2 V- 2 TS2478A 6 V+ OUT 1 DFNWB3×3-10L TS2177A/TS2178A TS2277A/TS2278A TS2478A Trusignal Microelectronics ORDERING INFORMATION Model Part Number TS2178A TS2178A TS2177A TS2177A TS2277A TS2277A TS2278A TS2278A TS2278A TS2478A TS2478A TS2178ASOT235LR TS2178ASOP8R TS2177ASOT236LR TS2177ASOP8R TS2277ADFNWB3310LR TS2278AMSOP10R TS2278ASOP8R TS2278AMSOP8R TS2278ATSSOP8R TS2478ASOP14R TS2478ATSSOP14R Eco Plan RoHS RoHS RoHS RoHS RoHS RoHS RoHS RoHS RoHS RoHS RoHS Package AMP Shutdown SOT-23-5L SOP8 SOT-23-6L SOP8 DFNWB3×3-10L MSOP10 SOP8 MSOP8 TSSOP8 SOP14 TSSOP14 1 1 1 1 2 2 2 2 2 4 4 NO NO YES YES YES YES NO NO NO NO NO Container, Pack Qty Reel, 3000 Reel, 2500 Reel, 3000 Reel, 2500 Reel, 5000 Reel, 3000 Reel, 2500 Reel, 3000 Reel, 4000 Reel, 2500 Reel, 3000 ABSOLUTE MAXIMUM RATINGS Over operating free-air temperature range (unless otherwise noted) Parameter Min (1) Max Unit 7 V (V-) - 0.5 (V+) + 0.5 V -40 150 C 150 C 150 C 260 C ESD HBM ±3000 V ESD MM ±400 V ESC CDM ±1000 V Supply Voltage Signal Input Terminal voltage Operating Temperature Junction Temperature Storage Temperature Range Lead Temperature (Soldering, 10s) -65 (1) Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability. ESD CAUTION ESD (electrostatic discharge) sensitive device. Charged devices and circuit boards can discharge without detection. Although this product features patented or proprietary protection circuitry, damage may occur on devices subjects to high energy ESD. Therefore, proper ESD precautions should be taken to avoid performance degradation or loss of functionality. REV KY1.4.2A 2 www.trusignal.com TS2177A/TS2178A TS2277A/TS2278A TS2478A Trusignal Microelectronics ELECTRICAL CHARACTERISTICS: VS = +2.7V to +5.5V Boldface limits apply over the specified temperature range, TA = −40C to +125C. At TA = +25C, VS =5V, RL = 10kΩ connected to VS / 2, and VOUT = VS / 2 (unless otherwise noted) Parameter VS VIN +/- Operating Conditions Power Supply Voltage Input Voltage Range Differential Input Voltage Range IS Supply Current (Per Amplifer) PD Power Dissipation (Per Amplifer) PSRR Power Supply Rejection Ratio VIN+ - VIN- Min Typ Max Unit 2.7 5.5 V (V-) - 0.2 (V+) + 0.2 V -VS +VS V IO = 0 1.1 IO = 0, PD = VS * IS 5.5 VS = 2.7V to 5.5V, VCM < (V+) - 2V 30 1.65 mA mW TA = −40C to +125C 125 μV/V 150 μV/V Input Characteristics VOS Input Offset Voltage dVOS/dT Average Drift 3 μV/C IB Input Bias Current 1 pA IOS Input Offset Current 1 pA Differential Input Impedance 13 10 ||3 Ω||pF Common-mode Input Impedance 1013||3 Ω||pF RIN CMRR AOL Common Mode Rejection Ratio Open-Loop Gain VS = 5.5V VS = 5.5V 1 (V-) - 0.2V < VCM < (V+) - 2V 76 TA = −40C to +125C 68 (V−) − 0.2V < VCM < (V+) + 0.2V 62 TA = −40C to +125C 60 Vs = 5V, RL = 5kΩ (V-) + 0.125V < Vout < (V+) - 0.125V 96 TA = −40C to +125C 84 Vs = 5V, RL = 100kΩ (V-) + 25mV < Vout < (V+) - 25mV 93 TA = −40C to +125C 77 3.5 90 mV dB dB 78 dB dB 102 dB dB 98 dB dB Output Characteristics RL = 100kΩ VOUT Output Voltage Swing from Rail 18 25 mV 25 mV 100 125 mV 125 mV TA = −40C to +125C RL = 5kΩ TA = −40C to +125C IOUT Output Current ROUT Open-Loop Output Impedance See Typical Characteristics f = 1MHz, IO = 0mA 40 Ω Dynamic Performance GBW Gain Bandwidth Product SR Slew Rate tS 10 MHz G = +1 10 V/μs Settling Time to 0.1% VOUT = 2V step, G = +1 1 μs Settling Time to 0.01% VOUT = 2V step, G = +1 1.5 μs Vin * Gain > VS 0.2 μs VS = 5V, Vo = 3Vpp, G = +1, f = 1kHz TBD % Overload Recovery Time THD+N Total Harmonic Distortion+ Noise REV KY1.4.2A 3 www.trusignal.com TS2177A/TS2178A TS2277A/TS2278A TS2478A Trusignal Microelectronics ELECTRICAL CHARACTERISTICS: VS = +2.7V to +5.5V (CONTINUE) Boldface limits apply over the specified temperature range, TA = −40C to +125C. At TA = +25C, RL = 10kΩ connected to VS / 2, and VOUT = VS / 2 (unless otherwise noted) Parameter Operating Conditions Min Type Max Unit Noise Performance in Input Current Noise Density f = 10kHz 4 fA/√Hz en Input Voltage Noise Density f = 10kHz 15 nV/√Hz Vnoise Input Voltage Noise f = 0.1Hz to 10Hz 6 μVpp Temperature Range Specified Range −40 +125 ºC Operating Range -50 +150 ºC Storage Range -65 +150 ºC Thermal Resistance θJA SOT-23-5L, SOT-23-6L, MSOP8 200 ºC/W MSOP10, SOP8, TSSOP8 150 ºC/W SOP14, TSSOP14 100 ºC/W DFNWB3×3-10L 56 ºC/W REV KY1.4.2A 4 www.trusignal.com TS2177A/TS2178A TS2277A/TS2278A TS2478A Trusignal Microelectronics TYPICAL CHARACTERISTICS At TA = +25C, RL = 10kΩconnected to VS / 2, and VOUT = VS / 2 (unless otherwise noted) 100 90 80 70 60 50 40 30 20 10 0 Quiescent Current vs Supply Voltage 1.2 Quiescent Current (mA) PSRR and CMRR (dB) Power−Supply and Common−Mode Rejection Ratio vs Frequency CMRR PSRR 1 0.8 0.6 0.4 0.2 0 100 1K 10K 100K 1M 2.0 10M 2.5 3.0 4.5 5.0 5.5 Common-Mode Rejection Ration vs Temperature Open-Loop Gain and Power-Supply Rejection Ratio vs Temperature 110 100 105 95 VS = 5.5V AOL_5K 100 95 CMRR (dB) AOL, PSRR (dB) 4.0 Supply Voltage (V) Frequency (Hz) AOL_100K 90 VCM = -0.2V to 3.5V 90 85 80 VCM = -0.2V to 5.7V PSRR 85 75 80 70 -50 0 50 100 150 -50 0 50 100 150 Temperature (℃) Temperature (℃) Short-Circuit Current vs Temperature Continuous Short-Circuit Current vs Power-Supply Voltage 70 70.0 65 Short-Circuit Current (mA) Short-Circuit Current (mA) 3.5 ISC- 60 ISC+ 55 50 45 40 35 60.0 50.0 ISC- 40.0 ISC+ 30.0 20.0 10.0 0.0 30 -50 0 50 100 2.0 150 Temperature (℃) REV KY1.4.2A 2.5 3.0 3.5 4.0 4.5 5.0 5.5 Power-Supply Voltage (V) 5 www.trusignal.com TS2177A/TS2178A TS2277A/TS2278A TS2478A Trusignal Microelectronics TYPICAL CHARACTERISTICS (CONTINUE) At TA = +25C, RL = 10kΩconnected to VS / 2, and VOUT = VS / 2 (unless otherwise noted) Output Voltage Swing vs Output Current 0.1Hz to 10Hz Noise 4 -55℃ 2 150℃ 1 2 μV/div Output Voltage (V) 3 25℃ 0 -1 150℃ 25℃ -2 -55℃ -3 -4 0 10 20 30 40 50 Time (1s/div) Output Current (mA) Offset Voltage Drift Magnitude Production Distribution Population Population Offset Voltage Production Distribution -4 -3 -2 -1 0 1 2 3 4 0 1 2 3 4 5 6 7 8 9 10 Offset Voltage Drift (μV/℃) Small Signal Non-Inverting Pulse Response Large Signal Non-Inverting Pulse Response Output Voltage (1V/div) Offset Voltage (mV) Output Voltage (25mV/div) -5 VS = 5V G = +1V/V RL = 10kΩ CL = 100pF Time (1μs/div) REV KY1.4.2A VS = 5V G = +1V/V RL = 10kΩ CL = 100pF Time (1μs/div) 6 www.trusignal.com TS2177A/TS2178A TS2277A/TS2278A TS2478A Trusignal Microelectronics TYPICAL CHARACTERISTICS (CONTINUE) At TA = +25C, RL = 10kΩconnected to VS / 2, and VOUT = VS / 2 (unless otherwise noted) Open-Loop Gain and Phase vs Frequency Input Current vs Temperature 350 100 150 300 80 120 40 90 60 Gain 20 30 0 0 -20 pen-Loop Gain (dB) Phase 60 Input Current (pA) 180 Open-Loop Gain (dB) 120 250 1K 100K IBP 200 150 IBN 100 50 IOS 0 -30 10 VS = 5.0V VCM=2.5V -50 10M -25 25 50 75 100 125 Maximum Output Voltage Swing vs Frequency Quiescent Current vs Temperature 6 2.00 1.50 Maximum Output Voltage Swing (Vp-p) VS = 5.5V VCM = 2.5V 1.75 Quiescent(mA) 0 Temperature(℃) Frequency (Hz) 1.25 1.00 0.75 0.50 0.25 0.00 -50 -25 0 25 50 75 100 VS = 5.5V 4 VS = 2.5V 3 2 1 0 125 Temperature (℃) REV KY1.4.2A 5 10 100 1K 10K 100K 1M 10M Frequency (Hz) 7 www.trusignal.com TS2177A/TS2178A TS2277A/TS2278A TS2478A Trusignal Microelectronics APPLICATION NOTES The TS2177A and TS2178A families of op amps are suitable for a wide range of general-purpose applications. They provide Rail-to-rail input and output. Excellent ac performance makes them wellsuited for audio and sensor applications. The input common-mode voltage range includes both rails, allowing the TS2177A and TS2178A families op amps to be used in bipolar and unipolar application. Rail-to-rail input and output swing significantly increases dynamic range, especially in low-supply applications. Power-supply pins should be bypassed with 0.1F ceramic capacitors. configuration to capacitive loading. Direct capacitive loading reduces the phase margin of amplifiers and this result in ringing or even oscillation. Applications that require greater capacitive driving capability should use an isolation resistor between the output and the capacitive load like the circuit in Figure2. The isolation resistor RISO and the load capacitor CL form a zero to increase stability. The bigger the RISO resistor value, the more stable VOUT will be. Note that this method results in a loss of gain accuracy because RISO forms a voltage divider with the RLOAD. POWER SUPPLY The TS2177A and TS2178A families operate from a single +2.5V to +5.5V supply or dual ±1.25V to ±2.75V supplies. For single supply operation, bypass the power supply +VS with a 0.1μF capacitor which should be placed close to the +VS pin. For dualsupply operation, both the +VS and the -VS supplies should be bypassed to ground with separate 0.1μF ceramic capacitors. 2.2μF tantalum capacitor can be added for better performance. - Riso Vout Vin + CL Figure 2. Indirectly Driving Heavy Capacitive Load An improved circuit is shown in Figure 3. It provides DC accuracy as well as AC stability. Rf provides the DC accuracy by connecting the inverting signal with the output. Cf and RISO serve to counteract the loss of phase margin by feeding the high frequency component of the output signal back to the amplifier’s inverting input, thereby preserving phase margin in the overall feedback loop. The TS2177A and TS2178A families are ideal for battery-powered instrumentation and handheld devices because it can operate at the end of discharge voltage of most popular batteries. +VS 10uF Rf 0.1uF Cf Vin- Vin+ Riso Vout Vin Vout + 0.1uF CL RL 10uF Figure 3. Indirectly Driving Heavy Capacitive Load with DC Accuracy -VS Figure1. Amplifier with Bypass Capacitors For non-buffer configuration, there are two other ways to increase the phase margin: (a) by increasing the amplifier’s gain or (b) by placing a capacitor in parallel with the feedback resistor to counteract the parasitic capacitance associated with inverting node. DRIVING CAPACITIVE LOADS The TS2177A and TS2178A families can directly drive 1000pF in unity-gain without oscillation. The unity-gain follower (buffer) is the most sensitive REV KY1.4.2A 8 www.trusignal.com TS2177A/TS2178A TS2277A/TS2278A TS2478A Trusignal Microelectronics TYPICAL APPLICATIONS Instrumentation Amplifier Differen ce Amplifier R2 R2 R1 Vin1 V- R1 Vout Vin2 VOUT R3 V+ R4 R3 R4 Vref Vref Figure 4. Differential Amplifier Figure 6. Instrumentation Amplifier The circuit shown in Figure 4 performs the difference function. If the resistor ratios are equal (R4 / R3 = R2 / R1) then Vout = (Vin2 – Vin1) × R2 / R1 + Vref. The circuit in Figure 6 performs the same function as that in Figure 4 but with the high input impedance. Low Pass Active Filter C R2 R1 Vout Vin R3 Figure 5. Low Pass Active Filter The low pass filter shown in Figure 5 has a DC gain of (-R2 / R1) and the –3dB corner frequency is 1/2πR2C. Make sure the filter within the bandwidth of the amplifier. The Large values of feedback resistors can couple with parasitic capacitance and cause undesired effects such as ringing or oscillation in high-speed amplifiers. Keep resistors value as low as possible and consistent with output loading consideration. REV KY1.4.2A 9 www.trusignal.com TS2177A/TS2178A TS2277A/TS2278A TS2478A Trusignal Microelectronics MECHANICAL DIMENSIONS SOT-23-5L PACKAGE MECHANICAL DRAWING θ SOT-23-5L PACKAGE MECHANICAL DATA dimensions symbol millimeters min max min max A 2.650 2.950 0.104 0.116 A1 1.500 1.700 0.059 0.067 B 2.820 3.020 0.111 0.119 B1 B2 0.95 0.300 C REV KY1.4.2A inches 0.037 0.500 0.012 1.250 0.020 0.049 C1 0 0.100 0 0.004 L 0.300 0.600 0.012 0.024 D 0.100 0.200 0.004 0.008 θ 0o 8o 0o 8o 10 www.trusignal.com TS2177A/TS2178A TS2277A/TS2278A TS2478A Trusignal Microelectronics SOP8 PACKAGE MECHANICAL DRAWING θ SOP8 PACKAGE MECHANICAL DATA dimensions symbol millimeters min max min max A 5.800 6.200 0.228 0.244 A1 3.800 4.000 0.150 0.157 B 4.700 5.100 0.185 0.201 0.510 0.013 B1 B2 1.270 0.330 C REV KY1.4.2A inches 0.050 1.750 0.020 0.069 C1 0.100 0.250 0.004 0.010 L 0.400 1.270 0.016 0.050 D 0.170 0.250 0.007 0.010 θ 0o 8o 0o 8o 11 www.trusignal.com TS2177A/TS2178A TS2277A/TS2278A TS2478A Trusignal Microelectronics SOT-23-6L PACKAGE MECHANICAL DRAWING θ SOT-23-6L PACKAGE MECHANICAL DATA dimensions symbol millimeters min max min max A 2.650 2.950 0.104 0.116 A1 1. 500 1.700 0.059 0.067 B 2.820 3.020 0.111 0.119 B1 B2 0.950 0.300 C REV KY1.4.2A inches 0.037 0.500 0.012 1.250 0.020 0.049 C1 0 0.100 0 0.004 L 0.300 0.600 0.012 0.024 D 0.100 0.200 0.004 0.008 θ 0o 8o 0o 8o 12 www.trusignal.com TS2177A/TS2178A TS2277A/TS2278A TS2478A Trusignal Microelectronics DFNWB3×3-10L PACKAGE MECHANICAL DRAWING DFNWB3×3-10L PACKAGE MECHANICAL DATA dimensions symbol A millimeters min max min max 2.924 3.076 0.115 0.121 A1 0.500 0.020 A2 0.200 0.300 A3 1.550 1.750 0.061 0.069 B 2.924 3.076 0.115 0.121 B1 0.500 0.020 B2 0.200 0.300 0.008 0.012 C 0.700 0.900 0.028 0.035 C1 0.000 0.050 0.000 0.002 L 0.324 0.476 0.013 0.019 D REV KY1.4.2A inches 0.203 0.008 13 www.trusignal.com TS2177A/TS2178A TS2277A/TS2278A TS2478A Trusignal Microelectronics MSOP10 PACKAGE MECHANICAL DRAWING θ MSOP10 PACKAGE MECHANICAL DATA dimensions symbol millimeters min max min max A 4.750 5.050 0.187 0.199 A1 2.900 3.100 0.114 0.122 B 2.900 3.100 0.114 0.122 B2 B1 0.500 0.180 C REV KY1.4.2A inches 0.020 0.280 0.007 1.100 0.011 0.043 C1 0.020 0.150 0.001 0.006 L 0.400 0.800 0.016 0.031 D 0.090 0.230 0.004 0.009 θ 0o 6o 0o 6o 14 www.trusignal.com TS2177A/TS2178A TS2277A/TS2278A TS2478A Trusignal Microelectronics MSOP8 PACKAGE MECHANICAL DRAWING θ MSOP8 PACKAGE MECHANICAL DATA dimensions symbol millimeters min max min max A 4.750 5.050 0.187 0.199 A1 2.900 3.100 0.114 0.122 B 2.900 3.100 0.114 0.122 B1 REV KY1.4.2A inches 0.650 0.026 B2 0.250 0.380 0.010 0.015 C 0.820 1.100 0.032 0.043 C2 0.020 0.150 0.001 0.006 L 0.400 0.800 0.016 0.031 D 0.090 0.230 0.004 0.009 θ 0o 6o 0o 6o 15 www.trusignal.com TS2177A/TS2178A TS2277A/TS2278A TS2478A Trusignal Microelectronics TSSOP8 PACKAGE MECHANICAL DRAWING e A E E1 b A2 A C θ DETALL A L D H A1 TSSOP8 PACKAGE MECHANICAL DATA dimensions symbol millimeters min max min max D 2.900 3.100 0.114 0.122 E 4.300 4.500 0.169 0.177 b 0.190 0.300 0.007 0.012 c 0.090 0.200 0.004 0.008 E1 6.250 6.550 0.246 0.258 A 1.200 0.047 A2 0.800 1.000 0.031 0.039 A1 0.050 0.150 0.002 0.006 e L 0.650 0.500 H θ REV KY1.4.2A inches 0.026 0.700 0.020 7o 1o 0.250 1o 0.028 0.010 16 7o www.trusignal.com TS2177A/TS2178A TS2277A/TS2278A TS2478A Trusignal Microelectronics SOP14 PACKAGE MECHANICAL DRAWING θ SOP14 PACKAGE MECHANICAL DATA dimensions symbol millimeters min max min max A 5.800 6.200 0.228 0.244 A1 3.800 4.000 0.150 0.157 B 8.450 8.850 0.333 0.348 B1 B2 1.270 0.310 C REV KY1.4.2A inches 0.050 0.510 0.012 1.750 0.020 0.069 C1 0.100 0.250 0.004 0.010 L 0.400 1.270 0.016 0.050 D 0.100 0.250 0.004 0. 010 θ 0o 8o 0o 8o 17 www.trusignal.com TS2177A/TS2178A TS2277A/TS2278A TS2478A Trusignal Microelectronics TSSOP14 PACKAGE MECHANICAL DRAWING θ TSSOP14 PACKAGE MECHANICAL DATA dimensions symbol millimeters min max min max A 6.250 6.550 0.246 0.258 A1 4.300 4.500 0.169 0.177 B 4.900 5.100 0.193 0.201 B1 B2 0.650 0.190 C REV KY1.4.2A inches 0.026 0.300 0.007 1.200 0.012 0.047 C1 0.050 0.150 0.002 0.006 L 0.500 0.700 0.020 0.028 D 0.090 0.200 0.004 0.008 θ 1o 7o 1o 7o 18 www.trusignal.com TS2177A/TS2178A TS2277A/TS2278A TS2478A Trusignal Microelectronics TAPE AND REEL INFORMATION Device Package Type Pins SPQ Reel Diameter (mm) Reel Width W1 (mm) A0 (mm) B0 (mm) K0 (mm) P1 (mm) TS2178ASOT235LR SOT-23-5L 5 3000 TS2178ASOP8R SOP8 8 2500 180.0 9.0 3.2 3.3 1.4 330.0 12.4 6.4 5.4 2.1 TS2177ASOT236LR SOT-23-6L 6 3000 180.0 9.0 3.2 3.3 W (mm) Pin1 Quadrant 4.0 8.0 Q3 8.0 12.0 Q1 1.4 4.0 8.0 Q3 TS2177ASOP8R SOP8 8 2500 330.0 12.4 6.4 5.4 2.1 8.0 12.0 Q1 TS2277ADFNWB3310LR DFNWB3×3-10L 10 5000 330.0 12.4 6.4 5.4 2.1 8.0 12.0 Q1 TS2277AMSOP10R MSOP10 10 3000 330.0 12.4 5.2 3.3 1.5 8.0 12.0 Q1 TS2278ASOP8R SOP8 8 2500 330.0 12.4 6.4 5.4 2.1 8.0 12.0 Q1 TS2278AMSOP8R MSOP8 8 3000 330.0 12.4 5.2 3.3 1.5 8.0 12.0 Q1 TS2278ATSSOP8R TSSOP8 8 4000 330.0 12.4 6.4 5.4 2.1 8.0 12.0 Q1 TS2478ASOP14R SOP14 14 2500 330.0 12.4 6.5 9.0 2.1 8.0 16.0 Q1 TS2478ATSSOP14R TSSOP14 14 3000 330.0 12.4 6.8 5.4 1.2 8.0 12.0 Q1 REV KY1.4.2A 19 www.trusignal.com TS2177A/TS2178A TS2277A/TS2278A TS2478A Trusignal Microelectronics REVISION HISTORY NOTE: Page numbers for previous revisions may be different from that of the current version. 2020/7/9 — REV KY1.0.1A to REV KY1.0.2A Added notice to ABSOLUTE MAXIMUM RATINGS…………..……………….…………..…………..…….……..…2 Updated the format of ELECTRICAL CHARACTERISTICS ………………………………………………………….3 2020/11/19 — REV KY1.0.2A to REV KY1.1.2A Updated AOL and VOS …………………………………………………………………………………………………….3 2021/07/07 — REV KY1.1.2A to REV KY1.2.2A Updated the data of ELECTRICAL CHARACTERISTICS …………………………………………………………….3 2021/07/13 — REV KY1.2.2A to REV KY1.3.2A Updated MSOP10 and TSSOP14 SPQ……………………………………………………………………………..2,18 2022/10/21 — REV KY1.3.2A to REV KY1.4.2A Add input bias current vs temperature…………………………………………………………………………………..7 REV KY1.4.2A 20 www.trusignal.com TS2177A/TS2178A TS2277A/TS2278A TS2478A Trusignal Microelectronics CONTACT INFORMATION Trusignal Microelectronics Phone: +86 512-65923982 Fax: +86 512-65923995 Email: support@kunyuanic.com; sales@kunyuanic.com REV KY1.4.2A 21 www.trusignal.com
