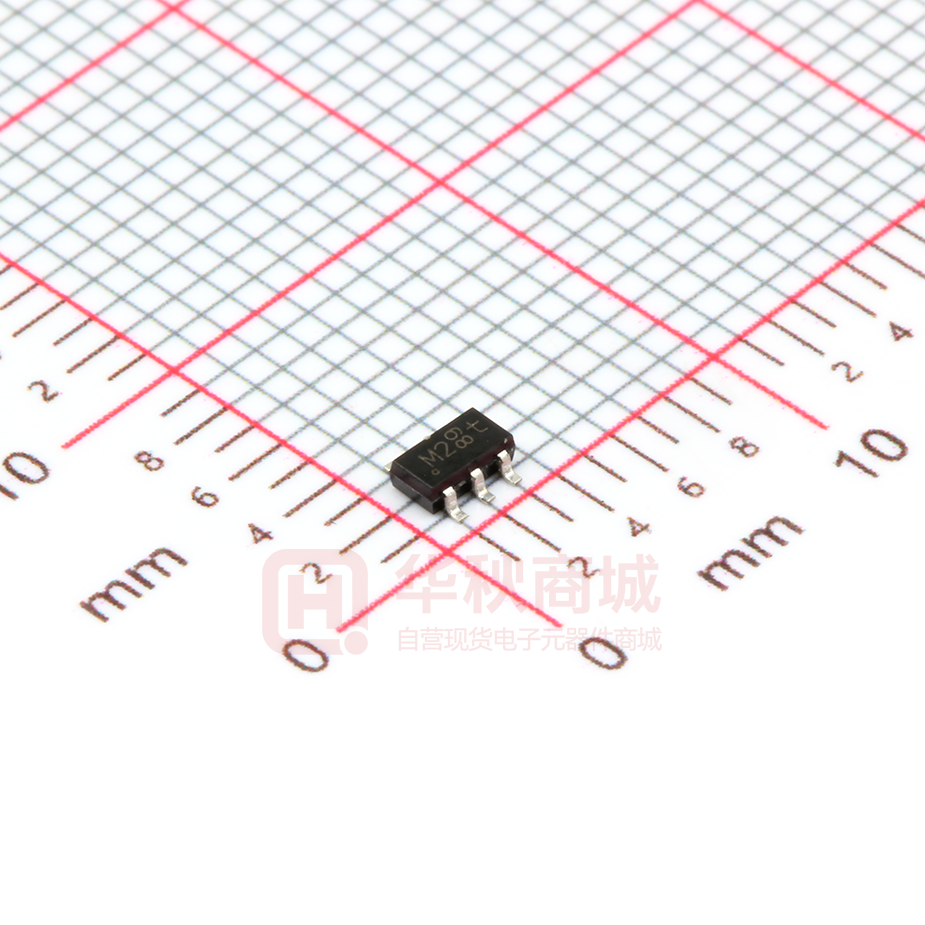

PBSS4140DPN,115

Important notice Dear Customer, On 7 February 2017 the former NXP Standard Product business became a new company with the tradename Nexperia. Nexperia is an industry leading supplier of Discrete, Logic and PowerMOS semiconductors with its focus on the automotive, industrial, computing, consumer and wearable application markets In data sheets and application notes which still contain NXP or Philips Semiconductors references, use the references to Nexperia, as shown below. Instead of http://www.nxp.com, http://www.philips.com/ or http://www.semiconductors.philips.com/, use http://www.nexperia.com Instead of sales.addresses@www.nxp.com or sales.addresses@www.semiconductors.philips.com, use salesaddresses@nexperia.com (email) Replace the copyright notice at the bottom of each page or elsewhere in the document, depending on the version, as shown below: - © NXP N.V. (year). All rights reserved or © Koninklijke Philips Electronics N.V. (year). All rights reserved Should be replaced with: - © Nexperia B.V. (year). All rights reserved. If you have any questions related to the data sheet, please contact our nearest sales office via e-mail or telephone (details via salesaddresses@nexperia.com). Thank you for your cooperation and understanding, Kind regards, Team Nexperia DISCRETE SEMICONDUCTORS DATA SHEET dbook, halfpage M3D302 PBSS4140DPN 40 V low VCEsat NPN/PNP transistor Product data sheet 2001 Dec 13 NXP Semiconductors Product data sheet 40 V low VCEsat NPN/PNP transistor FEATURES PBSS4140DPN QUICK REFERENCE DATA • 600 mW total power dissipation SYMBOL • Low collector-emitter saturation voltage PARAMETER MAX. UNIT VCEO collector-emitter voltage 40 V IC peak collector current 1 A • Improved device reliability due to reduced heat generation ICM peak collector current 2 A • Replaces two SOT23 packaged low VCEsat transistors on same PCB area TR1 NPN − − TR2 PNP − − RCEsat equivalent on-resistance
