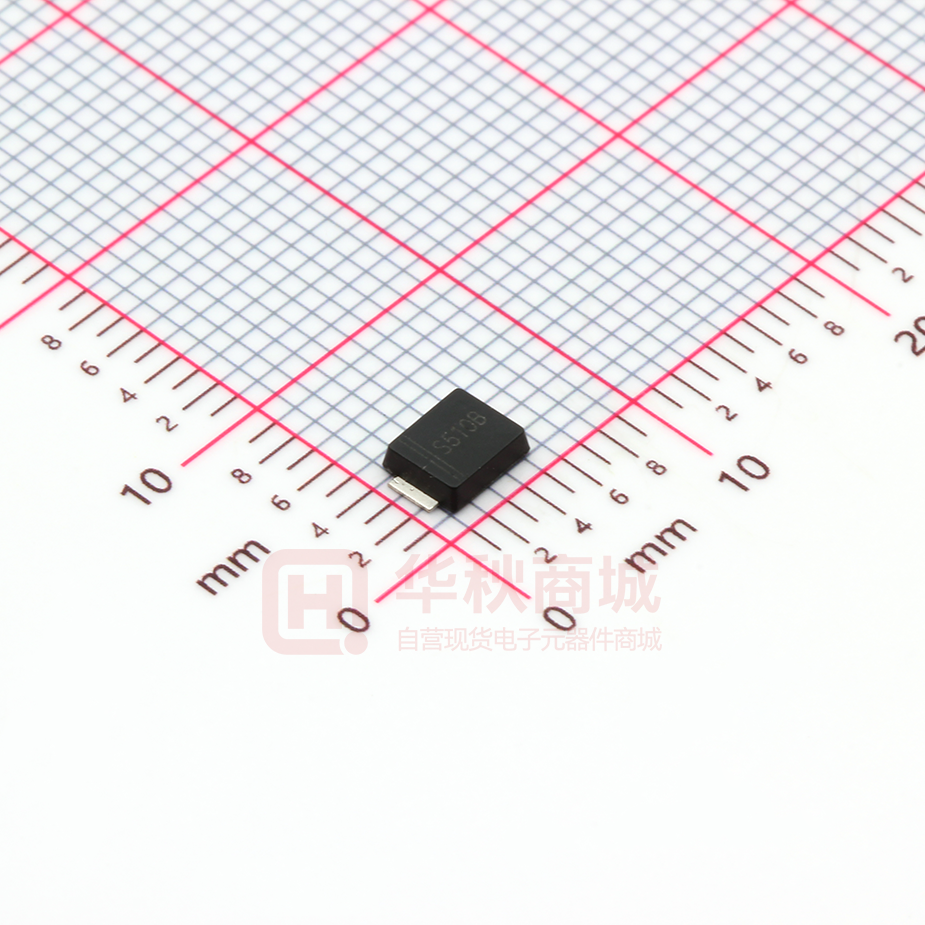

SS510BF

Surface Mount Schottky Barrier Rectifier Reverse Voltage - 20 to 200V Forward Current - 5.0A FEATURES • Metal silicon junction, majority carrier conduction • For surface mounted applications • Low power loss, high efficiency • High forward surge current capability • For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications MECHANICAL DATA • Case: SMBF 750, Method 2026 • Terminals: Solderable per MIL-STD-750, • Approx. Weight: 57mg / 0.002oz Absolute Maximum Ratings and Electrical characteristics Ratings at 25℃ ambient temperature unless otherwise specified.Single phase, half wave, 60Hz resistive or inductive load,for capacitive load, derate by 20 % 1） Measured at 1MHz and applied reverse voltage of 4 V D.C. 2） P.C.B. mounted with 0.5 X 0.5" (12.7 X 12.7 mm) copper pad areas. 1 of 3 2 of 3 PACKAGE OUTLINE Plastic surface mounted package; 2 leads SMBF 3 of 3
