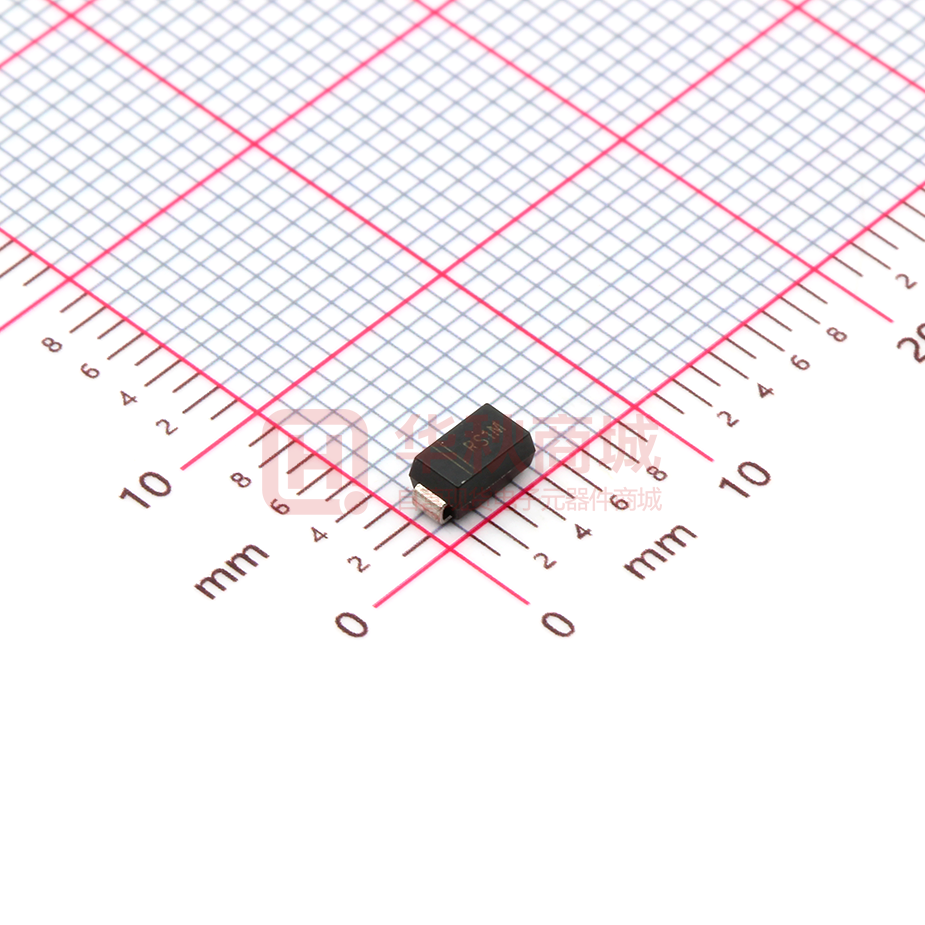

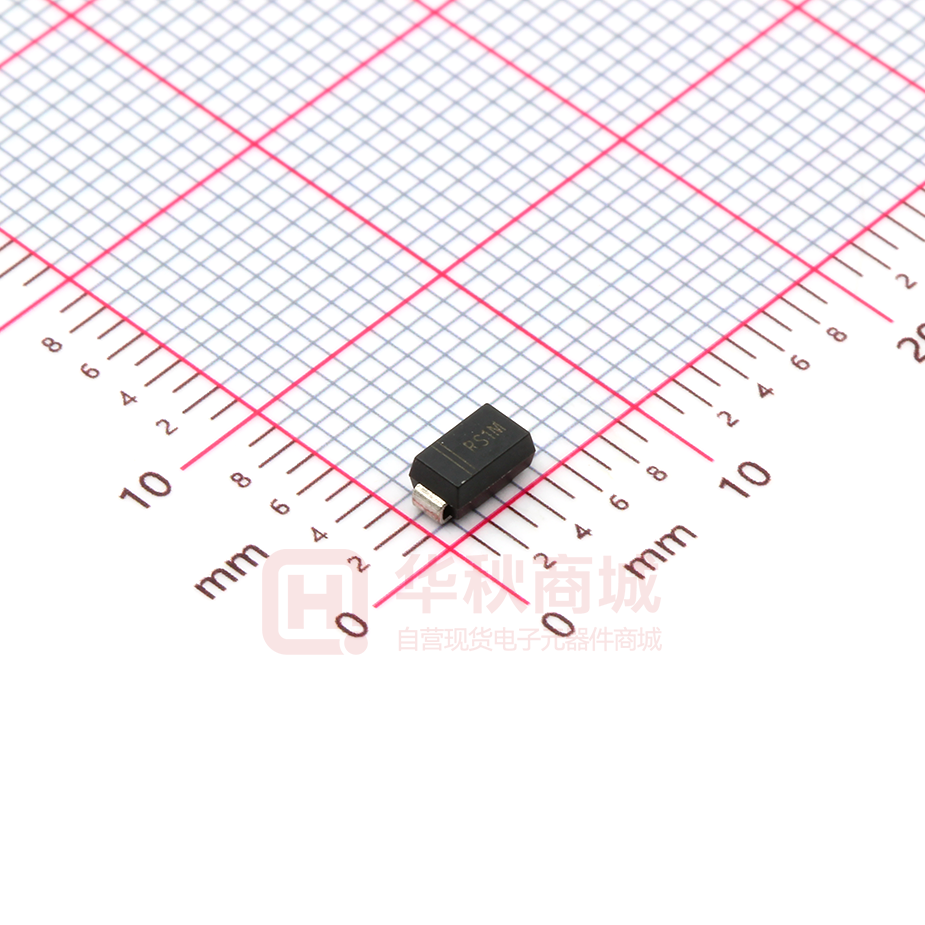

RS1MG

RS1AG THRU RS1MG Surface Mount Fast Recovery Rectifiers PINNING Reverse Voltage - 50 to 1000 V PIN Forward Current - 1 A FEATURES • For surface mounted applications • Low profile package • Glass Passivated Chip Junction • Easy to pick and place • Fast reverse recovery time • Lead free in comply with EU RoHS 2011/65/EU directives DESCRIPTION 1 Cathode 2 Anode 1 2 Top View Marking Code: RS1A~RS1M Simplified outline SMA and symbol MECHANICAL DATA • Case: SMA • Terminals: Solderable per MIL-STD-750, Method 2026 • A pprox. Weight: 0.055g / 0.002oz Absolute Maximum Ratings and Characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. Symbols RS1AG RS1BG RS1DG RS1GG RS1JG RS1KG Maximum Repetitive Peak Reverse Voltage V RRM 50 100 200 400 600 800 1000 V Maximum RMS voltage V RMS 35 70 140 280 420 560 700 V Maximum DC Blocking Voltage V DC 50 100 200 400 600 800 1000 V Maximum Average Forward Rectified Current at T c = 125 °C I F(AV) 1 A Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load I FSM 30 A Maximum Forward Voltage at 1 A VF 1.3 V IR 5 50 μA Cj 15 pF Parameter Maximum DC Reverse Current T a = 25 °C at Rated DC Blocking Voltage T a =125 °C Typical Junction Capacitance at V R =4V, f=1MHz Maximum Reverse Recovery Time （1） Typical Thermal Resistance （2） Operating and Storage Temperature Range （1）Measured with I F = 0.5 A, I R = 1 A, I rr = 0.25 A . t rr 150 250 RS1MG Units 500 ns RθJA 75 °C/W T j , T stg -55 ~ +150 °C （2）P.C.B. mounted with 1.0 X 1.0" (2.54 X 2.54 cm) copper pad areas. 1 of 3 RS1AG THRU RS1MG Fig.2 Typical Reverse Characteristics Instaneous Reverse Current（μ A） Average Forward Current (A) Fig.1 Forward Current Derating Curve 1.2 1.0 0.8 0.6 0.4 0.2 Single phase half-wave 60 Hz resistive or inductive load 0.0 25 50 75 100 125 150 175 100 T J =125°C 10 1.0 T J =25°C 0.1 00 T J =25°C 1.0 0.1 pulse with 300μs 1% duty cycle 0.01 0.0 1.0 1.5 2.0 2.5 Peak Forward Surage Current (A) 100 120 140 T J =25°C 10 30 25 20 15 10 8.3 ms Single Half Sine Wave (JEDEC Method) 10 1.0 10 Reverse Voltage (V) 35 1 80 100 0.1 Fig.5 Maximum Non-Repetitive Peak Forward Surage Current 00 60 1 0.5 Instaneous Forward Voltage (V) 05 40 Fig.4 Typical Junction Capacitance Junction Capacitance ( pF) Instaneous Forward Current (A) Fig.3 Typical Instaneous Forward Characteristics 10 20 percent of Rated Peak Reverse Voltage (%) Case Temperature (°C) 100 Number of Cycles 2 of 3 100 RS1AG THRU RS1MG PACKAGE OUTLINE Plastic surface mounted package; 2 leads A A SMA c a VM e A HE g e E A D E HE c e g max 2.2 4.5 2.7 5.2 0.31 1.6 1.5 min 1.9 4.0 2.3 4.7 0.15 1.3 0.9 max 87 181 106 205 12 63 59 min 75 157 91 185 6 51 35 UNIT mm mil The recommended mounting pad size 2.4 (94) a 0.3 12 Marking Type number Marking code RS1AG RS1A 1.8 (71) 1.8 (71) 1.8 (71) g e A D mm Unit ： (mil) 3 of 3 RS1BG RS1B RS1DG RS1D RS1GG RS1G RS1JG RS1J RS1KG RS1K RS1MG RS1M
