Plastic-Encapsulate Transistors
FEATURES
2SA733 (PNP)
Collector-Base Voltage
Complement to 2SC945

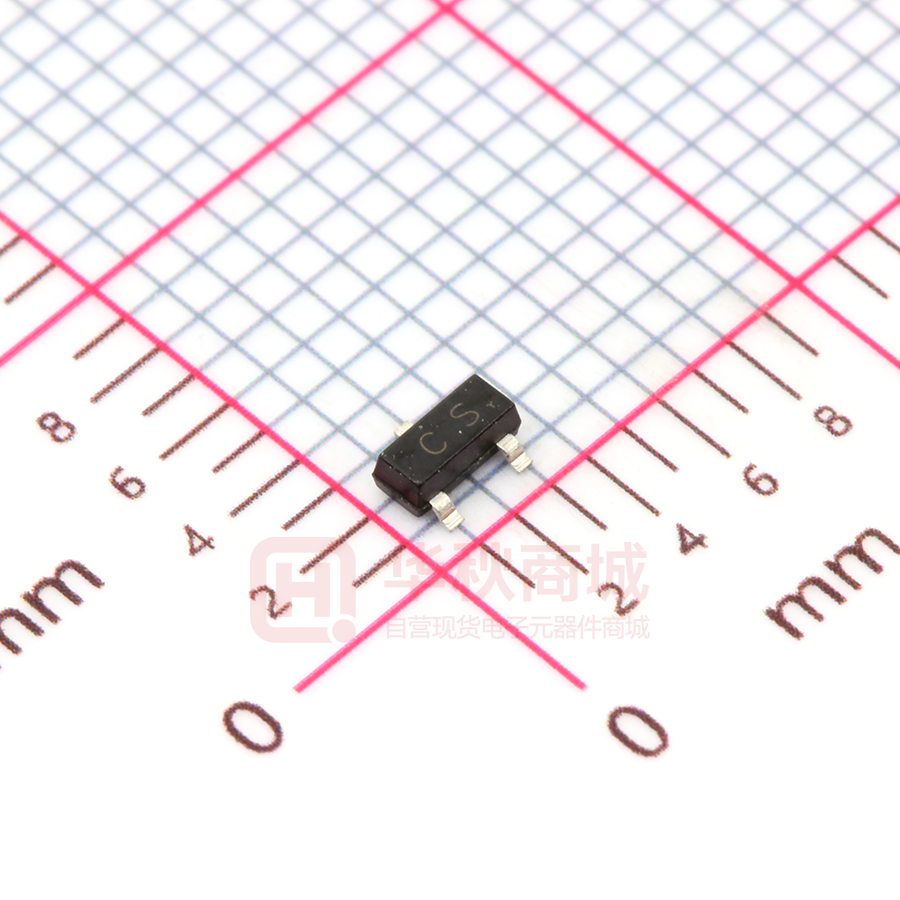

MARKING: CS
MAXIMUM RATINGS (TA=25
unless otherwise noted)
Parameter
Symbol
Value
Unit
Collector-Base Voltage
VCBO
-60
V
Collector-Emitter Voltage
VCEO
-50
V
Emitter-Base Voltage
VEBO
-5
V
Collector Current -Continuous
IC
-0.15
A
Collector Power Dissipation
PC
0.2
W
Junction Temperature
TJ
150
Storage Temperature
Tstg
-55 to +150
ELECTRICAL CHARACTERISTICS (Tamb=25
Parameter
1. BASE
3. COLLECTO
unless otherwise specified)
Symbol
Test
conditions
Collector-base breakdown voltage
VCBO
IC= -5uA,IE=0
Collector-emitter breakdown voltage
VCEO
IC= -1mA ,
Emitter-base breakdown voltage
VEBO
IE= -50uA, IC=0
Collector cut-off current
ICBO
VCB= -60 V ,
Emitter cut-off current
IEBO
VEB= -5 V ,
DC current gain
hFE
VCE= -6 V, IC= -1mA
Collector-emitter saturation voltage
SOT-23
2. EMITTER
VCE(sat)
IB=0
Min
Typ
Max
Unit
-60
V
-50
V
-5
V
IE=0
IC=0
120
VBE(on)
VCE=-6V,IC=-1.0mA
-0.58
Transition frequency
fT
VCE=-6V,IC=-10mA
50
Collector output capacitance
Cob
VCB=-10V,IE=0,f=1MHZ
Noise figure
NF
VCE=-6V,IC=-0.3mA,
Rg=10kΩ,f=100HZ
uA
-0.1
uA
475
IC= -100mA, IB=- 10mA
Base-emitter voltage
-0.1
-0.18
-0.3
V
-0.62
-0.68
V
MHz
4.5
7
pF
6
20
dB
CLASSIFICATIONOF hFE
Rank
L
H
Range
120-220
220-475
GUANGDONG HOTTECH
INDUSTRIAL CO., LTD
Page:P2-P1
Plastic-Encapsulate Transistors
2SA733 Typical
Characteristics
GUANGDONG HOTTECH
INDUSTRIAL CO., LTD
Page:P2-P2
