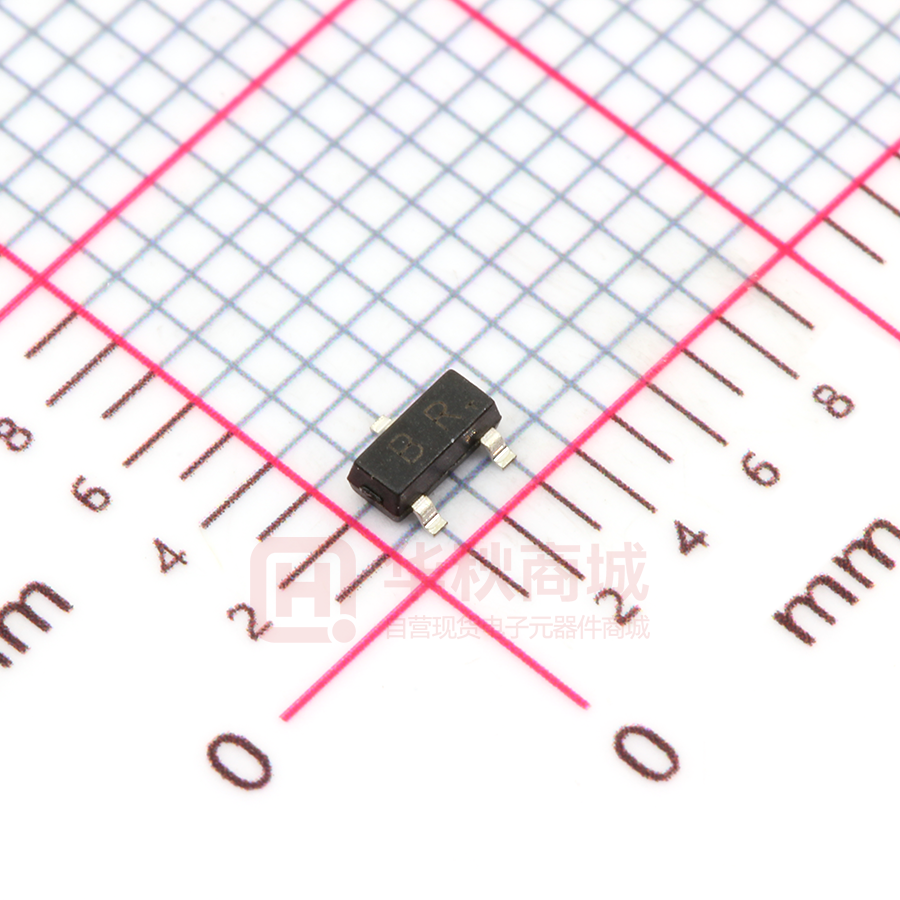

2SC2412

Plastic-Encapsulate Transistors FEATURES 2SC2412 (NPN) Low Cob ,Cob = 2.0 pF (Typ). MARKING : BQ, BR, BS MAXIMUM RATINGS (Ta=25℃ unless otherwise noted) 1. BASE Symbol Parameter Value Unit VCBO Collector-Base Voltage 60 V VCEO Collector-Emitter Voltage 50 V VEBO Emitter-Base Voltage 7 V IC Collector Current -Continuous 150 mA PC Collector Power Dissipation 200 mW TJ Junction Temperature 150 ℃ Tstg Storage Temperature -55-150 ℃ SOT-23 2. EMITTER 3. COLLECTO ELECTRICAL CHARACTERISTICS (Ta=25℃ unless otherwise specified) Parameter Symbol Test conditions Min Typ Max Unit Collector-base breakdown voltage V(BR)CBO IC=50μA,IE=0 60 V Collector-emitter breakdown voltage V(BR)CEO IC=1mA,IB=0 50 V Emitter-base breakdown voltage V(BR)EBO IE=50μA,IC=0 7 V Collector cut-off current ICBO VCB=60V,IE=0 0.1 μA Emitter cut-off current IEBO VEB=7V,IC=0 0.1 μA DC current gain hFE VCE=6V,IC=1mA Collector-emitter saturation voltage Transition frequency Collector output capacitance VCE(sat) fT Cob 120 560 IC=50mA,IB=5mA 0.4 VCE=12V,IC=-2mA,f=100MHz 160 VCB=12V,IE=0,f=1MHz 2.0 V MHz 3.5 pF CLASSIFICATION OF hFE Rank Range Marking Q R S 120 - 270 180 - 390 270 - 560 BQ BR BS GUANGDONG HOTTECH INDUSTRIAL CO., LTD Page:P2-P1 Plastic-Encapsulate Transistors 2SC2412 Typical VCE Characteristics —— 5 IC hFE 20uA 16uA Ta=25℃ DC CURRENT GAIN COLLECTOR CURRENT IC 14uA 12uA 3 IC Ta=100℃ hFE (mA) 18uA 4 —— 500 COMMON EMITTER Ta=25℃ 10uA 8uA 2 6uA 100 4uA 1 COMMON EMITTER VCE= 6V IB=2uA 0 0 4 8 12 16 COLLECTOR-EMITTER VOLTAGE VCEsat —— 10 0.1 20 IC BASE-EMITTER SATURATION VOLTAGE VBEsat (mV) COLLECTOR-EMITTER SATURATION VOLTAGE VCEsat (mV) 100 Ta=100 ℃ Ta=25℃ COLLECTOR CURREMT IC —— IC 100 150 (mA) IC 800 Ta=25℃ 600 Ta=100 ℃ 400 0.1 100 150 10 IC β=10 β=10 1 10 VBEsat —— 1000 300 10 0.1 1 COLLECTOR CURRENT VCE (V) 1 10 COLLECTOR CURREMT (mA) VBE 150 fT 300 —— 100 150 IC (mA) IC (MHz) fT T =2 5℃ a 10 TRANSITION FREQUENCY 100 T =1 00℃ a BASE-EMMITER VOLTAGE VBE (mV) 100 COMMON EMITTER VCE=6V 1 0 300 600 900 COLLECTOR CURRENT Cob/Cib 50 —— IC COMMON EMITTER VCE=12V Ta=25℃ 10 0.5 1200 1 10 (mA) 100 COLLECTOR CURRENT VCB/VEB PC 250 —— IC (mA) Ta f=1MHz IE=0/IC=0 COLLECTOR POWER DISSIPATION PC (mW) Cib 10 CAPACITANCE C (pF) Ta=25 ℃ Cob 1 0.1 1 REVERSE VOLTAGE 10 V 20 (V) GUANGDONG HOTTECH 200 150 100 50 0 0 25 50 75 AMBIENT TEMPERATURE INDUSTRIAL CO., LTD 100 Ta 125 150 (℃ ) Page:P2-P2
