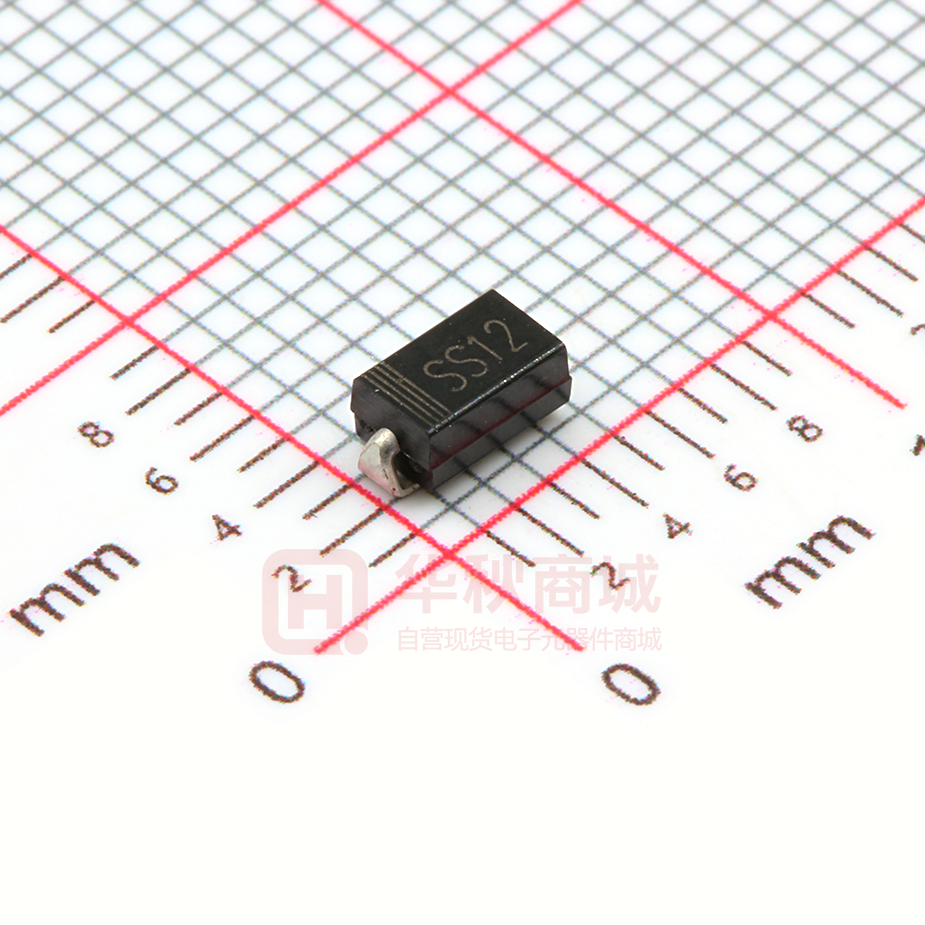

SS12

Plastic-Encapsulate Diodes SCHOTTKY DIODES FEATURES SS12---SS1200 Plastic package has Underwriters Laboratory Flammability Classification 94V-0 For surface mounted applications 0 32 52 Metal silicon junction, majority carrier conduction 4.50 7 Built-in strain relief, ideal for automated placement Low power loss, high efficiency. High forward surge current capability MECHANICAL DATA SMA (DO-214AC) molded plastic body DO-214AC (SMA) leads solderable per MIL-STD-750, Method 2026 color band denotes cathode end MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25OC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. MDD Catalog Number Maximum repetitive peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward rectified current at TL(see fig.1) Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) Maximum instantaneous forward voltage at 1.0A Maximum DC reverse current TA=25 C at rated DC blocking voltage TA=100 C Typical junction capacitance (NOTE 1) Typical thermal resistance (NOTE 2) Operating junction temperature range Storage temperature range SYMBOLS SS12 SS13 SS14 VRRM VRMS VDC 20 14 20 30 21 30 SS15 SS16 50 35 50 60 42 60 40 28 40 SS18 SS110 SS1150 SS1200 80 56 80 100 70 100 150 105 150 200 140 200 UNITS VOLTS VOLTS VOLTS I(AV) 1.0 Amp IFSM 30.0 Amps VF 0.45 0.5 10.0 IR CJ RθJA TJ, TSTG 0.70 0.55 0.85 5.0 90 110 88.0 -50 to +125 -50 to +150 -50 to +150 0.95 0.2 2.0 Volts mA pF C/W C C Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2.P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas GUANGDONG HOTTECH INDUSTRIAL CO., LTD Page:P2-P1 Plastic-Encapsulate Diodes SS12---SS1200 Typical Characteristics FIG.1-FORWARD CURRENT DERATING CURVE Fig.2- MAXIMUM NON-REPETITIVE PEAK FORWARD SURGE CURRENT 40 PEAK FORWARD SURGE CURRENT, A AVERAGE FORWARD RECTIFIED CURRENT, A 1.0 SS12-SS14 0.8 SS15-SS110 0.6 0.4 0.2 Single phase, half wave 60Hz, resistive or inductive load 32 24 16 8 8.3ms SINGLE HALF SINE-WAVE (JEDEC Method) 0 0 25 75 50 0 100 125 150 175 1 NUMBER OF CYCLES AT 60 Hz AMBIENT TEMPERATURE, ( C) Fig.3-TYPICAL INSTANTANEOUS FORWARD CHARACTERISTICS Fig.4- TYPICAL REVERSE CHARACTERISTICS Tj=25o C 1000 INSTANTANEOUS REVERSE CURRENT, MILLAMPERES INSTANTANEOUS FORWARD CURRENT, A 50 100 10 10 1 0.1 100 TJ =100 oC 10 o TJ =75 C 1.0 0 o TJ =25 C 0.01 0 SS12-SS14 20 40 60 80 100 SS15-SS16 SS18-SS110 PERCENT OF RATED PEAK REVERSE VOLTAGE,% 0.01 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 INSTANTANEOUS FORWARD VOLTAGE, V Fig.5- TYPICAL JUNCTION CAPACITANCE Fig.6- TYPICAL TRANSIENT THERMAL IMPEDANCE Tj=25 C 200 100 TRANSIENT THERMAL IMPEDANCE, C/W JUNCTION CAPACITANCE,pF 400 SS12-SS14 SS15-SS110 20 10 1 2 0.1 1 10 100 0.1 0.01 0.1 1 10 100 REVERSE VOLTAGE, V PULSE DURATION, sec. GUANGDONG HOTTECH INDUSTRIAL CO., LTD Page:P2-P2
