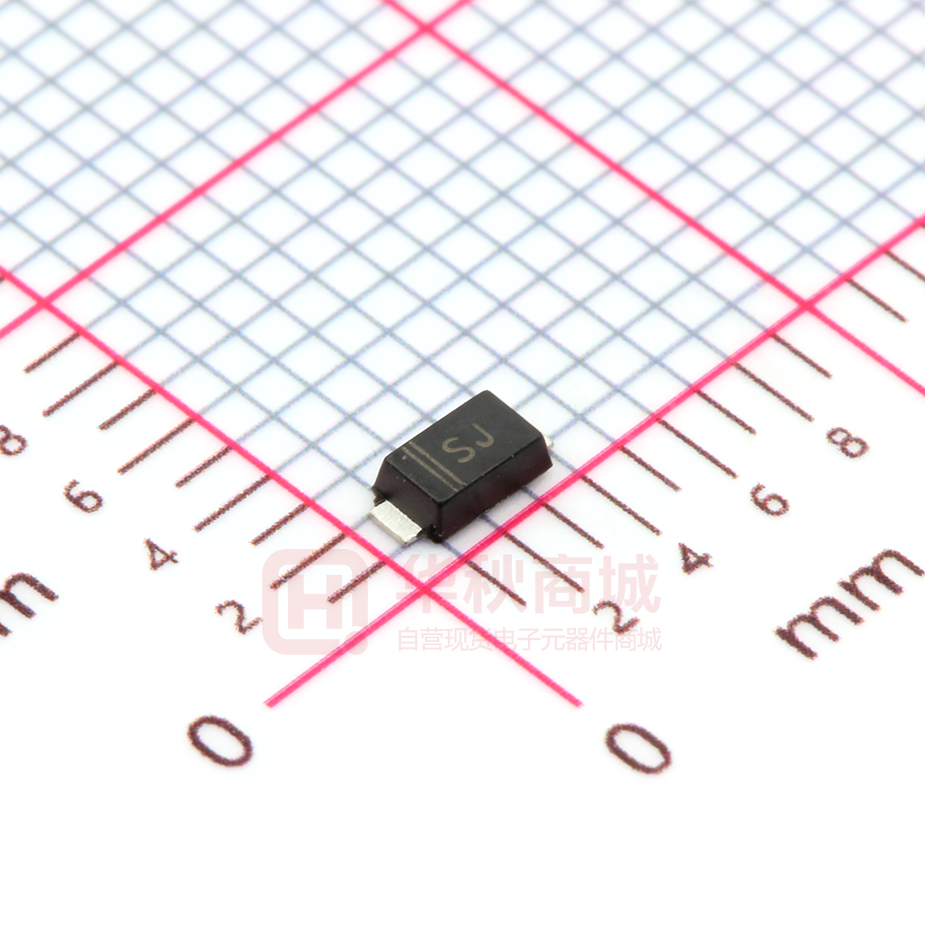

B5817WL

SCHOTTKY BARRIER RECTIFIERS Features • Metal silicon junction, majority carrier conduction • Guarding for overvoltage protection • Low power loss, high efficiency • High current capability • low forward voltage drop • High surge capability • For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. 1 of 4 2 of 4 PACKAGE OUTLINE Plastic surface mounted package; 2 leads SOD123FL Marking Type number marking code B5817WL SJ B5818WL SK B5819WL SL 3 of 4 Recommended peak temperature is over 245 °C. C. If peak temperature is below 245 °C, you may adjust the following parameters; time length of peak temperature (longer), time length of soldering (longer), • Condition of hand soldering Temperature: 320°C Time: 3s max. Times: one time • Remark: Lead free solder paste (96.5Sn/3.0Ag/0.5Cu) 4 of 4 thickness of solder paste (thicker)
