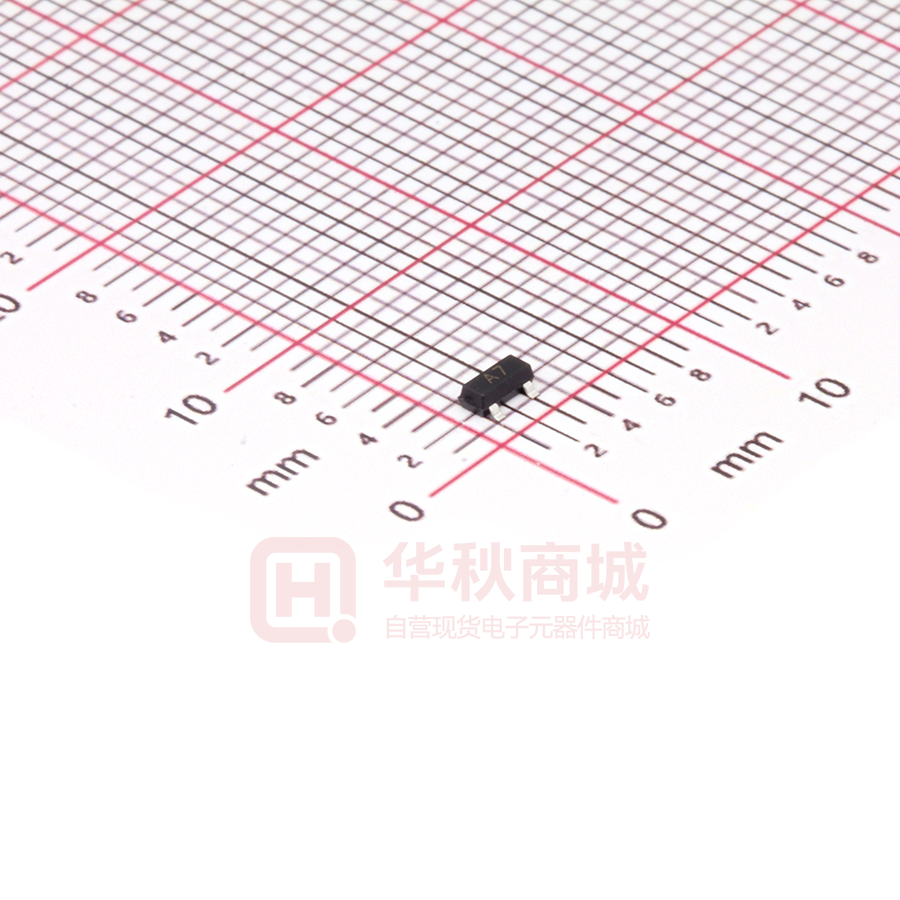

BAV99

BAV99-HAF Silicon Epitaxial Planar Switching Diode Fast switching in thick and thin-film circuits diode 3 Features • Halogen and Antimony Free(HAF), RoHS compliant 1 2 Marking Code: A7 TO-236 Plastic Package Absolute Maximum Ratings (Ta = 25 ) Parameter Symbol Value Unit VRRM 100 V Continuous Reverse Voltage VR 100 V Continuous Forward Current (Double Diode Loaded) IF 125 mA Continuous Forward Current (Single Diode Loaded) IF 215 mA IFRM 450 mA IFSM 0.5 1 4.5 A Ptot 350 mW Tj 150 Tstg - 65 to + 150 Symbol Max. Unit RθJA 357 /W Repetitive Peak Reverse Voltage Repetitive Peak Forward Current Non-repetitive Peak Forward Surge Current at t = 1 s at t = 1 ms at t = 1 μs Power Dissipation Junction Temperature Storage Temperature Range Thermal Characteristics Parameter Thermal Resistance - Junction to Ambient 1) 1) Device mounted on FR-4 substrate PC board, 2oz copper, with minimum recommended pad layout. 1/4 ® Dated :16/12/2021 Rev: 06 BAV99-HAF Characteristics at Ta = 25 Parameter Reverse Breakdown Voltage at IR = 100 μA Forward Voltage at IF = 1 mA at IF = 10 mA at IF = 50 mA at IF = 150 mA Symbol Min. Max. Unit V(BR)R 100 - - - 0.715 0.855 1 1.25 - 30 1 30 50 nA µA µA µA CT - 1.5 pF trr - 4 ns VF Reverse Current at VR = 25 V at VR = 75 V at VR = 25 V, Tj = 150 at VR = 75 V, Tj = 150 Total Capacitance at VR = 0 , f = 1 MHz Reverse Recovery Time at IF = 10 mA, Irr = 0.1 X IR , VR = 6 V, RL = 100 Ω IR 2/4 V ® Dated :16/12/2021 Rev: 06 BAV99-HAF Electrical Characteristics Curves Fig 2. Total Capacitance vs. Reverse Voltage Fig 1. Power Dissipation vs Am bient Tem perature 400 350 250 200 150 100 50 0 0 25 50 75 100 125 150 Am bient Tem perature: Ta ( C) O Fig 4. Forward Characteristics Fig 3. Reverse Current vs. Reverse Voltage IF, Forward Current (mA) Power Dissipation: Ptot (mW) 300 3/4 ® Dated :16/12/2021 Rev: 06 BAV99-HAF Package Outline (Dimensions in mm) Unit mm A 1.20 0.89 A1 0.100 0.013 B 1.40 1.20 TO-236 C 0.19 0.08 D 3.04 2.80 E 2.6 2.2 F 1.02 0.89 G 2.04 1.78 L 0.51 0.37 L1 0.2 MIN Recommended Soldering Footprint 2.0 1.0 0.8 1.0 0.8 1.9 Packing information Pitch Reel Size Package Tape Width (mm) mm inch mm inch TO-236 8 4 ± 0.1 0.157 ± 0.004 178 7 Per Reel Packing Quantity 3,000 Marking information " A7 " = Part No. " • " = HAF (Halogen and Antimony Free) • " YM " = Date Code Marking A7 " Y " = Year " M " = Month Font type: Arial 4/4 ® Dated :16/12/2021 Rev: 06
